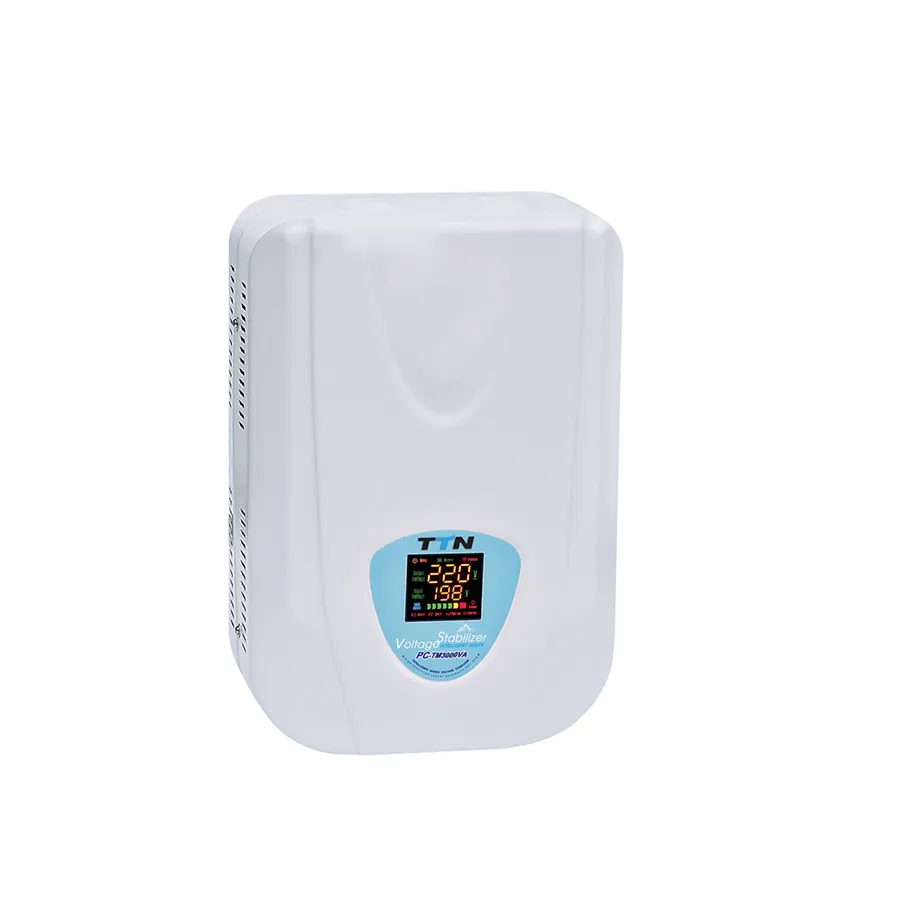

PC-TM10000va Relay Control AC Automatic Voltage Stabilizer/Regulator
Advantages:1.AC Automatic Voltage Stabilizer2.LED Display:Display various protection data3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect4.Wide input voltage range5.Efficiency more than 90%6.No additional waveform disto......
Send Inquiry
Product Description
Advantages:
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:
1.Model:PC-TM 10000VA
2.Input Voltage:150-270V;135-270V;105-270V;80-270V
3.Output Voltage:220v±10%,adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:51.8*39.0*27.0cm
7.G.W.:20.65kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:
1.Model:PC-TM 10000VA
2.Input Voltage:150-270V;135-270V;105-270V;80-270V
3.Output Voltage:220v±10%,adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:51.8*39.0*27.0cm
7.G.W.:20.65kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
| MODEL | PC-TM3000VA | PC-TM5000VA | PC-TM8000VA | PC-TM10000VA | PC- TM12000VA |
| TECHNOLOGY | Relay Control System+Micro computer program control | ||||
LED DISPLAY | Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | |||
Protection | Over Voltage | Output Voltage≥243±4V | |||
| Low Voltage | Output Voltage≤188±4v | ||||
| Over Loading | More than 120% | ||||
| Over Temperture | 120ºC±10ºC | ||||
| Delay Time | Long time(255 seconds)/Short time(5 seconds) | ||||
| Circuit Breaker | Regulator/Bypass | ||||
| Language | English/Russian/Chinese | ||||
| INPUT VOLTAGE | AC150V-270V(A Type);AC135V-270V(B Type);AC105V-270V(C Type);AC80V-270V(D Type) | ||||
| OUTPUT VOLTAGE | 220V±10% ,adjustable | ||||
| FREQUENCY | 50HZ/60HZ | ||||
| PHASE | Single Phase | ||||
| EFFICIENCY | ≥90% | ||||
| AMBIENT TEMPERATURE | -15ºC-45ºC | ||||
| RELATIVE HUMIDITY | <95% | ||||
| WAVEFORM DISTORTION | No additional wave from distortion | ||||
| INSULATING RESISTANCE | Normally more than 2MΩ | ||||
| SPECIFICATIONS | |||||
| POWER | 3000VA | 5000VA | 8000VA | 10000VA | 12000VA |
| PACKING SIZE(CM) | 43.2*31.9*39.9 | 45.7*34.9*43.9 | 45.7*34.9*43.9 | 51.8*39.0*27.0 | 51.8*39.0*27.0 |
| PACKING(pcs) | 2 | 2 | 2 | 1 | 1 |
| G.M(kgs) | 21.59 | 28.16 | 35.50 | 20.65 | 22.55 |
