0- 1000A Three-Phase Current Transformer Used for Motor Protection

Product Description

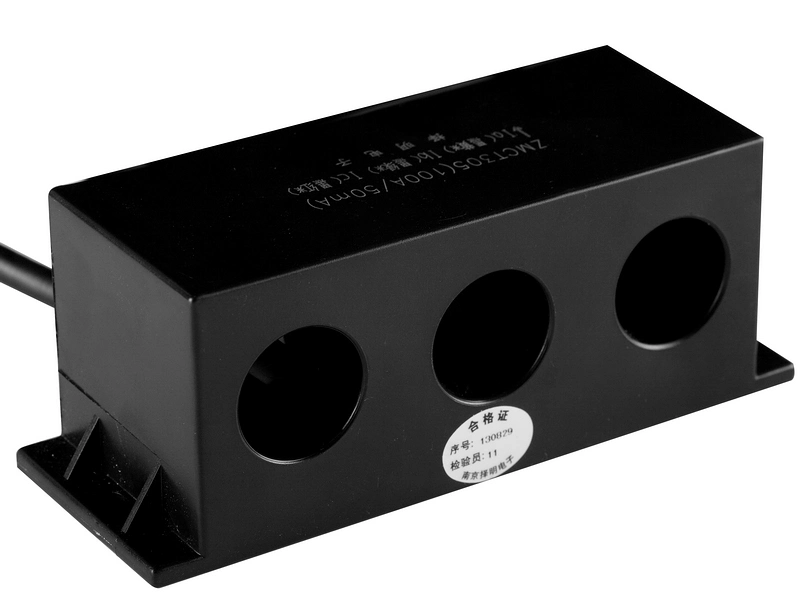

ZMCT305 series Current Transformer

Features and application:
High accuracy, good consistency, for motor protection

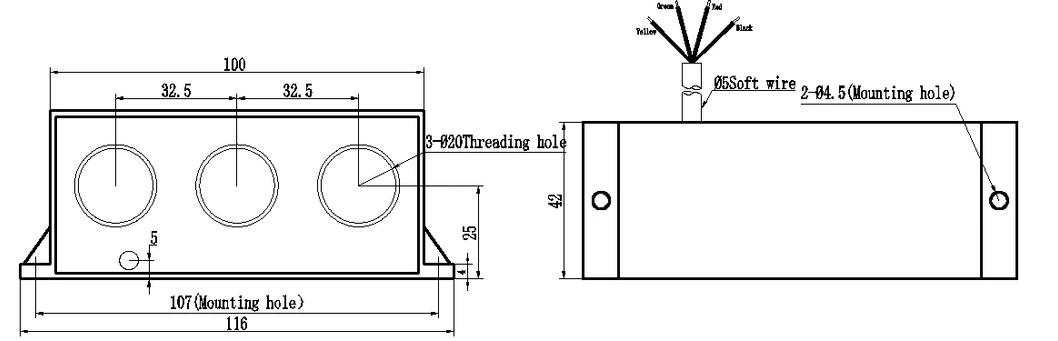

Structural parameters:
0-1000A Three-Phase Current Transformer Used for Motor Protection

0-1000A Three-Phase Current Transformer Used for Motor Protection

Front view lateral view
The main technical parameters:

Model	ZMCT305
Rated input current	5~100A
Rated output voltage	0~1V
Operating current	0~1000A
linearity	≤0.2%(20%dot~120%dot)
Permissible error	-0.5%≤f≤+0.5%(rated input)
phase angle error	≤60'(rated input)
isolation voltage	3000V
application	motor protection
Encapsulation	Epoxy
installation	Screw mounting
operating temperature	-40ºC~+85ºC

Note: This series of products is mainly used for the detection of high-current; high-current products of different specifications can be made according to customer requirements.
