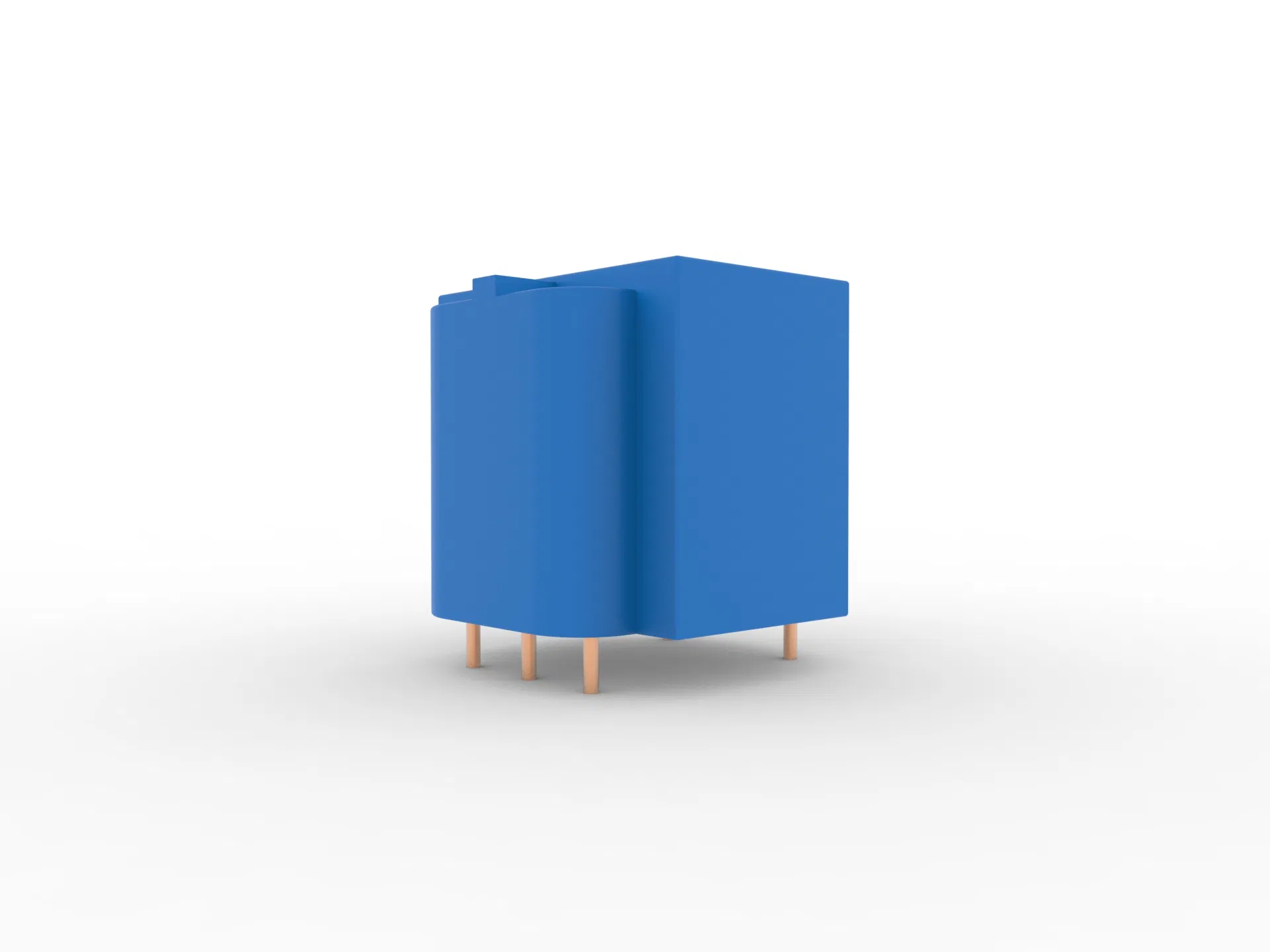

0-5A High Precision High Voltage Replay Protection Current Transformer
High Protection Current Transformer- This product is used for signal isolation, signal acquisition, insulation and other data transmission of 500KV relay protectionIt has strong overload capability and analyzability of transient characteristics.- It can be used in power system relay protection and h......
Send Inquiry
Product Description
High Protection Current Transformer
- This product is used for signal isolation, signal acquisition, insulation and other data transmission of 500KV relay protection
It has strong overload capability and analyzability of transient characteristics.
- It can be used in power system relay protection and high voltage level transformers for system protection and transient analysis.
Main Feature
Good Linearity ,Excellent consistency ,Wide working range
Simple electric circuit ,Reliable
Transient characteristics are good, the waveform is true
Strong anti-saturation ability, can superimpose 100% DC component
Electrical parameter
Input Rated Current Iin:0-5A
Max Rated Current Imax:40×Iin
Secondary Output Voltage o:0-10V
Nonlinearity :Precision <±0.5%
Phase Error<±60'
Frequency:45-1500Hz
Output Load Impedance>50kΩ
Insulation Resistance :>500mΩ
- This product is used for signal isolation, signal acquisition, insulation and other data transmission of 500KV relay protection
It has strong overload capability and analyzability of transient characteristics.
- It can be used in power system relay protection and high voltage level transformers for system protection and transient analysis.
Main Feature
Good Linearity ,Excellent consistency ,Wide working range
Simple electric circuit ,Reliable
Transient characteristics are good, the waveform is true
Strong anti-saturation ability, can superimpose 100% DC component
Electrical parameter
Input Rated Current Iin:0-5A
Max Rated Current Imax:40×Iin
Secondary Output Voltage o:0-10V
Nonlinearity :Precision <±0.5%
Phase Error<±60'
Frequency:45-1500Hz
Output Load Impedance>50kΩ
Insulation Resistance :>500mΩ
| Performance | |||||||
| Type | Input Rated Current (A) | Output Rated Voltage(V) | Max Rated Times | NonLinearity | Power Consumption(VA) | Power Frequency Withstand voltage (V) | |
| Precision (±%) | Phase Error | ||||||
| (±') | |||||||
| TR0101-4G | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤30 | <0.5 | ≥3000 |
| TR0149-4G | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤30 | <0.5 | ≥3000 |
| TR01201-2G | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤30 | <0.5 | ≥3000 |
| TR01153-2G | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤30 | <0.5 | ≥3000 |
| TR0162-4GJ | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤60 | <0.5 | ≥3000 |
| TR01116-2BE | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤90 | <0.5 | ≥3000 |
| TR01159-2BE | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤90 | <0.5 | ≥3000 |
| TR01284-2BE | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤60 | <0.5 | ≥3000 |
| TR01284-4BE | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤60 | <0.5 | ≥3000 |
| TR0179-4BE | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤60 | <0.5 | ≥3000 |
| TR01203-2BE | 0~5 | 0~0.3535 | 40 | ≤0.5 | ≤30 | <0.5 | ≥3000 |
