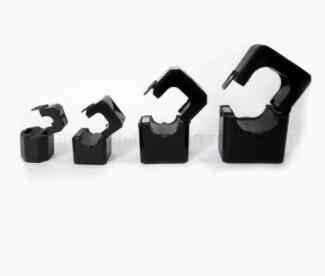

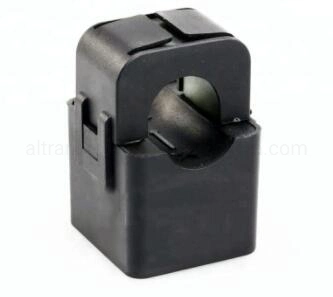

100A/ 100mA AC China electric mini split core current transformer

Product Description

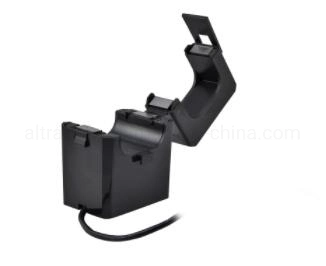

The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

Features:

Maximum continuous primary current 600A AC
Output: 33.3-100 mA Volt at rated current
Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
Maximum Primary Voltage: 3500-5000Vac(Insulated Conductor)
Phase angle: Less than 0.5 degrees at rated current
Frequency Range: 50 Hz to 1K Hz
Accuracy: ± 0.5/1% from 5% to 120% of rated current
Operating Temperature: -25 Cto 60 C.
Insulation Voltage: 720 Vac

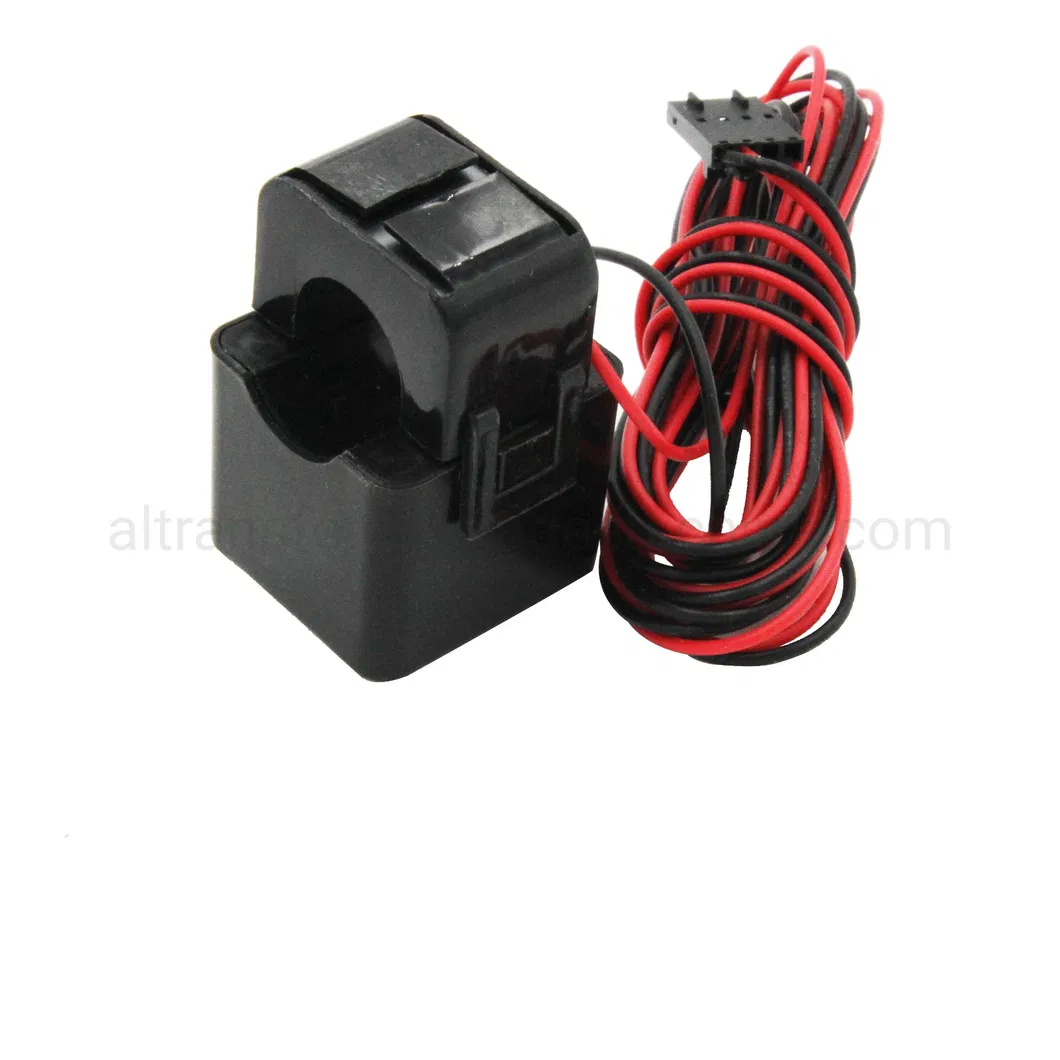

Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,ETL recognized, and RoHS compliant
Output and leads can be customized
100A/100mA AC China electric mini split core current transformer

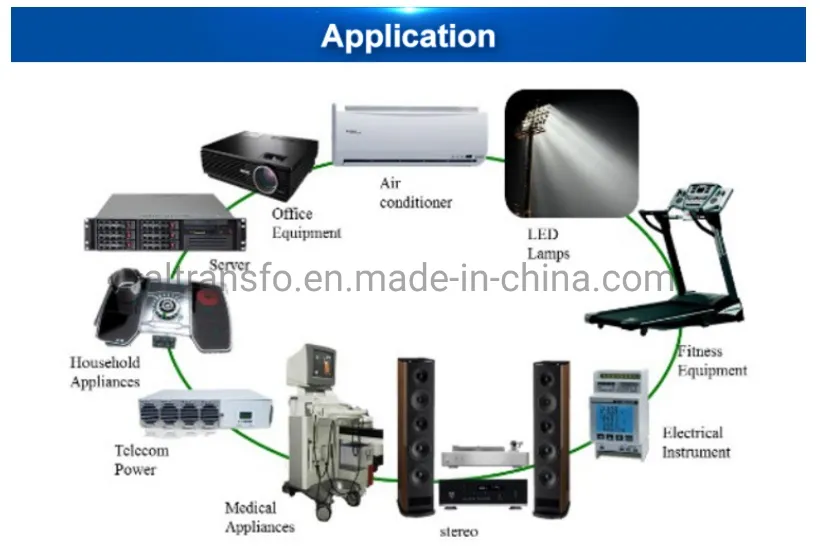

Application

Measures AC current flow to electric motors, lighting, air conditioning equipment,

etc.Compatible with HVAC temperature control, power management,building automation systems.
