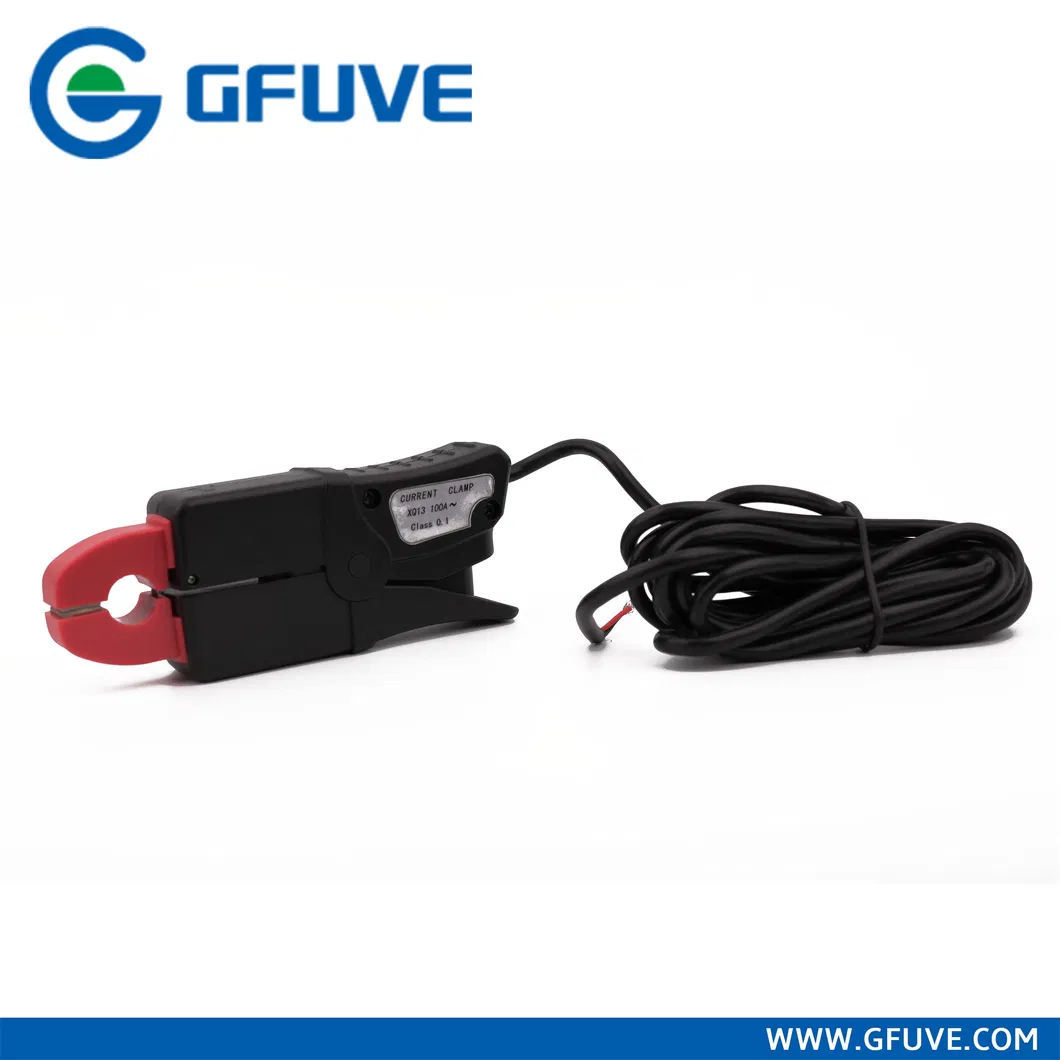

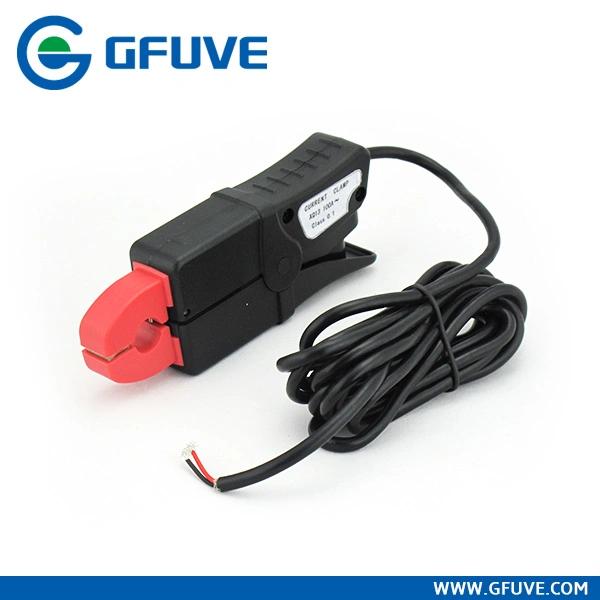

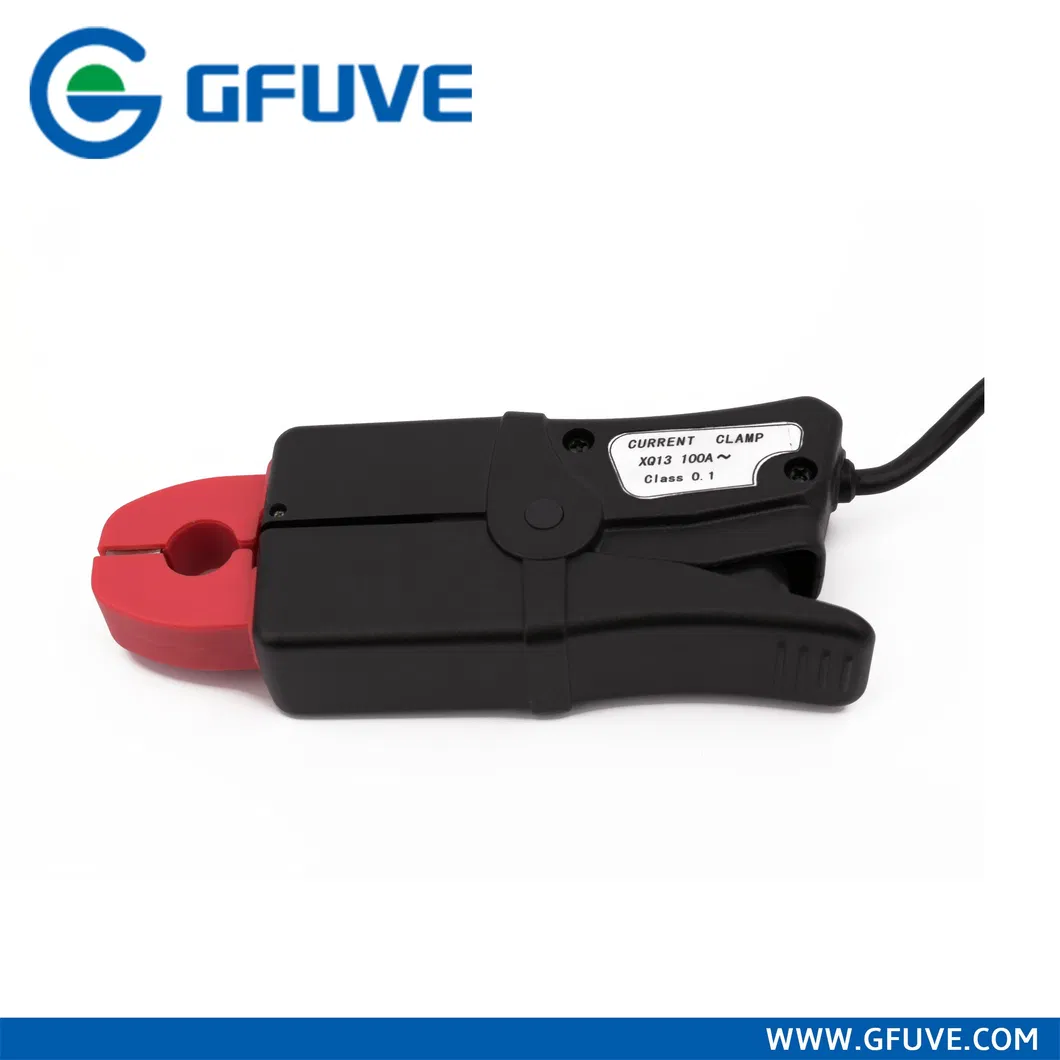

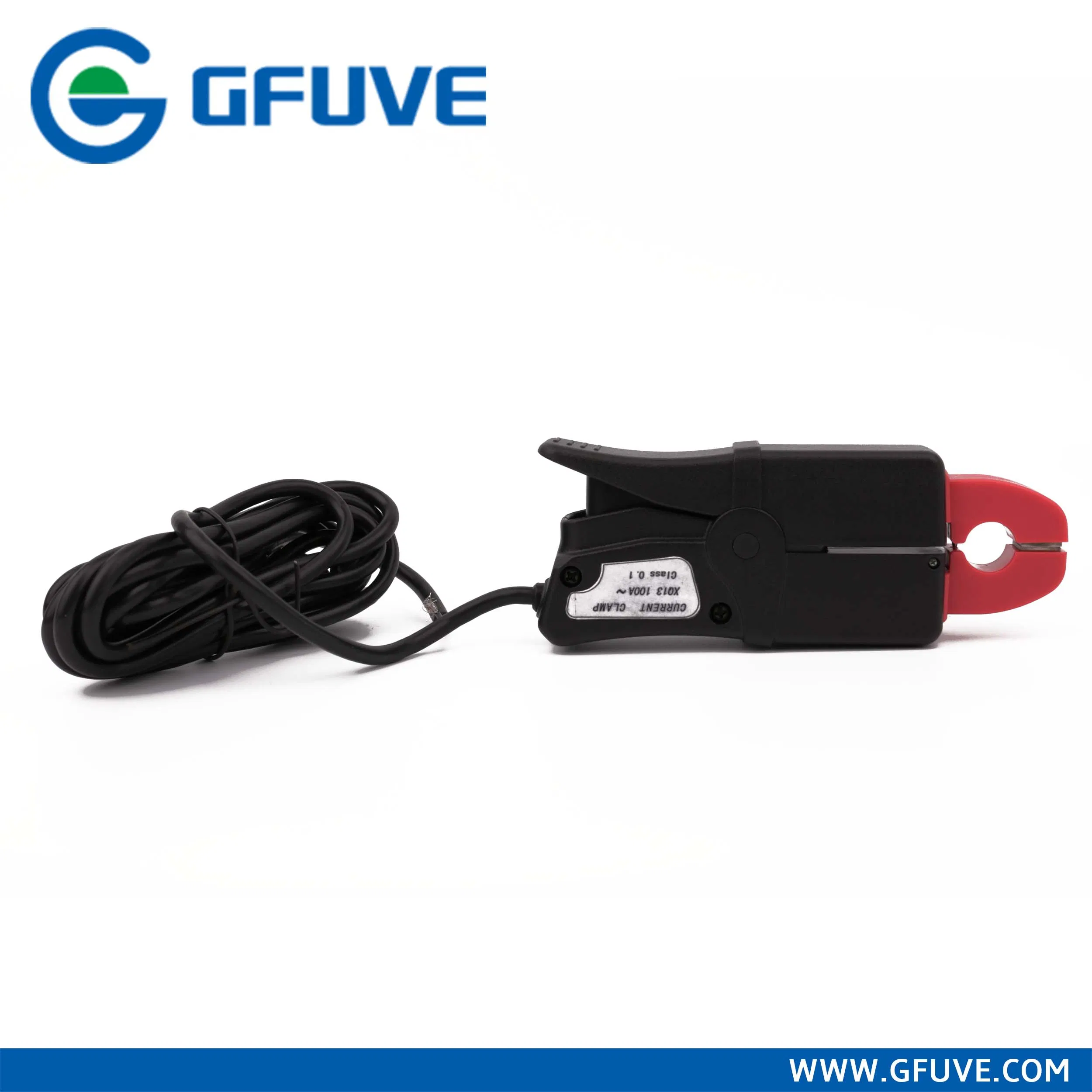

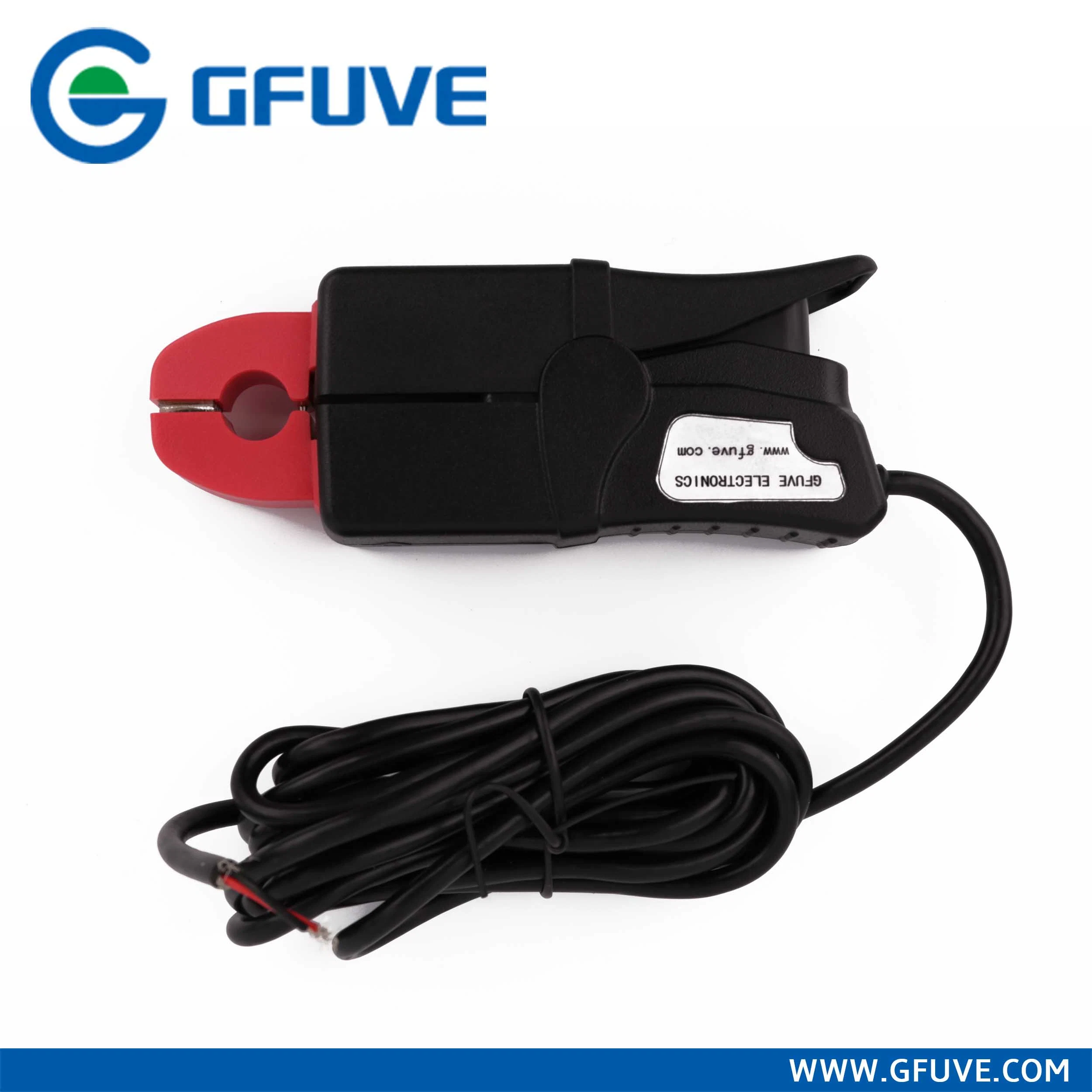

100mA Output Class 0.1 Clamp on Current Transformer for Watt Hour Meter Tester

Product Description

XQ13 100ma Output class 0.1 Clamp on Current Transformer for Watt hour meter tester

Applications
· Power quality measuring
· Large industrial loads
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 100A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

Ratio	1000: 1 or 2000:1, customized
Nominal input current	100 A
Max. Cont. Input current	120 A
Accuracy	0.1 %,0.2%
Over voltage category	CAT III 600 V
Output signal	100mA AC at nominal input current
Frequency range	40 Hz....2000 Hz
Dielectric strength	3000 V 50Hz/60Hz at 1 minute
Temperature range	-20 °C...+55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	20 mm
Standard	EN 61010-1
Dimensions	52.5mm x 136.5mm x 28 mm
Weight	320 g
