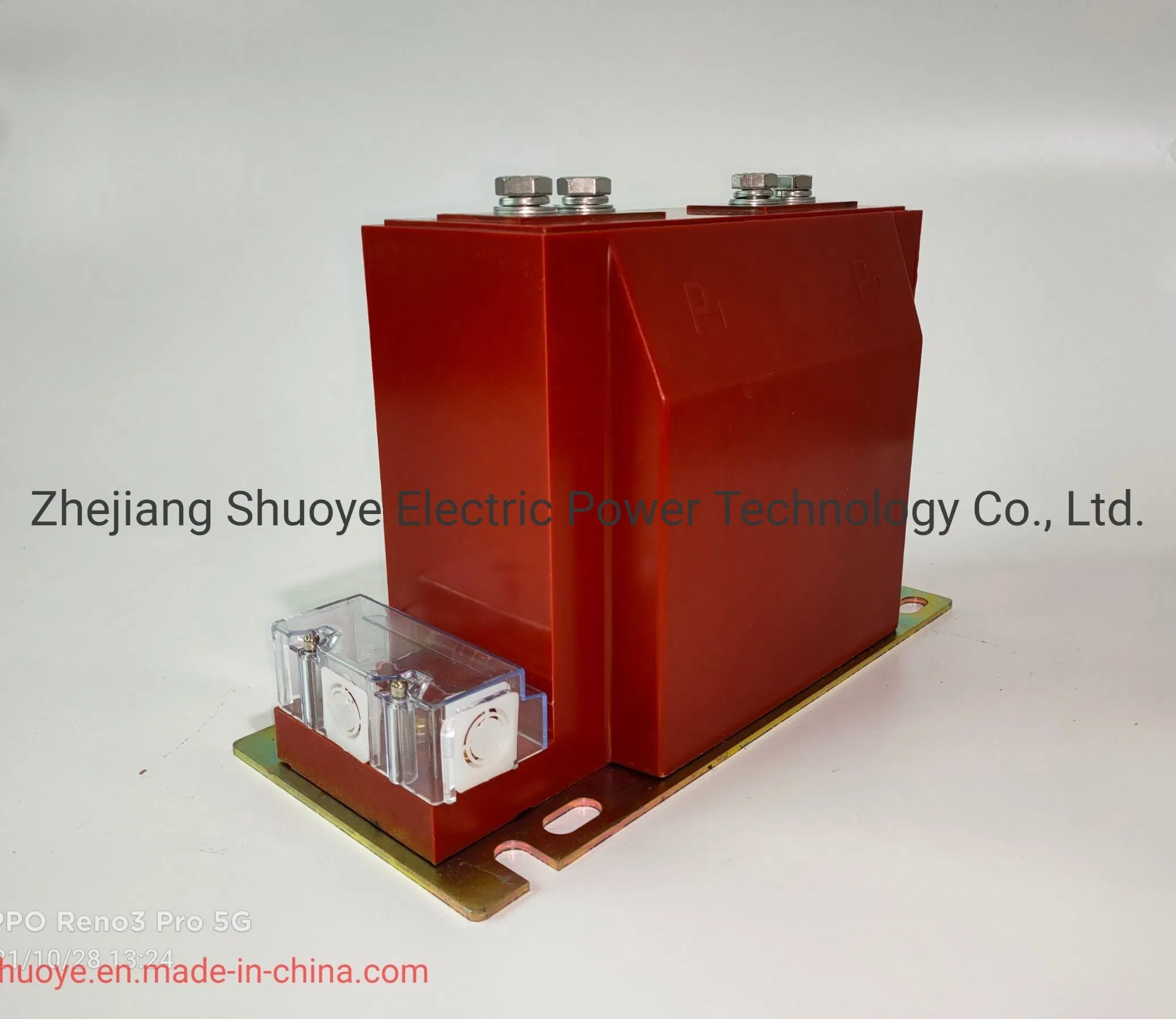

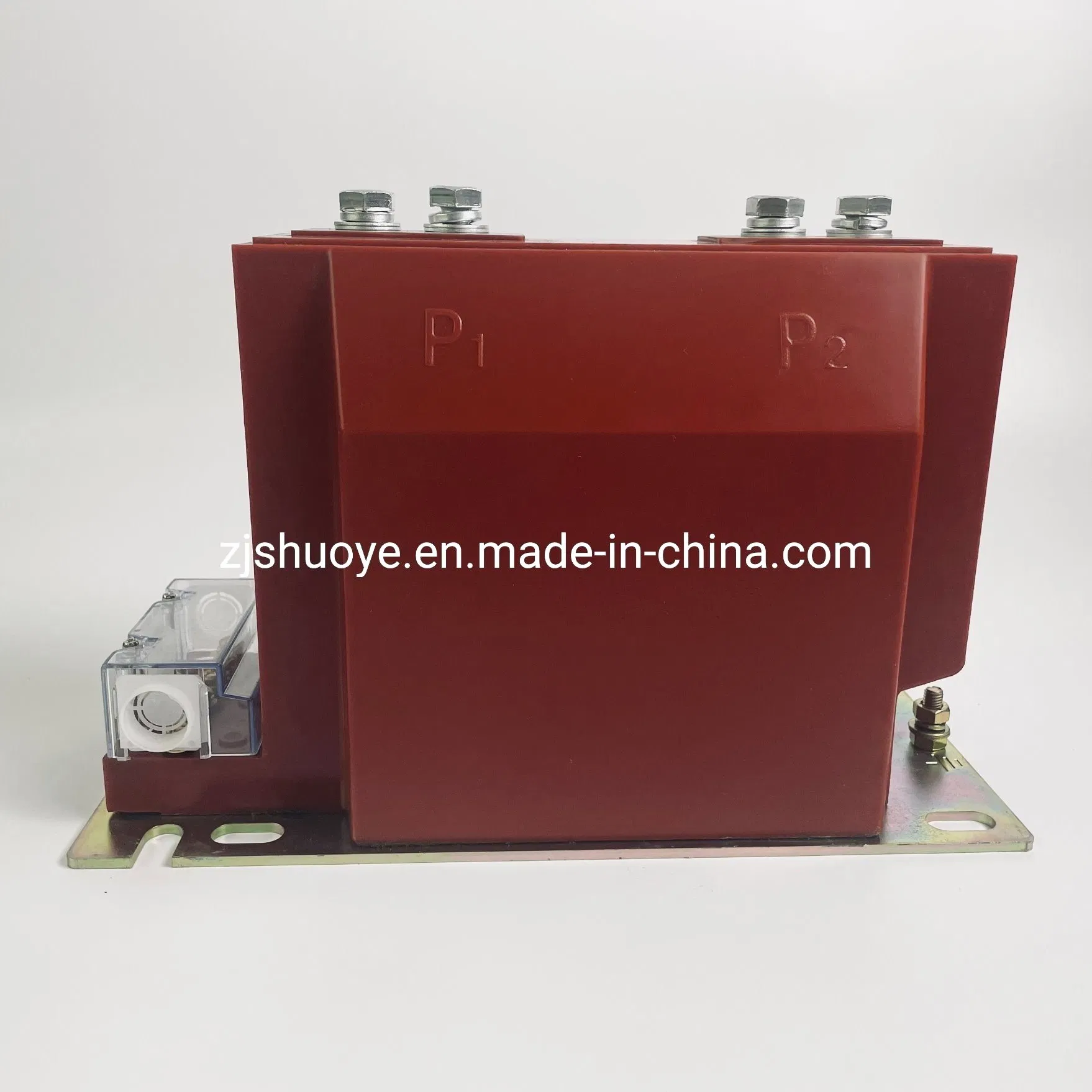

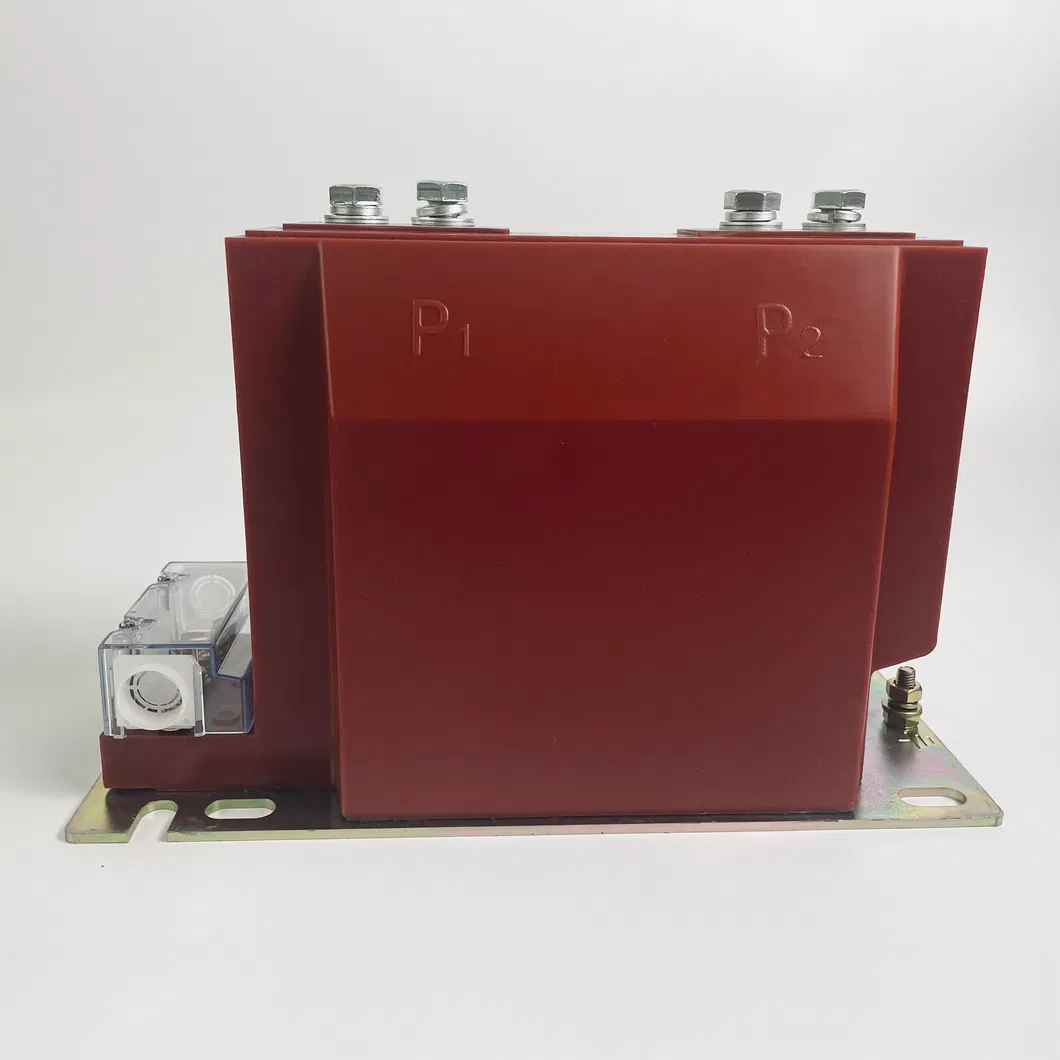

11kv China Current Transformer Ratio 500/5 China Current Transformer

Product Description

Technical Data:
*Rated insulation level:12/36/65kV;
*Power factor of load:COSΦ=0.8(lagging);
*Rated secondary current:5A or 1A;
*Rated frequency:50Hz or 60Hz;
*Anti-Pollution grade:Class II;
*Ambient temperature:-0.5ºC-40ºC,daily average temperature not more than 30ºC;
*Altitude:≤1500m;
*Standard:IEC60044-1. IEC60185,IEC61869
11kv China Current Transformer Ratio 500/5 China Current Transformer

11kv China Current Transformer Ratio 500/5 China Current Transformer

Technical Data Form:

Type	Rated current	Accurscy class combination	rated output			Rate short-time thertmal current	Rated dynamic current

			0.2S	0.5	10P

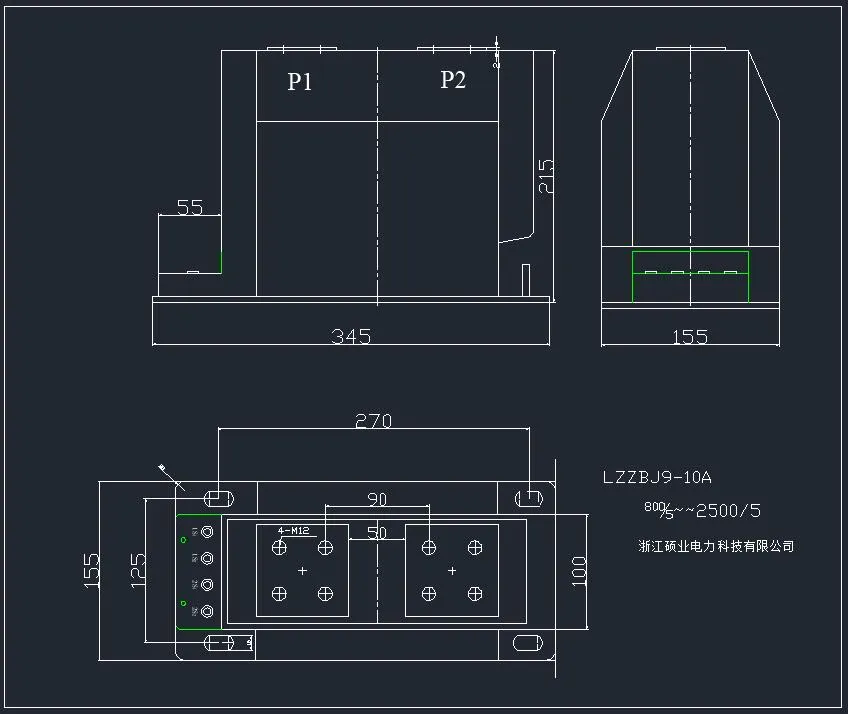

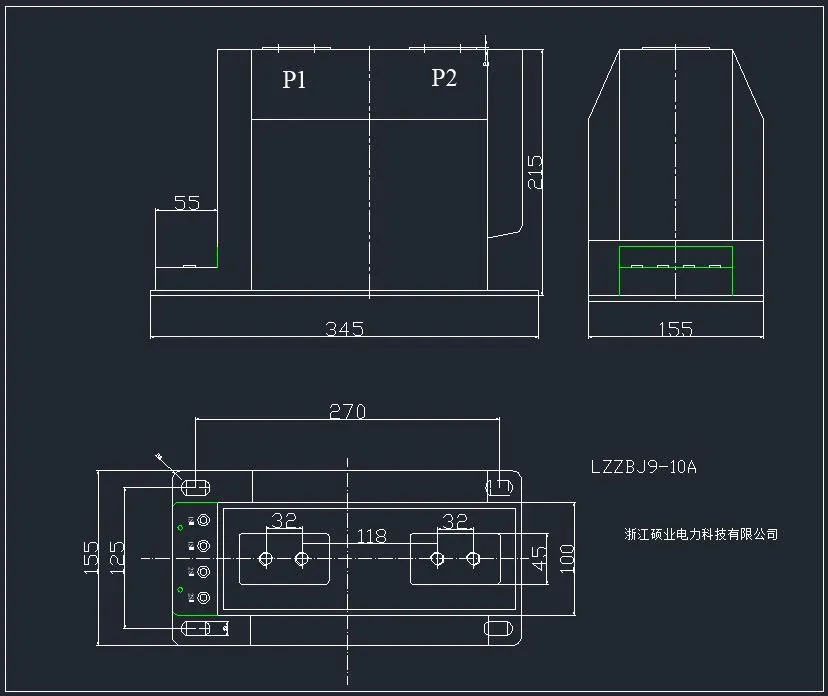

LZZBJ9-10A	5-200	0.5 0.5/10P 0.2S/0.5 0.2S/10P 0.2S/0.5/10P 0.2S/10P/10P 0.5/10P/10P 0.2S	10 20 30 40	10 20 30 50 80	10 20 30	100lin	225lin
	300					63	157
	400
	500					63	157
	600
	800
	1000					80	200
	1200
	1500
	2000
	2500

Note: special capacity and variable ratio are negotiated separately.

11kv China Current Transformer Ratio 500/5 China Current Transformer

Our company is one of the professional manufacturers of measuring equipment in China, with advanced manufacturing technology and testing equipment, and 20 years of industry experience team of engineers, providing a strong guarantee of product quality.
The current transformers and voltage transformers produced by our company are very accurate and of good quality, and the products can meet international standards IEC. At the same time, we are also one of the qualified suppliers of China Power Grid Corporation. So please rest assured to buy.

USD Remittance Instruction

IF you are expecting USD remittance from remitter, please advise remitter to give the following instructions to his/her bank,who will handle the remittance.
Field 56: Intermediary bank:
       The Bank of New York Mellon, New York , USA
       SWIFT BIC : IRVTUS3NXXX
Field 57: Beneficiary Bank :
       Bank Of Taizhou Co.,Ltd.
       Bank Address: No. 699, Shifu Dadao, Taizhou, Zhejiang,
                        318000, China
       SWIFT BIC: TZBKCNBTXXX
Field 59: Beneficiary :Zhejiang Shuoye Electric Power Technology Co.,Ltd.
       Account No.:550509074200045
       Name: Zhejiang Shuoye Electric Power Technology Co.,Ltd.
       Address & Telephone No.:Ni'ao Village,Baishi Street,YueqingCity,Zhejiang Province(Building B,Zhejiang Dongdu Mould Co.,Ltd.)


                           FAQ
Q1.Are you manufacturers?
A.Yes, so I can guarantee that our price is the cheapest.
Q2. tell me the standard of package?
A.wooden crate.
Q3.Would you accept to use our logo ?
A.If you have authorization, then you can.

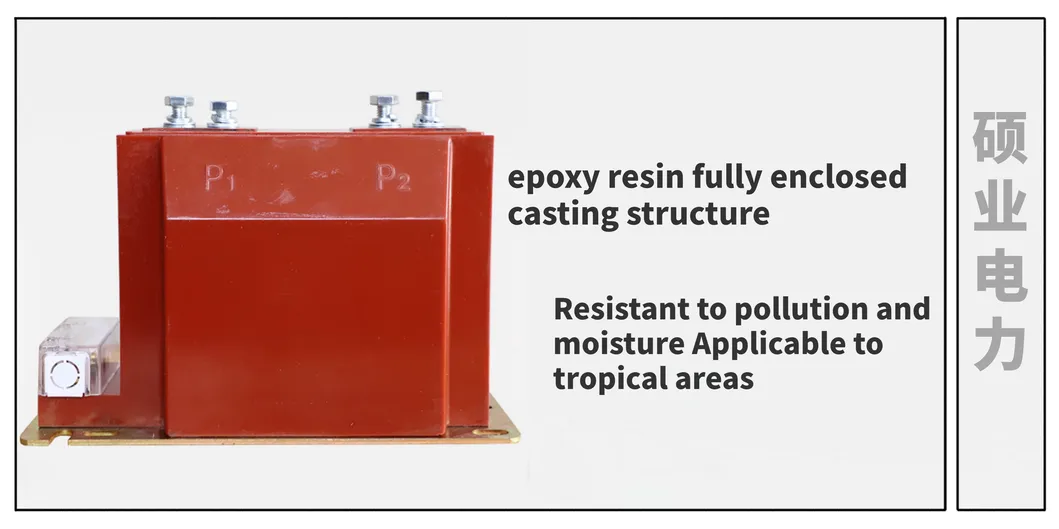

Q4.What is the insulation method?
A.Resin insulation
Q5.When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
Q6.: What is the price of shipping?
A: Depending upon the port of delivery, prices vary.
Q7.how's the delivery time ?
A. usually it will take about 30 days after order confirmed. It depend on your order quantity.
Q8.Can you customize special capacity and ratio?
A.special capacity and variable ratio are negotiated separately.
