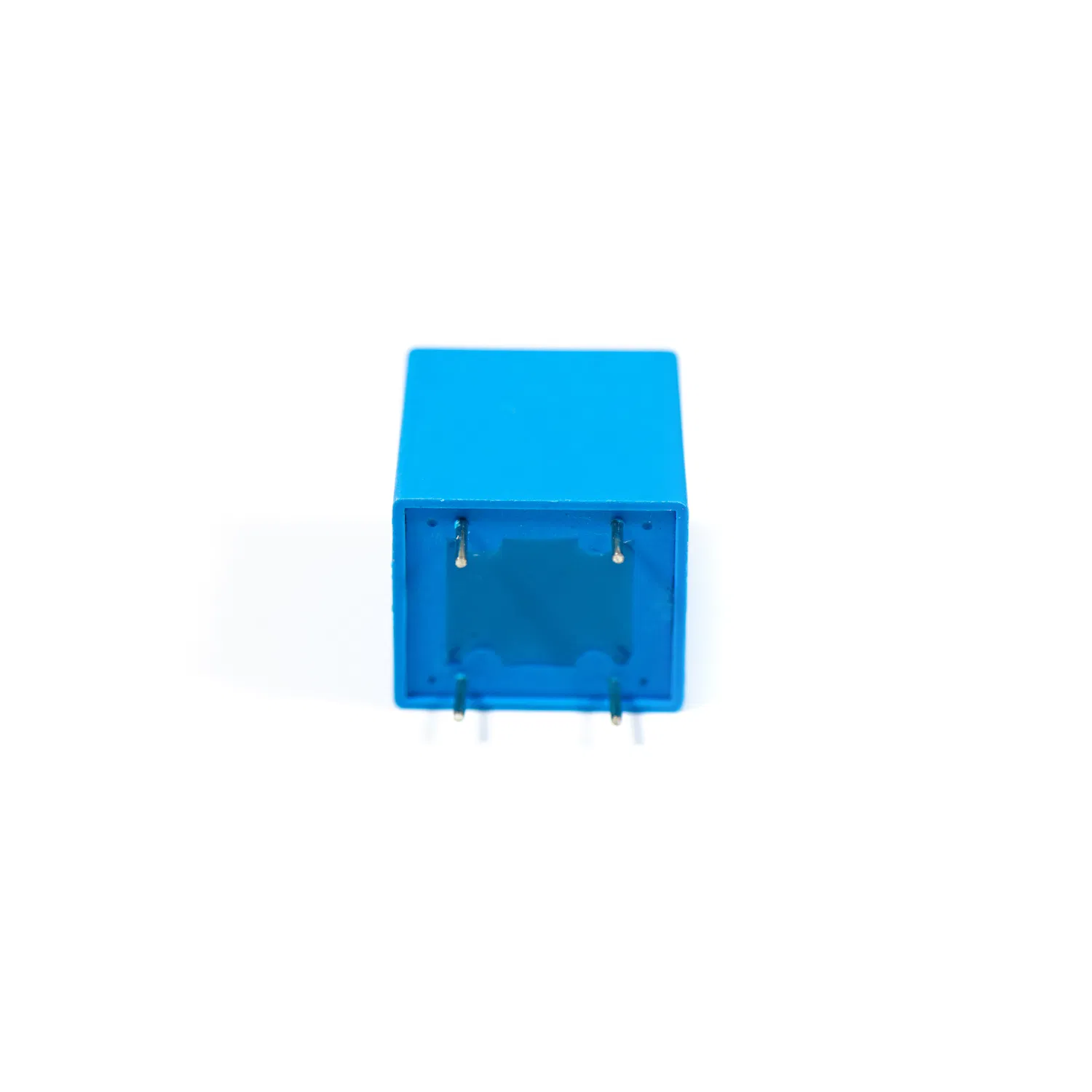

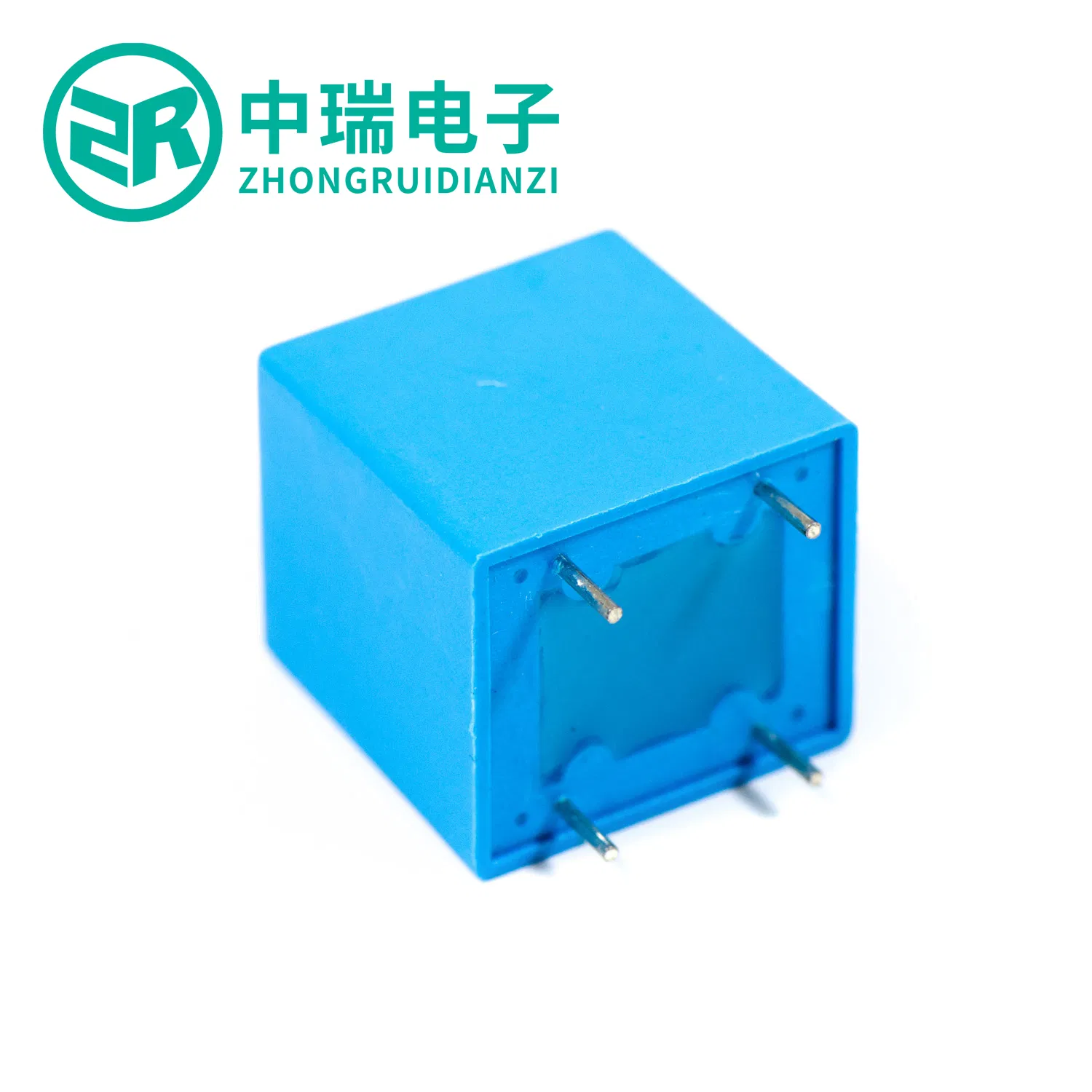

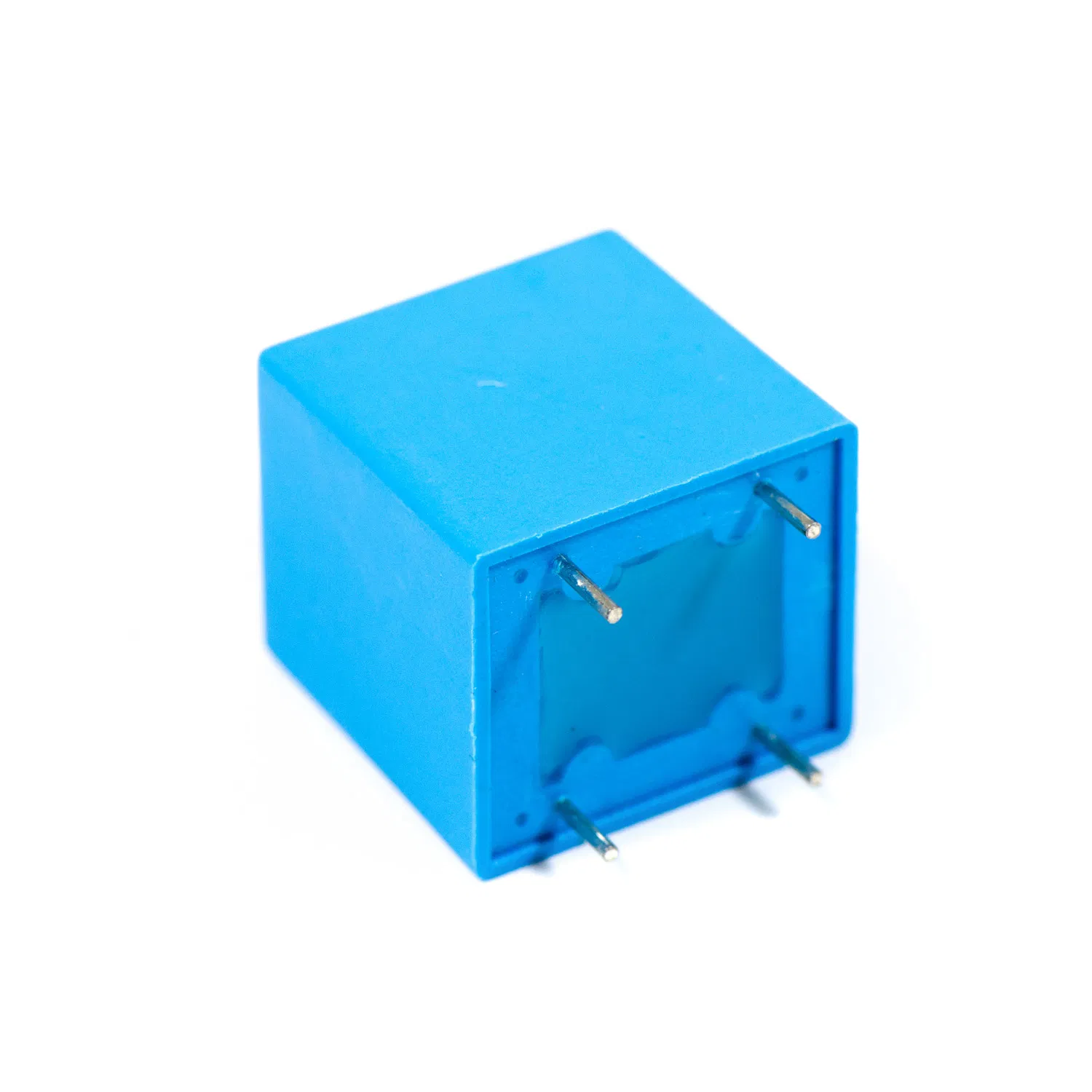

2mA: 2mA PCB Mounting Current Voltage Transformer Class 0.2
2mA/2mA PCB Current Transformer Manufacturers:Our series of 2mA/2mA PCB Current Transformerare designed for fast and easy installation.The typical usage of the product is for the active output.The product can be directly through the resistance sampling easy to use.Features:Rated input current:2mARat......
Send Inquiry
Product Description
2mA/2mA PCB Current Transformer Manufacturers:
Our series of 2mA/2mA PCB Current Transformerare designed for fast and easy installation.The typical usage of the product is for the active output.The product can be directly through the resistance sampling easy to use.
Features:
Rated input current:2mA
Rated output current:2mA
turns ratio:1000:1000
phase angle error:≤20'(input 2mA,sampling resistor 100Ω)
linear range: 0~1000V 0~10mA(sampling resistor 100Ω)
Linearity:≤0.2%(20%dot~120%dot)
Permissible error:-0.3%≤ f ≤+0.2%(input 2mA,sampling resistor 100Ω)
isolation voltage :4000V
Application:voltage and power measurement
Encapsulation:Epoxy
installation:PCB mounting(Pin Length>3mm)
Operating temperature:-40ºC~+85ºC
Certification: IS9001, CE ,RoHS,UL
Brand Name :ZR OR OEM
We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!
Our series of 2mA/2mA PCB Current Transformerare designed for fast and easy installation.The typical usage of the product is for the active output.The product can be directly through the resistance sampling easy to use.
Features:
Rated input current:2mA
Rated output current:2mA
turns ratio:1000:1000
phase angle error:≤20'(input 2mA,sampling resistor 100Ω)
linear range: 0~1000V 0~10mA(sampling resistor 100Ω)
Linearity:≤0.2%(20%dot~120%dot)
Permissible error:-0.3%≤ f ≤+0.2%(input 2mA,sampling resistor 100Ω)
isolation voltage :4000V
Application:voltage and power measurement
Encapsulation:Epoxy
installation:PCB mounting(Pin Length>3mm)
Operating temperature:-40ºC~+85ºC
Certification: IS9001, CE ,RoHS,UL
Brand Name :ZR OR OEM
We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!
