33kv Outdoor Voltage Transformer Manufacturer PT

Product Description

33KV Outdoor Voltage Transformer Manufacturer pt

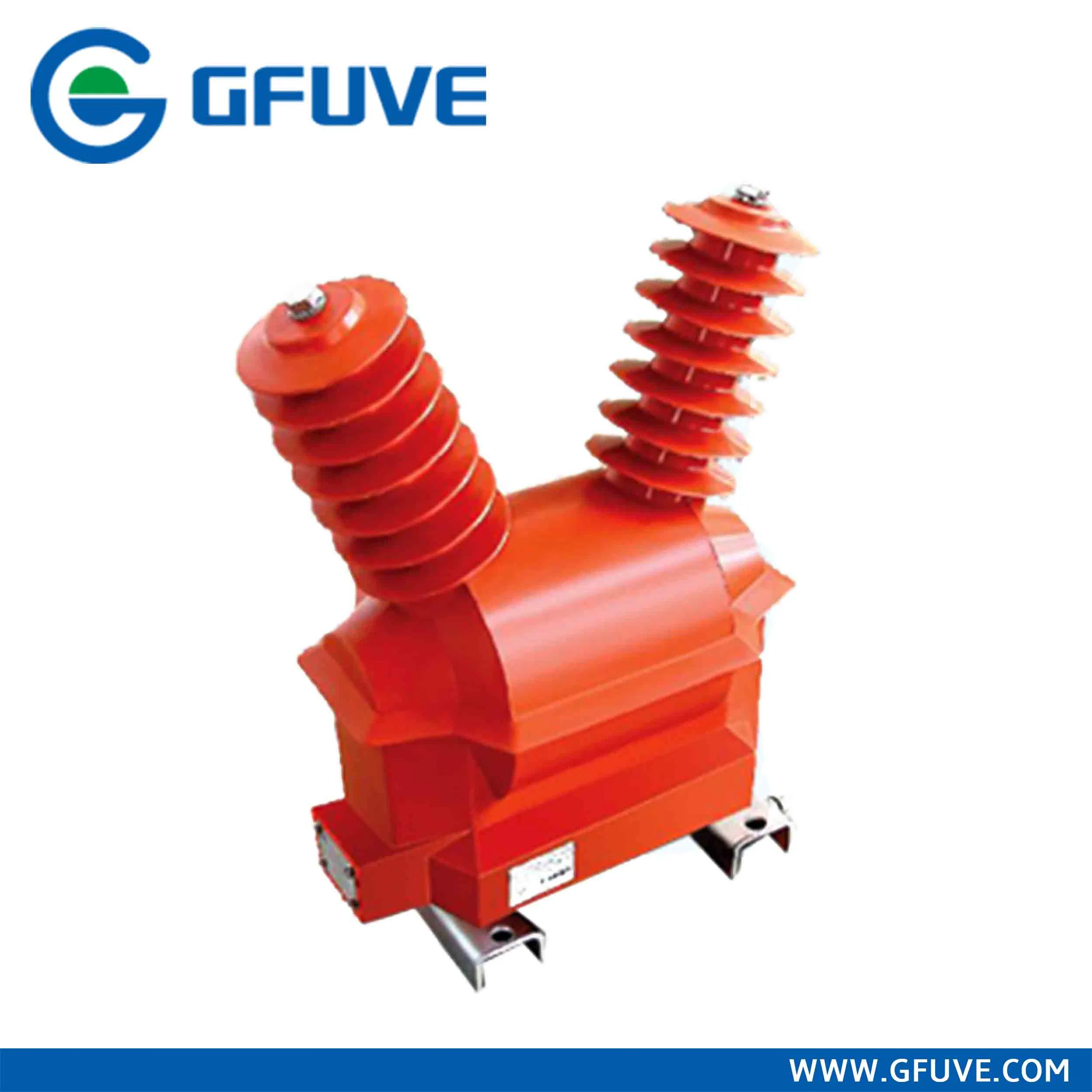

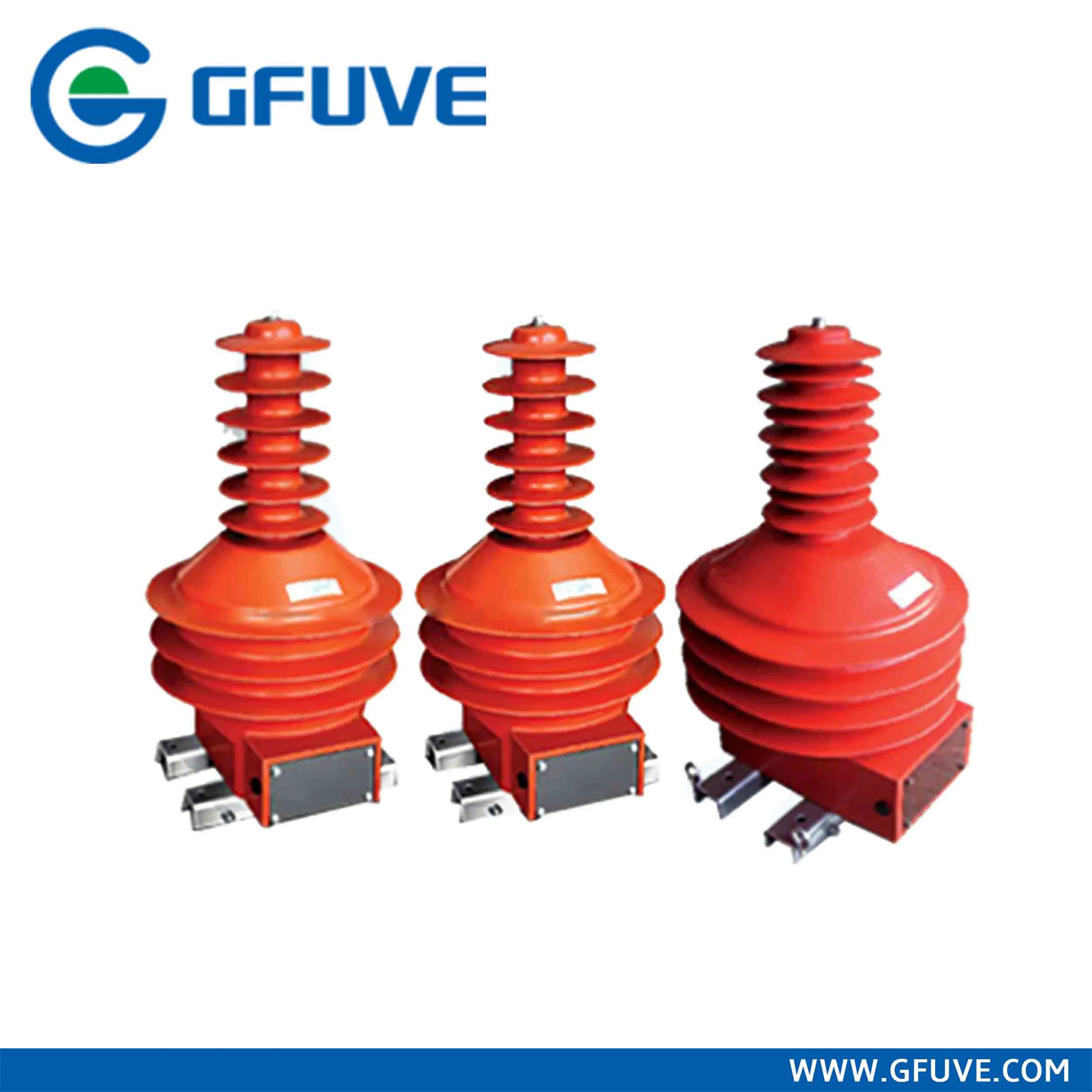

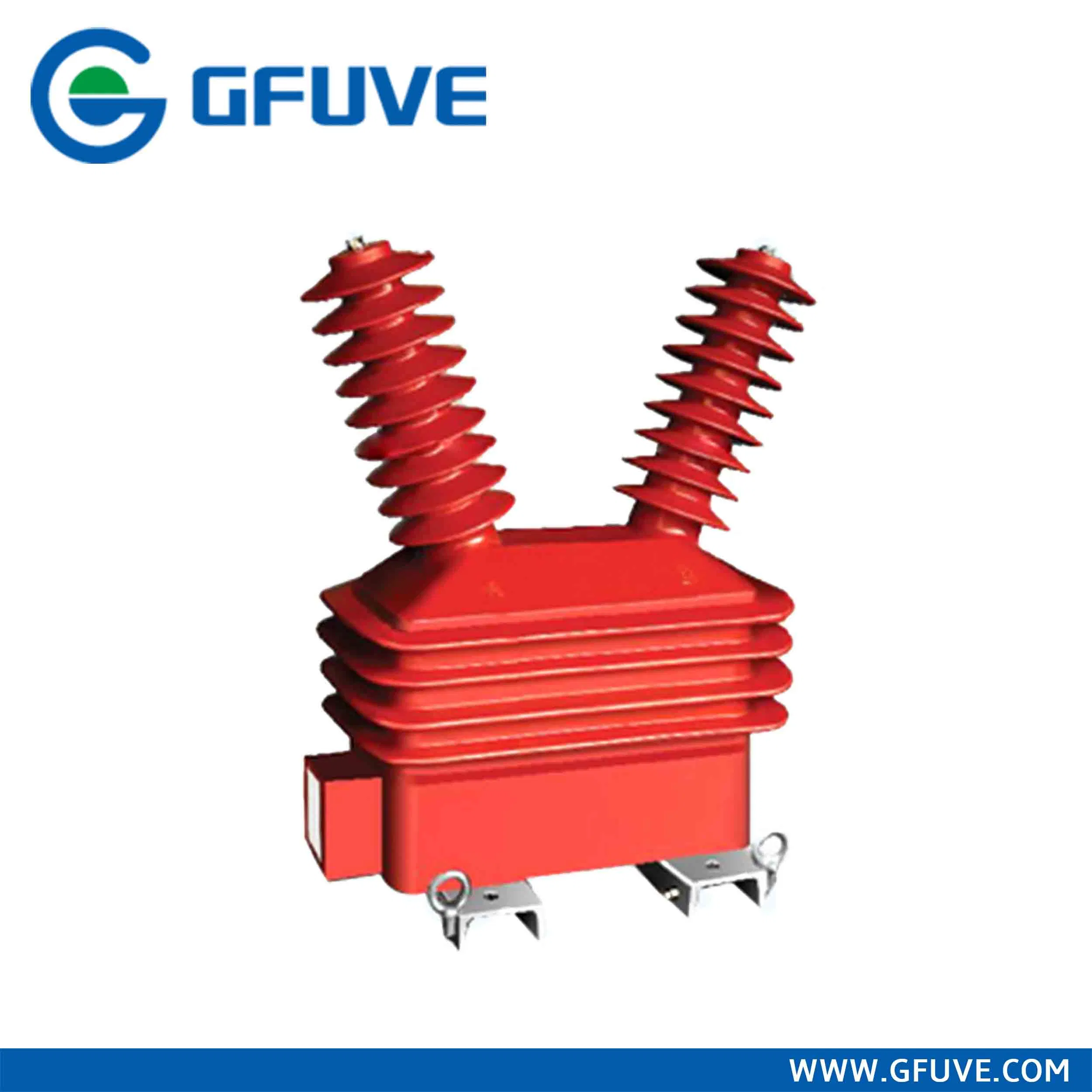

GFUVE Electronics is a medium voltage potential transformer Manufacturer. manufactures an extensive line of cast epoxy resin insulated transformers across the voltage range of 5.5 kV to 72.5 kV. This model JDZW-35 JDZXW-35G are outdoor Voltage Transformers in the 36 kV class with performance ratings coinciding with industry standard product offerings. GFUVE Electronics, because of product depth, familiarity with international standards and custom design capability can also design a solution to your specific needs.
parameters

Model	Rated Voltage Ratio(KV)	Accuracy class and Accuracy class combination rated secondary output (VA)	Limited output (VA)	Rated insulation level (KV)	Surface creepage distance (mm)	Once fuse(A)	Wt(KG)
JSZW-35	35000/100	0.2---60 0.5---150 1---300 3---600	1200	40.5/95/200	1480	0.2	120
JSZW-35	35000/100/100	0.2/0.2---30/30 0.2/0.5---30/10 0.5/0.5---60/60	600/600
JDZXW-35G	35000/√3 100/√3 100/√3	0.2/6P(3P)---10/100 0.5/6P(3P)---90/100 1/6P(3P)---200/100 3/6P(3P)---500/100	600
JDZXW-35G	35000/√3 100/√3 100/√3 100/√3	0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/20/100 0.5/0.5/6P(3P)---30/30/100	300/300
