    500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT
    • 500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT
    • 500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT
    • 500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT
    • 500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT

    500A 0.5 Class Clamp on Current Transformer Load Centers Split Core CT

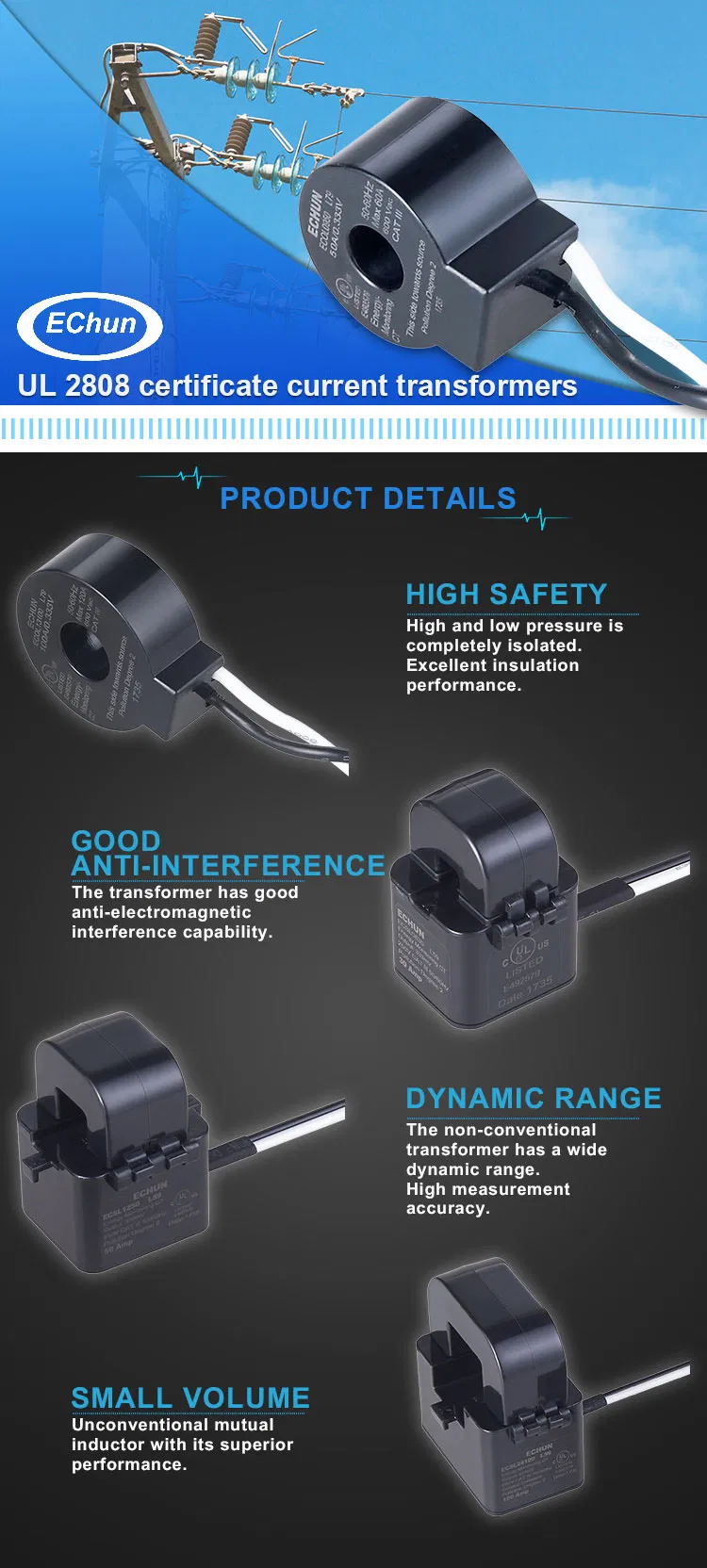

    500A 0.5 class clamp on current transformer load centers split core ctThe ECS55-C series are clamp-on current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for ......

    Send Inquiry

    Product Description

    500A 0.5 class clamp on current transformer load centers split core ct

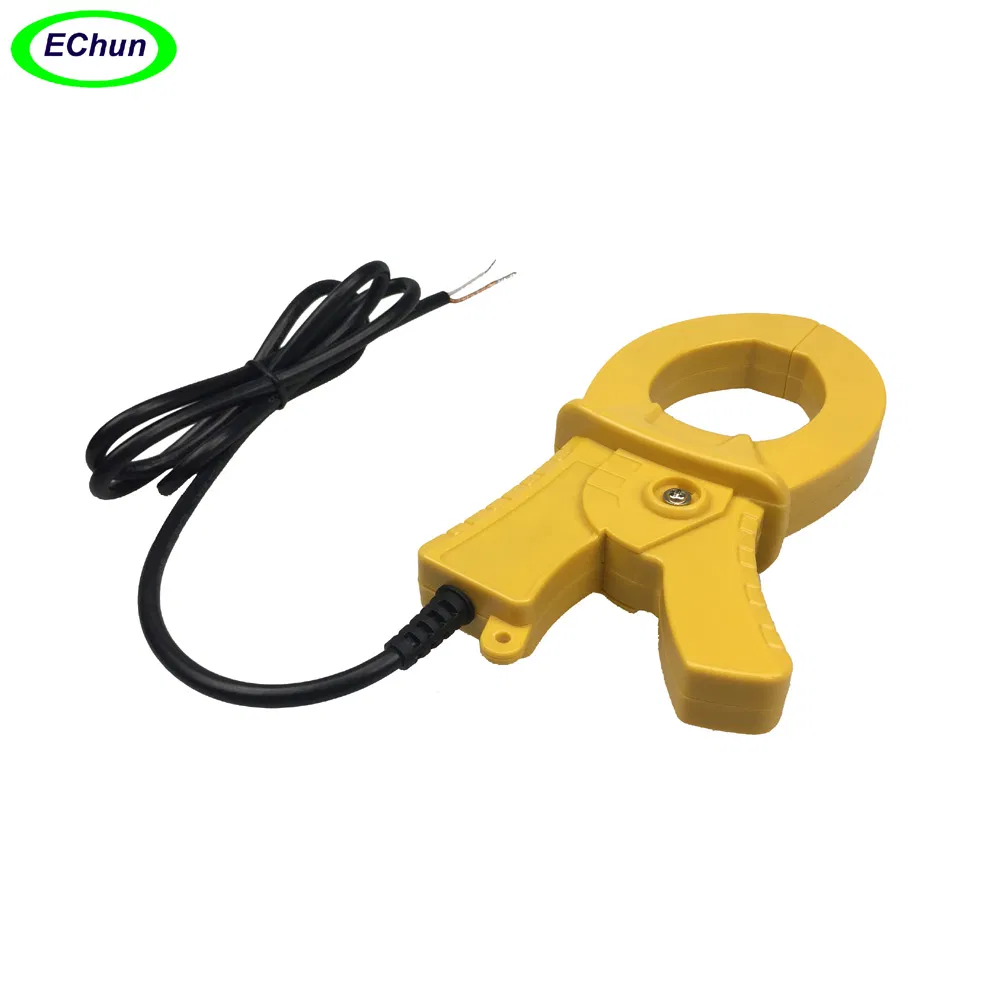

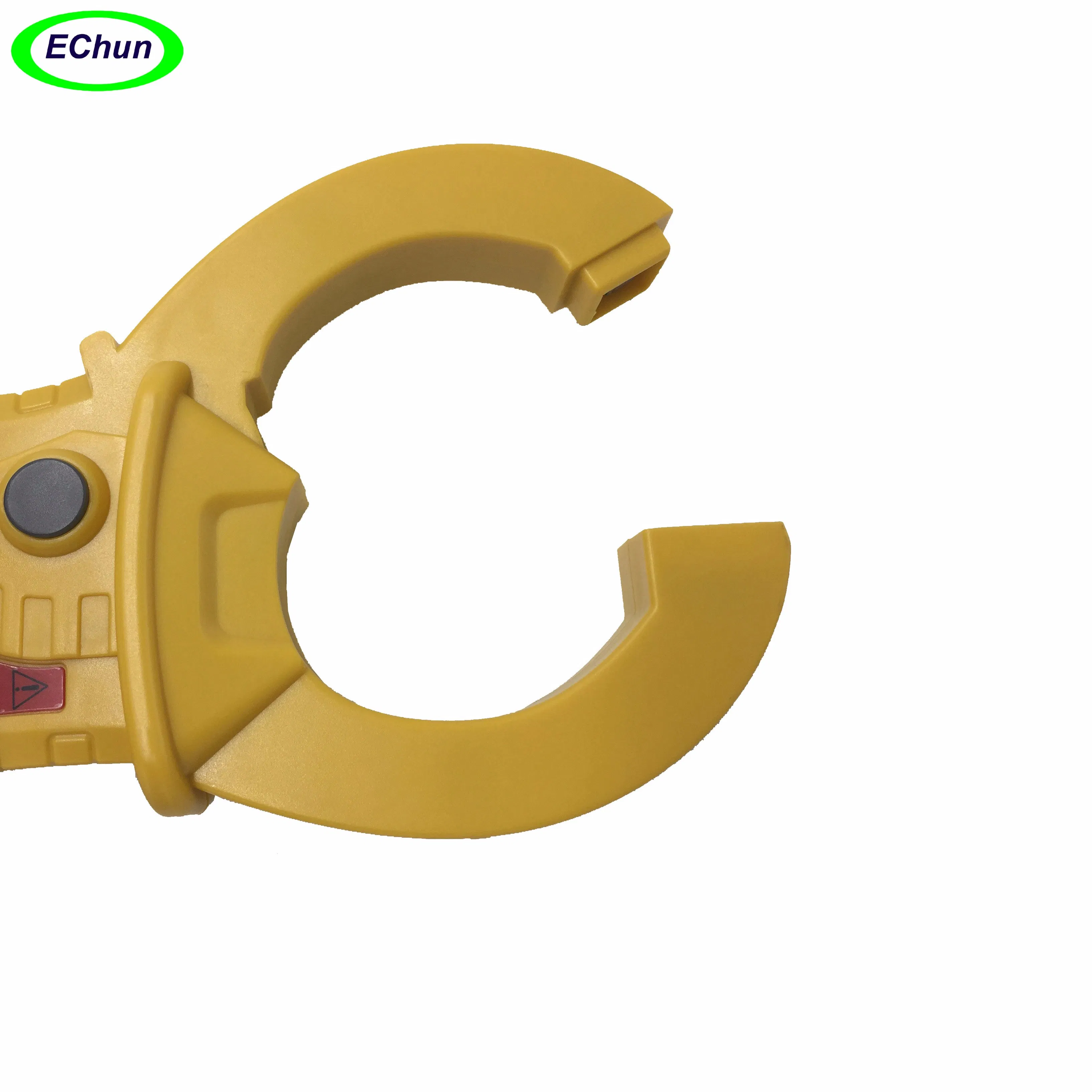

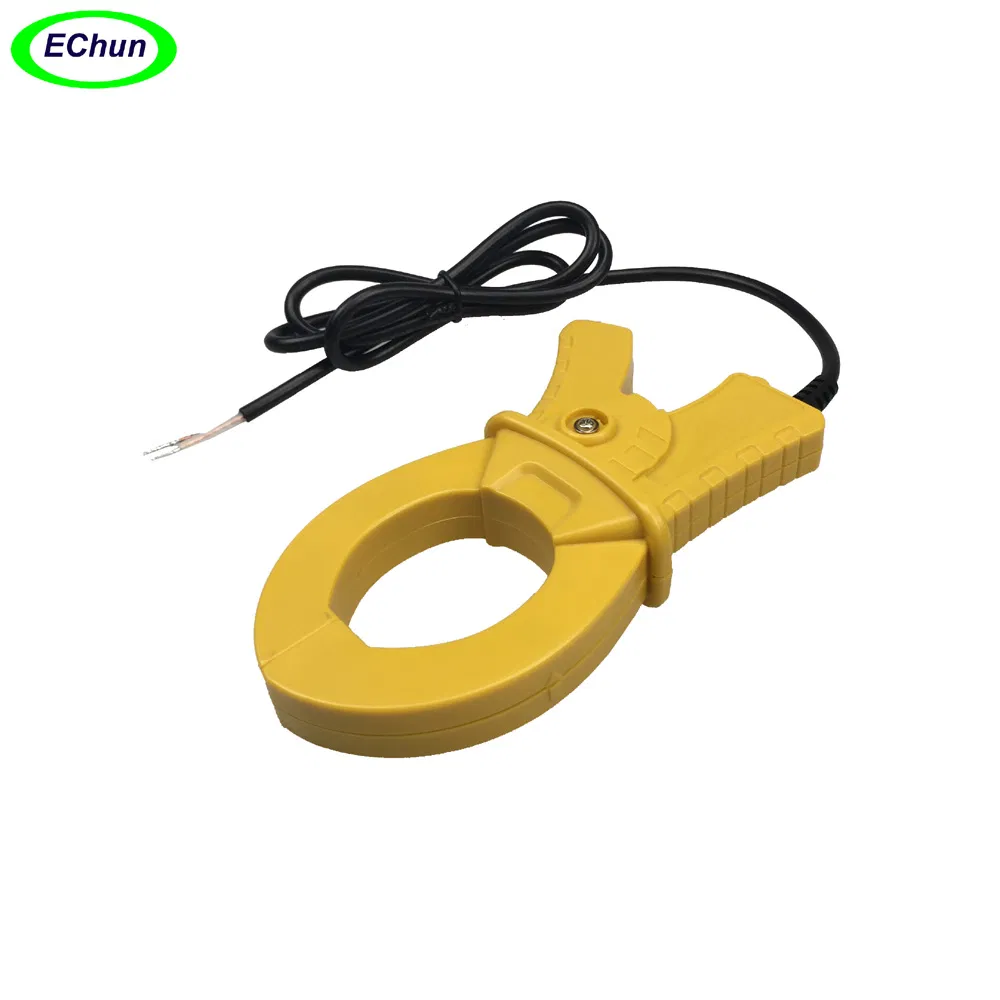

    The ECS55-C series are clamp-on current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation

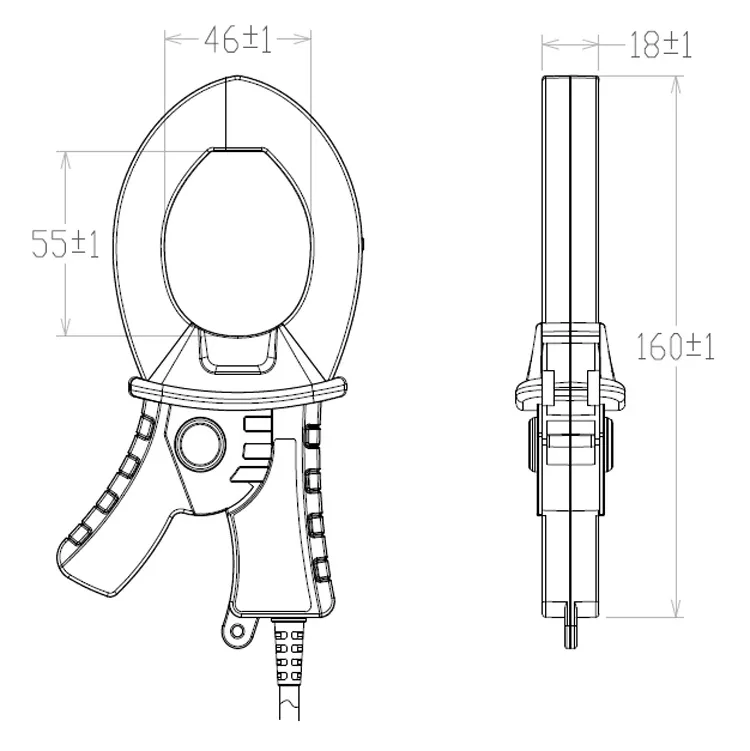

    Electrical Specifications.

    Rated Primary Current(Amp.) 50/60Hz

    500nom(1~600A max)

    Turn ratio

    Np:Ns=1:3333

    Output voltage

    500A/1.5V(Resistor inside the CT)

    Accuracy

    0.5%


    Phase Error at Rated Current Range
         		≤1 °

    Operating Temperature Range

    -40~80ºC

    Storage Temperature Range

    -45~85ºC

    Dielectric Withstanding Voltage(Hi-pot)

    4KV/1mA/1min


    Impluse Withstand Voltage
         		5KV Peak

    Insulation Resistance

    DC500V/100MΩ min


    Customized current ratio available.

    MODEL

    INPUT CURRENT

    AVAILABLE OUTPUT


    ECS55-100C
         		100 ACURRENT OUTPUTS @20mA, 40mA,
    50mA,100mA,1A
    VOLTAGE OUTPUTS @0.25V, 0.33V,
    0.5V, 1V, 2V

    ECS55-200C
         		200 A

    ECS55-300C
         		300 A

    ECS55-400C
         		400 A

    ECS55-500C
         		500 A

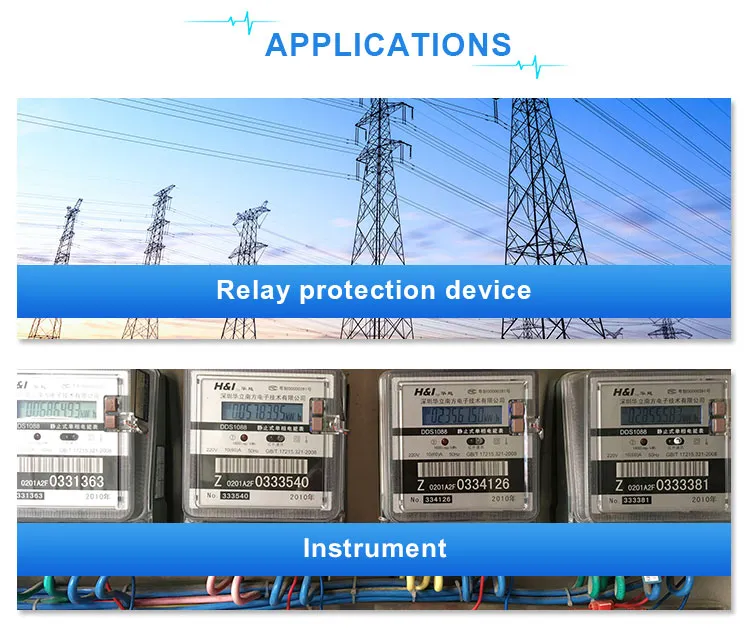

    Applications:
    Current measurement
    Monitoring and protection

    Advantage:
    Mount easy.
    Excellent linearity over the whole range.
    Fully RoHS compliant.
