Product Description

Description
MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.

MSQ current transformer / MFO current transformer:
1.Model:MSQ-30,MSQ-30B,MSQ-30T,MSQ-40,MSQ-60,MSQ-85,MSQ-100,MSQ-125
2.Standard:IEC60044-1
3.Certificate:ISO9001:2000, ISO14001:1996,CE
4. Professory transformer manufacturer

Features:
1)Safe, easy to install, portable
2)Wide inner window, allowing clamping of big cables or bus-bars
3)Wide range of sizes to accommodate all the existing installations

Specifications:
1.Rated current:5/5A-6000/5A,
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80

Model	Rated Current(A) Primary/Secondary	Busbar Hole Dimension	Rated Burden(VA)	Accuracy Class	Rated Volage (V)	Rated Frequency(Hz)
MSQ-30	30/5A-300/5A	30X10mm	1.5~2.5	3.0~0.5	600	50/60
MSQ-40	150/5A-800/5A	40X10mm	5~10	1.0~0.5	600	50/60
MSQ-60	400/5A-1200/5A	60X20mm	5~10	1.0~0.5	600	50/60
MSQ-100	800/5A-3000/5A	100X10mm	15	1.0~0.5	600	50/60
MSQ-130	1500/5A~5500/5A	130X10mm	15	1.0~0.5	600	50/60

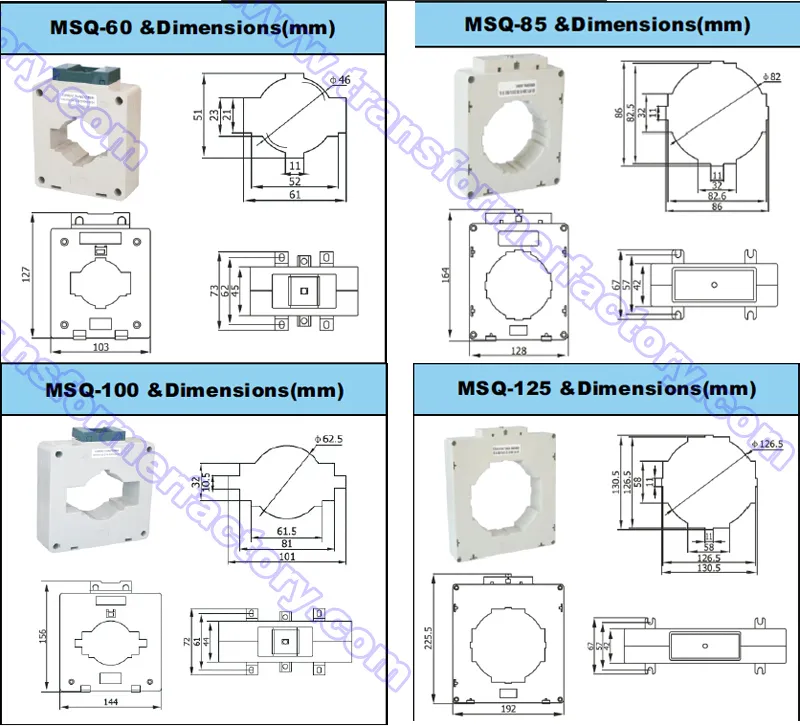

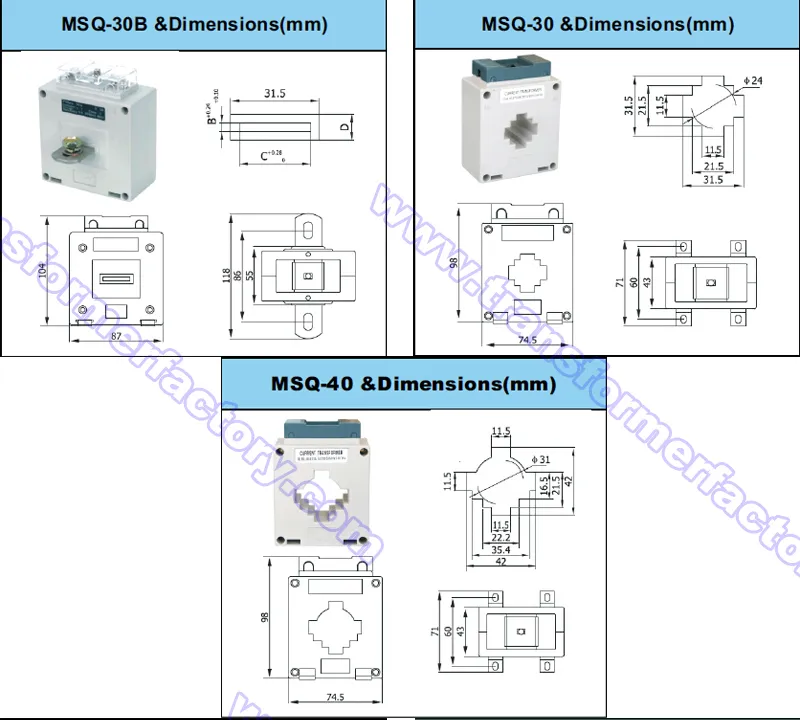

MSQ series diamension:

How to Order?
1. Please let us know what kind of model, like MSQ-30 100/5A.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 6-10 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.

Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.

Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Customerservice:

Basic services	1) Manufacturing & Offering high quality split core current transformer ,low & high voltage current transformer ,hall current sensor,digital smart meter and all related equipments.
	2) Purchasing all the products and accessories in electrical industry for customers requirements.
	3) OEM service

Characteristic services	1) Service of product customization
	2) Research and development of new products
	3) To provide technical support to solve various technical problems of products.
	4) Welcomed to join our HEYI Team.As our agent in accordance with its local market conditions design solutions, providing products and technical support, real-time tracking and other one-stop service.
