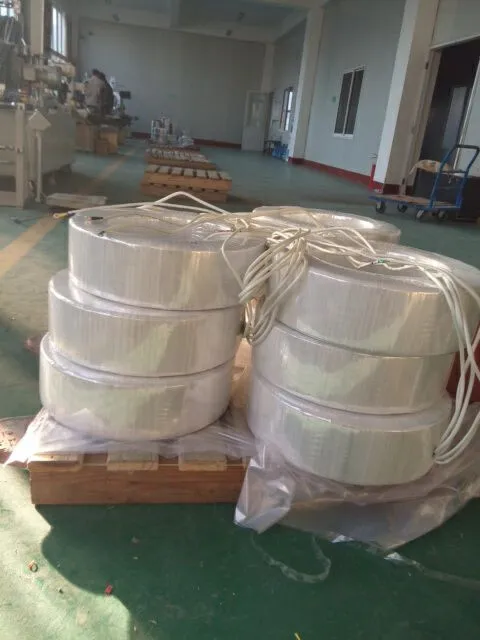

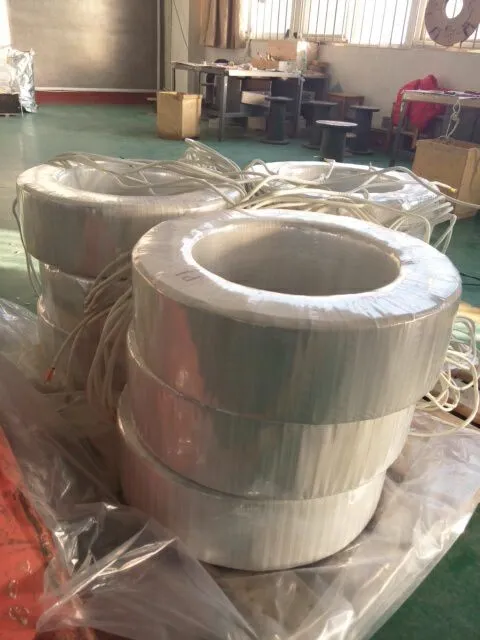

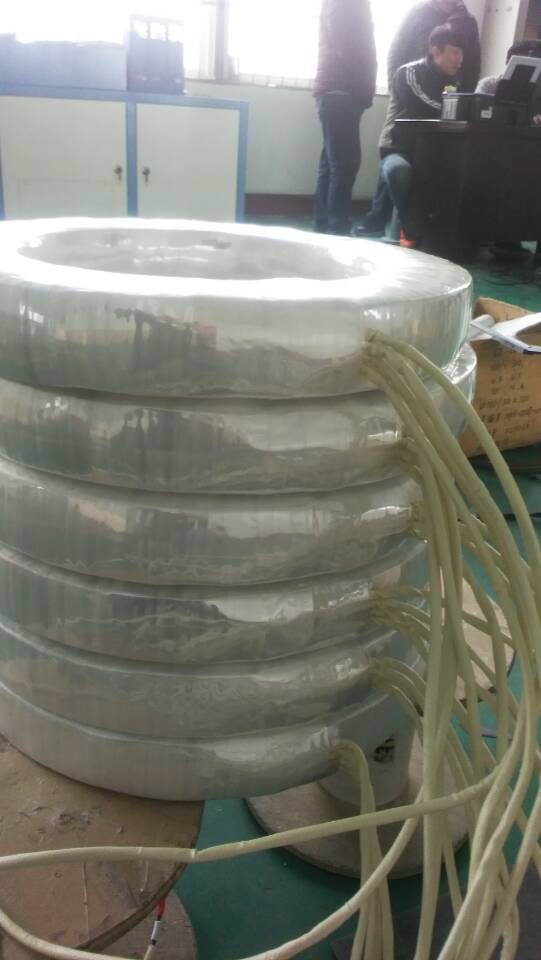

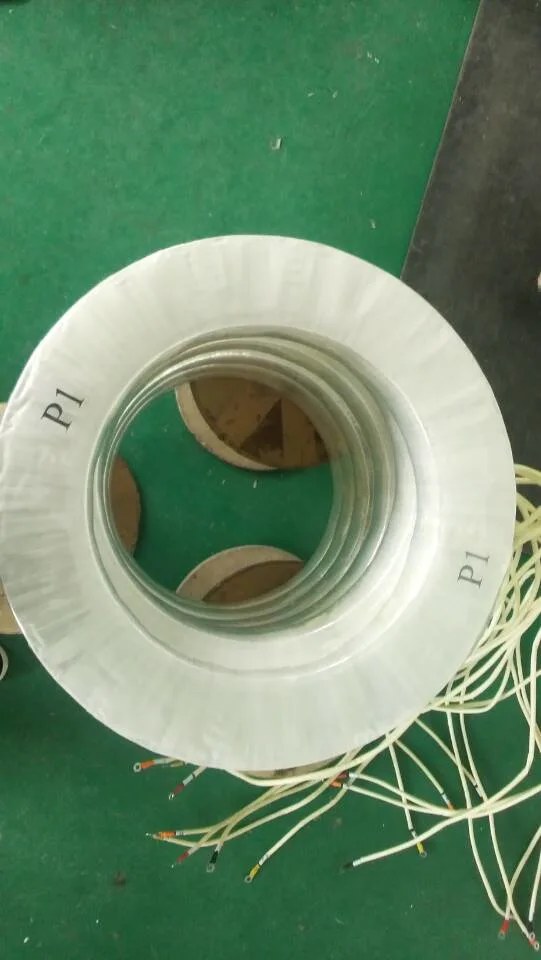

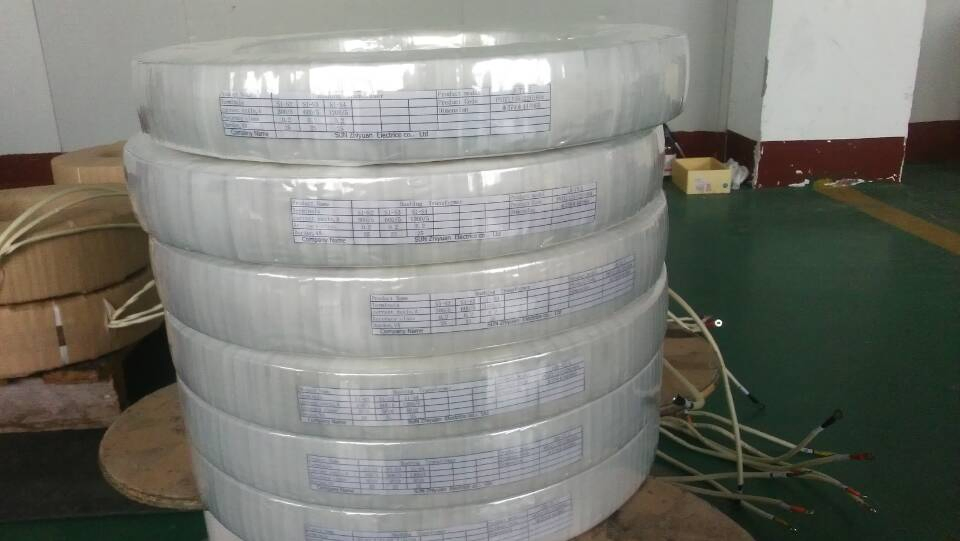

Bushing Current Transformer for 72.5kv Outdoor Dead Tank Gas Circuit Breaker
The wiring ratio of the current transformer CLASS.RATIO.QUANTITY.LOCATION. 5P20 25VA 200-400-600-800-1000-1200:5A6 (Two for each bushing)Output bushings 200-400-600-800-1000-1200/ 5 CL0.2 25VA 200-400-600-800-1000-1200:5A3 (One for each bushing)Input Bushing. 5P20 25VA 200-40......
Send Inquiry
Product Description
| The wiring ratio of the current transformer | CLASS. | RATIO. | QUANTITY. | LOCATION. | |||||||
| 5P20 25VA | 200-400-600-800-1000-1200:5A | 6 (Two for each bushing) | Output bushings | ||||||||
| 200-400-600-800-1000-1200/ 5 | CL0.2 25VA | 200-400-600-800-1000-1200:5A | 3 (One for each bushing) | Input Bushing. | |||||||
| 5P20 25VA | 200-400-600-800-1000-1200:5A | 3(One for each bushing) | Input Bushing. | ||||||||
| Measuring | 1 | ||||||||||
| 200-400-600-800-1000-1200/ 5 | |||||||||||
| Protecting | 3 | ||||||||||
| 200-400-600-800-1000-1200/ 5 | |||||||||||
| OUTPUT BUSHING | INPUT BUSHING | ||||||||||
| pole | position | tap | Ratio | Accuracy | Load(A) | pole | position | tap | Ratio | Accuracy | Load(A) |
| A | S1-S2 | 200/5 | 5P20 | 25 | A | S1-S2 | 200/5 | 5P20 | 25 | ||
| S1-S3 | 400/5 | 5P20 | 25 | S1-S3 | 400/5 | 5P20 | 25 | ||||
| S1-S4 | 600/5 | 5P20 | 25 | S1-S4 | 600/5 | 5P20 | 25 | ||||
| S1-S5 | 800/5 | 5P20 | 25 | S1-S5 | 800/5 | 5P20 | 25 | ||||
| S1-S6 | 1000/5 | 5P20 | 25 | S1-S6 | 1000/5 | 5P20 | 25 | ||||
| S1-S7 | 1200/5 | 5P20 | 25 | S1-S7 | 1200/5 | 5P20 | 25 | ||||
| S1-S2 | 200/5 | 5P20 | 25 | S1-S2 | 200/5 | 0.2 | 25 | ||||
| S1-S3 | 400/5 | 5P20 | 25 | S1-S3 | 400/5 | 0.2 | 25 | ||||
| S1-S4 | 600/5 | 5P20 | 25 | S1-S4 | 600/5 | 0.2 | 25 | ||||
| S1-S5 | 800/5 | 5P20 | 25 | S1-S5 | 800/5 | 0.2 | 25 | ||||
| S1-S6 | 1000/5 | 5P20 | 25 | S1-S6 | 1000/5 | 0.2 | 25 | ||||
| S1-S7 | 1200/5 | 5P20 | 25 | S1-S7 | 1200/5 | 0.2 | 25 | ||||
| OUTPUT BUSHING | INPUT BUSHING | ||||||||||
| pole | position | tap | Ratio | Accuracy | Load(A) | pole | position | tap | Ratio | Accuracy | Load(A) |
| B | S1-S2 | 200/5 | 5P20 | 25 | B | S1-S2 | 200/5 | 5P20 | 25 | ||
| S1-S3 | 400/5 | 5P20 | 25 | S1-S3 | 400/5 | 5P20 | 25 | ||||
| S1-S4 | 600/5 | 5P20 | 25 | S1-S4 | 600/5 | 5P20 | 25 | ||||
| S1-S5 | 800/5 | 5P20 | 25 | S1-S5 | 800/5 | 5P20 | 25 | ||||
| S1-S6 | 1000/5 | 5P20 | 25 | S1-S6 | 1000/5 | 5P20 | 25 | ||||
| S1-S7 | 1200/5 | 5P20 | 25 | S1-S7 | 1200/5 | 5P20 | 25 | ||||
| S1-S2 | 200/5 | 5P20 | 25 | S1-S2 | 200/5 | 0.2 | 25 | ||||
| S1-S3 | 400/5 | 5P20 | 25 | S1-S3 | 400/5 | 0.2 | 25 | ||||
| S1-S4 | 600/5 | 5P20 | 25 | S1-S4 | 600/5 | 0.2 | 25 | ||||
| S1-S5 | 800/5 | 5P20 | 25 | S1-S5 | 800/5 | 0.2 | 25 | ||||
| S1-S6 | 1000/5 | 5P20 | 25 | S1-S6 | 1000/5 | 0.2 | 25 | ||||
| S1-S7 | 1200/5 | 5P20 | 25 | S1-S7 | 1200/5 | 0.2 | 25 | ||||
| OUTPUT BUSHING | INPUT BUSHING | ||||||||||
| pole | position | tap | Ratio | Accuracy | Load(A) | pole | position | tap | Ratio | Accuracy | Load(A) |
| C | S1-S2 | 200/5 | 5P20 | 25 | C | S1-S2 | 200/5 | 5P20 | 25 | ||
| S1-S3 | 400/5 | 5P20 | 25 | S1-S3 | 400/5 | 5P20 | 25 | ||||
| S1-S4 | 600/5 | 5P20 | 25 | S1-S4 | 600/5 | 5P20 | 25 | ||||
| S1-S5 | 800/5 | 5P20 | 25 | S1-S5 | 800/5 | 5P20 | 25 | ||||
| S1-S6 | 1000/5 | 5P20 | 25 | S1-S6 | 1000/5 | 5P20 | 25 | ||||
| S1-S7 | 1200/5 | 5P20 | 25 | S1-S7 | 1200/5 | 5P20 | 25 | ||||
| S1-S2 | 200/5 | 5P20 | 25 | S1-S2 | 200/5 | 0.2 | 25 | ||||
| S1-S3 | 400/5 | 5P20 | 25 | S1-S3 | 400/5 | 0.2 | 25 | ||||
| S1-S4 | 600/5 | 5P20 | 25 | S1-S4 | 600/5 | 0.2 | 25 | ||||
| S1-S5 | 800/5 | 5P20 | 25 | S1-S5 | 800/5 | 0.2 | 25 | ||||
| S1-S6 | 1000/5 | 5P20 | 25 | S1-S6 | 1000/5 | 0.2 | 25 | ||||
| S1-S7 | 1200/5 | 5P20 | 25 | S1-S7 | 1200/5 | 0.2 | 25 | ||||
