Clamp-on Current Transformer Sse-Qct03-46 [500A]
Description:This type CT is designed for easy installation in tight spaces and environment withoutremoving the main busbar or cable. The connector uses the holding pressure offolding structure. Safe isolation to protect the user from direct contact with theelectrified body. Meet the 600V, CAT III se......
Send Inquiry
Product Description
Description:
This type CT is designed for easy installation in tight spaces and environment without
removing the main busbar or cable. The connector uses the holding pressure of
folding structure. Safe isolation to protect the user from direct contact with the
electrified body. Meet the 600V, CAT III secure degree.
Features:
* FLexible and light weights, exquisite appearance
* Easy & quick installation in tight spaces
* Excellent linearity
* Maximum measuring current up to 550A
Application:
* Power quality monitoring
* CT secondary current detection
* Smart logger
* Distributed measurement system
APPLICATIONS :
* Power quality monitoring
* Smart logger
* Distributed measurement systems

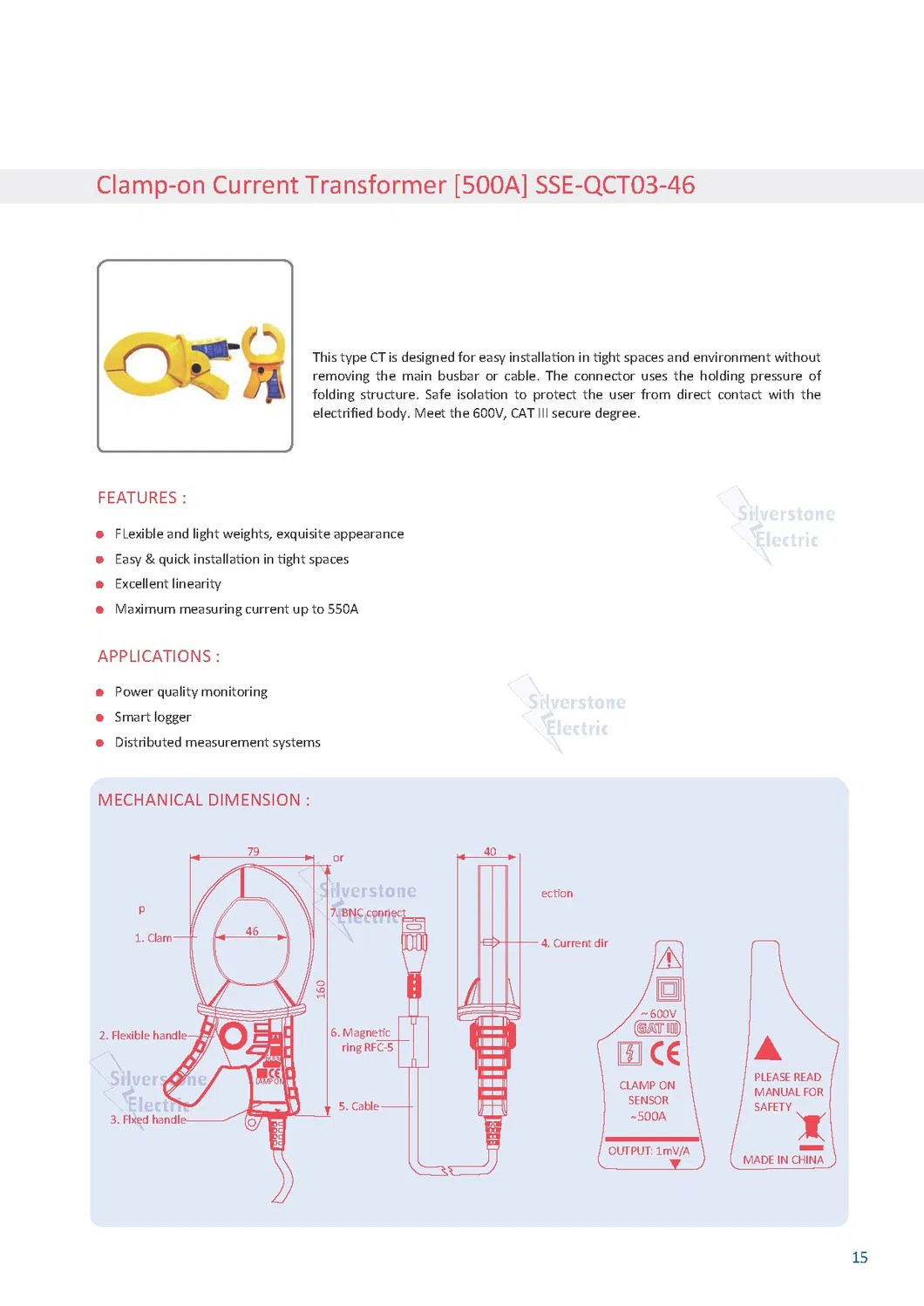

TECHNICAL INDEX :
![Clamp-on Current Transformer Sse-Qct03-46 [500A]](/upload/1214/clamp-on-current-transformer-sse-qct03-46-500a--1f16e5.webp)
![Clamp-on Current Transformer Sse-Qct03-46 [500A]](/upload/1214/clamp-on-current-transformer-sse-qct03-46-500a--714779.webp)
Our Services
EPC Project
Suzhou Silverstone Electric Specialises in Power Transmission, Distribution, Electrical Automation Solutions, Power Quality Solutions, Hydro Power, Solar Power, Thermal Power Generation and Substation EPC Projects. We have wide field experience in Substation EPC projects, we provide Design, Supply, Installing, Testing and Commissioning of Transformer & GIS Substation (from 6kV to 230kV).
Turnkey Solution
With strong support from our hardware and software partners, we are able to be the Mighty Solution Provider for power transmission, distribution, transformation and power quality control.
Equipment Supply
Silverstone Electric is no doubt Your Premium Electric Supplier.
Packaging & Shipping
Seaway Standard; Airway Standard; Land Transportation Standard; Courier Post; Expressway
FAQ
You are welcome for any questions to us, thank you.
This type CT is designed for easy installation in tight spaces and environment without
removing the main busbar or cable. The connector uses the holding pressure of
folding structure. Safe isolation to protect the user from direct contact with the
electrified body. Meet the 600V, CAT III secure degree.
Features:
* FLexible and light weights, exquisite appearance
* Easy & quick installation in tight spaces
* Excellent linearity
* Maximum measuring current up to 550A
Application:
* Power quality monitoring
* CT secondary current detection
* Smart logger
* Distributed measurement system
APPLICATIONS :
* Power quality monitoring
* Smart logger
* Distributed measurement systems

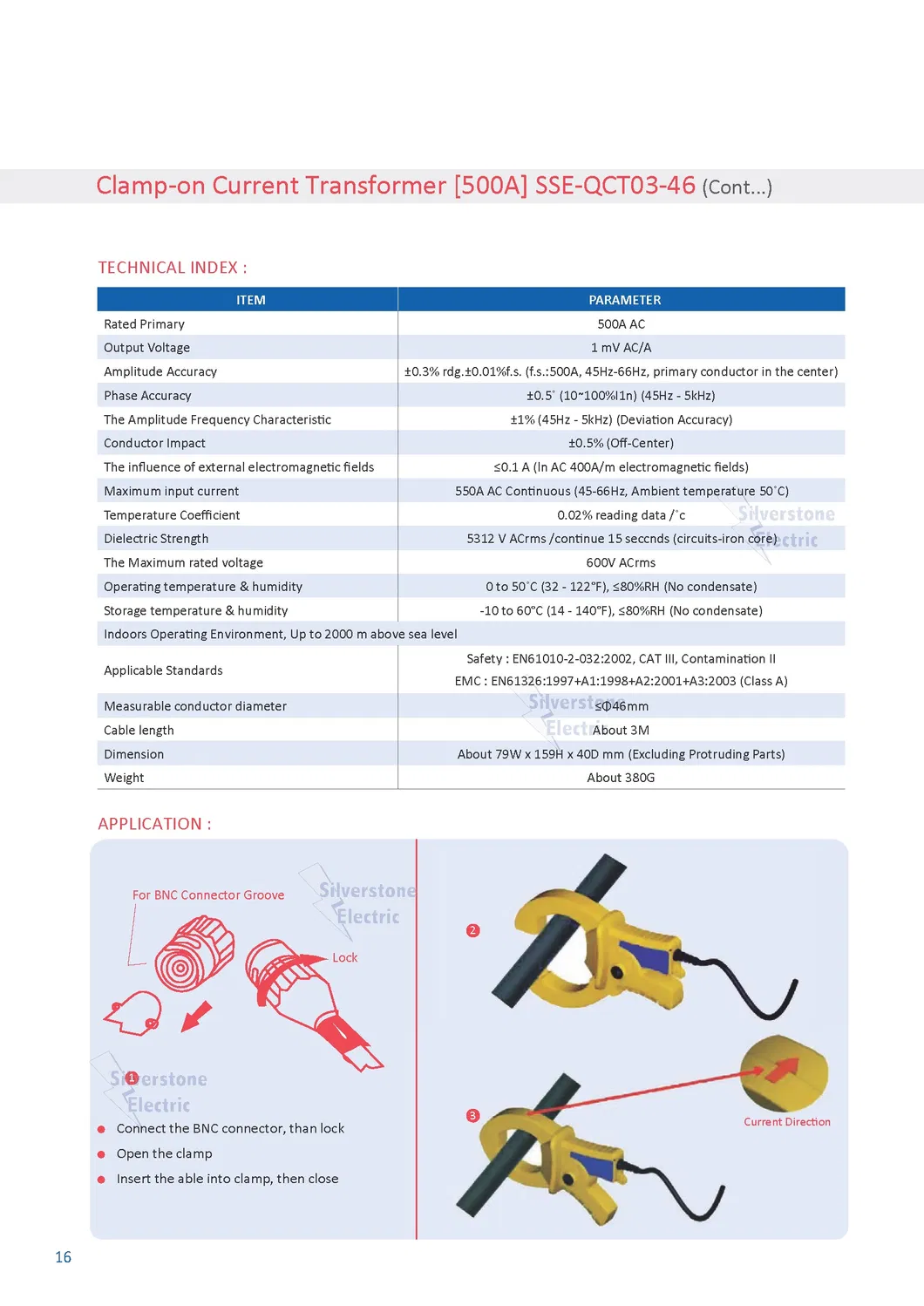

TECHNICAL INDEX :
| ITEM | PARAMETER |
| Rated Primary | 500A AC |
| Output Voltage | 1 mV AC/A |
| Amplitude Accuracy | ±0.3% rdg.±0.01%f.s. (f.s.:500A, 45Hz-66Hz, primary conductor in the center) |
| Phase Accuracy | ±0.5˚ (10˜100%I1n) (45Hz - 5kHz) |
| The Amplitude Frequency Characteristic | ±1% (45Hz - 5kHz) (Deviation Accuracy) |
| Conductor Impact | ±0.5% (Off-Center) |
| The influence of external electromagnetic fields | ≤0.1 A (ln AC 400A/m electromagnetic fields) |
| Maximum input current | 550A AC Continuous (45-66Hz, Ambient temperature 50˚C) |
| Temperature Coefficient | 0.02% reading data /˚c |
| Dielectric Strength | 5312 V ACrms /continue 15 seccnds (circuits-iron core) |
| The Maximum rated voltage | 600V ACrms |
| Operating temperature & humidity | 0 to 50˚C (32 - 122°F), ≤80%RH (No condensate) |
| Storage temperature & humidity | -10 to 60°C (14 - 140°F), ≤80%RH (No condensate) |
| Indoors Operating Environment, Up to 2000 m above sea level | |
| Applicable Standards | Safety : EN61010-2-032:2002, CAT III, Contamination II EMC : EN61326:1997+A1:1998+A2:2001+A3:2003 (Class A) |
| Measurable conductor diameter | ≤Φ46mm |
| Cable length | About 3M |
| Dimension | About 79W x 159H x 40D mm (Excluding Protruding Parts) |
| Weight | About 380G |
