Comprehensive Transformer Tester Series Transformer Tester Vt CT PT Tester
I.Equipment Description:Comprehensive Transformer Tester Series Transformer Tester VT CT PT tester1.Product DescriptionCT/PT Comprehensive Transformer Tester High Precision Portable CT/PT Analyzer It is mainly used for field testing of P class CT and PT. The test items mainly include excitation char......
Send Inquiry
Product Description

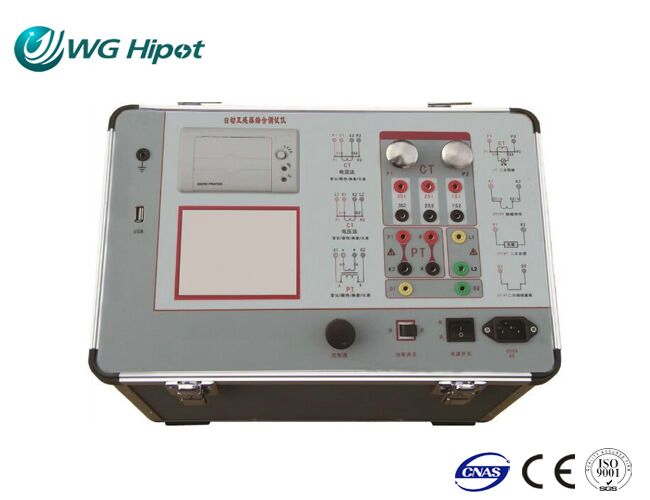

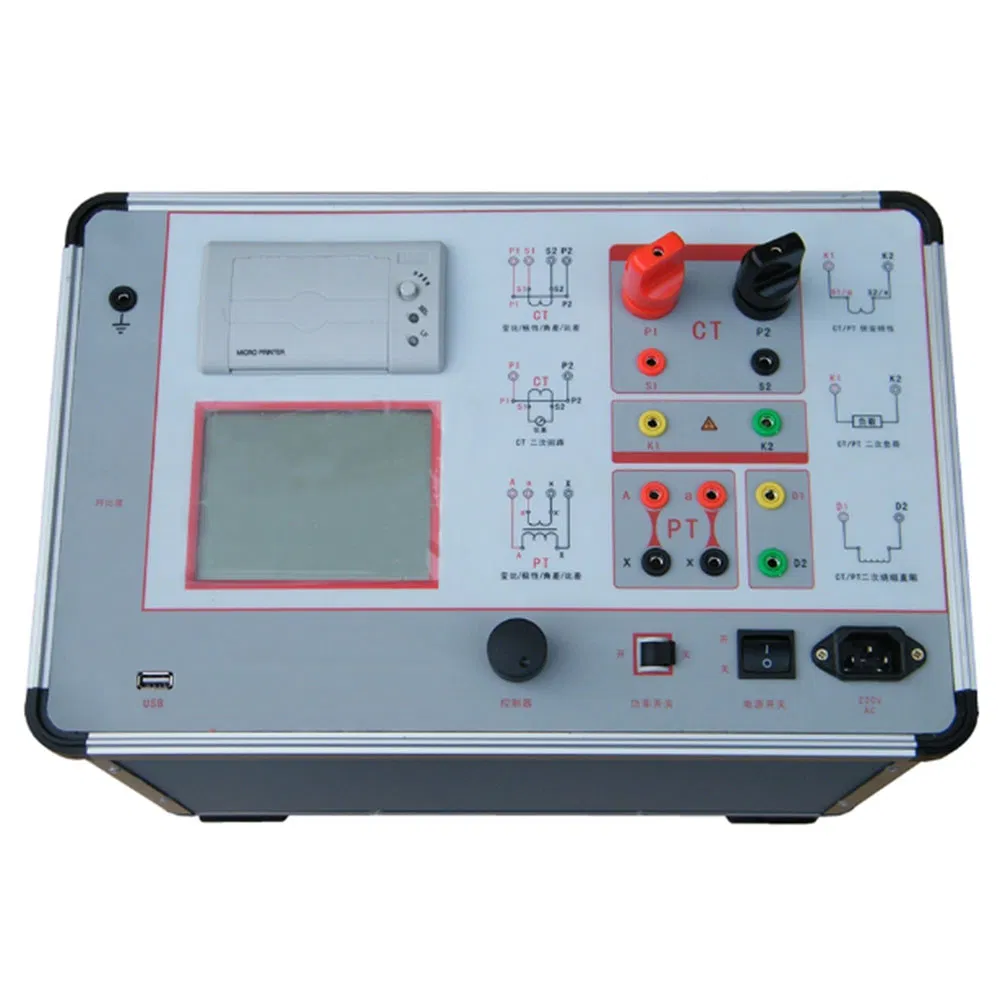

Comprehensive Transformer Tester Series Transformer Tester VT CT PT tester

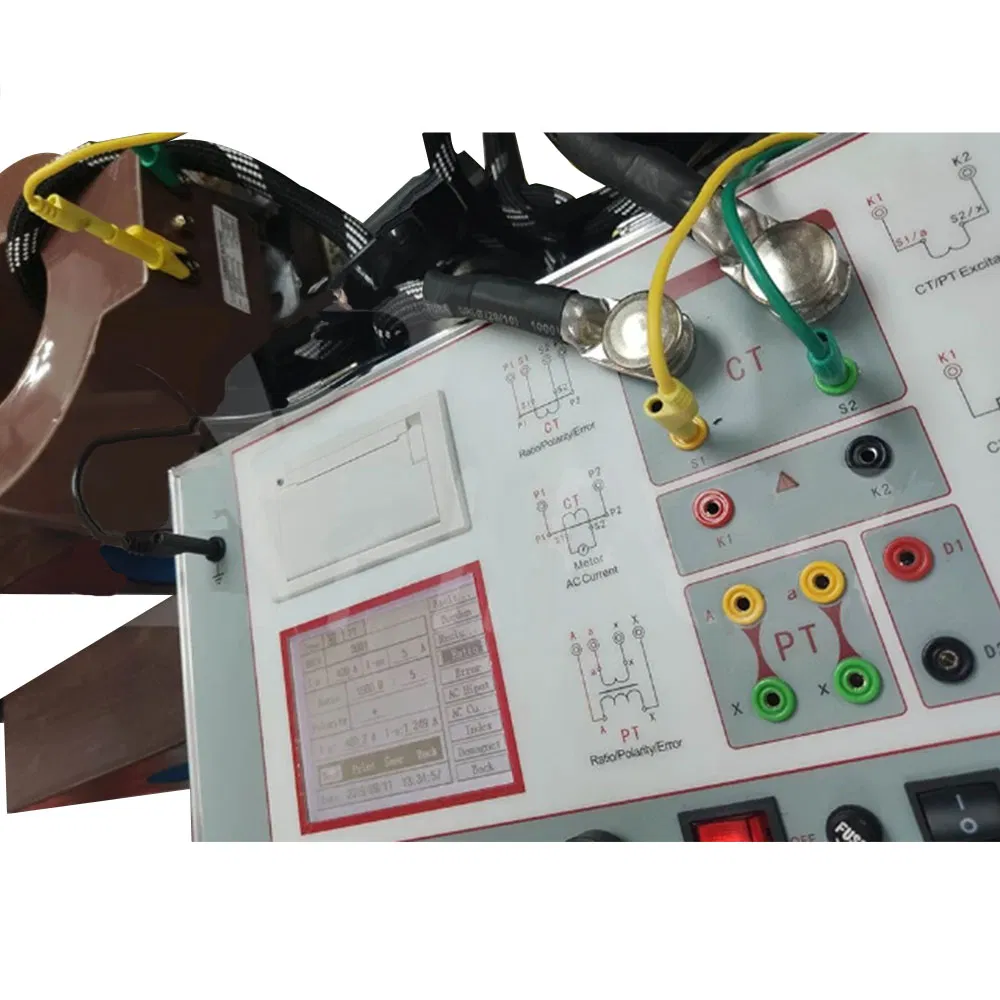

1.Product DescriptionCT/PT Comprehensive Transformer Tester High Precision Portable CT/PT Analyzer It is mainly used for field testing of P class CT and PT. The test items mainly include excitation characteristic, transformation ratio, polarity, degauss, 5% and 10% error curves, secondary circuit check, withstand test of power frequency alternating current and secondary load. Adopting LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data, with simple and convenient operation.
2. Functions
Current Transformer (CT) | Voltage Transformer (PT) | ||
Magnetization curve | Excitation characteristic test | ||
Transformation ratio test | Transformation ratio test | ||
Polarity | Polarity | ||
5% and 10% error curve | Withstand test of power frequency alternating current | ||
Current Injecting | Degauss | ||
Degauss | Calculation of knee point value | ||
Withstand test of power frequency alternating current | Actual secondary load test | ||
Automatic calculation of excitation knee point value | Resistance test | ||
Actual secondary load test/Resistance test |
3 Parameters
Accuracy | 0.2%, 0.5% | ||
Power supply | AC 220V±10% or AC 110V±10% | ||
Excitation voltage output | 0-2500Vrms | ||
Excitation current output | 0-5Arms (20A peak-value) | ||
Large current output | 0-1000A | ||
Accuracy | ≤0.5% (0.2%RD+0.3%RG) | ||
Secondary winding DC resistance measurement | Range: 0.1-300Ω Accuracy: ≤0.5% (0.2%RD+0.3%RG) | ||
Secondary actual load measurement | Range: 5VA-1000VA Accuracy:≤0.5% (0.2%RD+0.3%RG)±0.1VA | ||
CT/PT phase error measurement | Accuracy: ±4min Resolution: 0.01min | ||
CT ratio error measurement | Range: ≤25000A/5A(5000A/1A) Accuracy: ≤0.5% | ||
PT ratio error measurement | Range: 1-500KV Accuracy: ≤0.5% |
Wuhan WG Hipot Electric Tester Co.,Ltd. (hereafter referred to as WG Hipot) is the professional factory of high voltage testing equipment with over 15 years industry experience.

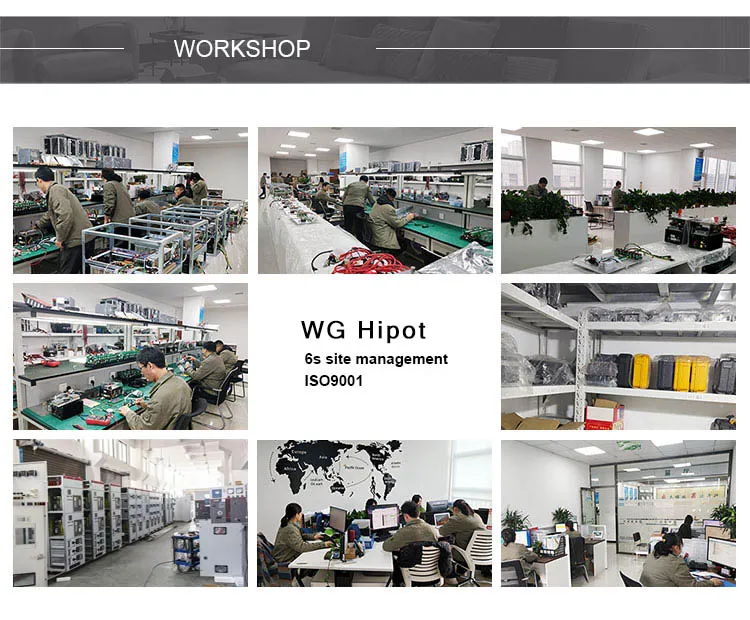

ISO Certified factory, qualified R&D and after-sales Engineer team, 3000 square meters workshop, our high voltage testers cover full range: High voltage hipot tester, Circuit breaker Switchgear Tester, Transformer tester, Relay Protection Tester, CT/PT Tester, MOA/Insulator Tester, SF6/Insulation Oil Test Equipment, Resistance Tester, etc.
Since 2003, with the support from our investors Wuhan High Voltage Institution and Xi'an High Voltage Institution, WG Hipot established and pioneered in high voltage testing field in domestic market as the designated supplier for State Grid and mainstream power companies.
Meantime, WG Hipot has developed overseas markets across 5 continents worldwide. We gained good feedback from our customers with our high performance, good quality, customized specification and easy-to-operate high voltage testers, which can be widely used in railway, oil and chemical industry, electricity grid, university, big factory etc.
III.Customer Visit:

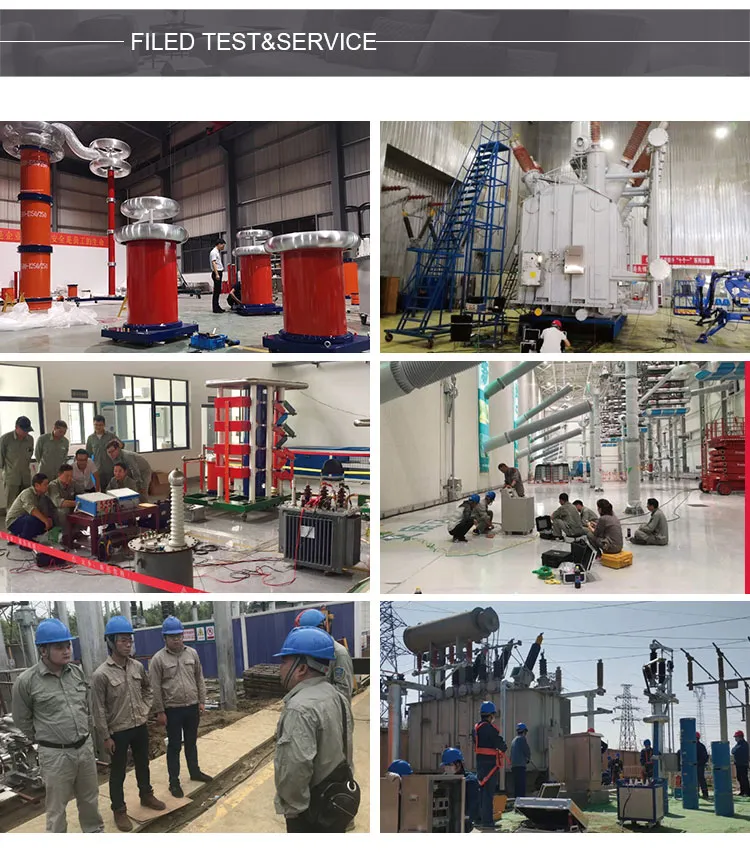

IV.Filed Test&Service:
V.Certification:
VI.Package & Shipment:
VII. FAQ
1.When can I get the price?
We usually quote within 6hours after we get your inquiry. If you are vey urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.
2. What about the leading time for production?
Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmed.
3. What is your payment terms?
We accept EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convenient and cost effective for you.
4. How much will be the Shipping cost and time?
This will depend on the size of your goods and the method of shipping (by sea/ by air/by Express) and your designated port or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information provided.
5. Could you please tell me the Warranty Period of your product?
Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.
6. What kind of Certificate can you provide?
We can provide the CE mark, ISO 9001 quality certificate, third party calibration certificate(CNAS) and factory test report.
7. Do you have Technical Backup to all customers from different countries?
To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if need.
