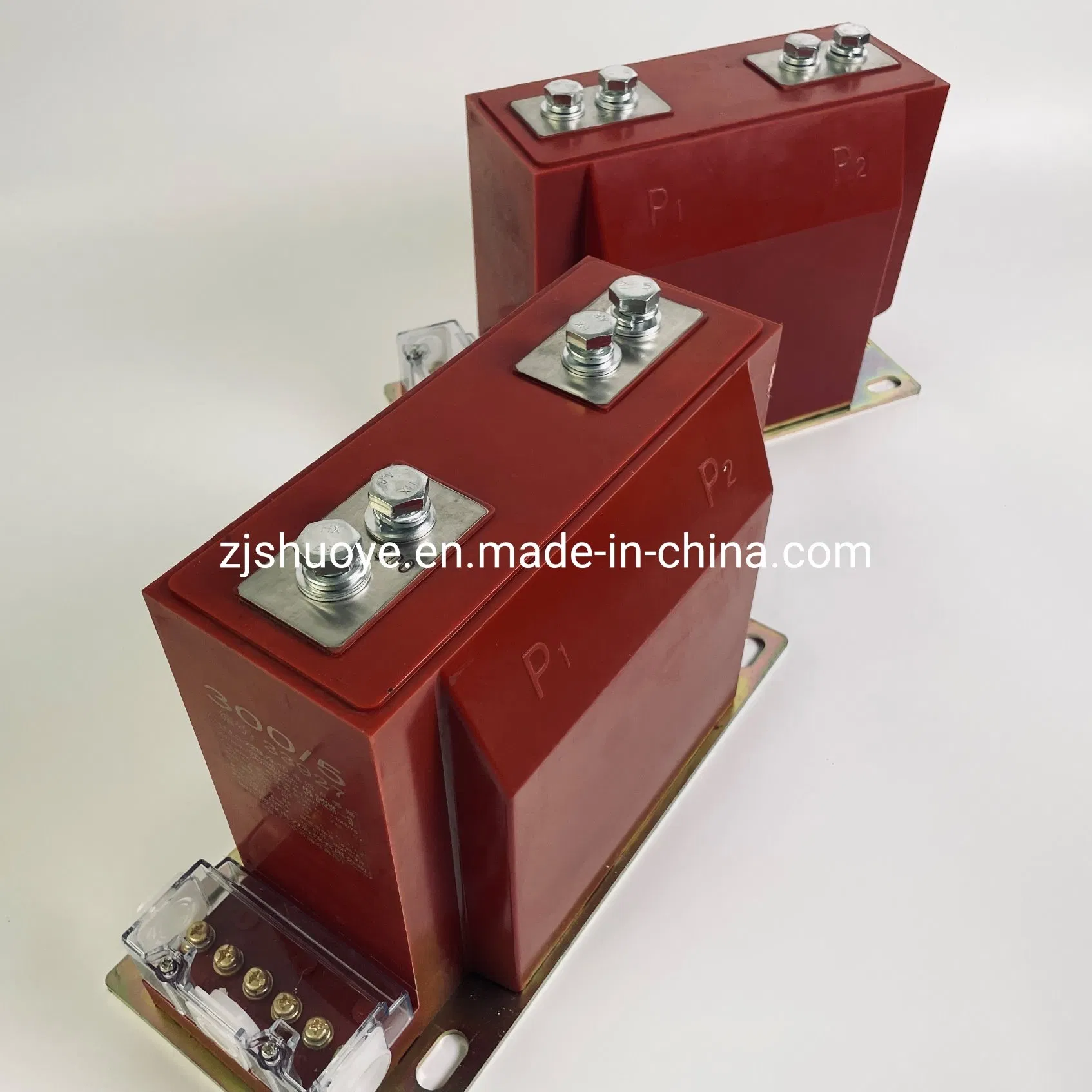

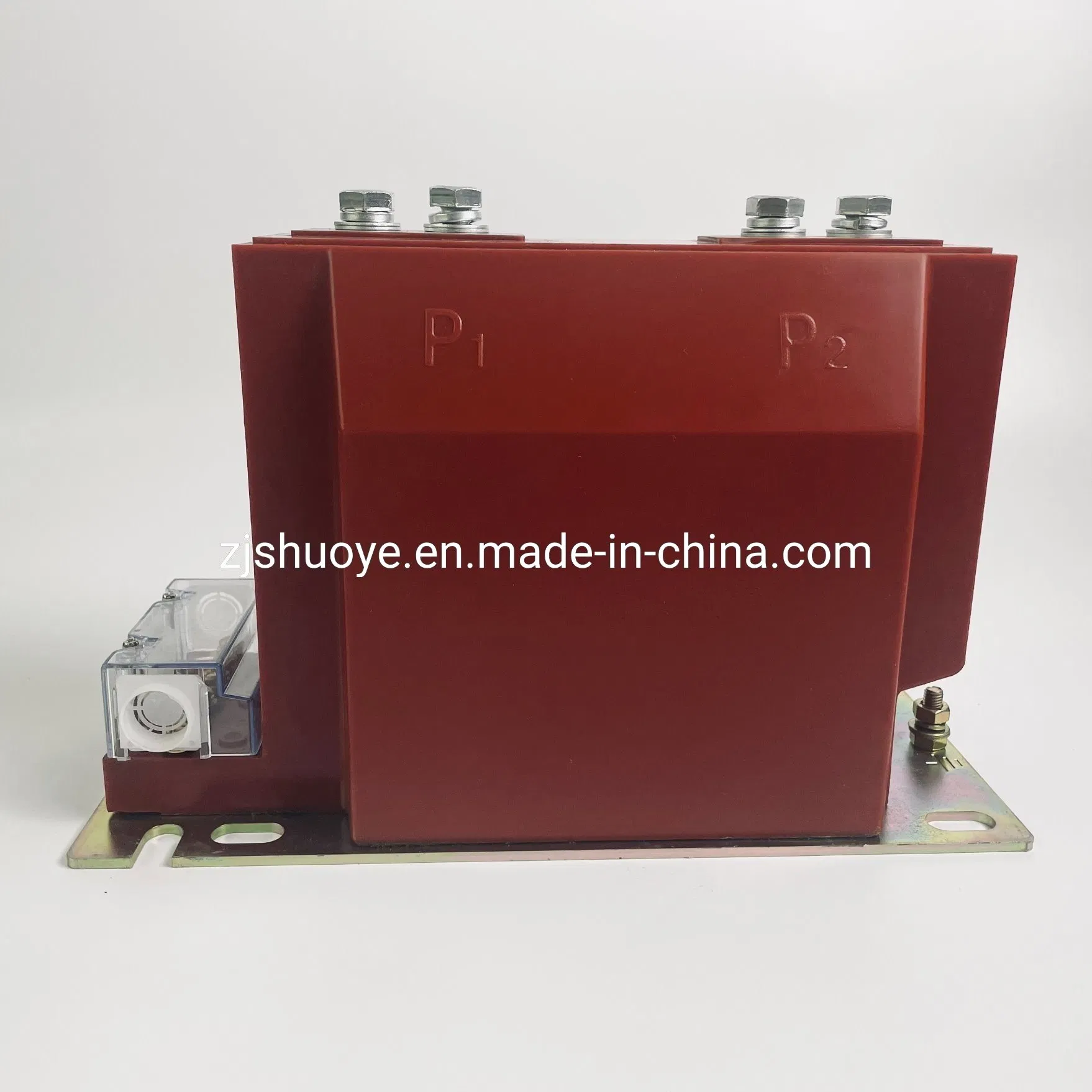

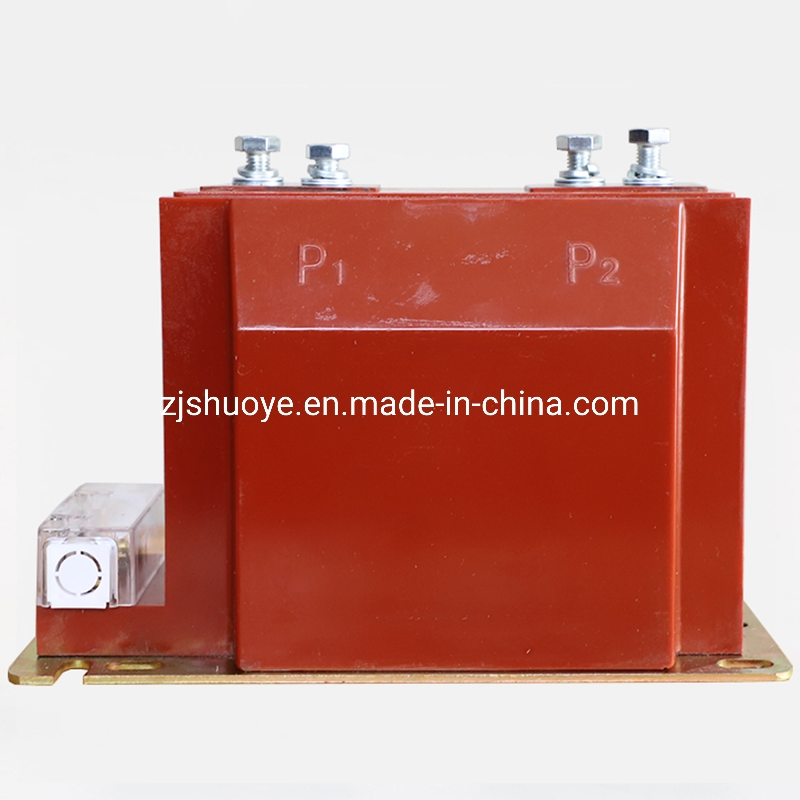

CT Lzzbj9-10A 10kv, 11kv, 12kv, Current Transformer Ratio 30/5/5A Accuracy Class 0.5 10p

Product Description

Technical Data:
*Rated insulation level:12/42/75kV;
*Power factor of load:COSΦ=0.8(lagging);
*Rated secondary current:5A or 1A;
*Rated frequency:50Hz or 60Hz;
*Anti-Pollution grade:Class II;
*Ambient temperature:-0.5ºC-40ºC,daily average temperature not more than 30ºC;
*Altitude:≤1500m;
*Standard:GB20840.1 GB20840.2. IEC61869-1,IEC61869-2

Technical Data Form:

Type	Rated current	Accurscy class combination	rated output			Rate short-time thertmal current	Rated dynamic current

			0.2S	0.5	10P
LZZBJ9-10A	5-200	0.5 10P10 0.5/10P 0.2S/0.5 0.2S/10P 0.2S/0.5/10P 0.2S/10P/10P 0.5/10P/10P 0.2S	10 20, 30	10. 20 50, 60	10 20 30 50	100lin	225lin
	300					63	157
	400
	500					63	157
	600
	800
	1000					80	200
	1200
	1500
	2000
	2500

Note: special capacity and variable ratio are negotiated separately.
CT Lzzbj9-10A 10kv, 11kv, 12kv, Current Transformer Ratio 30/5/5A Accuracy Class 0.5 10p

CT Lzzbj9-10A 10kv, 11kv, 12kv, Current Transformer Ratio 30/5/5A Accuracy Class 0.5 10p

FAQ

Q1.Are you manufacturers?
A.Yes, so I can guarantee that our price is the cheapest.

Q2. tell me the standard of package?
A.wooden crate.

Q3.Would you accept to use our logo ?
A.If you have authorization, then you can.

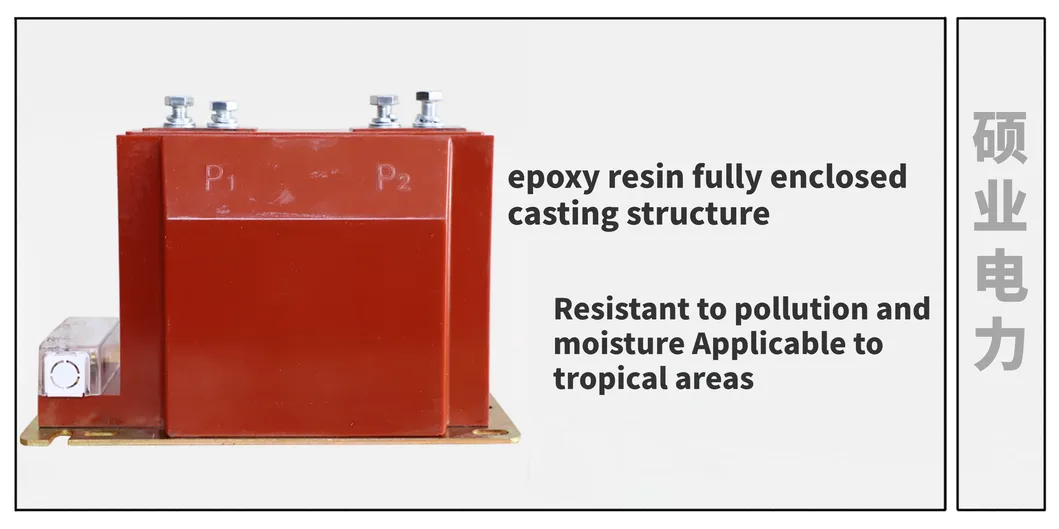

Q4.What is the insulation method?
A.Resin insulation

Q5.When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.

Q6.: What is the price of shipping?
A: Depending upon the port of delivery, prices vary.

Q7.how's the delivery time ?
A. usually it will take about 30 days after order confirmed. It depend on your order quantity.

Q8.Can you customize special capacity and ratio?
A.special capacity and variable ratio are negotiated separately.
