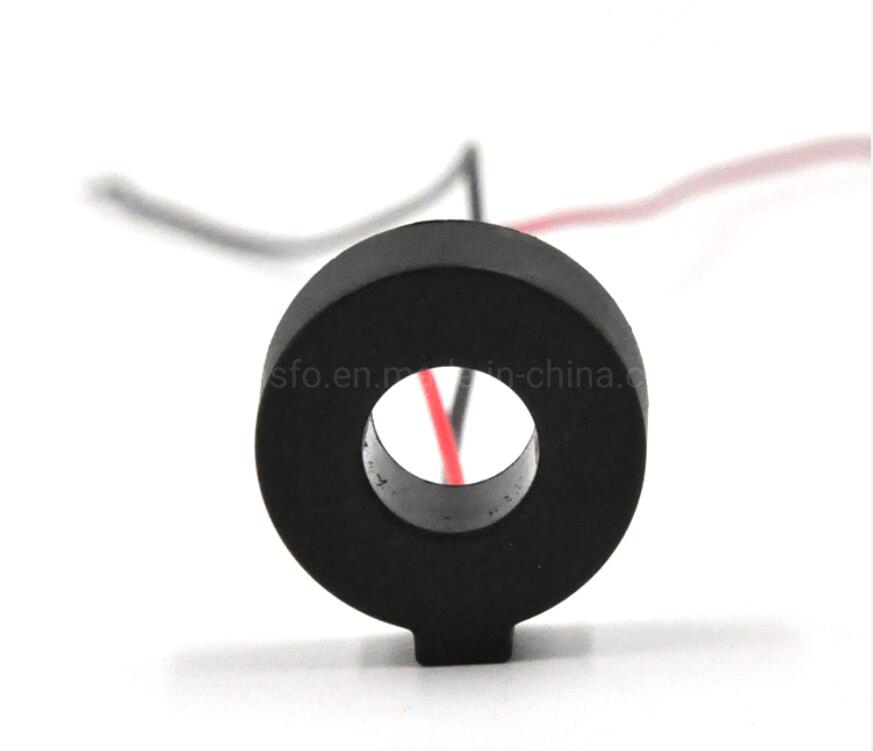

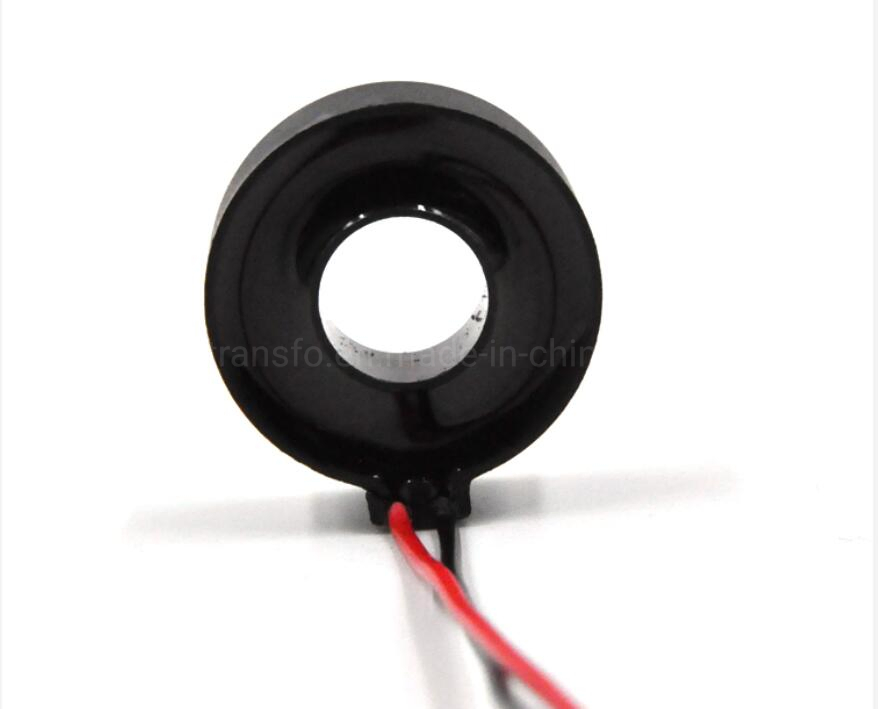

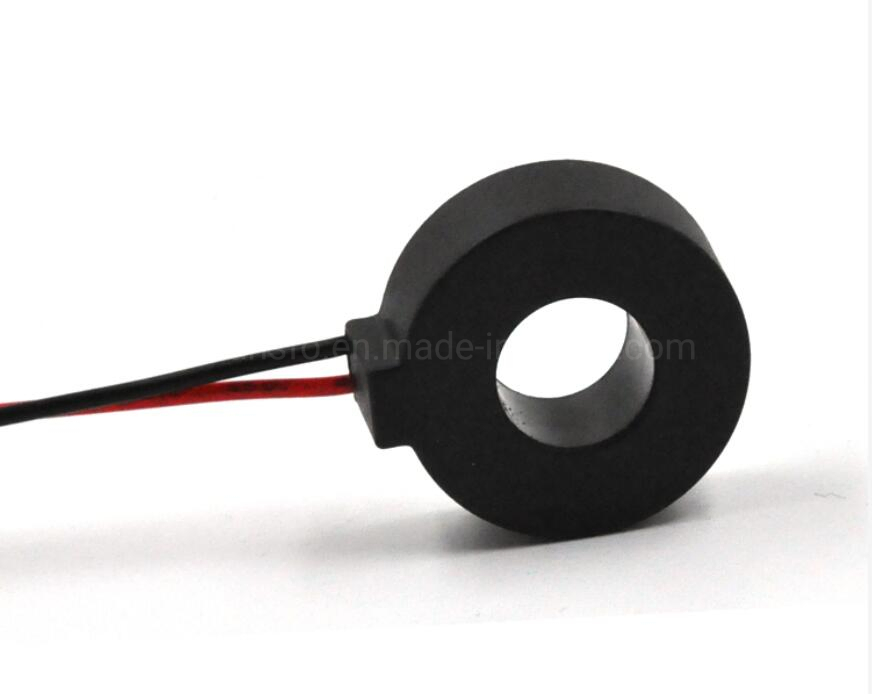

DC Immune Current Transformer with Excellent Linearity and Precision
Product Description Feature:1.Permalloy core,2.High precision, good linearity;3.Epoxy potting , Safe and reliable4.Flame retardant (UL94- V0),5.Environmental protection( EU RoHS).6.Small size and light weight7.Easy to assemble and weldGuideline:National standard gb 1208-2006;Industry Standard jbt 1......
Send Inquiry
Product Description
Feature:
1.Permalloy core,
2.High precision, good linearity;
3.Epoxy potting , Safe and reliable
4.Flame retardant (UL94- V0),
5.Environmental protection( EU RoHS).
6.Small size and light weight
7.Easy to assemble and weld
Guideline:
National standard gb 1208-2006;
Industry Standard jbt 10665-2006.
Use Temperature:-25ºC-+85ºC
Relative humidity:≤95%
Scope of application:
Suitable for instrumentation, etc., need to convert large current into
small current for precise measurement,
Used for precision measurement or as electrical safety protection.
No | Project | Performance | |
1 | Model | AL-CT89 | AL-CT89 |
2 | Rated input current | 5A | 10A |
3 | Rated output current | 5mA | 10mA |
4 | Allow overload multiple | 1.2 times | |
5 | Ratio | 1000:1 | |
6 | Ratio difference | ≤0.5% | |
7 | Phase difference | ≤5´ | |
8 | Accuracy level | 0.5 | |
9 | Linear range | 0~120% | |
10 | Linearity | ≤0.2% | |
11 | Load Resistance | 20Ω | |
12 | isolation withstand voltage | 3kV/2mA/1min | |
13 | frequency range | 20~20kHz(Test frequency:50Hz) | |
14 | Working Temperature | -25~85ºC | |
15 | Storage Temperature | -40~90ºC | |
16 | Relative humidity | ≤95% | |

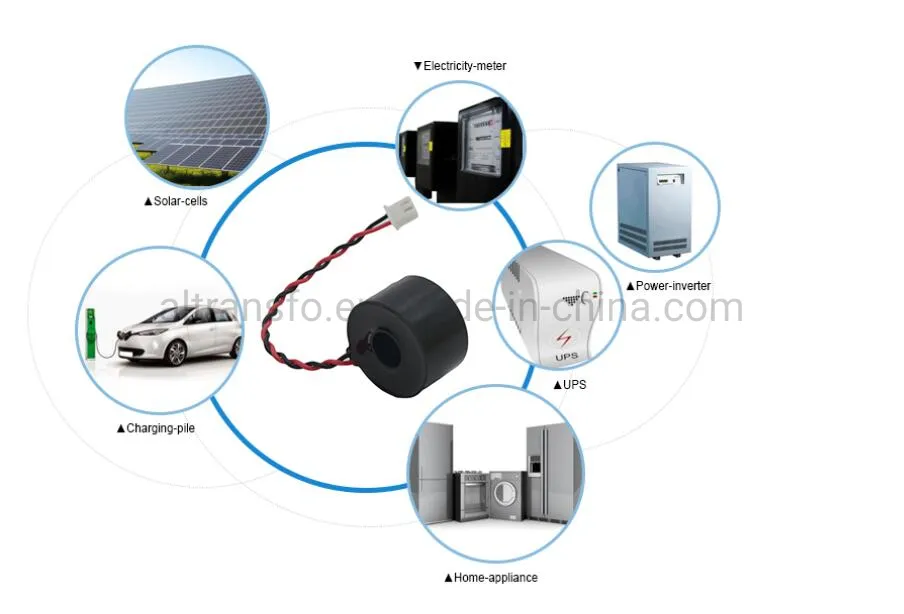

Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
