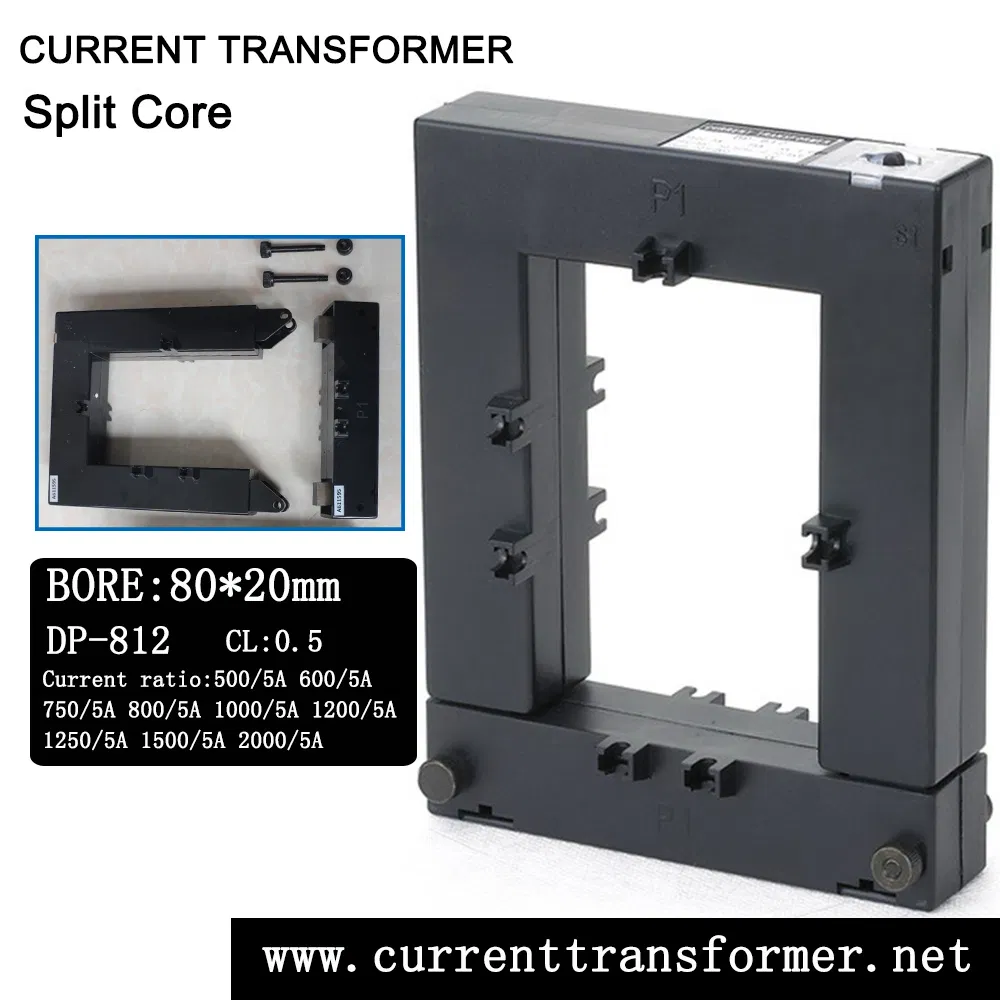

Dp-812 Split Core Current Transformer with 500- 2000A /5A Cl0.5
Our company specializes in the production of current transformer, Split core current transformer is our company to create a burst of products, with the use, fast installation, labor saving, durable, high temperature flame retardant, and other high-quality features, to provide a better choice for th......
Send Inquiry
Product Description
Our company specializes in the production of current transformer, Split core current transformer is our company to create a burst of products, with the use, fast installation, labor saving, durable, high temperature flame retardant, and other high-quality features, to provide a better choice for the intelligent power grid.

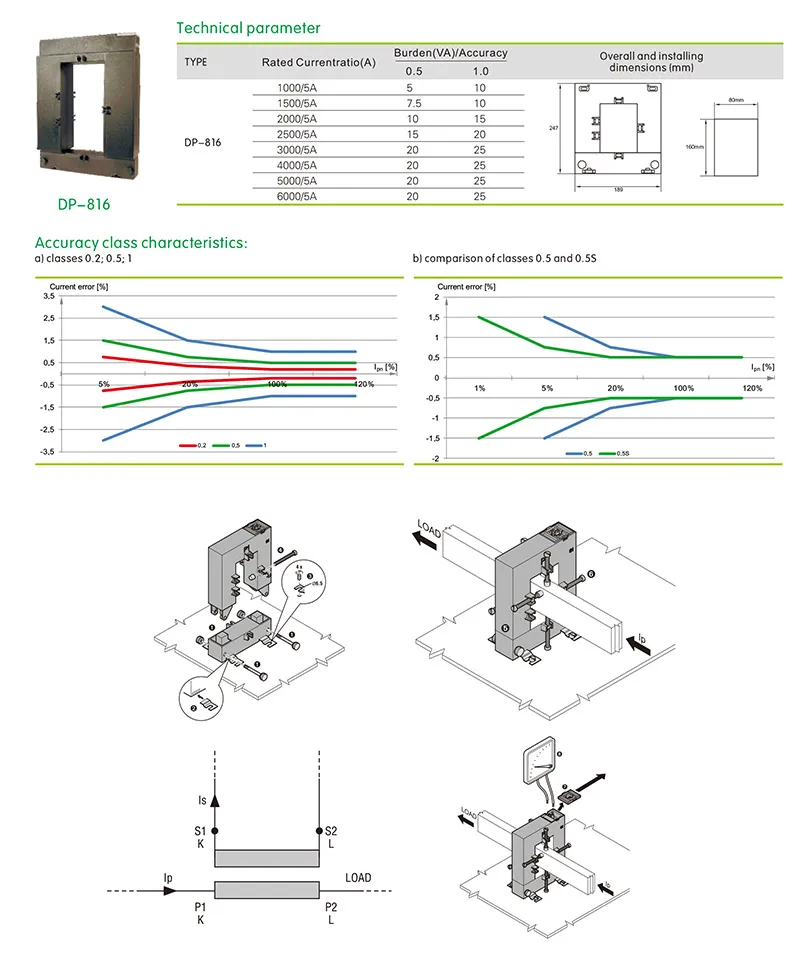

| Electrical Parameter | Mechanical Parameter | |||
| Frequency | 50-400Hz | Case | PC /UL94-V0 | |
| Rated Input | 5A-5000A | Bobbin | PBT | |
| Measuring range | 5%In-130%In | Core | Silicon steel | |
| Rated Output | 0-5A | Internal structure | Epoxy | |
| Ratio | ≤ ± 0.5% | Construction | Screw | |
| Phase angle | ≤ ±30min | Operating Temp | -25ºC~+75ºC | |
| Dielectric strength | 2.5KV/1mA/1min | Operating Humidity | ≤85% | |

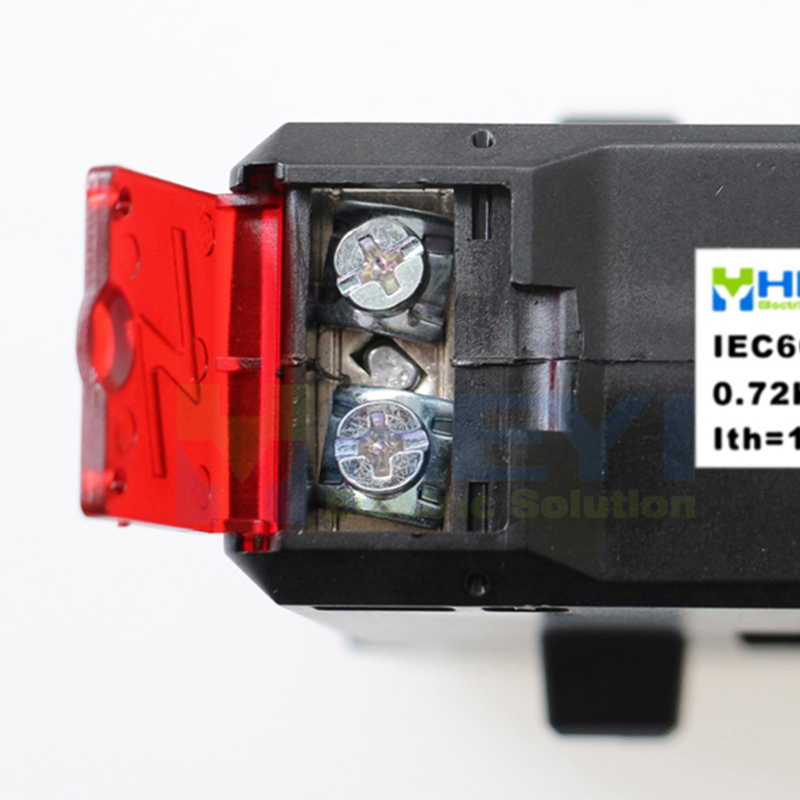

| Insulation Resistance | DC500V/100MΩ min | Output Connection | Terminal | |
