    Ecs10 10mm Hole 0-75A Input Ma Mv Output Split Core UL Current Transformer for Power Management

    The ECS10 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installationStandard Input Current: 0-75A;Frequency: 50-400Hz;H......

    Send Inquiry

    Product Description

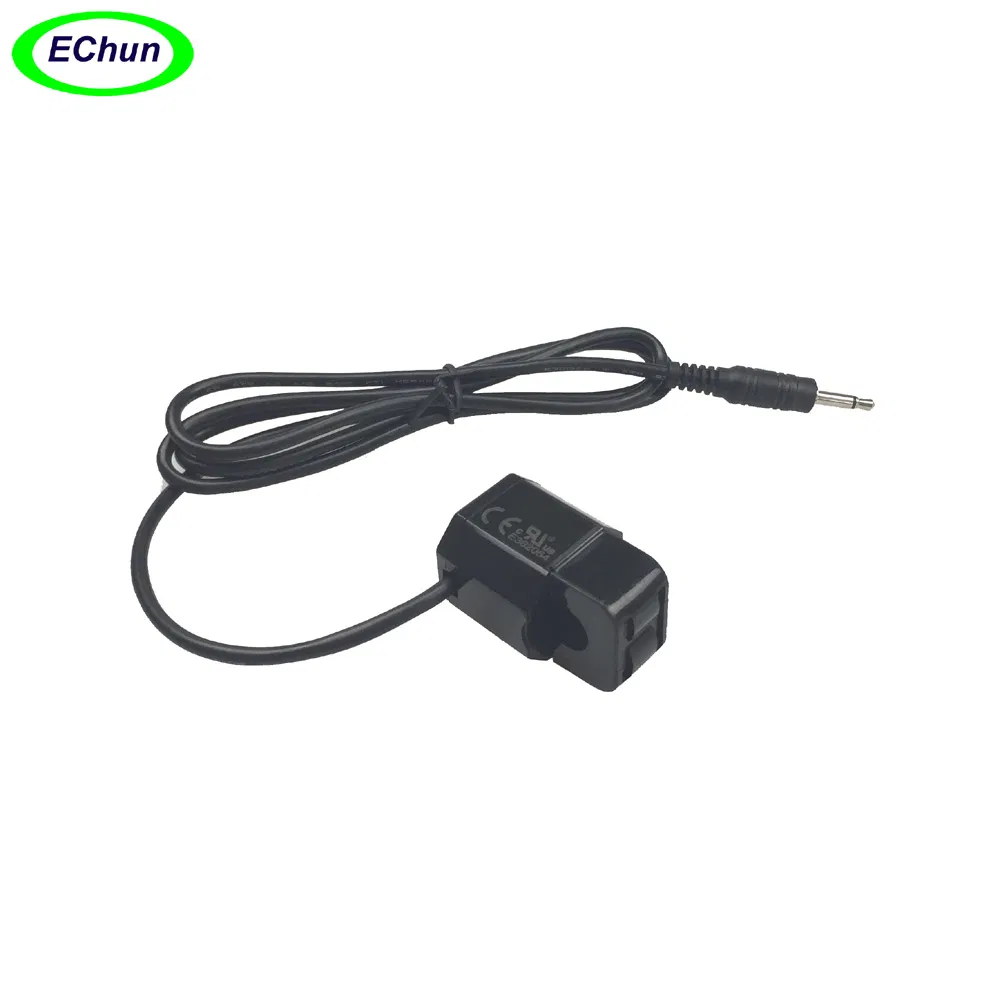

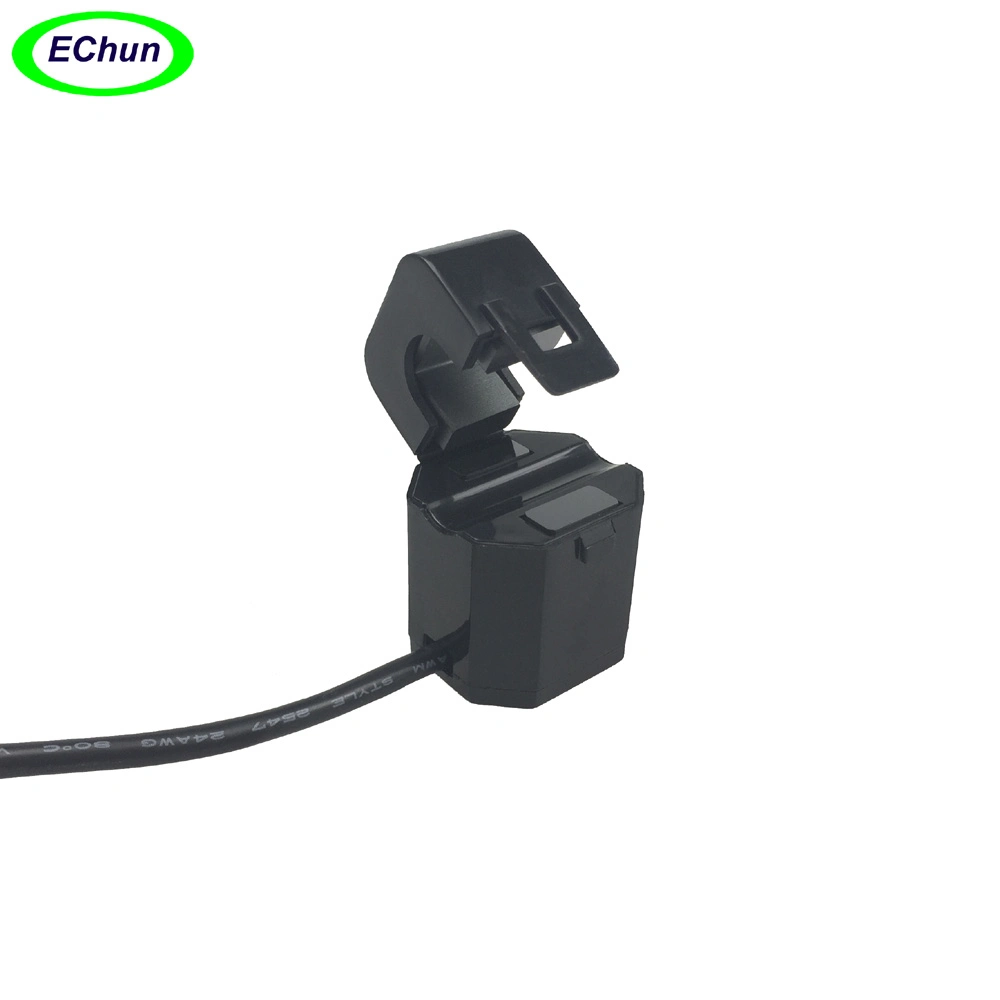

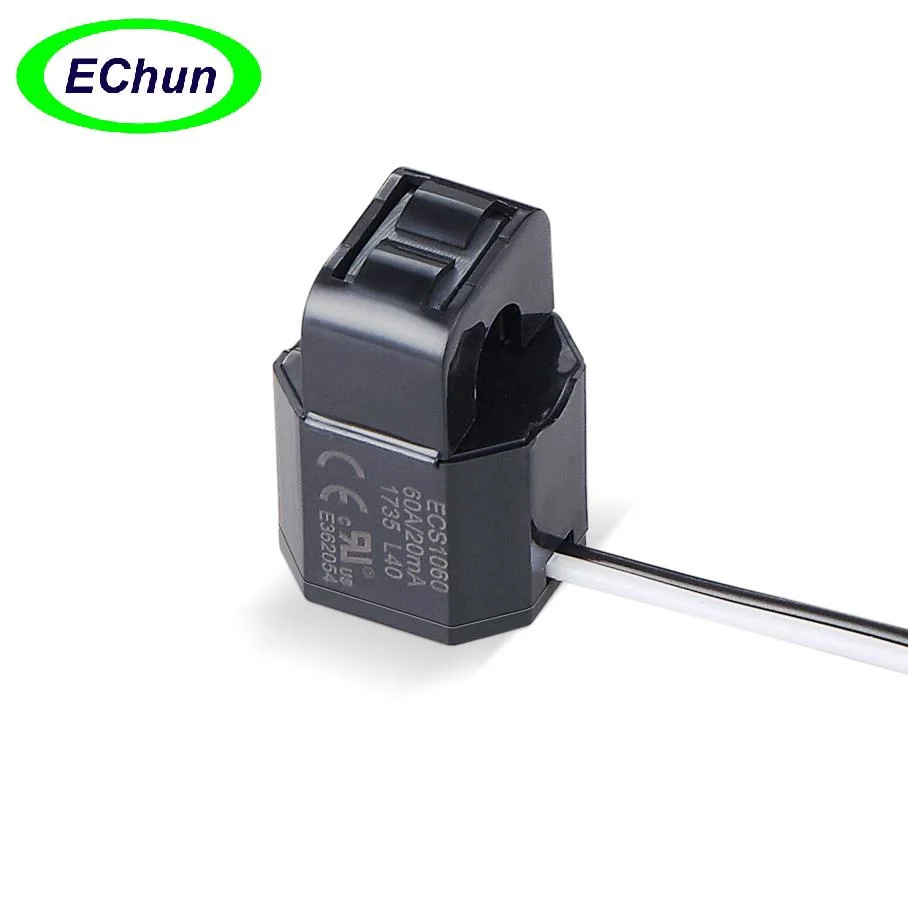

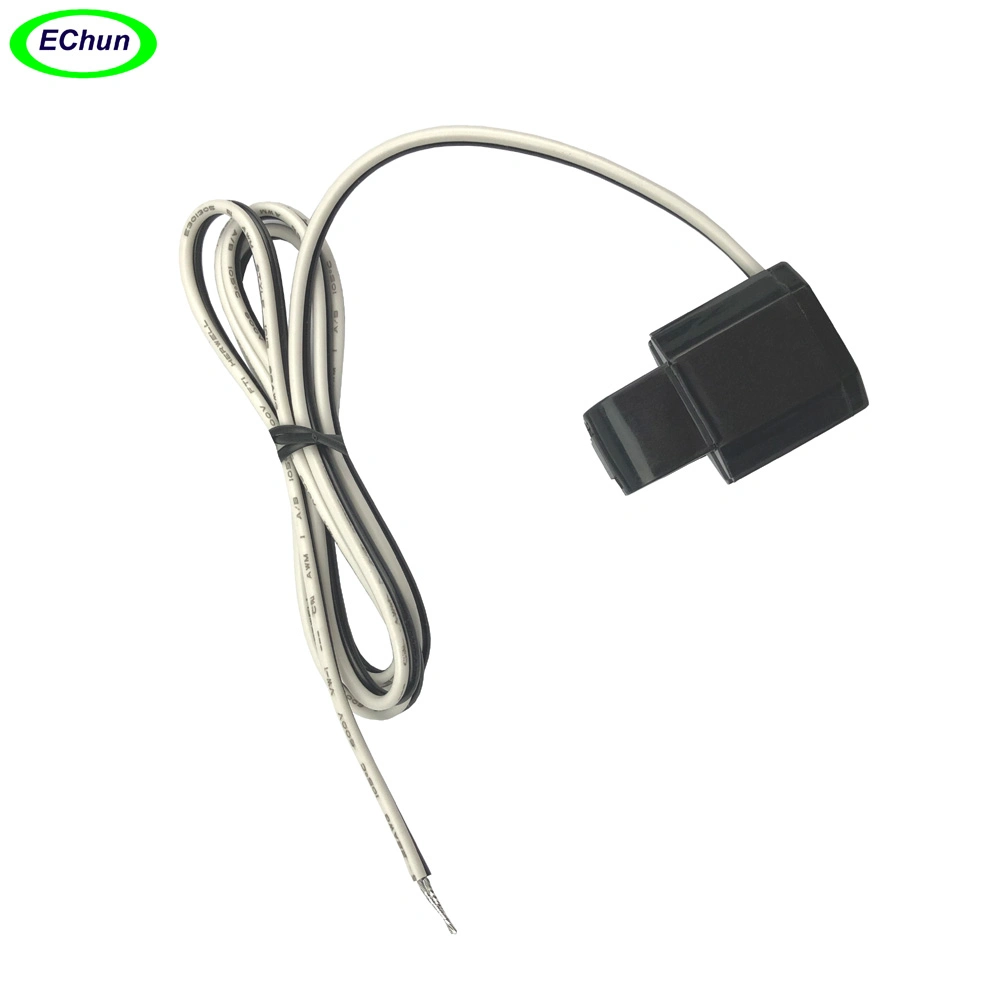

    The ECS10 series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation

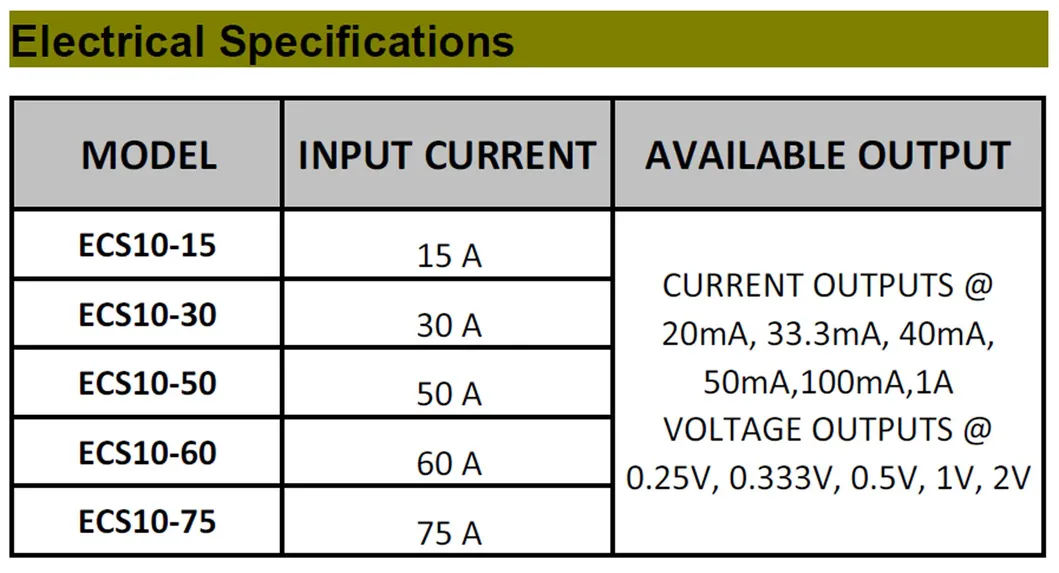

    Standard Input Current: 0-75A;
    Frequency: 50-400Hz;
    High accuracy and excellent linearity;
    Custom design Turns-Ratio available;
    Design standards: ANSI C57.13 & IEC60044-1 & UL Recognized;
    With UL Certification & CE Certification.

    Current output: 20mA,33.3mA, 40mA, 50mA, 100mA, 1A, ...
    Voltage output: 0.25V, 0.333V, 0.5V, 1V, 2V...

    Applications:
    Current measurement;
    Monitoring and protection;
    Energy and sub-metering products;
    Network equipment;
    Instruments and sensors;
    Control systems...

    Advantage:
    Mount easy;
    Excellent linearity over the whole range;
    Fully RoHS compliant.
