    IP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    • IP65 100A 1200A Measuring Current Flow Split Core Current TransformerIP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    • IP65 100A 1200A Measuring Current Flow Split Core Current TransformerIP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    • IP65 100A 1200A Measuring Current Flow Split Core Current TransformerIP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    • IP65 100A 1200A Measuring Current Flow Split Core Current TransformerIP65 100A 1200A Measuring Current Flow Split Core Current Transformer

    IP65 100A 1200A Measuring Current Flow Split Core Current Transformer

    Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on current transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformerWaterproof transformer:GWSCCT660E,GWSCCT752E,GWSCCT667B,GWSC......

    Send Inquiry

    Product Description

    Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on current transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer
    Waterproof transformer:GWSCCT660E,GWSCCT752E,GWSCCT667B,GWSCCT667D

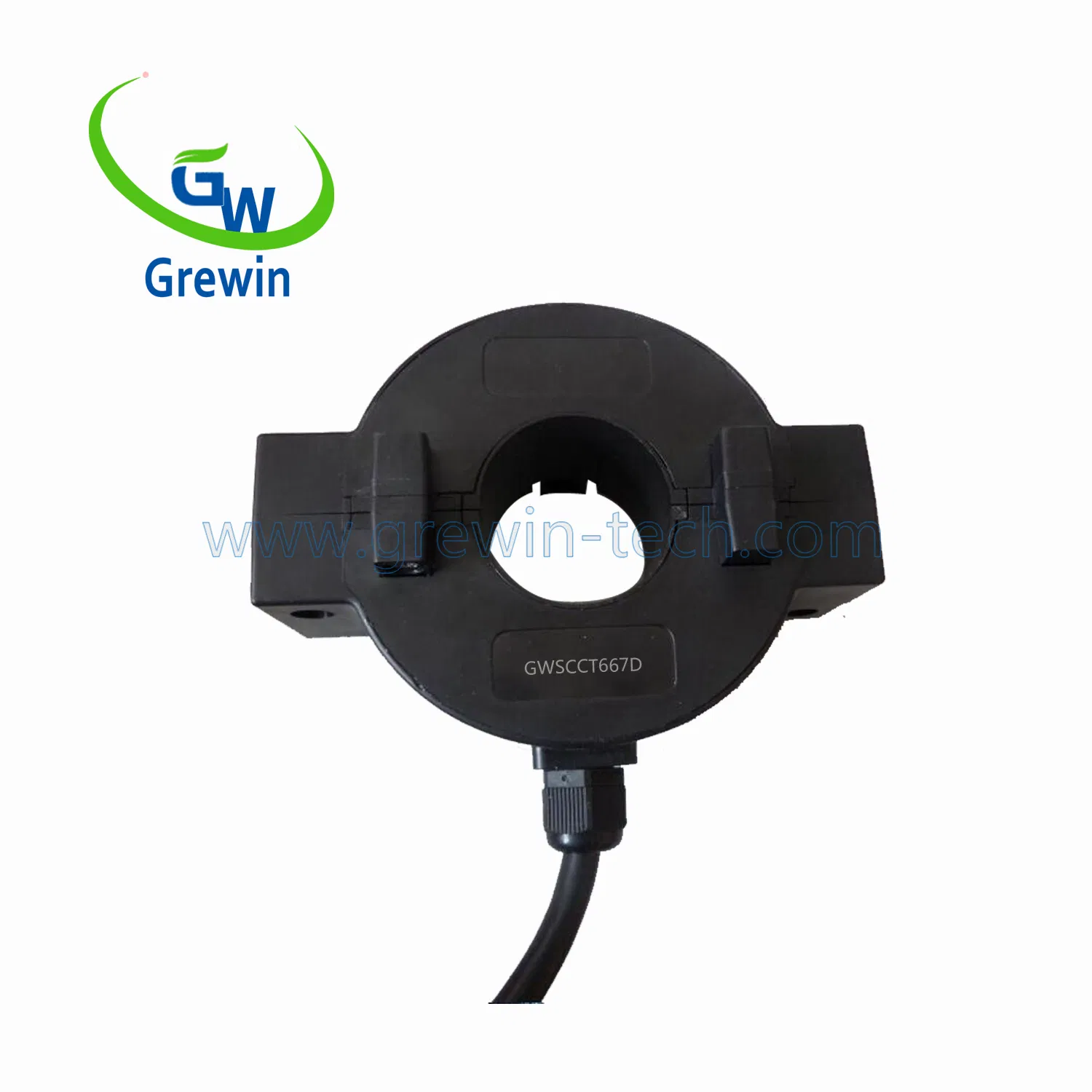

    GWSCCT667D
    IP65 100A 1200A Measuring Current Flow Split Core Current Transformer
     MfgRated Input     Dimensions(mm)
      Output (A)Accuracy
     P/N(A) ø AB C



     SCCT667D-02550-400A 1A/5A0.5,1.0,3.025 173105 56

     SCCT667D-032100-630A 1A/5A0.5,1.0,3.032 206112 56

     SCCT667D-045100-1000A 1A/5A0.2,0.5,1.045 193125 56

     SCCT667D-055100-1200A 1A/5A0.2,0.5,1.055 180135 56

     SCCT667D-065100-1500A 1A/5A0.2,0.5,1.065 203145 56

     SCCT667D-080200-2000A 1A/5A0.2,0.5,1.080 228160 56

     SCCT667D-100 500-3000A 1A/5A0.2,0.5,1.0 100 248180 56



    Related Products

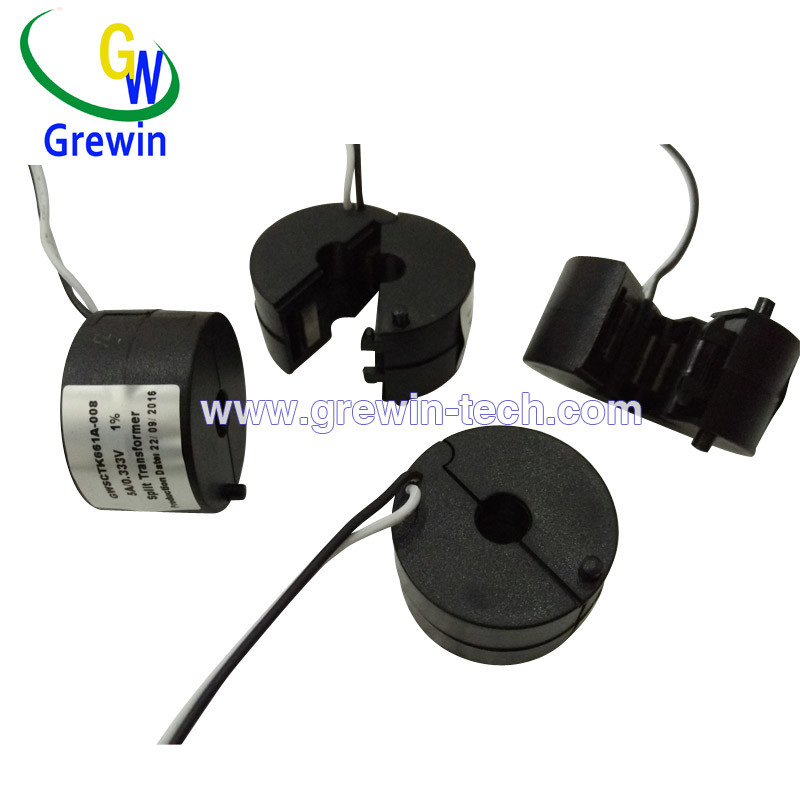

    1.GWSCCT661A
    IP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    Part
    Number    		RatioMeasuringProtectionFrequency
    (Hz)    		Outline
    Dimensions
    ID-L-W-H
    (mm)
    Rated InputAccuracy
    Class    		Rated Accuracy
    Limit
    Primary
    Current
    (A)    		Accuracy
    Class
    GWSCCT661A-0083000:15,10,150.2 0.5
    1.0    		----50~4005.0
    -25.0-22.5-34.5
    GWSCCT661B-0135,10,20,50,750.2 0.5 1.01205P,10P50~40010
    -29.4-26.4-41.7
    GWSCCT661C-01975,100,1500.5,1.03005P,10P50~40016
    -36.9-39.2-52.9
    GWSCCT661C-019100,150,200,2500.5,1.05405P,10P50~40024
    -51.2-47-70.2
    GWSCCT661E-032200,300,400,6000.5,1.06005P,10P50~40035
    -65.8-51.2-83.5
    2.GWSCCT752EIP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    Mfgrated inputoutputaccuracy
    GWSCCT752E-3450-400A0-5A
    0.333V    		0.2
    0.5
    1.0
    GWSCCT752E-46100-600A
    GWSCCT752E-46B100-800A
    GWSCCT752E-813500-5000A
    3.GWSCCT660E
    IP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    Mfgrated inputoutputaccuracy
    GWSCCT660E-0100.5-100A0-5A
    0.333V    		0.5
    1.0
    GWSCCT660E-0191-250A
    GWSCCT660E-0255-400A
    GWSCCT660E-0305-630A
    GWSCCT660E-0455-1000A

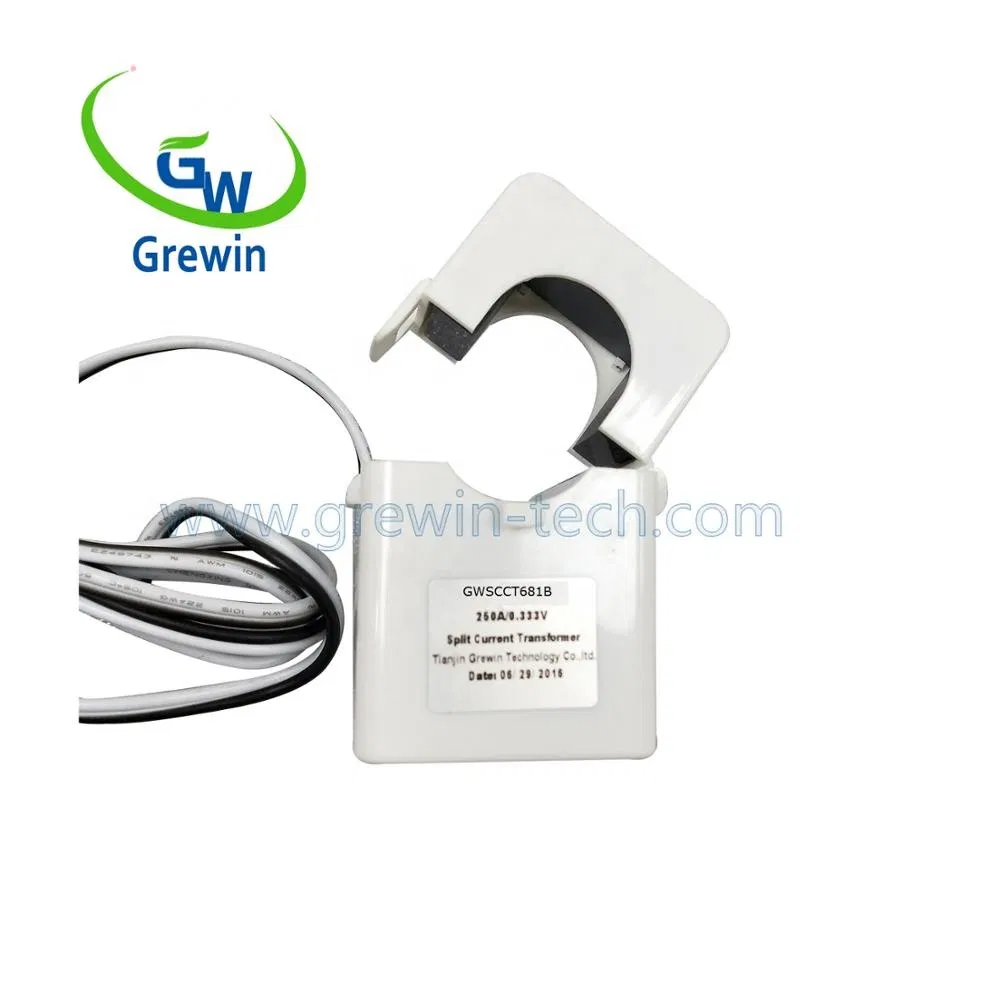

    4.GWCTSA/GWSCCT681B
    IP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    GWCTSA Series Split Core Current Sensor 0.333 (Features)

    Low cost

    5 standard sizes

    Split core design, safer, easier installation, and portable

    GWCTSA Series Split Core Current Sensor (Applications)

    Measures AC current flow to electric motors, lighting, air condition equipment, etc.

    Compatible with HVACtemperature control, power management, building
    GWCTSA Series Split Core Current Sensor (Specifications)

    Rated Primary current
    5-600A

    Rated Secondary current
    0.333V-3.53V

    Rated load
    1, 2.5, 5.0, 10, 30VA

    Accuracy
    0.2 0.5 1.0Class

    Rated Short-time thermal current (Ith)
    20In

    Rated Dynamic current (Idyn)
    2.5Ith

    Case Material
    UL flame retardant rating 94-V0

    Highest Voltage for Equipment Um (rms)
    720 Vac

    Rated Power-Frequency Withstand Voltage(rms)
    3,000 Vac

    Frequency Range:
    50/60Hz

    Operating Temperature
    -15ºC to 50ºC

    Standard
    IEC 60044-1

    Accessories
    Supplied with feet for base mounting if required

    Certification
    RoHS compliant CE&ETL approved
    0.5-600A 0.333V Transformer Split with ETL
    TIANJIN GREWIN TECHNOLOGY CO.,LTD.
    GWSCCTA series split core current transformer
    Part numberRated input(A)Second output(V)Accuracy classLimit primary current(A)Accuracy classFrequency(Hz)OutlineDimensions ID-L-W-H(mm)Unit weightTurn ratioOutput cable
    GWSCCT681B-0055 10 150.3331.0 3.0--50-4005.0-25.0-22.5-34.530g3000:1wire(1m)
    GWSCCT681B-0105,10,20,50,750.3331.0 3.01205P 10P50-40010-29.4-26.4-41.750g3000:1wire(1m)
    GWSCCT681B-01675,100,1500.3330.5 1.03005P 10P50-40016-36.9-39.2-52.9100g3000:1wire(1m)
    GWSCCT681B-024100,150,200,2500.3330.5 1.05405P 10P50-40024-51.2-47-70.2250g3000:1wire(1m)
    GWSCCT681B-035200,300,400,6000.3330.5 1.06005P 10P50-40035-65.8-51.2-83.5400g3000:1wire(1m)

    5A-400A Trusducer Split Core Current Transformer 600mA 10V
    MfgRated InputOutputAccuracyDimensions(mm/inch)
    P/N(A)(mA/V)
     ØABC


    SCCT681B-0105-75A0-50mA0.5,1.0,3.010.041.530.026.5
    (5,10,20,50,75)0.333V(0.39)(1.63)(1.18)(1.04)


    SCCT681B-0165-150A0-100mA0.5,1.0,3.016.053.036.030.5
    (5,10,50,100,150)0.333V(0.63)(2.09)(1.42)(1.20)


    SCCT681B-02410-400A0-200mA0.5,1.0,3.024.070.051.539.0
    (10,50,100,200,400)0.333V(0.95)(2.76)(2.03)(1.50)


    SCCT681B-03510-630A0-500mA0.5,1.0,3.035.084.065.041.0
    (20,100,250,400,600)0.333V(1.38)(3.31)(2.56)(1.61)


    GWSCCT681B Series Split Core Current Sensor (Specifications)

    Rated Primary current
    5-600A

    Rated Secondary current
    0.333V-3.53V

    Rated load
    1, 2.5, 5.0, 10, 30VA

    Accuracy
    0.5, 1.0, 3.0 Class

    Rated Short-time thermal current (Ith)
    20In

    Rated Dynamic current (Idyn)
    2.5Ith

    Case Material
    UL flame retardant rating 94-V0

    Highest Voltage for Equipment Um (rms)
    720 Vac

    Rated Power-Frequency Withstand Voltage(rms)
    3,000 Vac

    Frequency Range:
    50/60Hz

    Operating Temperature
    -15ºC to 50ºC

    Standard
    IEC 60044-1

    Accessories
    Supplied with feet for base mounting if required

    Certification
    RoHS compliant CE&ETL approved

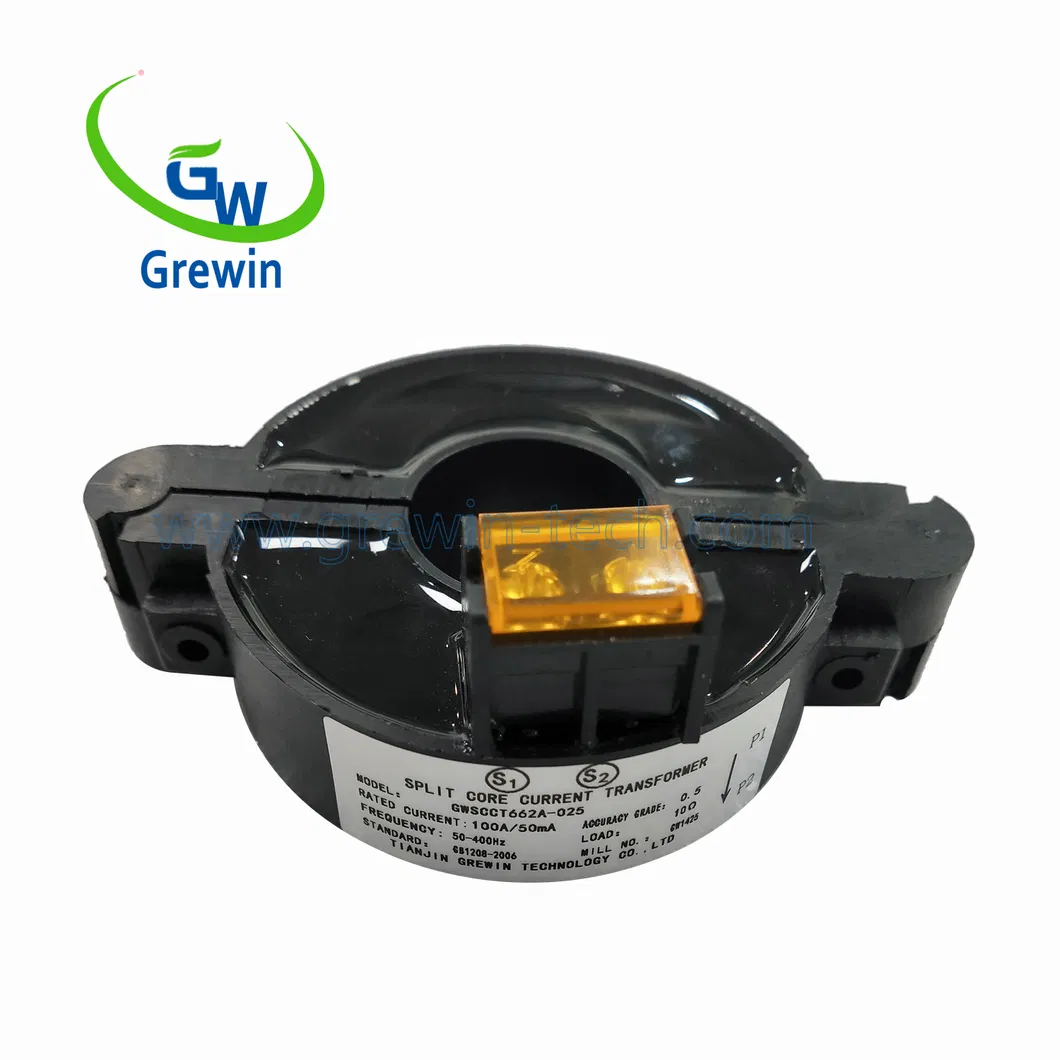

    5.GWSCCT662
    IP65 100A 1200A Measuring Current Flow Split Core Current Transformer
    Mfgrated inputoutputaccuracy
    GWSCCT662A-0255-400A0-200mA 0-10V0.2
    0.5
    1.0
    GWSCCT662B-04550-1000A0-500mA 0-10V
    GWSCCT662C-065100-1500A0-500mA 0-10V
    GWSCCT662D-08050-2000A0-500mA 0-10V
    GWSCCT662E-100800-3000A0-600mA 0-10V

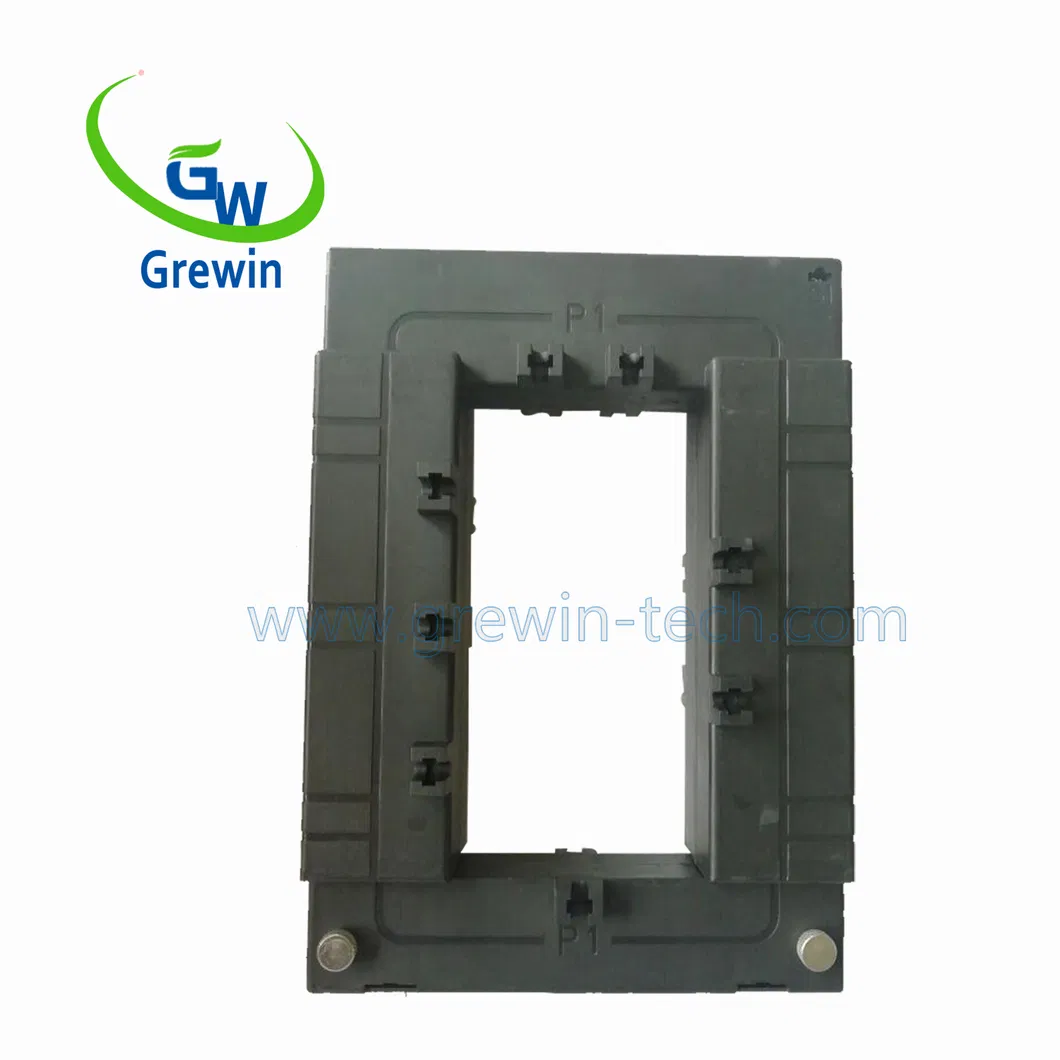

    6.GWSCCT731A


    IP65 100A 1200A Measuring Current Flow Split Core Current TransformerType Selection(Output: 1A/5A)
    Mfg P/NRated Input (A)Output (A)
    Accuracy    		Dimensions(mm)
    ABCDEFGHI

    SCCT731A(23)
    100-400A
    1A/5A    		0.5,1.0,3.0
    20
    30
    50
    88
    104
    34
    41
    40
    31

    SCCT731B(58)
    250-1000A
    1A/5A    		0.5,1.0,3.0
    50
    80
    78
    114
    145
    32
    32
    33
    33

    SCCT731C(88)
    250-1000A
    1A/5A    		0.5,1.0,3.0
    80
    80
    108
    144
    145
    32
    32
    33
    33

    SCCT731D(812)
    500-1500A
    1A/5A    		0.5,1.0,3.0
    80
    120
    108
    144
    185
    32
    32
    33
    33

    SCCT731E(814)
    600-5000A
    1A/5A    		0.5,1.0,3.0
    80
    140
    122
    176
    228
    47
    47
    53
    38

    SCCT731F(816)
    800-5000A
    1A/5A    		0.5,1.0,3.0
    80
    160
    120
    176
    246
    48
    48
    53
    38

    SCCT731G(36)
    100-3000A
    1A/5A    		0.5,1.0,3.0
    30
    60
    88
    132
    131
    49
    36
    55
    43

    SCCT731H(513)
    100-4000A
    1A/5A    		0.5,1.0,3.0
    55
    130
    80
    125
    195
    35
    30
    53
    35



    Shipping:

    1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
    2. We Provide Drop shipping Service.
    3. 20 days around delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
    4. In order to ensure you receive your order tax free upon
    import, we declare lower value.
    5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

    Payment:

    1. We accept Western Union and T/T
    2. 30% deposit and 70% before shipping
    3. No payment collection. We only can deliver goods after
    geting full payment.

    Warranty:

    1. We provide 1 year warranty.
    2. If the product is defective, please notify us within 3 days of delivery.
    3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

    Our factory

    Tianjin grewin technology co., ltd . is a high-tech company which integrates production, design, R&D, and sale.We-CHIPSEN-specialize in developing many kinds of electronic components. Include electronic transformers,
    We are ISO 9001 and ISO 14001 certified and our products come with UL, SGS marks.
    For more details, please contact us without hesitation.

    WHY CHOOSE US?

    Quality and honest first!
    A. Flexible service for diffierent transformers with high efficiency perfor mance.
    B. Over 40 years experience of transformer designing and producing.
    C. 100% test of every single product we produce from incoming material checking.
    D. UL, CE, ISO9001:2008
    E. We offer custom-made transformers, OEM and ODM are welcome
    F. We deliver the quality you expect at consistently competitive prices
    G. Transformer quality lifetime:10 Years.
    H. Specialty Sales service:5 -10 Years
