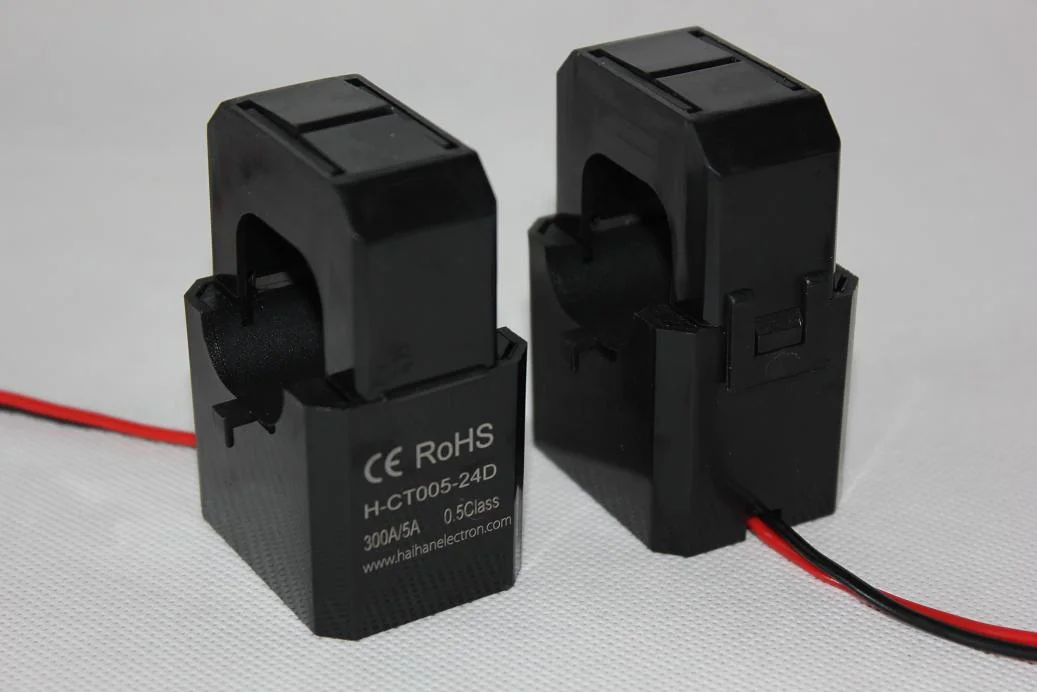

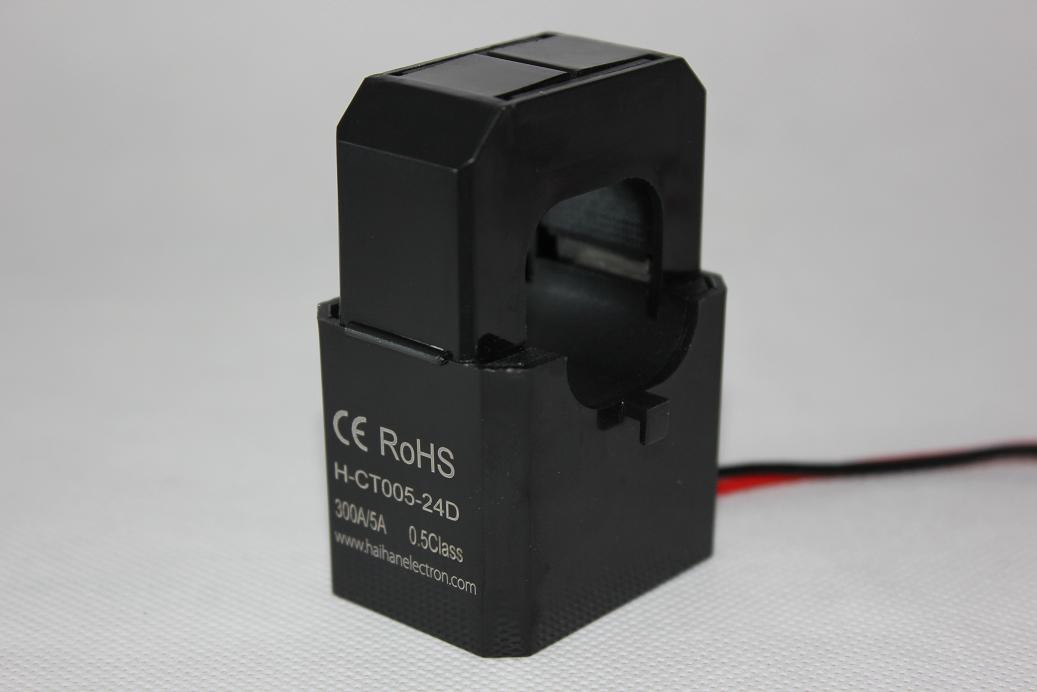

Open CT with 300A/5A
The H-CT005 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.1, Electrical Specificatio......
Send Inquiry
Product Description
The H-CT005 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.

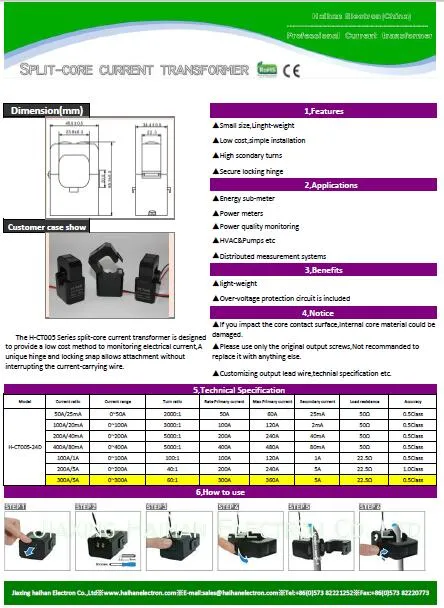

1, Electrical Specifications
2, Applications.
A, Portable/Curret instruments.
B, Sub-metering.
C, Monitor Motor Loads
3, Feature
A, Small size.
B, Low cost
C, High secondary turns.
D, Secure locking hings
E, Full RoHS compliant
F, Mounting easy.
1, Electrical Specifications
2, Applications.
A, Portable/Curret instruments.
B, Sub-metering.
C, Monitor Motor Loads
3, Feature
A, Small size.
B, Low cost
C, High secondary turns.
D, Secure locking hings
E, Full RoHS compliant
F, Mounting easy.
| 4, Material List: | ||||||
| NO | ITEM | DESCRIPTION | UL Card | MATERIAL | NOTE | |
| 1 | CORE | UU53 | / | SILLICON STEEL | ||
| 2 | CASE | PP3307 | E235269 | PP | ||
| 3 | BOBBIN | D202G15@ | E107536 | PBT | ||
| 4 | WIRE | 2UEW | E164502 | UEW/U | ||
| 5 | LEAD WIRE | UL1007 16AWG | E189674 | PVC | 80º C 300V | |
| 6 | SOLDER | 99.3%Sn0.7%Cu | / | Sn | ||
