Ring Type Current Transformer (RCT-25)
RCT current transformer series:Model RCT series current transformer are available for connecting with cable, and also available for connecting with bus barRCT tecnicial specifications:Primary current: 30A-3000qSecondary current: 5A/1AStandard approval: IEC44-1Maximum voltage: 0.66kvFrequency: 50/60H......
Send Inquiry
Product Description

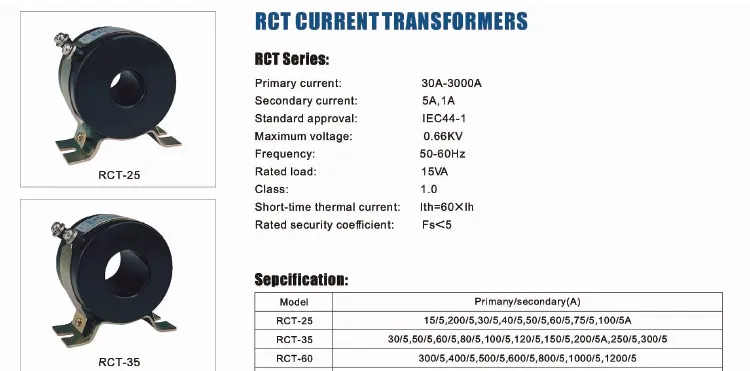

RCT current transformer series:
Model RCT series current transformer are available for connecting with cable, and also available for connecting with bus bar
RCT tecnicial specifications:
Primary current: 30A-3000q
Secondary current: 5A/1A
Standard approval: IEC44-1
Maximum voltage: 0.66kv
Frequency: 50/60Hz
Class: 0.5/1.0
Rated load: 15VA
Short time thermal current: Ith=60*ih
Rated security coefficient: Fs<5
Model RCT series current transformer are available for connecting with cable, and also available for connecting with bus bar
RCT tecnicial specifications:
Primary current: 30A-3000q
Secondary current: 5A/1A
Standard approval: IEC44-1
Maximum voltage: 0.66kv
Frequency: 50/60Hz
Class: 0.5/1.0
Rated load: 15VA
Short time thermal current: Ith=60*ih
Rated security coefficient: Fs<5
| Model | Primary/Second (A) |
| RCT-25 | 15/5, 20/5, 30/5, 40/5, 50/5, 60/5, 75/5, 100/5 |
| RCT-35 | 30/5, 50/5, 60/5, 80/5, 100/5, 120/5, 150/5, 200/5, 250/5, 300/5 |
| RCT-60 | 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1200/5 |
| RCT-90 | 800/5, 1000/5, 1200/5, 1500/5, 1600/5 |
| RCT-110 | 1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5 |
