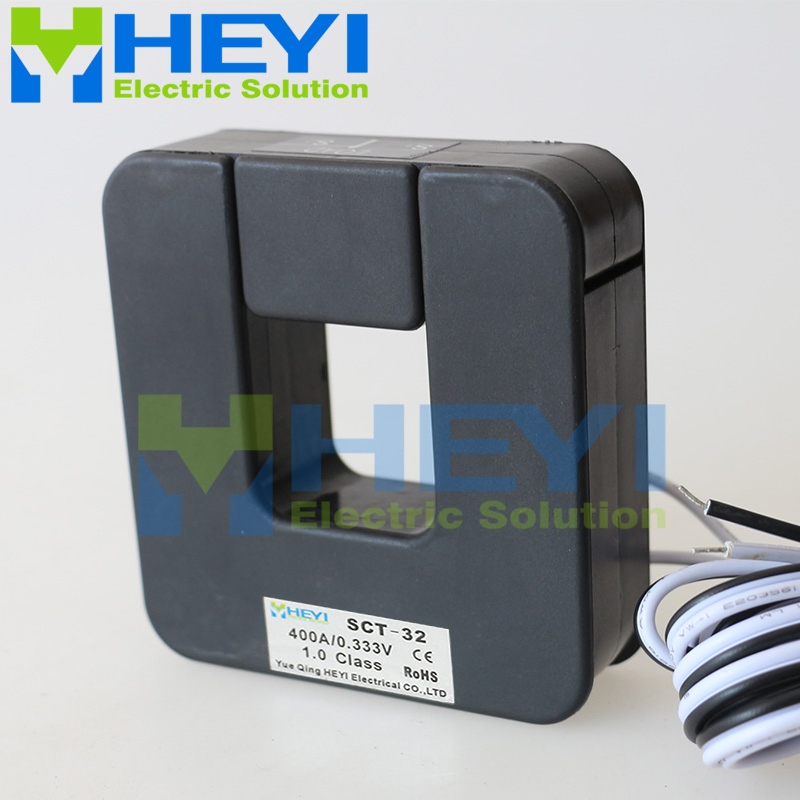

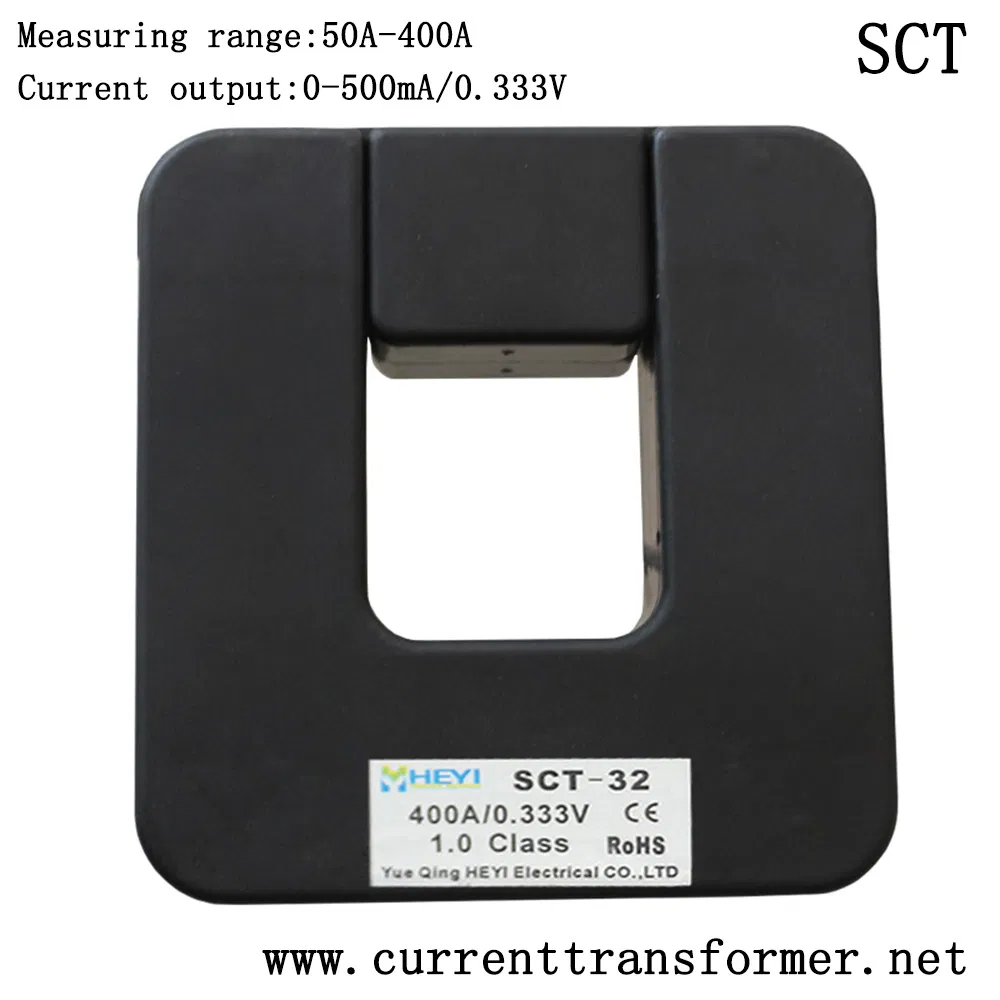

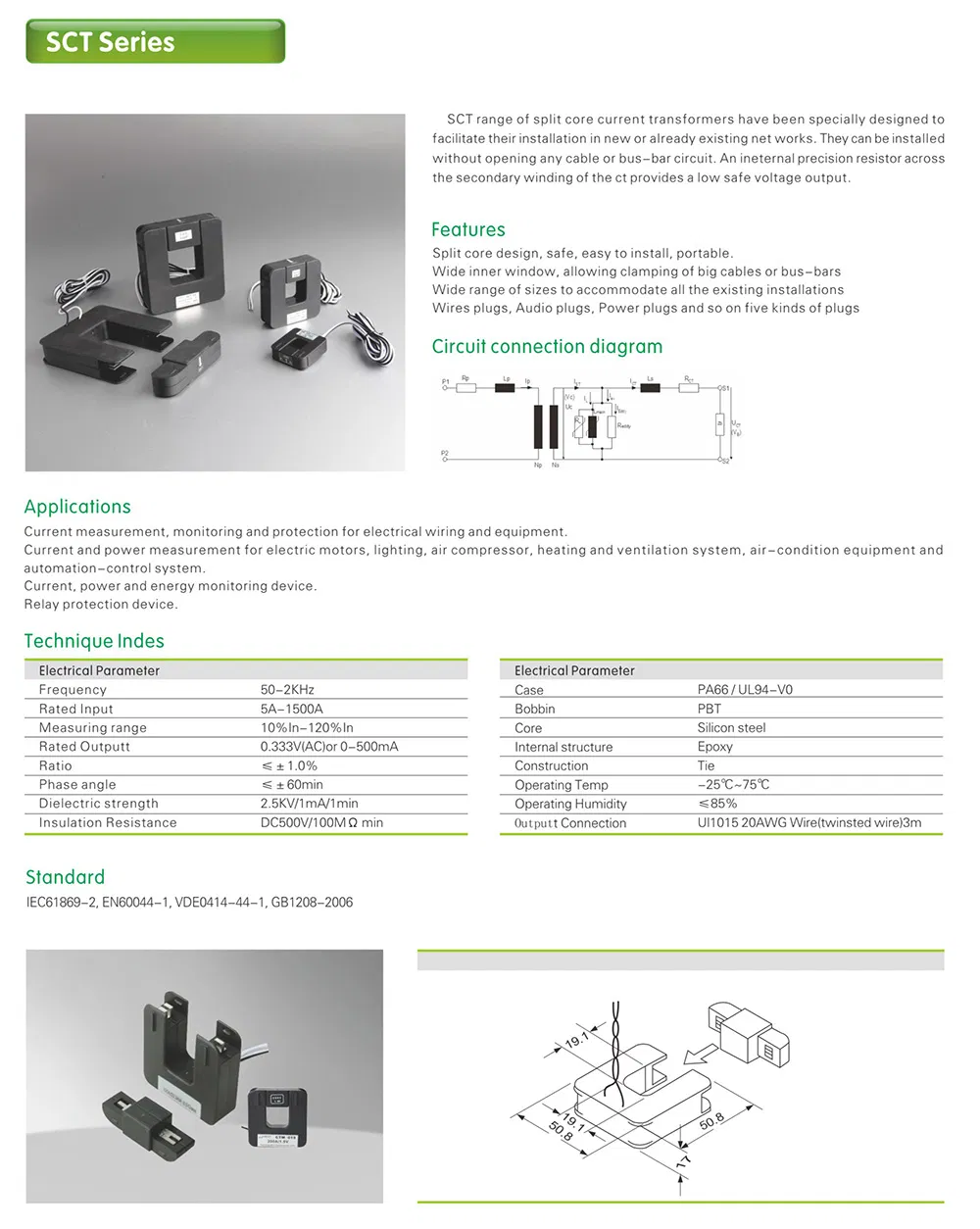

Sct-32 Split Core Current Transformers with 0-400A Ma Output 0- 60mA /0.333V Cl1.0
Our company specializes in the production of current transformer, Split core current transformer is our company to create a burst of products, with the use, fast installation, labor saving, durable, high temperature flame retardant, and other high-quality features, to provide a better choice for th......
Send Inquiry
Product Description
Our company specializes in the production of current transformer, Split core current transformer is our company to create a burst of products, with the use, fast installation, labor saving, durable, high temperature flame retardant, and other high-quality features, to provide a better choice for the intelligent power grid.

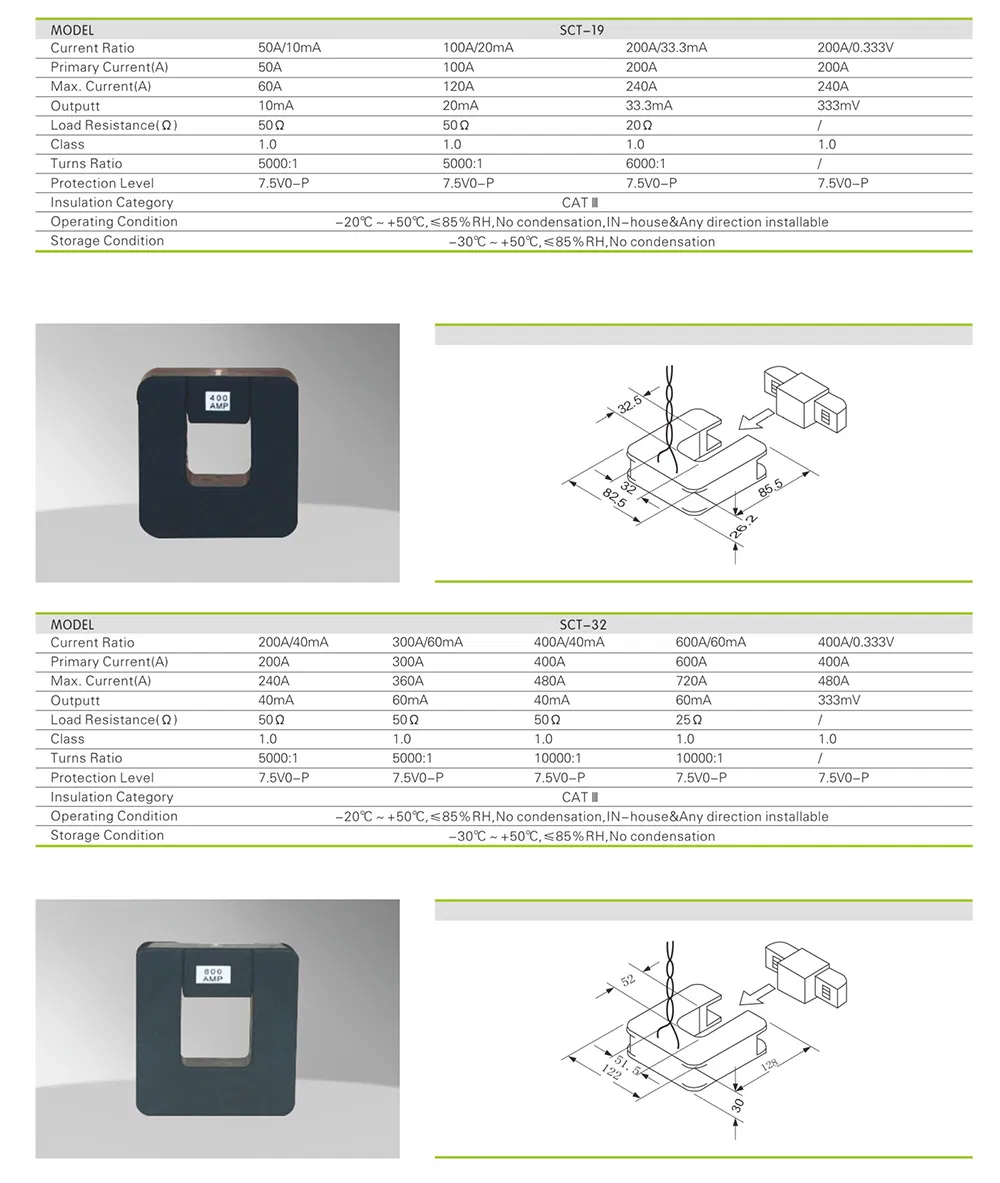

| Model | Inner diameter | Current Ratio | ||||
| SCT-19 | 19*19mm | 50A/10mA | 100A/20mA | 200A/33.3mA | 200A/0.333V | / |
| SCT-32 | 32*32mm | 200A/40mA | 300A/60mA | 400A/40mA | 600A/60mA | 400A/0.333V |

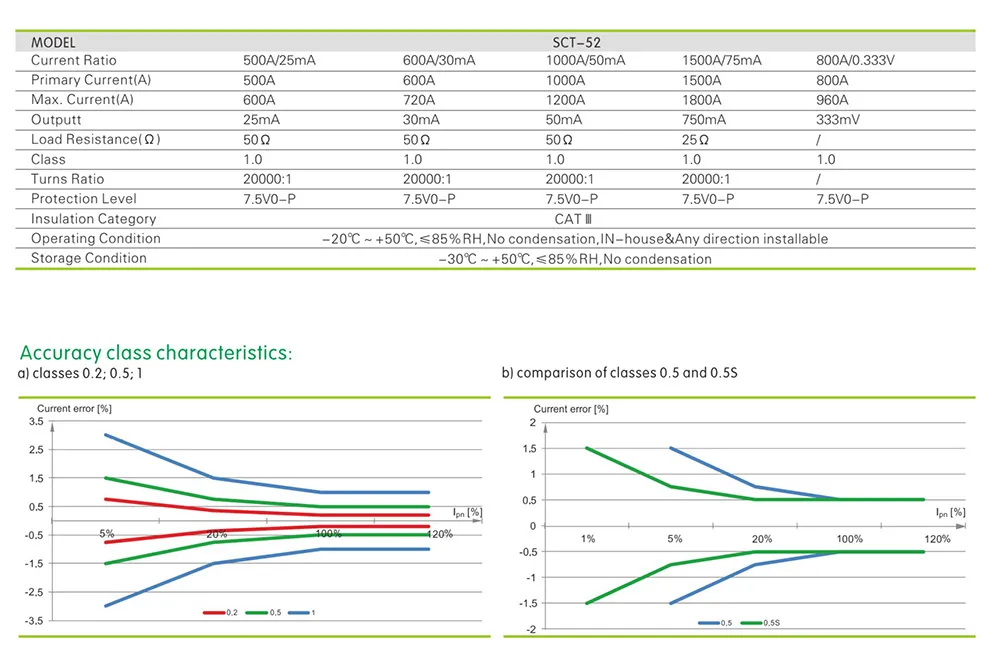

| SCT-52 | 52*52mm | 500A/25mA | 600A/30mA | 1000A/50mA | 1500A/75mA | 800A/0.333V |
