Single Phase Voltage Transformer Semi-Closed Voltage Transformer Vt

Product Description

Customized products can consult online customer service!

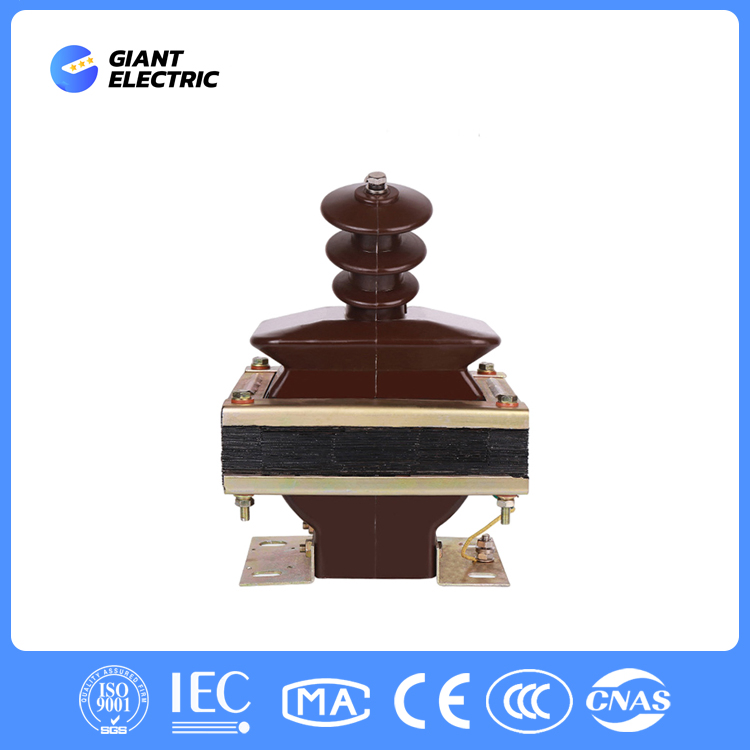

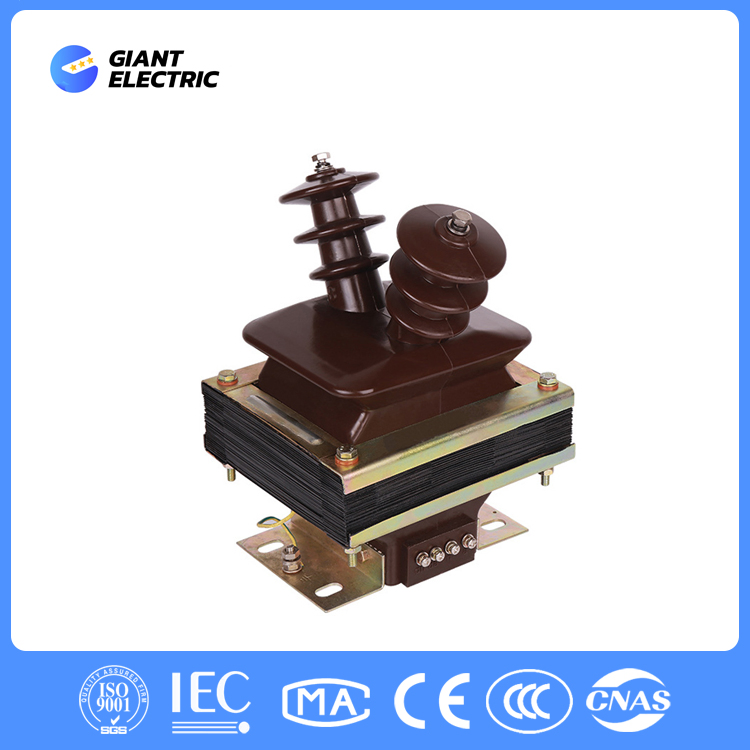

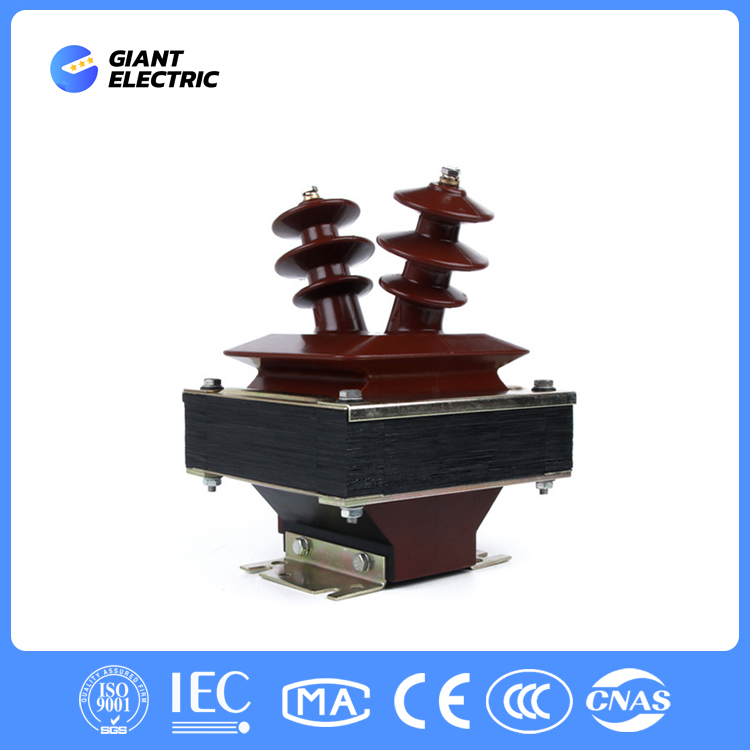

JDZ Voltage Transformer

Description:
The voltage transformer of this type of epoxy resin cast of a semi-enclosed product indoor applies to the rated frequency 50Hz.rated voltage 6, 10kv the power system voltage, energy measurement and relay protection.

JDZ-6, 10Qtype transformer cast in epoxy resin semi-closed the whole insulation products. The core quality cold-rolled silicon steel sheet pile. Transformers are insulated by the epoxy resin composition, small size, lightweight. Installation accounts for only a limited space. Winding fully cast in epoxy resin has excellent insulating properties, impact resistance and mechanical stress. and can protect the winding from moisture. The primary winding is a sign of Lead terminals A and B; a sign of the secondary winding lead wire. terminals a, n, are a clear note on the casting body into. Folder on the ground sign next to the grounding bolt for grounding the lower bracket for mounting. The overall structure is compact, easy to use.

Type	Rated voltage ratio(kV)	Rated output (VA)					Limit output (VA)	Rated insulating level (kV)
Type	Rated voltage ratio(kV)	0.2	0.5	1	3	6P	Limit output (VA)	Rated insulating level (kV)
JDZ-6Q	6/0.1	20	50	80	200		400	7.2/32/60
JDZ-10Q	10/0.1	30	80	WO	300		500	12/42/75

Zhejiang ZheGui Electric Co., Ltd established in 2013. We are located in Zhejiang with convenient transportation access and developed electrical market. We are group of private enterprises that hold the production license issued by the former ministry of energy and ministry mechanical and electrical engineering.
The company has nearly 60 million fixed assets and more than 60 employees, covering 23133 square meters. We are specialized in R&D production of complete switchgear of high and low voltage equipment such as prefabricated substation, distribution cabinet/box, drawer cabinet, ring network cabinet, inflatable cabinet, etc.
We owns three CNC bending machine, CNC shearing machine, CNC laser cutting machine and a series of advanced production equipment to further optimized the product structure and improve the efficiency of production. After nearly 7 years of development, it has passed ISO 9001-2000 quality system certification. All items produced by our own factory, so our advantages are: reliable quality and reasonable price. Gather the world's energy to delight your business. It's honorable for Zhegui to share your progress, brilliance and success!
