Split Core Current Transformer SCT 333mV Secondary OutputThe JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be ......
Send Inquiry
Product Description

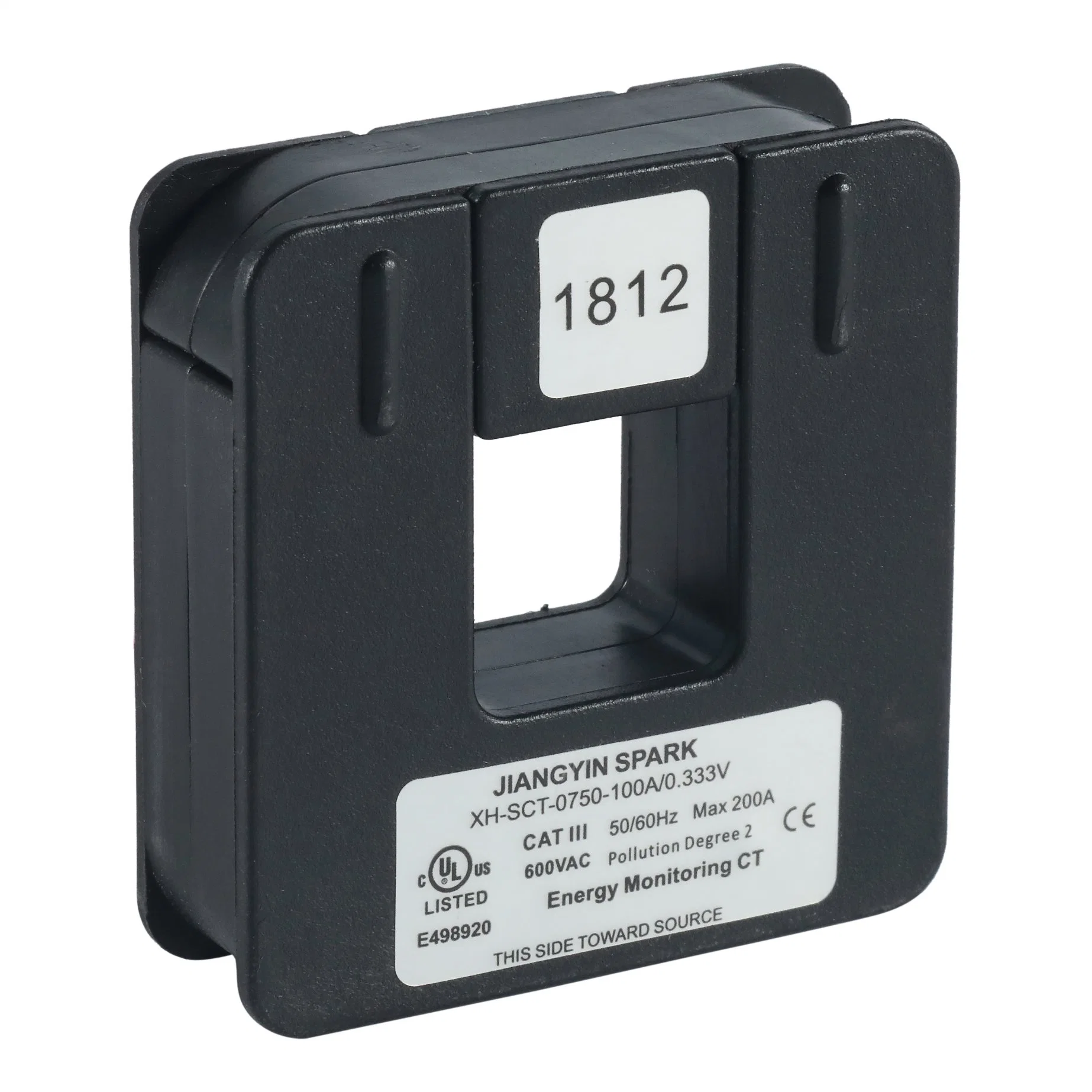

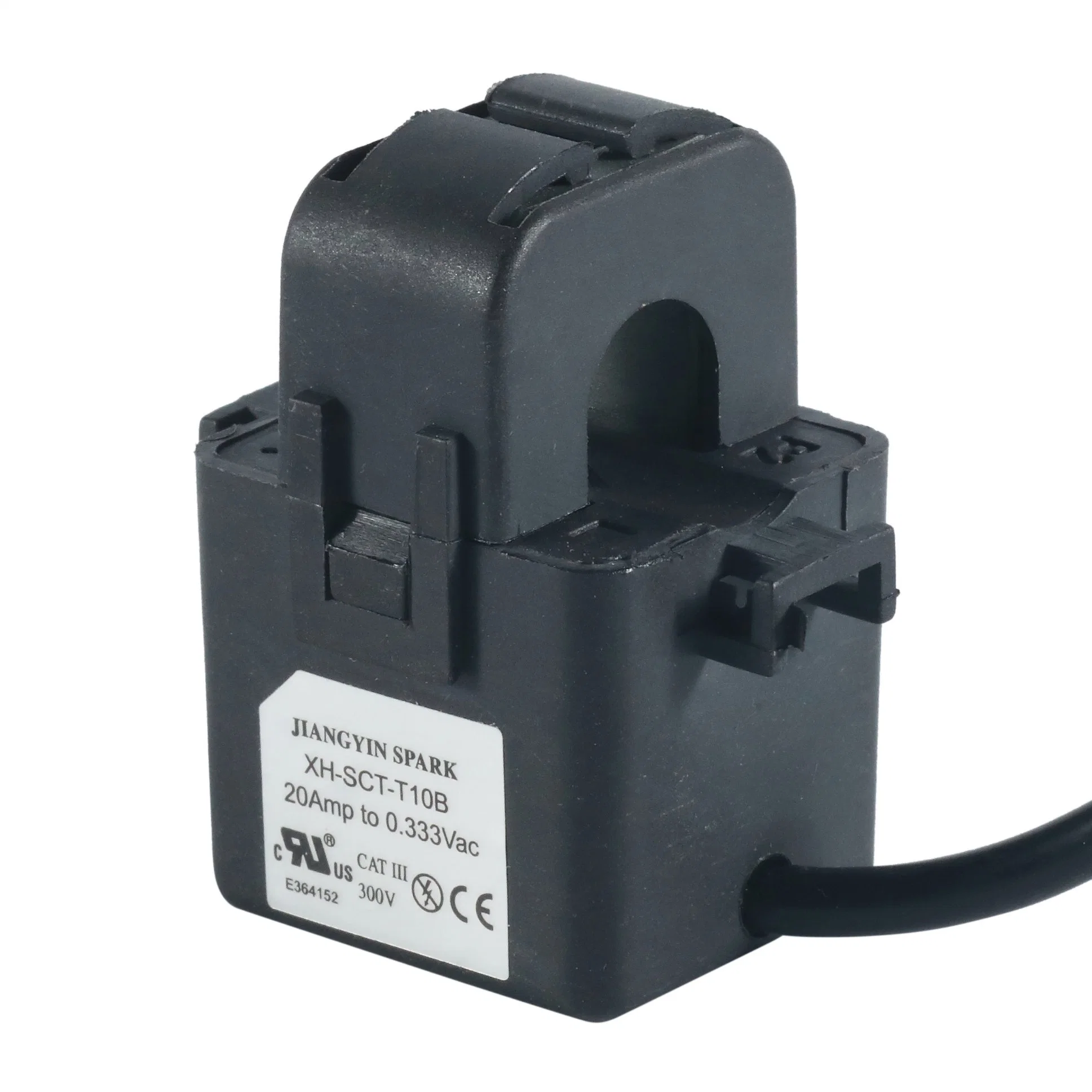

Split Core Current Transformer SCT 333mV Secondary Output

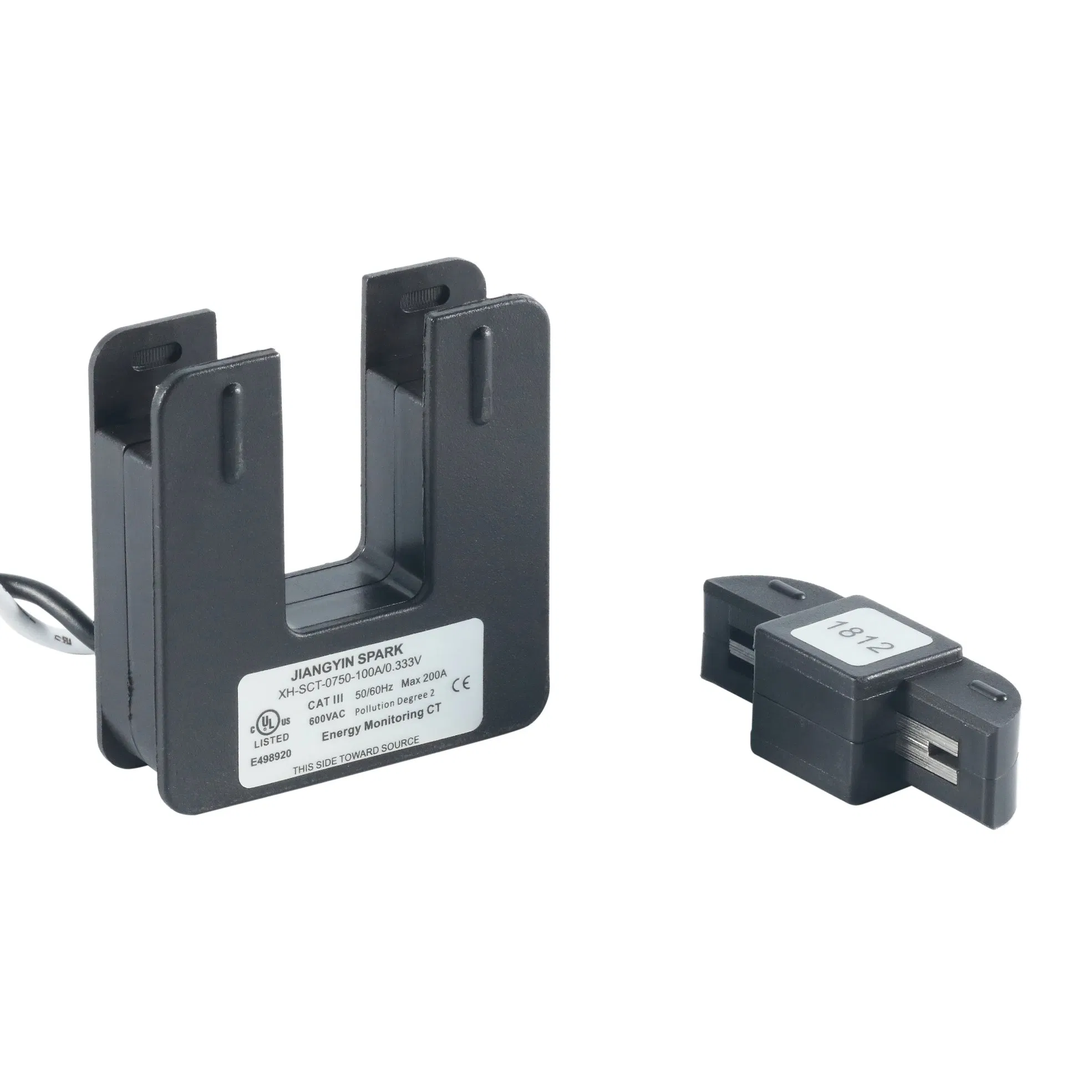

The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Features
Low cost.
Split core design;safer,easier installation,portable.
Specifications
Rated Current 5A to 3000A loads.
Rated output: 0.333Vac

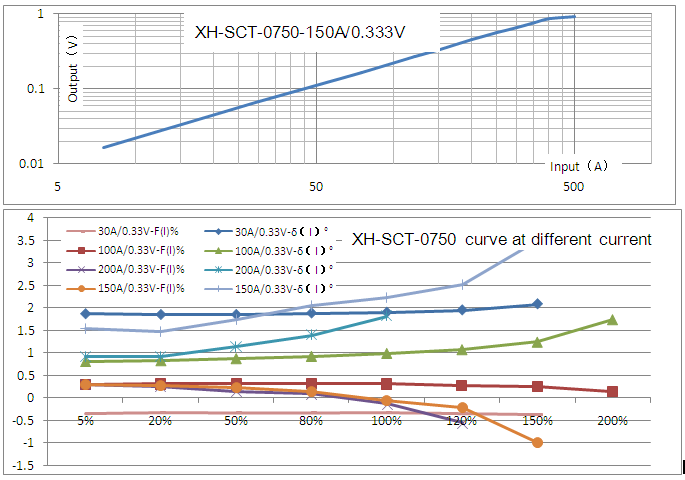

Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15ºCto 60ºC.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
UL&CE recognized. RoHS Compliant
Output and leads can be customized
Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

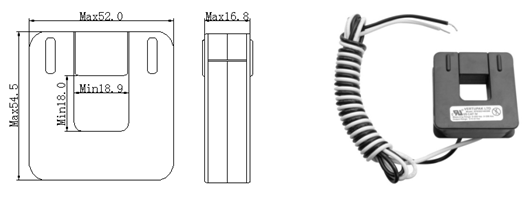

| Model | I. D. | Rated Amps | Output | Accuracy | SIZE( mm ) | ||||
| A | B | C | D | E | |||||
| XH-SCT-0750 | 0.75" (19.1mm) | 5, 15, 30, 50, 70, 100, 150, 200 | 0.333V | 1.0 | 51.6 | 54.1 | 16.6 | 19.1 | 18 |
| XH-SCT-1250 | 1.25" (31.8mm) | 70, 100, 150, 200, 250, 300, 400, 600 | 1.0 | 82.3 | 85.3 | 26.4 | 32 | 32.3 | |
| XH-SCT-2000 | 2.00" (50.8mm) | 400, 600, 800, 1000, 1200 | 1.0 | 120 | 125 | 29.6 | 52.5 | 52 | |
| XH-SCT-3000 | 3.00" x 5.00" (76.2mm x127mm) | 1000, 1200, 1500, 2000.3000 | 1.0 | 145 | 199 | 30.5 | 76 | 130 | |
