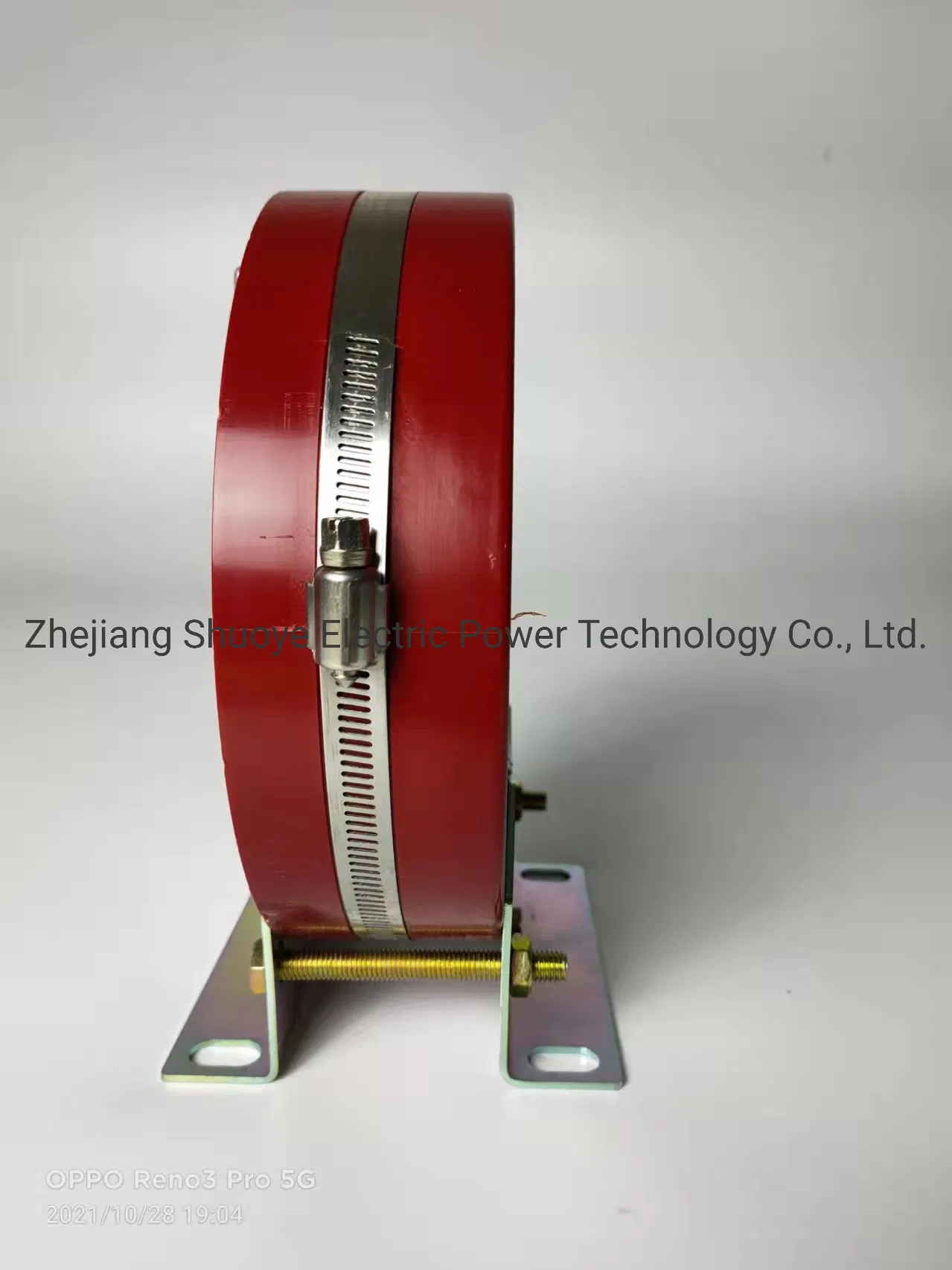

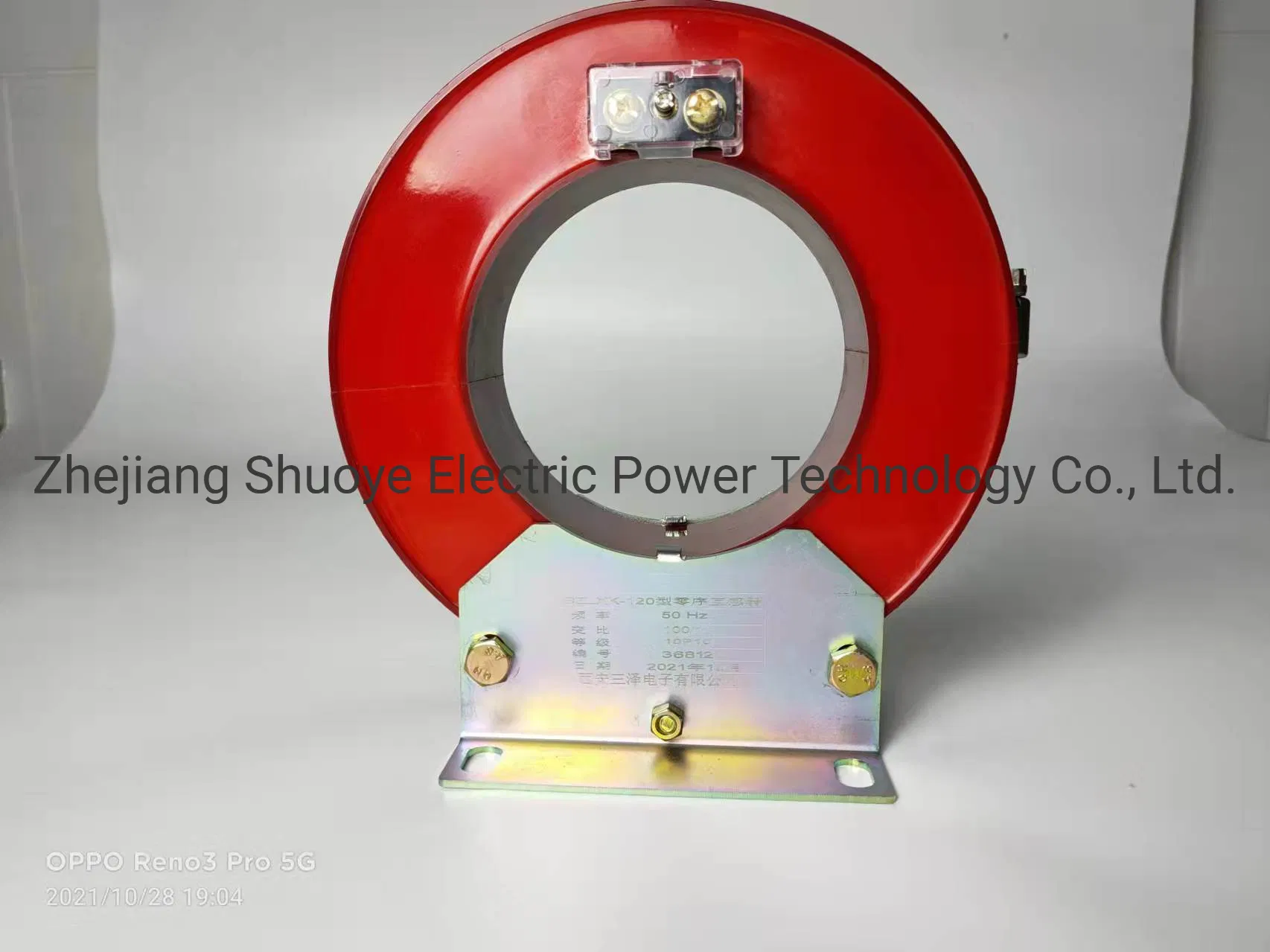

Split Core Lzck-55

Product Description

Technical Data:
	Power factor of load:COSΦ=0.8(lagging);
	Rated secondary current:5A or 1A;
	Rated frequency:50Hz or 60Hz;
	Anti-Pollution grade:Class II;
	Ambient temperature:-0.5ºC-40ºC,daily average temperature not more than 30ºC;
	Altitude:≤1000m;
	Standard:GB20840.1 GB20840.2.

Type	purpose	Measuring current			Peotective current transformer		Double winding current transformer
	Ratio	Accurscy class and rated burden			Accurscy class and rated burden		Accurscy class and rated burden
	Ratio	0.5	1	3	10P5	10P10	0.5	1	10P10	10p5
LMZK-10	50/5	-	-	2.5	-	-	-	-	-	-
	75/5	-	-	2.5	-	-	-	-	-	-
	100/5	-	2.5	-	2.5	-	-	-	-	-
	150/5	-	2.5	-	3.75	1.5	-	-	-	-
	200/5	2.5	2.5	-	5	2.5	-	-	-	-
	300/5	2.5	2.5	-	5	2.5	-	2.5	-	1.5
	400/5	5	5	-	5	2.5	2.5	2.5	-	2.5
	500/5	5	5	-	5	2.5	2.5	2.5	-	2.5
	600/5	5	5	-	5	2.5	2.5	2.5	-	2.5

Technical Data Form

Split Core Lzck-55

FAQ

Q1.Are you manufacturers?
A.Yes, so I can guarantee that our price is the cheapest.

Q2. tell me the standard of package?
A.wooden crate.

Q3.Would you accept to use our logo ?
A.If you have authorization, then you can.

Q4.What is the insulation method?
A.Resin insulation

Q5.When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.

Q6.: What is the price of shipping?
A: Depending upon the port of delivery, prices vary.

Q7.how's the delivery time ?
A. usually it will take about 30 days after order confirmed. It depend on your order quantity.

Q8.Can you customize special capacity and ratio?
A.special capacity and variable ratio are negotiated separately.
