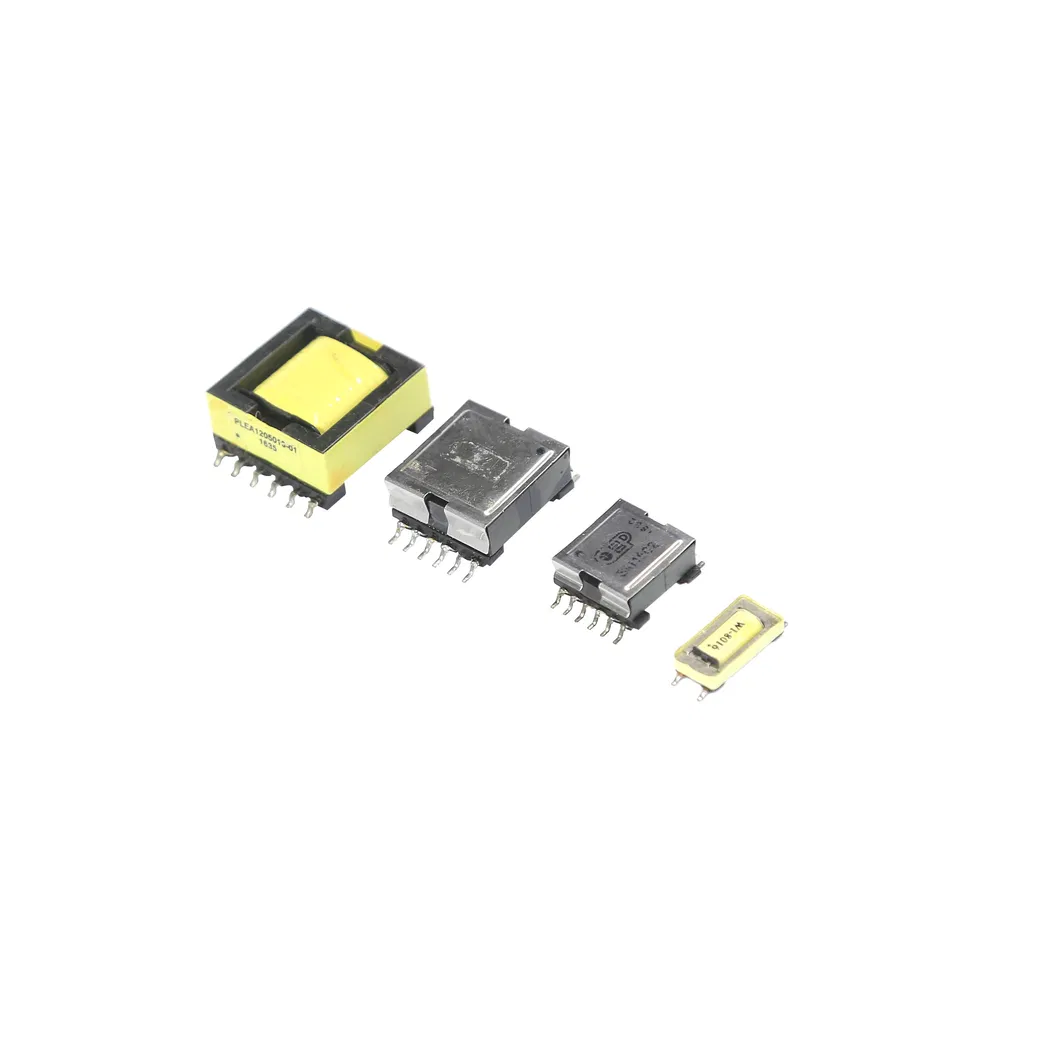

Cheaper Price EP10-SMD Single SMD Power Amplifier Hf Transformer
Product DescriptionSurface Mount PackageRoHS CompliantOperating Temperature -40°C to +85°CElectrical Specifications @25ºC Inductance:PIN1-2=70.0uH±10% @100KHz/0.1VLekag Inductance: .PIN1-2=1.0uHMax.@10KHz/0.1V(PIN8-7-6-5 Short) D.C.R PIN 1-2=470mohm Max. PIN 3-......
Send Inquiry
Product Description
Surface Mount Package
RoHS CompliantOperating Temperature -40°C to +85°C
Electrical Specifications @25ºC
| |
Inductance: | PIN1-2=70.0uH±10% @100KHz/0.1V |
Lekag Inductance: | .PIN1-2=1.0uHMax.@10KHz/0.1V(PIN8-7-6-5 Short) |
D.C.R
| PIN 1-2=470mohm Max. |
PIN 3-4=180 mohm Max. | |
PIN 8-7=15 mohm Max. | |
PIN 6-5=200mohm Max. | |
Turn Ratio:
| PIN 1-2:PIN 3-4=3.42±3%:1 |
PIN1-2:PIN8-7=8.00139%1 | |
PIN1-2:PIN 8-5=3.0013%:1(PIN7-6 Short) | |
Hi-POT: | PRI. - SEC. = 1500VAC/60Hz/2Seconds/1mA(PIN 5-6, 8-7 Short) |
Characteristic:
1. Supply high voltage and withstand voltage;
2. Operation frequency range from 40 to 80 KHz;
3. Deliver Output Power from 1.5 to 25 watts;
4. Slim or low profile Type easily built in your design;
5. Available in through-hole and SMT recess or gull wing type;
6. Operate in Royer , direct IC drive and other topologies.
Application:
1. Multi-output DC-DC converter transformer.
2. Camcordey.
3. LCD television set.
4. Small size communicating equipment.
5. Portable telephone.
6. Personal Digital Assistants.
7. Applicable to light up cold cathodes fluorescent lamp of display.
8. DSC, PDA, Scanner, Car Navigation, Notebook PC, LCD monitor and LCD TV, etc
