Factory Custom Horizontal Ep7 SMD Poe Ferrite Inverter Current Sense Transformers Flyback Transformer
Factory Custom horizontal Ep7 SMD Poe Ferrite Inverter current sense transformers flyback Transformer 1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.2. Special designs are also available to meet customers' requirements.Power ......
Send Inquiry
Product Description

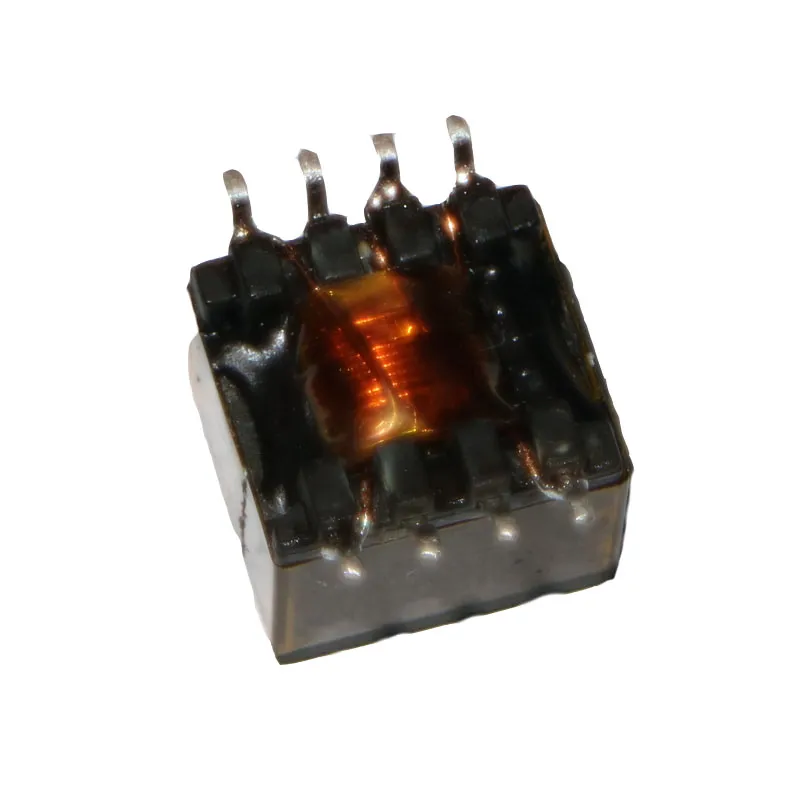

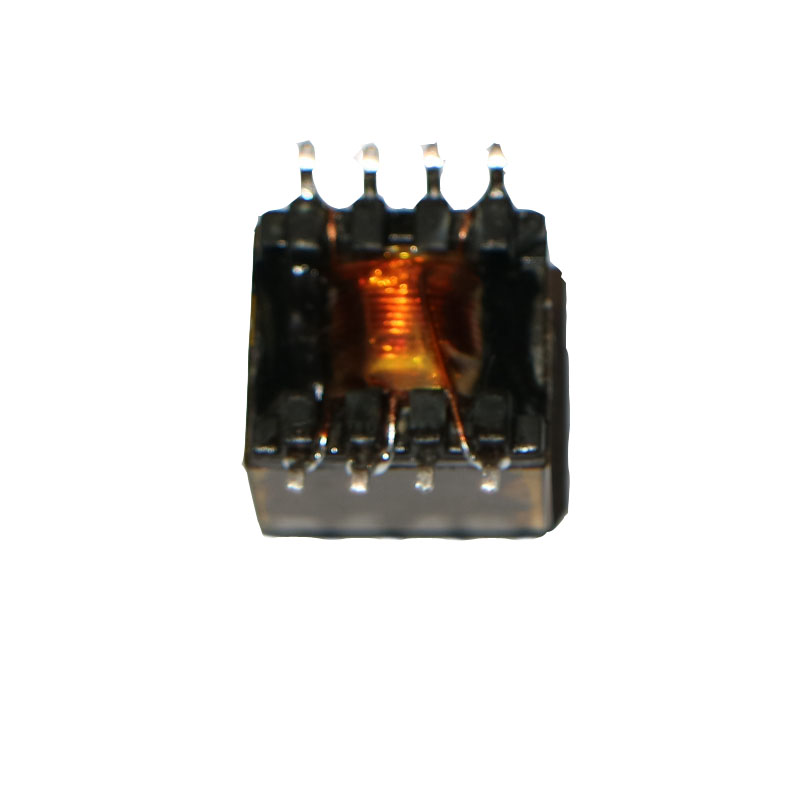

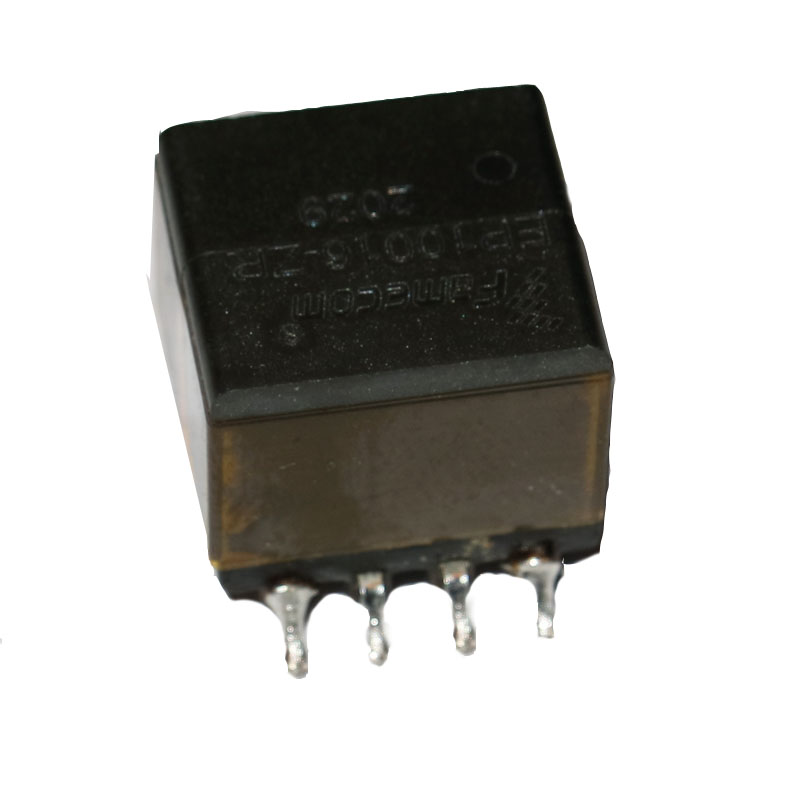

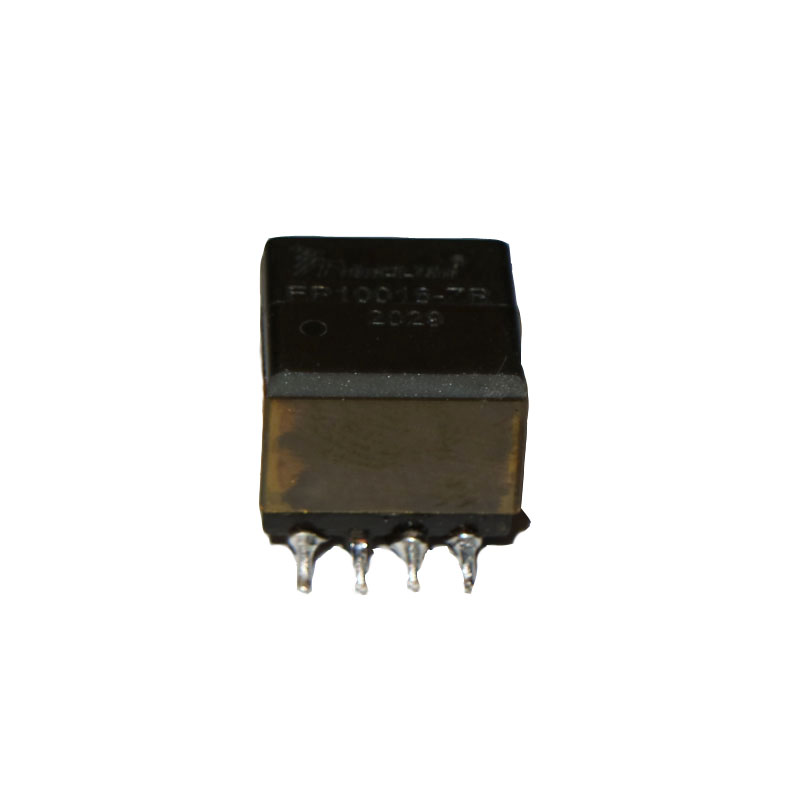

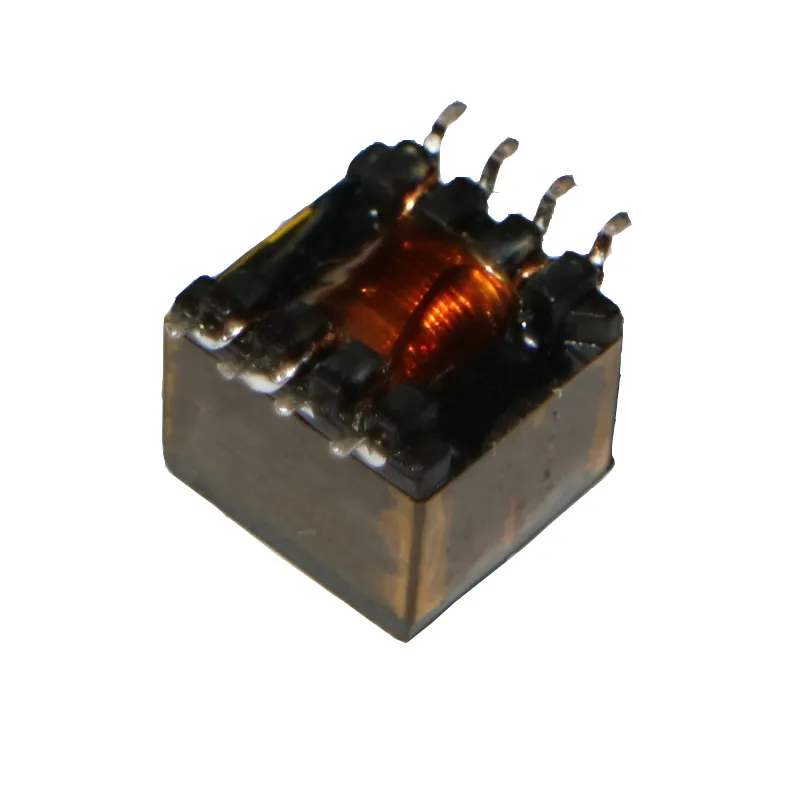

Factory Custom horizontal Ep7 SMD Poe Ferrite Inverter current sense transformers flyback Transformer
1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.
The power capacity of each core type varies due to differences in topology, operating frequency and temperature, flux density, and material grade.
1. Their input voltage can be different to meet requirements of various regions: AC380V-240V-230V-220V-120V-110V-100V.
2. Special designs are also available to meet customers' requirements.
Power Capacity Chart:
Power range (W)Core type using N67* grade material
<5RM4; P11/7; EF12.6; U10
5-10E(F)16; RM5; P14/8
10-20RM6; E(F)20; P18; U15; EFD15
20-50RM8; P22; RM10 ETD29; E25; EFD20
50-100ETD29; ETD34; RM12; P30; EFD25
100-200ETD34; ETD39; ETD44; P36; E30; E42; EFD30
200-500ETD44; ETD49; E55
>500ETD54; ETD59; E65
PQ20. PQ32. PQ35 etc.
The power capacity of each core type varies due to differences in topology, operating frequency and temperature, flux density, and material grade.
* Siemens material grade

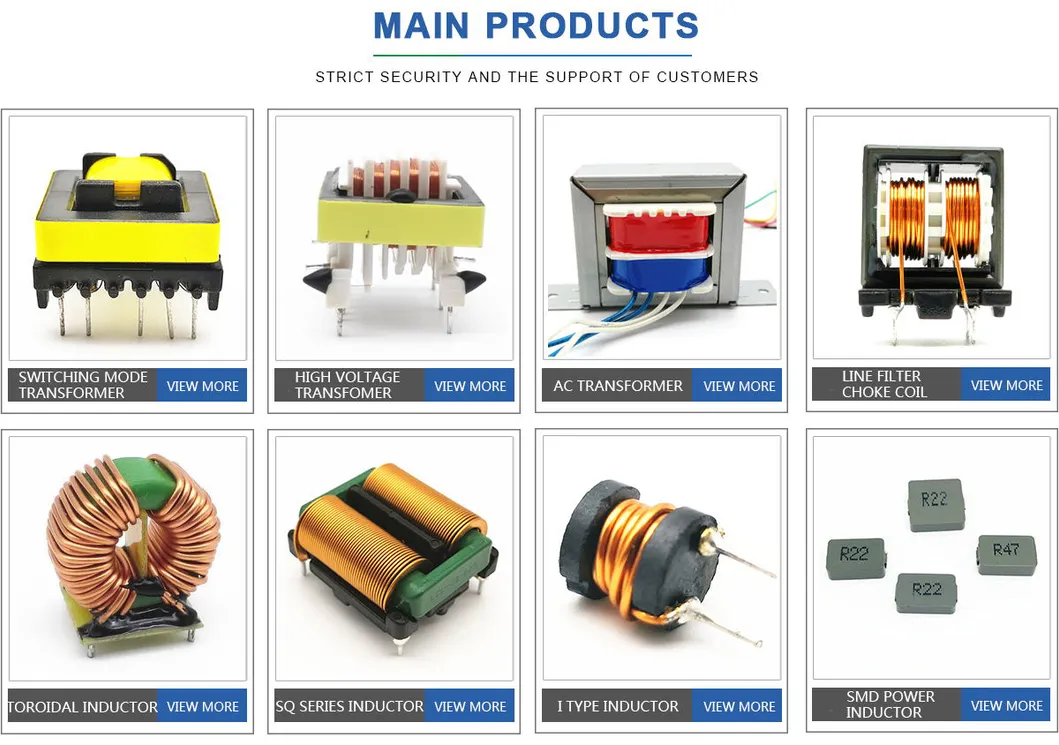

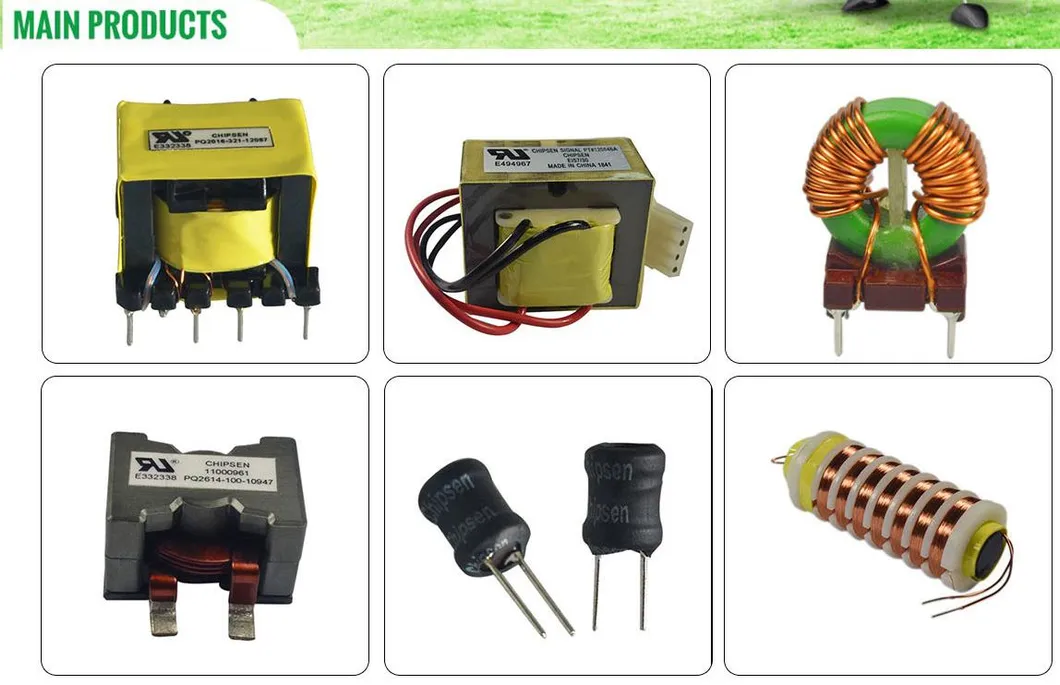

Our products
| NO. | Product Name | Type | Detailed Size | ||||||||||
| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | EP7, EP10, EP13 | ||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, | ||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
| 2 | Common mode chokes(Line filters) | UU | UU9.8, UU10.5, UU16 | ||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| SQ | SQ1212, SQ1515, SQ2418 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 5X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| 4 | SMD power inductors | Unshielded | MT, MTQ, MTF, MTG | ||||||||||
| Shielded | MTH, MTHII, MTP, MTB, MTE, MTL, MTF | ||||||||||||
| 5 | Low frequency transformers | EI | EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114 | ||||||||||
| Toroidal | OD:40mm---130mm;ID:20mm---100mmm;H:10mm---50mm. | ||||||||||||
| 6 | Planar transformer | EI | Ei22 | ||||||||||
| 7 | CT | UF | UF15,Zero sequence current transformer, precision current transformer | ||||||||||
| 8 | Coil | T | 185*60,23.8 | ||||||||||
Related Products
1.The company is a trustworthy enterprise integrating R&D, production and sales. It specializes in the production of high-frequency transformers, low-frequency transformers, toroidal transformers, rectifiers, power adapters, and switching power supplies. It has independent legal personality, a registered capital of 3 million, and the company's products cover Household appliances, medical fitness equipment, communications, instrumentation, security, industrial control and other fields, widely used in computers, mobile phones, audio, TV, air conditioners, telephones, microwave ovens and various instruments, welding machines, security monitoring and other industries . It has been spread all over the country in various provinces, municipalities, autonomous regions, and municipalities directly under the Central Government. Some products are exported overseas.

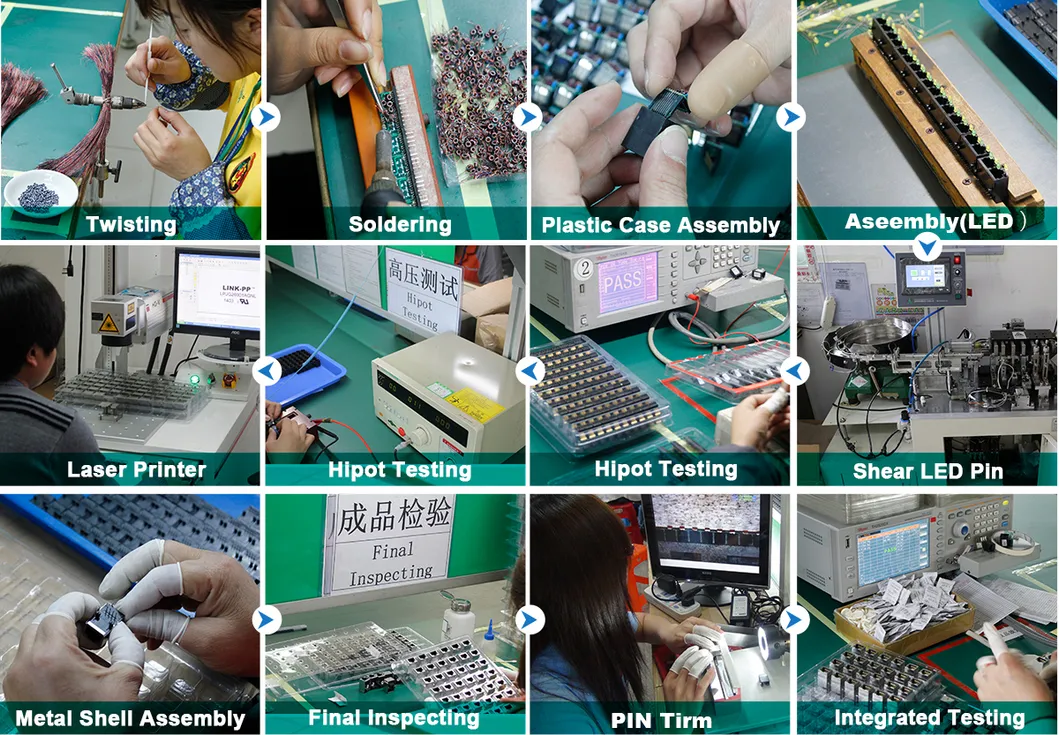

Equipment Exhibition

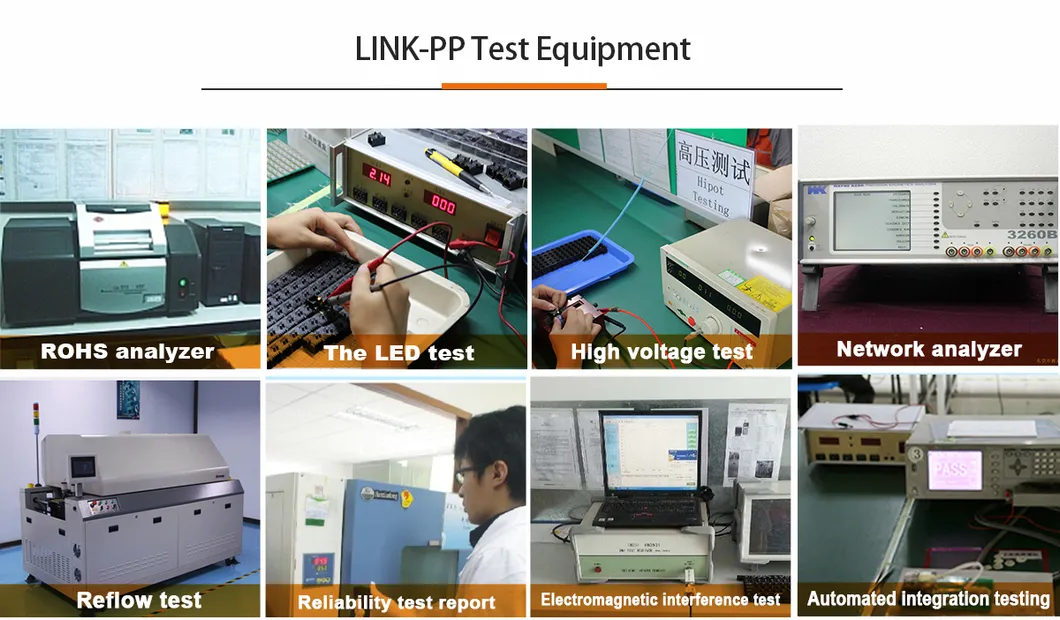

Our main equipments contained: 256 sets of automatic winding machines; 2 sets of automatic infrared drying tunnel furnace; the lab for car magnetic products; 1set of salt spray test machine,1 set of high-temperature storage test machine, 1 set of high humidity test machine and a set of old and heat shock test machine; 6 sets of automatic vacuum dipping machines; 3, fully automatic soldering machines, 600 set accessory Machines.
K
Kindly Reminder:
1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
4. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
5. We have an independent order system, with the overall tracking function from raw materials purchasing to finished goods outgoing.
6. We have got ISO9001:2015 quality management system; ISO14001:2015 environment management system; health and safety management systems-Requirement, IATF16949, UL certification.
7. Independent laboratory for car magnetic. It meets all the car component test.
8. Our factory can meet various needsindly reminder: This is cu
contact details
Zhang Yihui
Shenzhen Yiyi Technology Co.,Ltd
Adress: 501, No.11, Lane 1, Nanzhuang New Village, Xinzhuang Community,
Matian Street, Guangming New District, Shenzhen, Guangdong
Note:

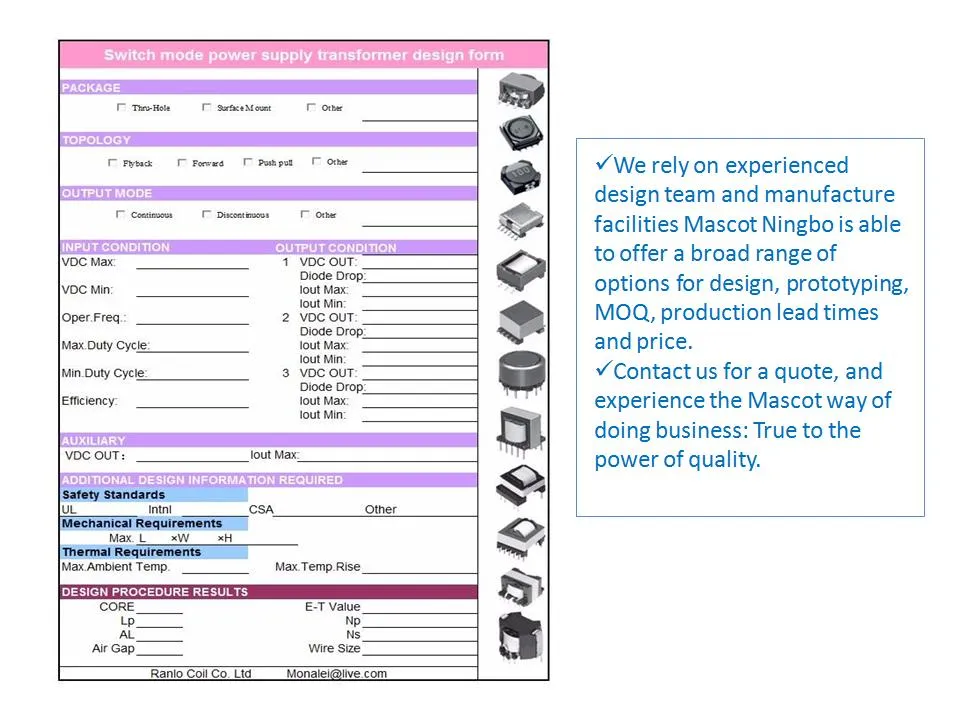

welcome to inquire, tell us the demand parameters, design drawing or material requirements, inductance coil number than leakage inductance angle, voltage withstand input and output voltage and other detailed information, we can customize according to the requirements, please contact before payment, we implement the principle of large quantity first! Please confirm before placing an order, the quantity is different and the price is different.
