11kv/24kv/33kv Automatic Step Voltage Regulator with 32 Steps
SVR-3 type Three phase Automatic Step voltage regulator 1.GeneralThe SVR-3 type feeder automatic step voltage regulator is actually a three phase oil immersed auto-transformer with SVR controller and gathering sampling of voltage ¤t signal, on load tap charger controlling device to achieve......
Send Inquiry
Product Description

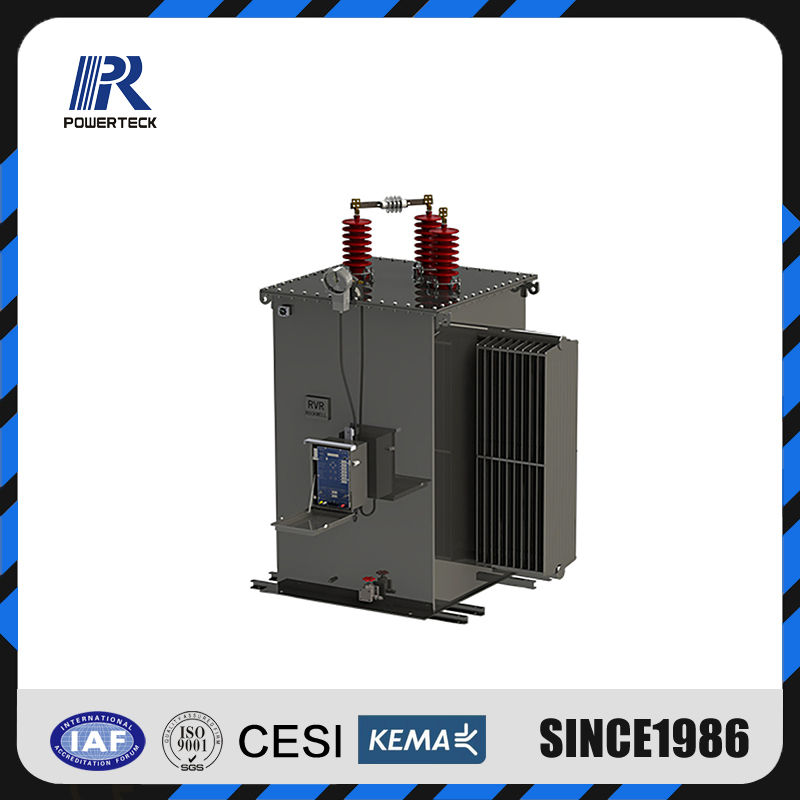

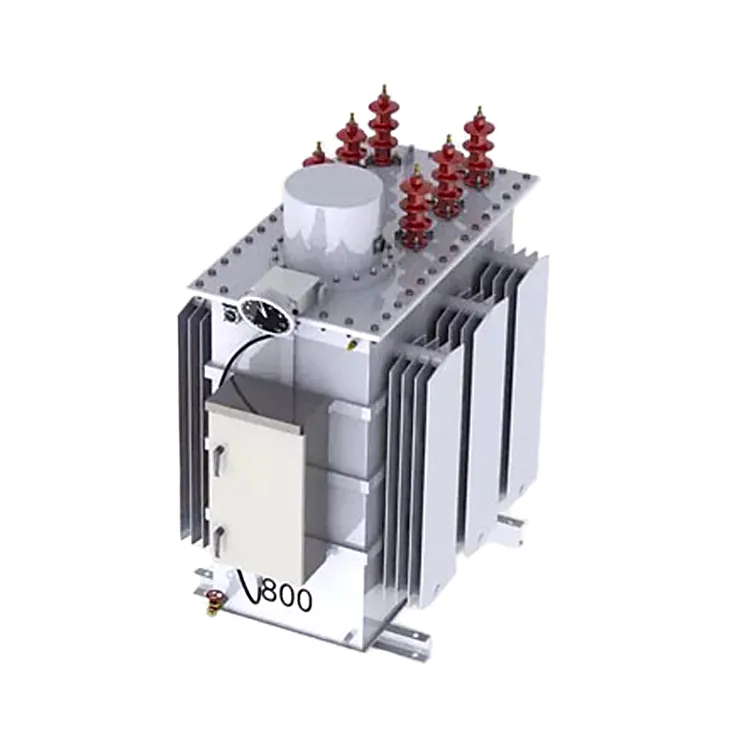

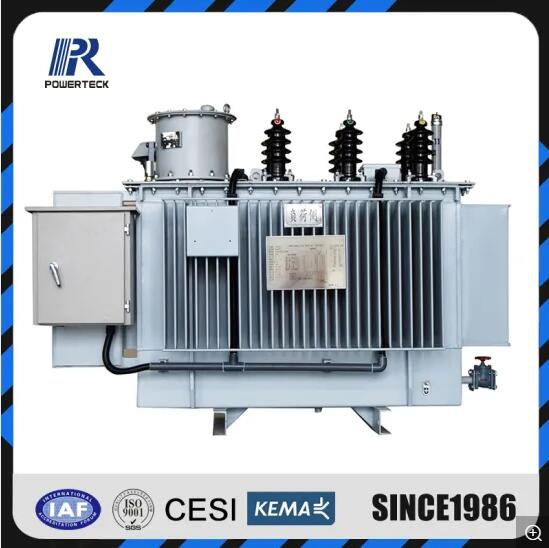

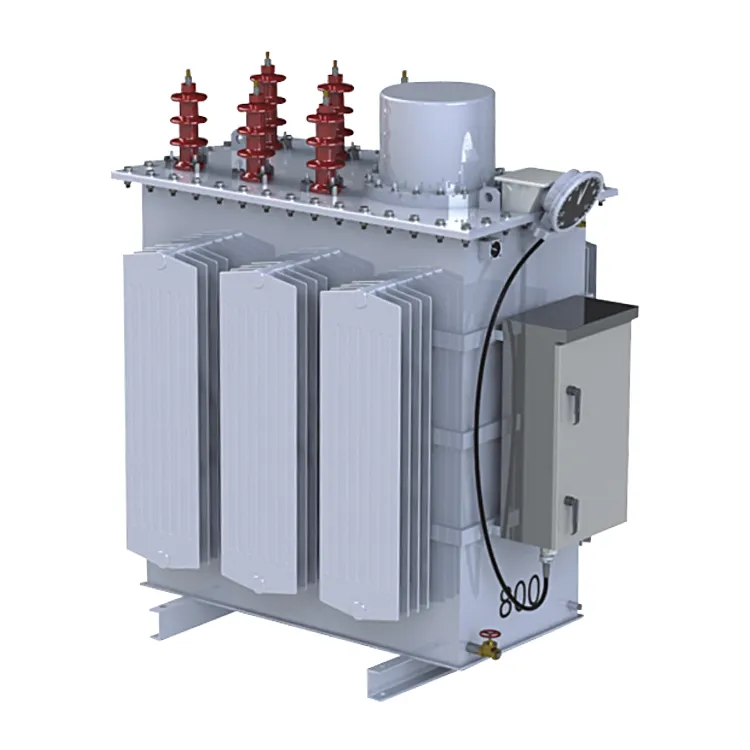

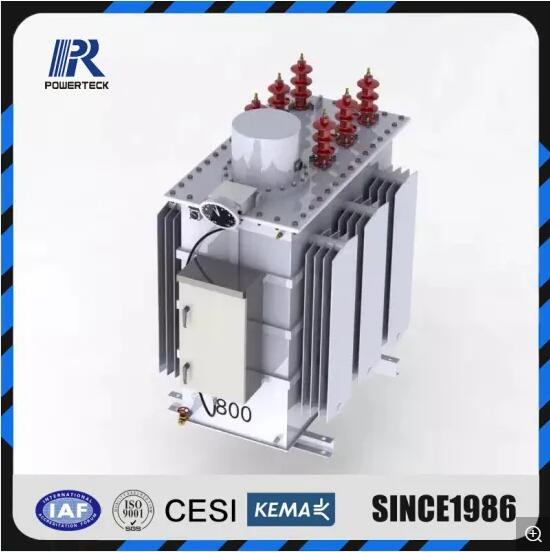

SVR-3 type Three phase Automatic Step voltage regulator
1.General
The SVR-3 type feeder automatic step voltage regulator is actually a three phase oil immersed auto-transformer with SVR controller and gathering sampling of voltage ¤t signal, on load tap charger controlling device to achieve gird more efficient from adjust the load character by increase and decrease the voltage.
So This SVR is eqv. To a transformer equipped with on load tap charger with SVR controller sampling voltage and current data and on load tap charger steps from current transformer and voltage transformer and limit switches.
2.Main features
+High breaking capacity tap charger from self-developed technology, More reliable and more steps 2.5% each by Max 16 steps( totally 40%);
+With SVR type Smart controller, a self-developed technology, GPRS/GSM, Blue-tooth.
+With self-protection LOCK-OUT functions: Line fault, Overload, Over Current/ Under-voltage
+With adjustable voltage datum and step scope limit, step draw delay, data setting.
3.Main technical parameter
1.General
The SVR-3 type feeder automatic step voltage regulator is actually a three phase oil immersed auto-transformer with SVR controller and gathering sampling of voltage ¤t signal, on load tap charger controlling device to achieve gird more efficient from adjust the load character by increase and decrease the voltage.
So This SVR is eqv. To a transformer equipped with on load tap charger with SVR controller sampling voltage and current data and on load tap charger steps from current transformer and voltage transformer and limit switches.
2.Main features
+High breaking capacity tap charger from self-developed technology, More reliable and more steps 2.5% each by Max 16 steps( totally 40%);
+With SVR type Smart controller, a self-developed technology, GPRS/GSM, Blue-tooth.
+With self-protection LOCK-OUT functions: Line fault, Overload, Over Current/ Under-voltage
+With adjustable voltage datum and step scope limit, step draw delay, data setting.
3.Main technical parameter
| Item | Parameter | ||
| Rated voltage | Under 6.9kV | 10kV up to 22kV | Under 35kV |
| Rated capacity | Less than 4000kVA | Less than 12500kVA | Less than 24000kVA |
| No of phases | Three phase | ||
| Cooling method | ONAN | ||
| Vector group | Ya0 | ||
| Steps | 7/9/16* steps | ||
| Mechanical life | 1000,000 times | ||
| Electrical life | 50,000times | ||
| Voltage scope | 20%, 30%,40% | ||
