11kv Pole Mounted 32 Step Single Phase Automatic Voltage Regulator
11kv Pole Mounted 32 Step Single Phase Automatic Voltage RegulatorGENERALThe RVR-1 type feeder automatic voltage regulator is actually a single phase oil immersed auto-transformer with RVR controller and gathering sampling of voltage¤t signal, on load tap charger controlling device to achi......
Send Inquiry
Product Description

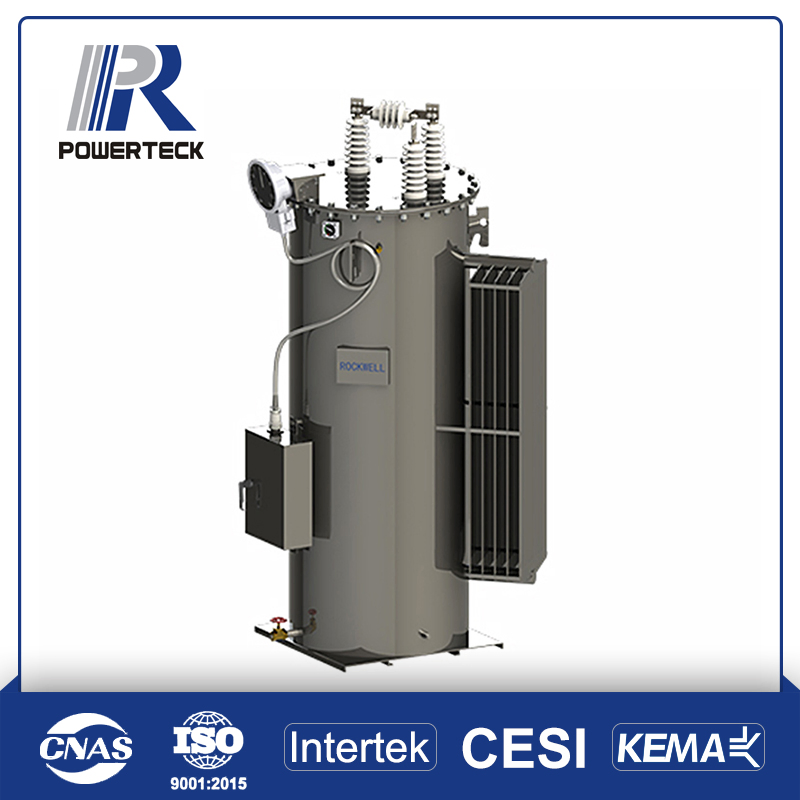

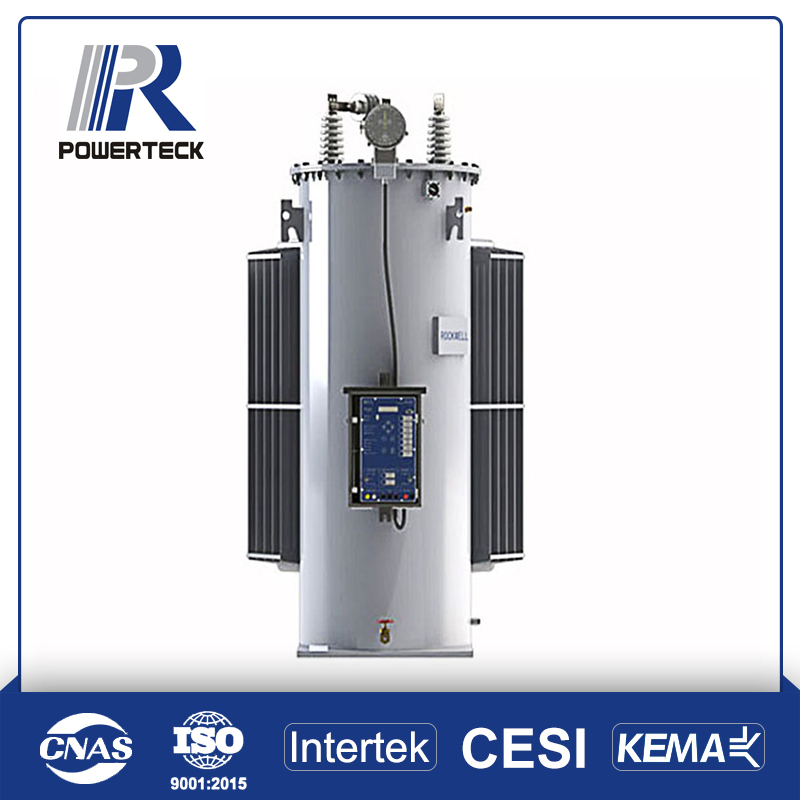

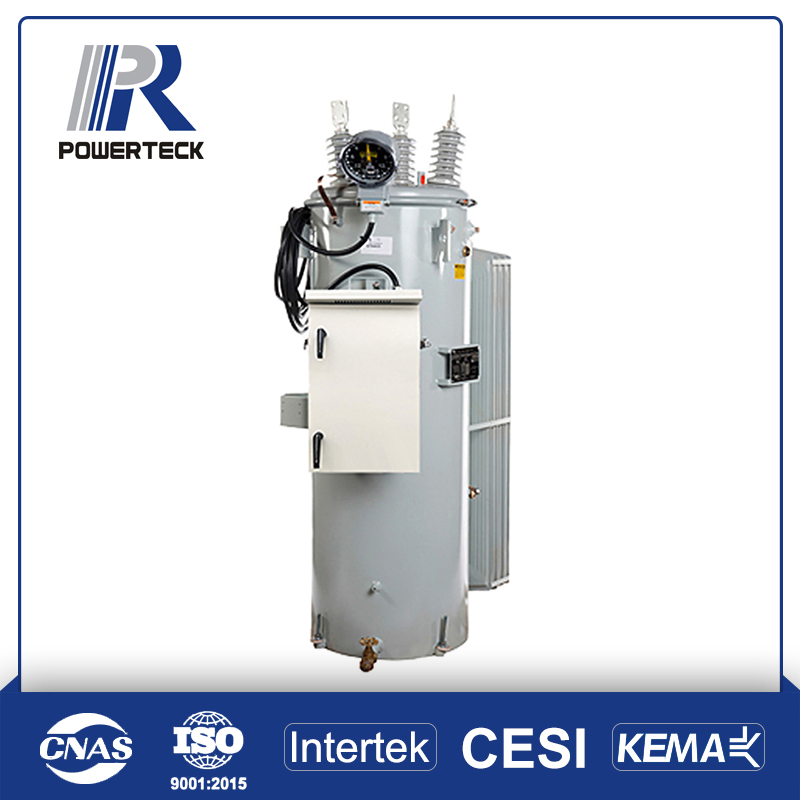

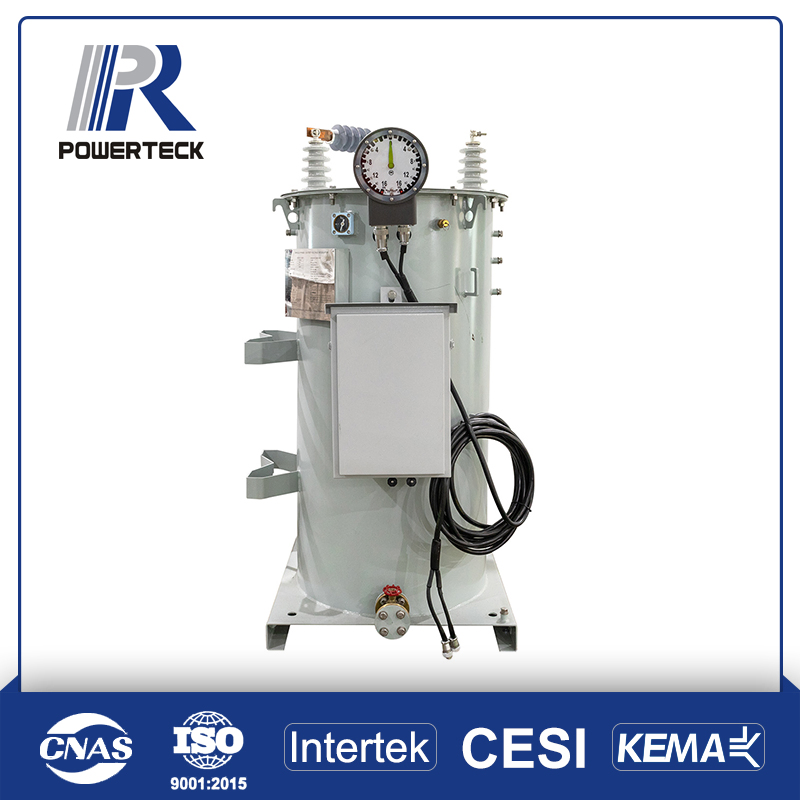

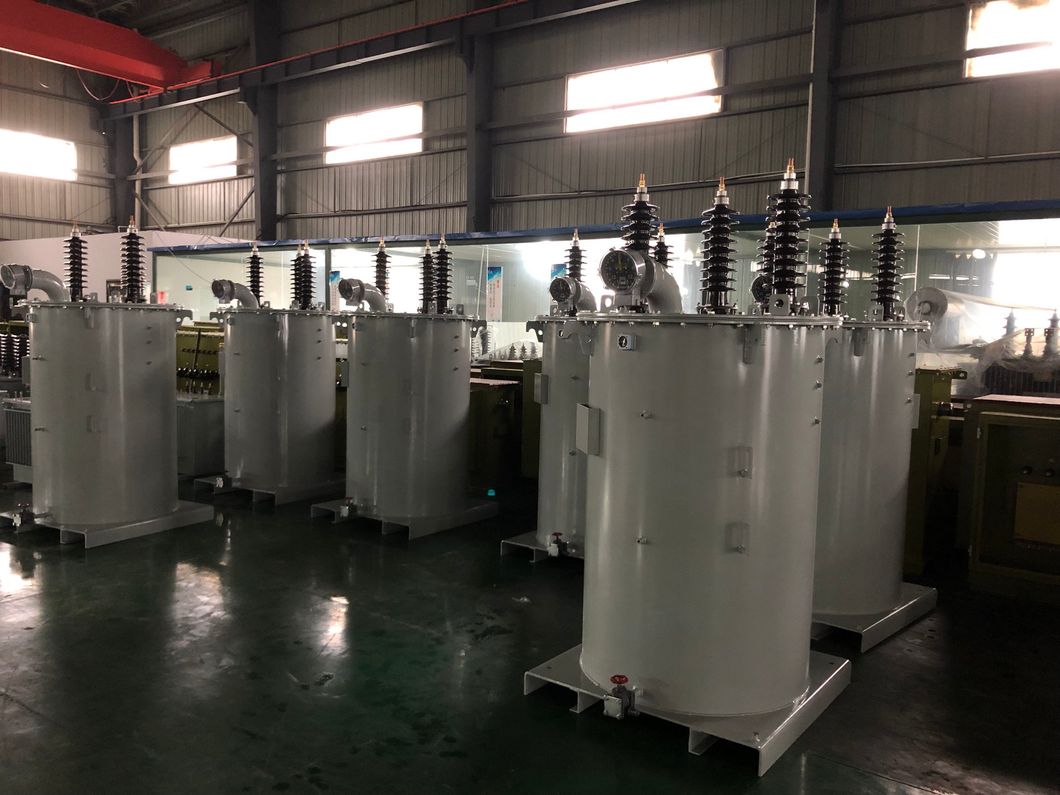

11kv Pole Mounted 32 Step Single Phase Automatic Voltage Regulator
GENERAL
The RVR-1 type feeder automatic voltage regulator is actually a single phase oil immersed auto-transformer with RVR controller and gathering sampling of voltage
¤t signal, on load tap charger controlling device to achieve gird more efficient from adjust the load character by increase and decrease the voltage.
So This RVR is a transformer equipped with on load tap charger with RVR controller sampling voltage and current data and on load tap charger steps from current transformer and voltage transformer and limit switches.
MAIN FEATURES
The RVR-1 regulate distribution line voltages from 10% raise (boost) to 10% lower (buck) in thirty-two steps of approximately 5/8% each. Voltage ratings are available from 2400 volts (60 kV BIL) to 34,500 volts (200 kV BIL) for 60 Hz and 50 Hz systems.
With RVR type Smart controller, a self-developed technology, GPRS/GSM, Blue-tooth.
With self-protection LOCK-OUT functions: Line fault, Overload, OverCurrent, Under-voltage
With adjustable voltage datum and step scope limit, step draw delay, data setting.
STANDARD FEATURES
GENERAL
The RVR-1 type feeder automatic voltage regulator is actually a single phase oil immersed auto-transformer with RVR controller and gathering sampling of voltage
¤t signal, on load tap charger controlling device to achieve gird more efficient from adjust the load character by increase and decrease the voltage.
So This RVR is a transformer equipped with on load tap charger with RVR controller sampling voltage and current data and on load tap charger steps from current transformer and voltage transformer and limit switches.
MAIN FEATURES
The RVR-1 regulate distribution line voltages from 10% raise (boost) to 10% lower (buck) in thirty-two steps of approximately 5/8% each. Voltage ratings are available from 2400 volts (60 kV BIL) to 34,500 volts (200 kV BIL) for 60 Hz and 50 Hz systems.
With RVR type Smart controller, a self-developed technology, GPRS/GSM, Blue-tooth.
With self-protection LOCK-OUT functions: Line fault, Overload, OverCurrent, Under-voltage
With adjustable voltage datum and step scope limit, step draw delay, data setting.
STANDARD FEATURES
- Position indicator with ADD-AMP adjustment
- Control box
- Tap changer with motor and power supply
- Oil drain valve with sampling device
- Pressure relief device
- Lifting lugs
- Nameplates
- High-creep porcelain bushings
- Oil sight gauge
- Control cabinet with removable front panel
- Conformally coated circuit boards
- MOV-type external series arresters.
| Voltage (kV) | Load Current (Amperes) | kVA |
| 2.5 kV 60 kV BIL | 200 300 400 500 668 1000 1332 1665 | 50 75 100 125 167 250 333 416 |
| 5.0 kV 75 kV BIL | 100 150 200 250 334 500 668 833 | 50 75 100 125 167 250 333 416 |
| 7.62 kV 95 kV BIL | 100 150 219 328 438 546 656 875 1093 | 76 114 167 250 333 416 500 667 833 |
| 13.8 kV 95 kVBIL | 100 150 200 300 400 483 604 | 138 207 276 414 552 667 833 |
| 19.92 kV 150 kV BIL | 50 100 167 200 335 418 502 | 100 200 333 400 667 833 1000 |
