500va 0~250V Adjustable Voltage Regulator Variable Transformer Variac
TDGC2-0.5KVA Adjustable Voltage Regulator/Variac 220V Variable TransformerFeatures:+ Single phase and three phase available+ Manual control+ Copper winding coil+ Regulating the input liner voltage 220V to 0-250V variable, if input 380V, then output voltage vary from 0-430V+ Power ranges: TDGC2 Singl......
Send Inquiry
Product Description

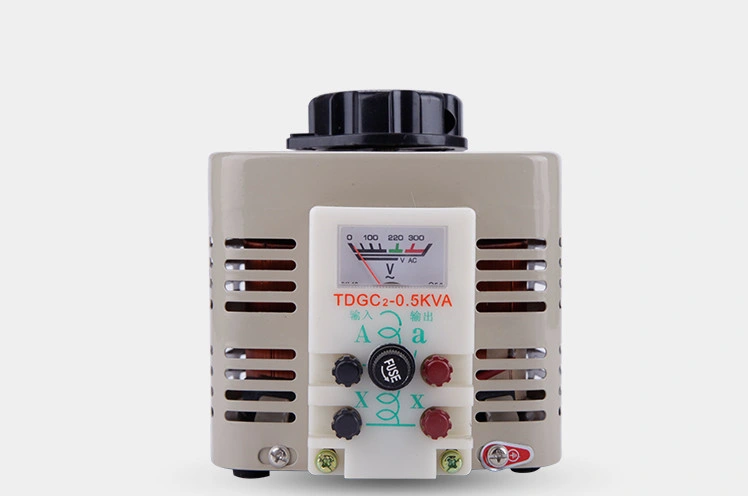

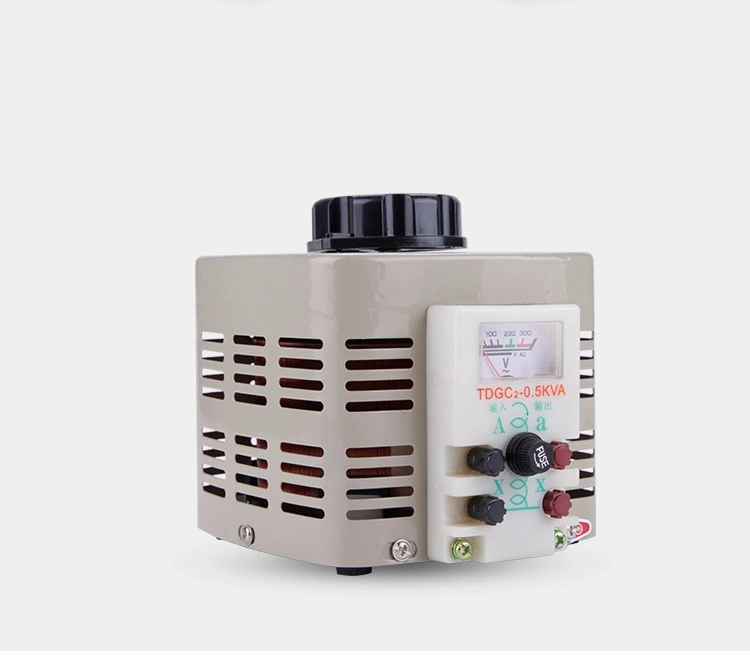

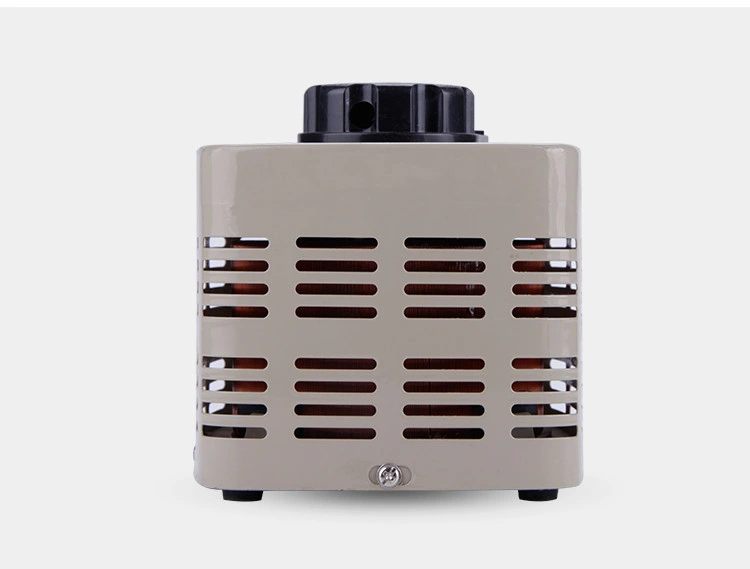

TDGC2-0.5KVA Adjustable Voltage Regulator/Variac 220V Variable Transformer
Features:
+ Single phase and three phase available
+ Manual control
+ Copper winding coil
+ Regulating the input liner voltage 220V to 0-250V variable, if input 380V, then output voltage vary from 0-430V
+ Power ranges: TDGC2 Single Phase: 0.2KVA-60KVA, TSGC2 Three Phase: 1.5KVA-100KVA
+ Insulation resistance: ≥5MΩ
+ Working frequency: 50Hz
+ Efficiency: >90%
+ Wave distortion: no waveform distortion
+ Ambient Temperature: -10ºC ~ +40ºC
Applications:
Industries (such as chemical, metallurgy, instruments, meters, electromechanical, manufacturing ,light industry. etc), scientific experiments, public service, household electrical appliances, used to realize voltage regulation, temperature control, speed adjustment, light modulation, power control. etc
Specifications:
Features:
+ Single phase and three phase available
+ Manual control
+ Copper winding coil
+ Regulating the input liner voltage 220V to 0-250V variable, if input 380V, then output voltage vary from 0-430V
+ Power ranges: TDGC2 Single Phase: 0.2KVA-60KVA, TSGC2 Three Phase: 1.5KVA-100KVA
+ Insulation resistance: ≥5MΩ
+ Working frequency: 50Hz
+ Efficiency: >90%
+ Wave distortion: no waveform distortion
+ Ambient Temperature: -10ºC ~ +40ºC
Applications:
Industries (such as chemical, metallurgy, instruments, meters, electromechanical, manufacturing ,light industry. etc), scientific experiments, public service, household electrical appliances, used to realize voltage regulation, temperature control, speed adjustment, light modulation, power control. etc
Specifications:
| Model | Rated power | Phase No. | Frequency | Input voltage | Output voltage | Output current |
| Specification | (KVA) | (Hz) | (Volt) | (Volt) | (Amp) | |
| TDGC2-0.2 | 0.2 | 1 | 50 | 220 | 0~250 | 0.8 |
| TDGC2-0.3 | 0.5 | 1 | 50 | 220 | 0~250 | 2 |
| TDGC2-1 | 1 | 1 | 50 | 220 | 0~250 | 4 |
| TDGC2-2 | 2 | 1 | 50 | 220 | 0~250 | 8 |
| TDGC2-3 | 3 | 1 | 50 | 220 | 0~250 | 12 |
| TDGC2-5 | 5 | 1 | 50 | 220 | 0~255 | 20 |
| TDGC2-7 | 7 | 1 | 50 | 220 | 0~250 | 28 |
| TDGC2-10 | 10 | 1 | 50 | 220 | 0~250 | 40 |
| TDGC2-15 | 15 | 1 | 50 | 220 | 0~250 | 60 |
| TDGC2-20 | 20 | 1 | 50 | 220 | 0~250 | 80 |
| TDGC2-30 | 30 | 1 | 50 | 220 | 0~250 | 120 |
| TDGC2-40 | 40 | 1 | 50 | 220 | 0~250 | 160 |
| TDGC2-50 | 50 | 1 | 50 | 220 | 0~250 | 200 |
| TDGC2-60 | 60 | 1 | 50 | 220 | 0~250 | 240 |
| TSGC2-1.5 | 1.5 | 3 | 50 | 380 | 0~430 | 2 |
| TSGC2-3 | 3 | 3 | 50 | 380 | 0~430 | 4 |
| TSGC2-6 | 6 | 3 | 50 | 380 | 0~430 | 8 |
| TSGC2-9 | 9 | 3 | 50 | 380 | 0~430 | 12 |
| TSGC2-12 | 12 | 3 | 50 | 380 | 0~430 | 16 |
| TSGC2-15 | 15 | 3 | 50 | 380 | 0~430 | 20 |
| TSGC2-20 | 20 | 3 | 50 | 380 | 0~430 | 27 |
| TSGC2-30 | 30 | 3 | 50 | 380 | 0~430 | 40 |
| TSGC2-40 | 40 | 3 | 50 | 380 | 0~430 | 54 |
| TSGC2-50 | 50 | 3 | 50 | 380 | 0~430 | 67 |
| TSGC2-60 | 60 | 3 | 50 | 380 | 0~430 | 80 |
| TSGC2-80 | 80 | 3 | 50 | 380 | 0~430 | 107 |
| TSGC2-100 | 100 | 3 | 50 | 380 | 0~430 | 134 |
