500va Single Phase 220V Static Voltage Regulator

Product Description

Single Phase Relay Type Voltage Stabilizer with Digital meter Display

Features:
+ Single phase relay control
+ High precision regulation output

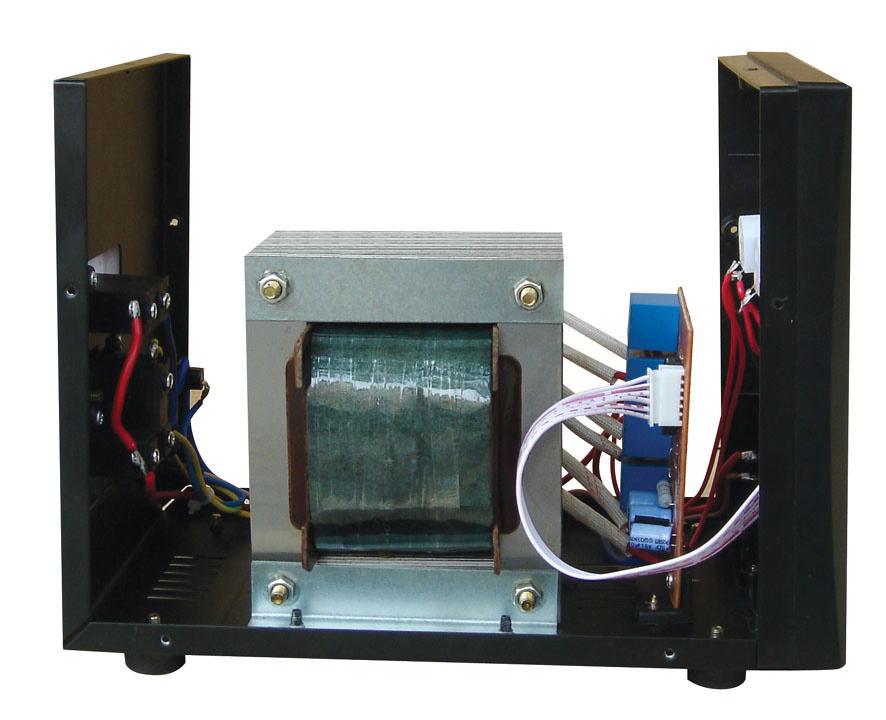

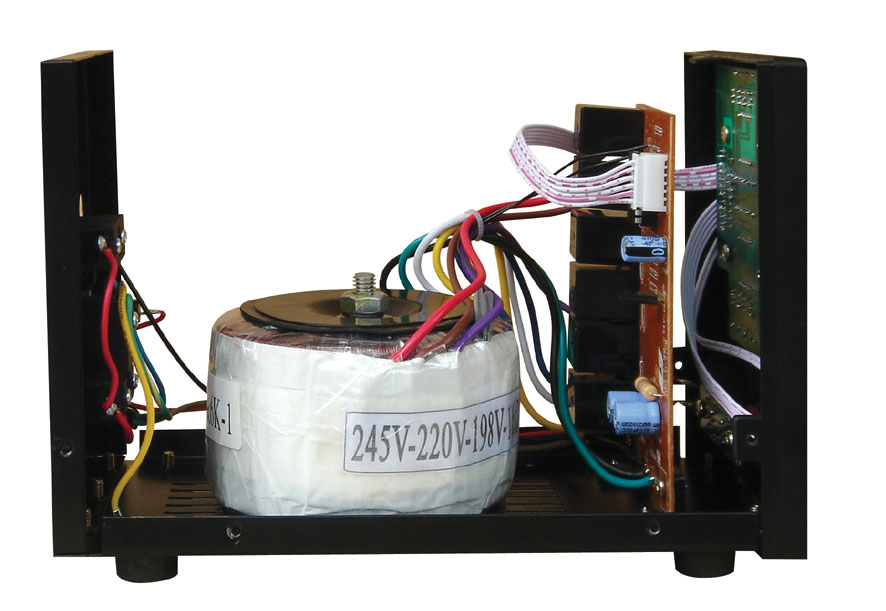

+ High efficiency toroidal transformer or EI transformer
+ Fully automatic MCU controlled circuit
+ Digital meter display
+ Available power capacity from 0.5KVA to 10KVA
+ Full protection: over voltage, under voltage, overheat, overload, sag, surge, spike and short circuit
+ Delay Time to protect the equipment from rapid fluctuations
+ CE certified

Applications:
+ Refrigeration equipments: fan, refrigerator, chest freezer, cooler and air conditioner
+ Kitchen appliances: microwave oven, rice cooker
+ Entertainment appliances: TV, DVD, VCR, DVB, HiFi
+ IT & Office equipments: PC, workstation, fax machine, photocopier
+ Heating systems: gas boiler, circulation pump

Specifications:

Model		DVR-I 500VA	DVR-I 1000VA	DVR-I 1500VA	DVR-I 2000VA	DVR-I 3000VA	DVR-I 5000VA	DVR-I 7500VA	DVR-I 10KVA
Power		500VA	1000VA	1500VA	2000VA	3000VA	5000VA	7500VA	10000VA
Technology		Fully automatic MCU controlled circuit + Toroidal transformer or EI transformer
Transformer		Relay type
Input	Input voltage range	140-260V AC / 100-260V AC
	Input frequency	50/60Hz
Output	Output voltage	220V AC / 220V+110V
	Output precision	± 10%; ± 8%
Delay Time		6s /180s selectable
Efficiency		≥95%
Phase		Single phase
Display	Digital meter	Input voltage, output voltage
	Icon display	Working, delaying, overload, over voltage, under voltage
Protection	High voltage	Output cutoff + working icon flashes
	Low voltage	Output cutoff + low-volt icon flashes
	Over load	Output cutoff + over-load icon flashes
	High temperature	Output cutoff at temperature 115ºC
	Short circuit	Circuit breaker trip off
Cooling system		Air Cooled				Smart Fan (Automatic Startup at 65°C)
Safety standards		CE (LVD + EMC) , EN60950, EN55024
Operating conditions	Operating temperature	-5ºC - 45ºC
	Stroage temperature	-15ºC - 45ºC
	Operating relative humidity	10%RH - 90%RH, Non-condensing
