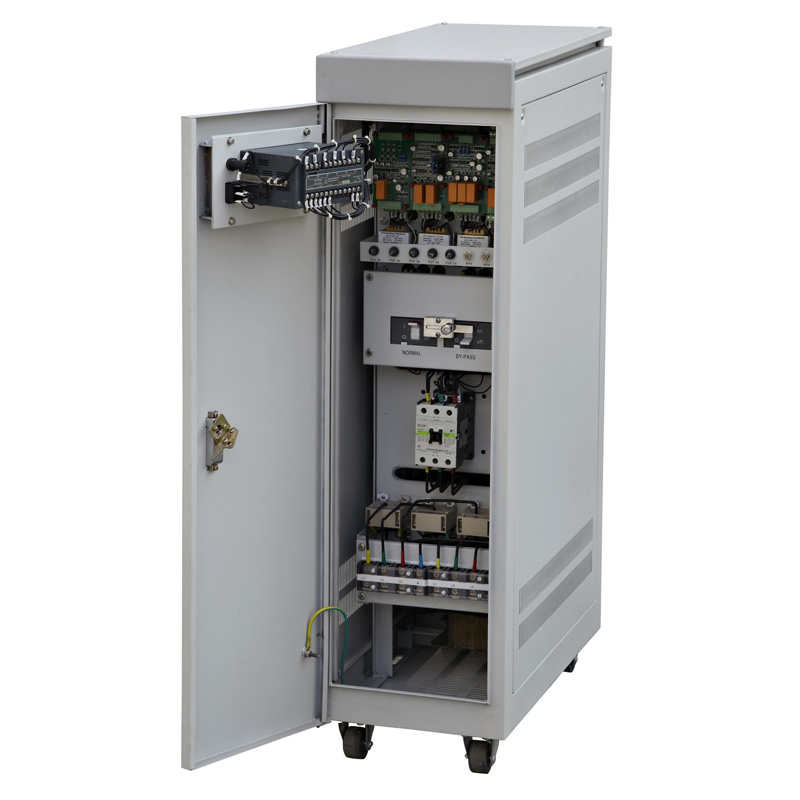

AC Power Conditioner for CNC Machine Specific

Product Description

Overview

The fluctuation of the network power supply, caused by the change of the peaks of network and shock of high-power inductive load, damages many costly equipments which require stable and accurate voltage supply. We design products according to the different requirements of different customers in different industries. We have designed stabilizers specifically for customers in many industries so as to realize mutual benefit and greater investment benefit of customers by more stable power supply.
This series product has advantages of high stabilizing precision, rapid dynamic response, and narrow range of overshoot. In addition, it can suppress high-energy peak and electromagnetic interference, which ensures the pure output voltage waveform. Perfect protection functions are also available in this series product.

Features and benefits:

1. Wide voltage regulation range; 165-275V
2.15-100KVA, three phase 380/220V, other sizes up to 225KVA on request
3. Isolation transformer output on request
4. Individual regulation for each phase on request
5. High accuracy: ± 1.5%
6. High efficiency: Approx 98%(without isolation transformer)
7. Continuously working, can withstand short time overload
8. Over voltage, under voltage, over current auto protection
9. Single-way output or multi-way output on request
10. Surge protector, EMI filter on request

Model			DBW	SBW
Capacity (KVA)			1000
Input voltage			Single Phase: 220V±20%
			Three Phase:380V±20%
Output voltage			Singel Phase:220V- 230V(Adjustable)
			Three Phase: 380V - 405V(Adjustable)
Output accurac y			±1-5% Upon your request
Frequency			50Hz
Insulation resistance			≥2MΩ
Noise			<55dB
Voltage regulation mode			Independent phase regulation
Wave deformation			Nil
Insulation class of transformer			H class
Wire system			Single Phase
			Three Phase : 3-Phase-4-wire-system or 3-Phase-5-wire system
Operation time			≥80,000 hours
Long Life Time Carbon brush			140,000 times with only about 0.01mm roller carbon brush abrasion
Method of voltage regulation			Regulation transformer with servomotor
Insulated strength			Single phase: 2000V/1min without puncture
			Three phase: 2500V/1 min without puncture
Package Material			Carton for batch volume, Wooden packing for small volume
Efficiency			>96%
Housing			IP20(Indoor)	IP55(Outdoor)
Electrical safety			CE equivalent
Operating temperature			-20 °C to +50 °C
Altitude			<1000m
Relative Humidity			<90%
Material of Sliding coil			Copper, and inner and outer winding both
Functions			Malfunction protection;Short-circuit protection,
			Lack Phase protection; Manual bypass,Safe start
			Alarm and silence, Under/Over voltage Protection
Optional Functions			Auto Power-on;Isolation Transformer; Surge Protection;Remote Monitor

Phase	Model	Capacity(KVA)	Dimension(H×W×D)mm	Cabinet(QTY)
Single Phase	DBW-10	10	1020×300×700	1
	DBW-15	15	1020×300×700	1
	DBW-20	20	1020×300×700	1
	DBW-30	30	1020×300×700	1
	DBW-50	50	1120×380×750	1
	DBW-80	80	1220×400×780	1
	DBW-100	100	1220×400×780	1
	DBW-150	150	1420×450×930	1
	DBW-200	200	1420×450×930	1
Three Phase	SBW-10	10	1020×300×700	1
	SBW-20	20	1020×300×700	1
	SBW-30	30	1020×300×700	1
	SBW-50	50	1120×380×750	1
	SBW-80	80	1220×400×780	1
	SBW-100	100	1220×400×780	1
	SBW-150	150	1420×450×930	1
	SBW-200	200	1520×520×980	1
	SBW-300	300	1720×600×1380	1
	SBW-500	500	1860×720×1580	1
	SBW-800	800	1860×900×1080	1
	SBW-1000	1000	1860×900×1080	2
	SBW-1500	1500	1860×900×1080	3
	SBW-2000	2000	1860×900×1080	3
