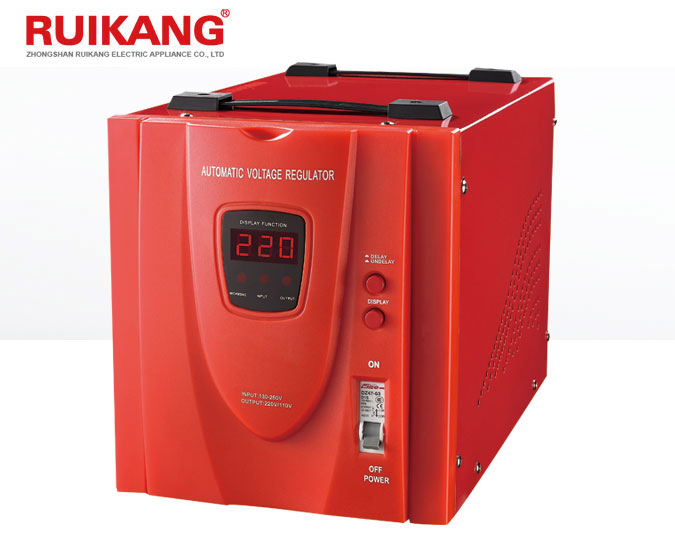

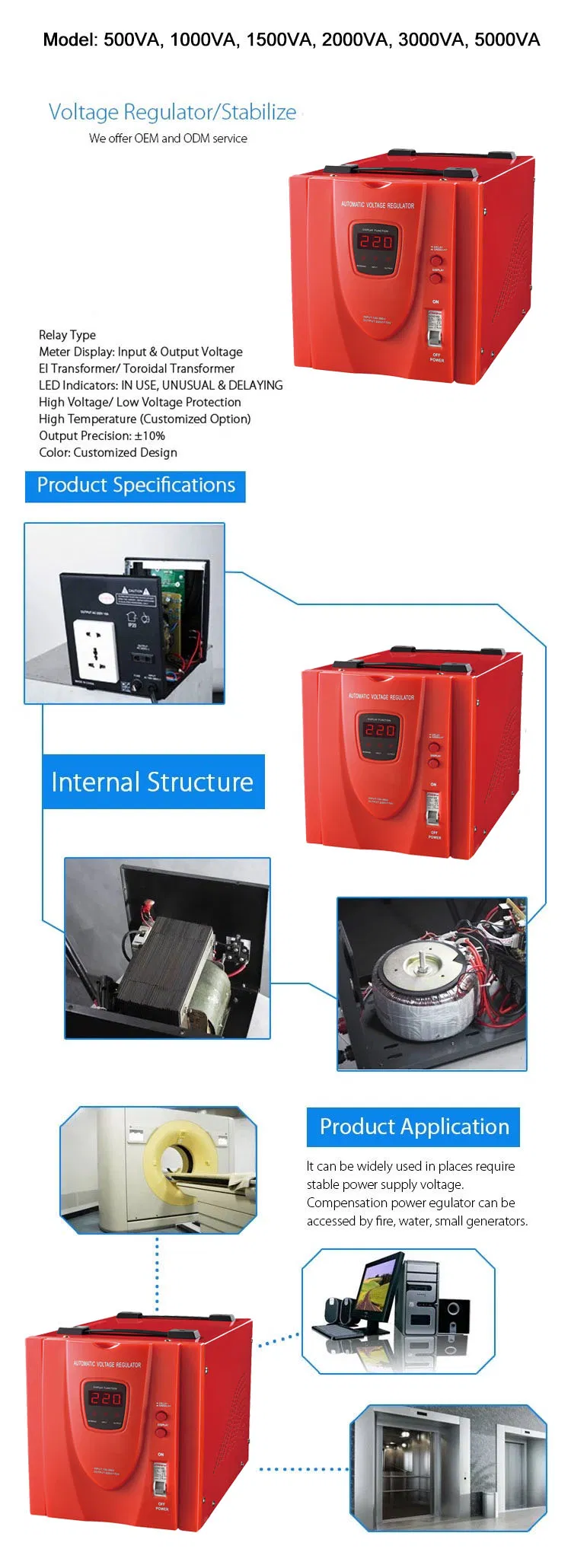

Automatic 3000kVA Power House Digital Voltage Stabilizer
Automatic 3000kva power house digital voltage stabilizerProduct Description:Specifications:Model500VA1000VA1500VA2000VA3000VA5000VACapacity80%actual power when input voltage reach to 190VTechnologyRelay type. EI transformer/Toroidal transformerPhaseSingle phase (one transformer controlled)Double di......
Send Inquiry
Product Description
Product Description:
| Model | 500VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | |
| Capacity | 80%actual power when input voltage reach to 190V | ||||||
| Technology | Relay type. EI transformer/Toroidal transformer | ||||||
| Phase | Single phase (one transformer controlled) | ||||||
| Double display(Meter or Digital) | Input voltage &output voltage | ||||||
| Input voltage Range | 160-260V (3relaies) | 100-260V (5relaies) | 100-260V (5relaies) | 100-260V (5relaies) | 140-260V (4relaies) | 140-260V (4relaies) | |
| Input Frequency | 50Hz/60Hz | ||||||
| Output Voltage | AC 220±10%V/AC110V±10%V | ||||||
| High/Low Voltage Protection | √ | √ | √ | √ | √ | √ | |
| Overload Protection | √ | √ | √ | √ | √ | ||
| Operating Temperature | 0-40ºC | ||||||
| Operating Relative Humidity | 10%RH-90%RH.non-condensing | ||||||
Physical | Pcs/Carton | 8 | 4 | 4 | 4 | 1 | 1 |
| Packing size(cm) | 50*30*34 | 69.2*29.5*20.5 | 69.2*29.5*20.5 | 69.2*29.5*20.5 | 42.5*26.8*32 | 42.5*26.8*32 | |
| G.W.(KGS) | 22 | 20 | 22 | 28 | 12 | 17 | |
| N.W.(KGS) | 19 | 18 | 20 | 26 | 11 | 16 | |
Packaging & Shipping:
Q 1. What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.
Q 2. What's the loading port?
A. Usually we prefer Xiaolan port (Zhongshan) for delivery, others like Nansha port is ok.
Q 3. How's the delivery time for mass production?
A. Normally it will take about 25-30 days for production.
Q 4. We want to know about production capacity.
A. Our average capacity is 20000 pcs per month.
Q 5. May I know the standard of package?
A. Each unit is well protected by color box and outer box.
Q 6. What kind of material of transformer?

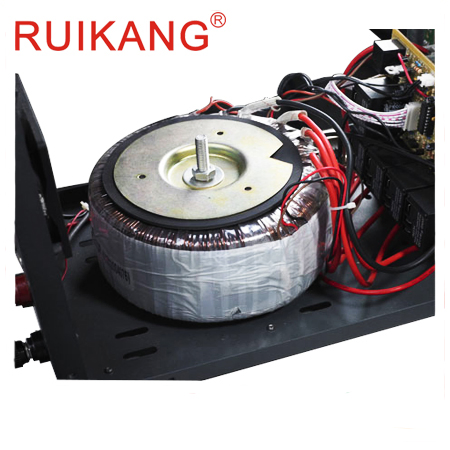

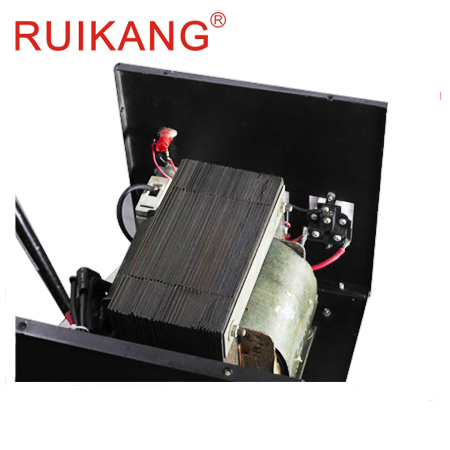

A. We have two types, one is 100% aluminum EI transformer, other one is 100% aluminum toroidal transformer. It depends on your requirements. In fact, those two have no difference for usage.
Q 7. Would you accept to use our logo?
A. Quantity is over 500pcs/capacity, it is absolutely no problem to do OEM.
Q 8. Where is your market?
A. Our products are popular export to Africa, South Asia, Middle East and so on. Surely we hope you can join us and make mutual benefits from our cooperation.
Q 9. What kind of certificate do you have?
A. We have CE, ISO9001, SONCAP and testing report for all our products.
Q 10. Could you offer Form A or C/O?
A. Absolutely it is not a problem.
