200kV AC DC Oil Immersed High Voltage Dielectric Test Transformer
200kv AC DC Oil Immersed High Voltage Dielectric Test Transformer I.Oil Immersed Type Testing Transformer Packaging & DeliveryPackaging Details:high voltage AC-DC SF6 gas YDQ power testing transformer Inside packing: bubble board Outside packing: standard box Customer OEM packing also availableD......
Send Inquiry
Product Description
I.Oil Immersed Type Testing Transformer Packaging & Delivery
| Packaging Details: | high voltage AC-DC SF6 gas YDQ power testing transformer Inside packing: bubble board Outside packing: standard box Customer OEM packing also available |
| Delivery Detail: | 10 days after the deposite |

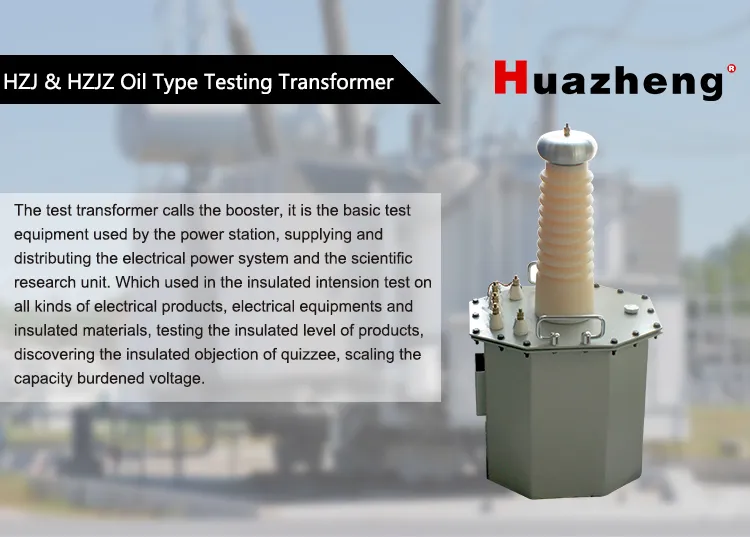

II.Oil Immersed Type Testing Transformer Product Description
1. Oil-immersed high voltage transformer test: large capacity, cheap, convenient maintenance, mainstream products.
2. Inflatable high voltage test transformer : interrupter resistance, and light weight.
3. Dry typehigh voltage testing transformer: light weight, light volume, can run backward, price expensive.
4.Series type high voltage testing transformer: small volume, low voltage, light weight, easy to transport and install.
III.Oil Immersed Type Testing Transformer Parameter
AC DC Oil / Dry / Inflatable Testing Transformer Suppliers Technical Data:| Model | Capacity(KVA) | Output(KV) AC DC | Current(Ma) AC DC | Low pressure input | Change | Tempera- ture(ºC)raised/ 30 minute | |||
| V | A | ||||||||
| HZYB(G)-1.5 | 1.5 | 50 | 70 | 30 | 15 | 200 | 7.5 | 500 | 10 |
| HZYB(G)-3 | 3 | 50 | 70 | 60 | 15 | 200 | 15 | 500 | 10 |
| HZYB(G)-5 | 5 | 50 | 70 | 100 | 15 | 200/380 | 25 | 500 | 10 |
| HZYB(G)-10 | 10 | 50 | 70 | 200 | 100 | 380 | 50/26 | 500 | 10 |
| HZYB(G)-20 | 20 | 50 | 70 | 400 | 100 | 380 | 53 | 500 | 10 |
| HZYB(G)-30 | 30 | 50 | 70 | 600 | 100 | 380 | 79 | 500 | 10 |
| HZYB(G)-40 | 40 | 50 | 70 | 800 | 100 | 380 | 105 | 500 | 10 |
| HZYB(G)-50 | 50 | 50 | 70 | 1000 | 100 | 380 | 132 | 500 | 10 |
| HZYB(G)-5 | 5 | 100 | 140 | 100 | 50 | 200/380 | 25 | 1000 | 10 |
| HZYB(G)-10 | 10 | 100 | 140 | 200 | 100 | 380 | 50/26 | 1000 | 10 |
| HZYB(G)-20 | 20 | 100 | 140 | 300 | 100 | 380 | 53 | 1000 | 10 |
| HZYB(G)-30 | 30 | 100 | 140 | 400 | 100 | 380 | 79 | 1000 | 10 |
| HZYB(G)-40 | 40 | 100 | 140 | 600 | 100 | 380 | 105 | 1000 | 10 |
| HZYB(G)-50 | 50 | 100 | 140 | 1000 | 100 | 380 | 132 | 1000 | 10 |

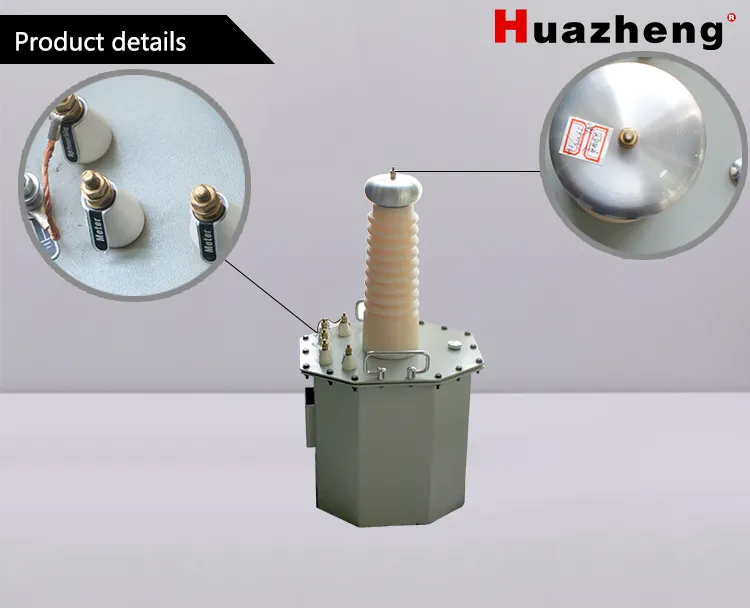

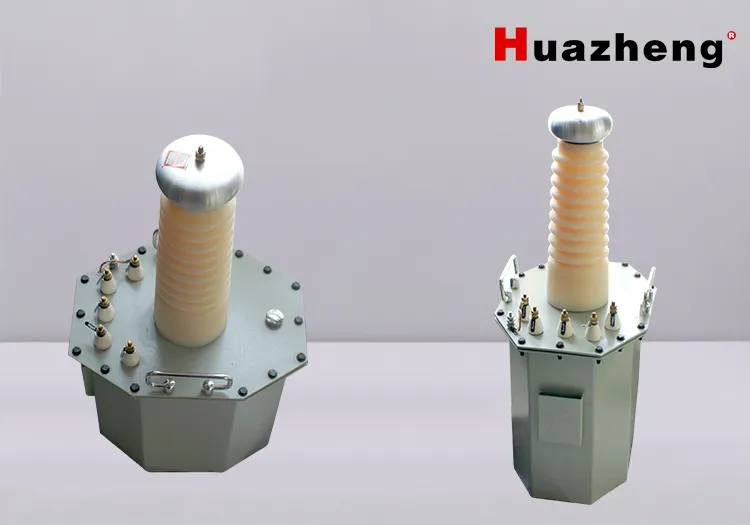

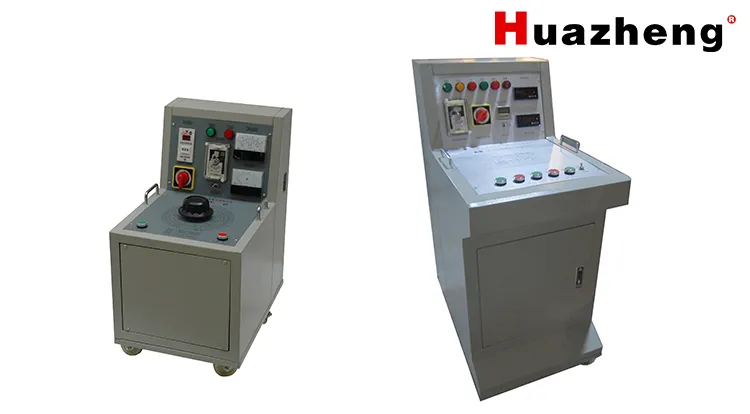

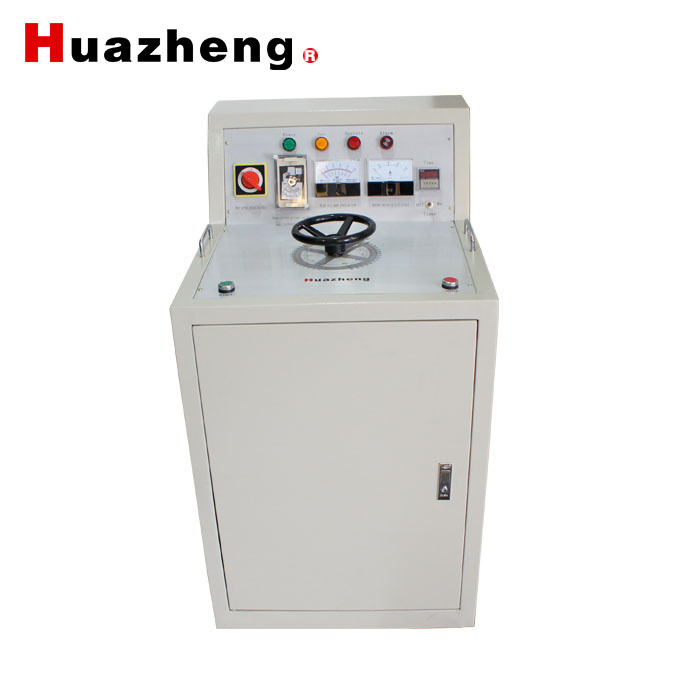

IV.Detailed Photos

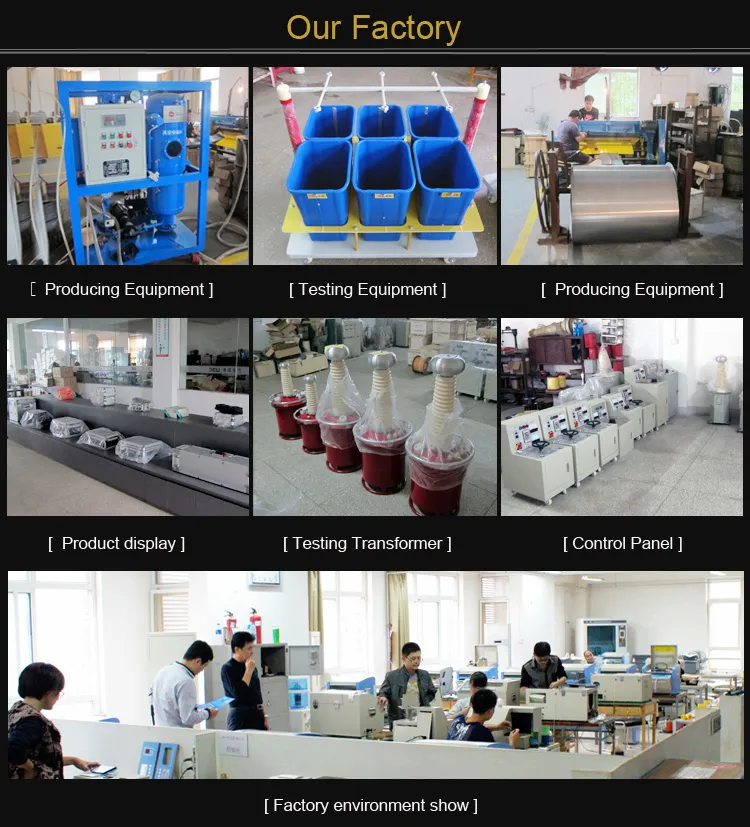

V. Company Information
HuaZheng Electric Manufacturing (Baoding) Co., Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government. And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
VI. Customer Visit
VII. Exhibition

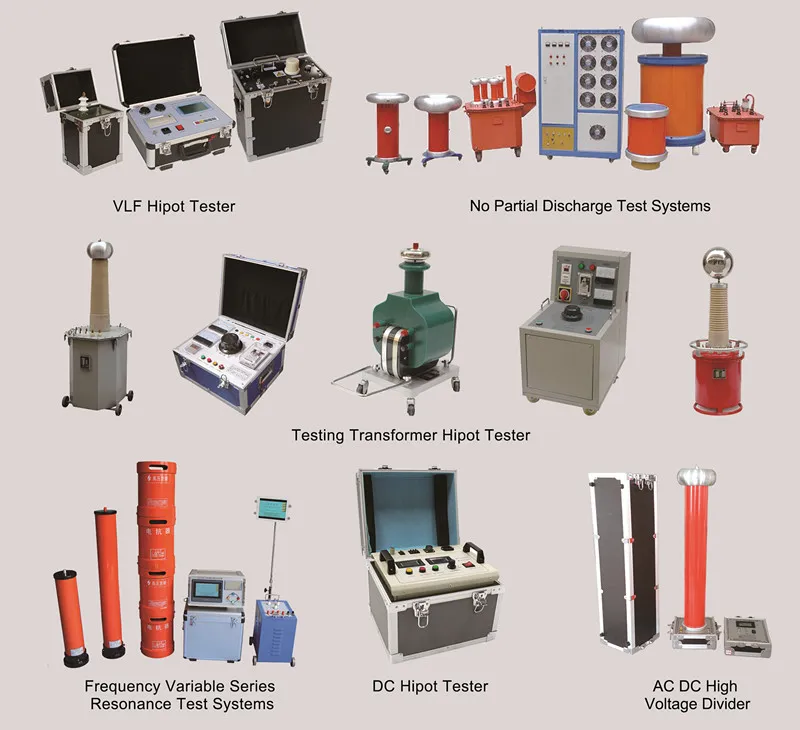

VIII. Similar models
