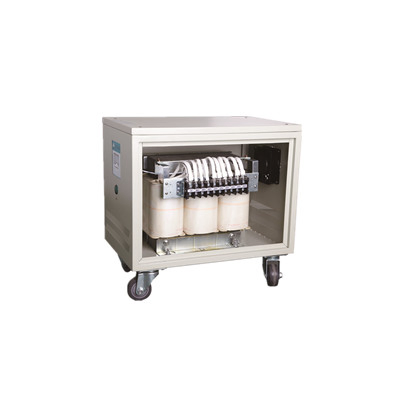

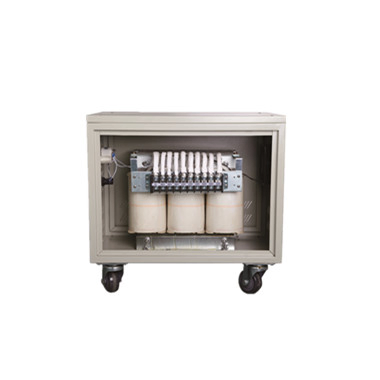

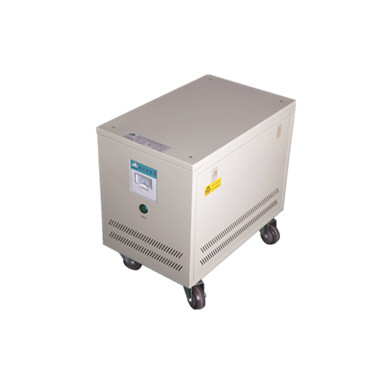

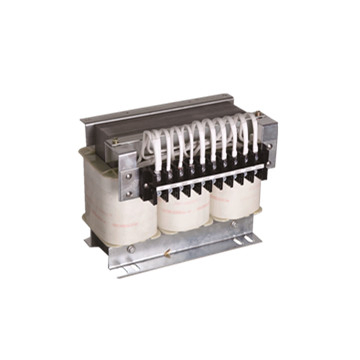

3 Phase Dry Type Transformer 15kVA with CE Certification for EDM Machine

Product Description

Introduction of products.

Dry type transformer has developed and further improved in the aspects of raw materials and technology by Po MING POWER,Compared to others in the industry,lower noise,lower wear and tear,lower voltage drop,higher efficiency and more stable operation.This series of products are suitable for the circuits with AC 50/60Hz and voltage less than 660V.This transformer is widely used for imported precise machinery,multi-axial automatic lathe,spring manufacturing machine,injection machine,mechanical and electronic equipment,medical equipment,rectifier,lighting and etc.

Application.

The product is used for engraving and milling machine,bending machine,SMT chip machine,CNC lathe,printing machine,railway grid,laser machine,wire cutter,injection machine,satellite telecommunication equipment.

Technical parameters

Model	3010	3015	3020	3030	3045	3060	3075	3100	3120	3150	3200
Capacity	10KVA	15KVA	20KVA	30KVA	45KVA	60KVA	70KVA	100KVA	120KVA	150KVA	200KVA
Input voltage	3-phase,4 wire 380V(other voltages can be customized)
Output voltage	3-phase,4 wire 200V/220V(other voltages can be customized)
Frequency	50-60Hz
Load current(220V)	21	31	42	63	94	127	158	210	252	315	420
Operating environment	Temperature:-20ºC-45ºC,humidity 0-95% with dew
Size(mm)	430x260+360	500x300x440		550x350x530	700x450x630			950x650x950
Weight(kg)	38	54	59	88	132	143	162	200	250	319	350

About us
Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .
