AC Electric Furnace Transformer (HKSSP-20000/35)
Features:1.low loss, low noise2.prety outline and compact structure3.operat reliabilityFurnace transformer series:Furnace transformer is the power transformer for industrial furnace smelting use, it is special transformer designed on the basis of various electric furnace's work characteristics a......
Send Inquiry
Product Description
Features:
1.low loss, low noise
2.prety outline and compact structure
3.operat reliability
Furnace transformer series:
Furnace transformer is the power transformer for industrial furnace smelting use, it is special transformer designed on the basis of various electric furnace's work characteristics and operation modes, which mainly including steelmaking electric arc furnace transformer, ladle refining furnace transformer, electro-slag re-melting furnace transformer and submerged arc furnace smelting transformer. Submerged arc furnace includes: Calcium carbide furnace, ferroalloy furnace, yellow phosphorus furnace, silicon manganese alloy furnace. In addition, there is also various exchange furnace transformers such power frequency furnace transformer etc.
The main features of our furnace transformers: Designed according to national industry standards and different electric furnace process, low loss, smelt of high efficiency, reliable operation and so on. Its structure: No reactor and reactor, also has large impedance and small impedance to meet the demands.
Product Description:
Model:HKSSP-20000/35
Rated Capacity:20000KVA
Primary Voltage:35KV
Cooling Way:OFWF
Phase: 3 phase
Winding Material:copper

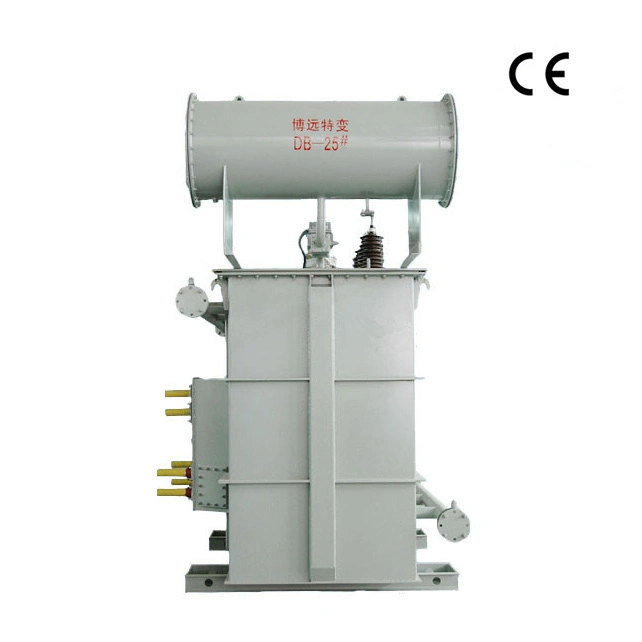

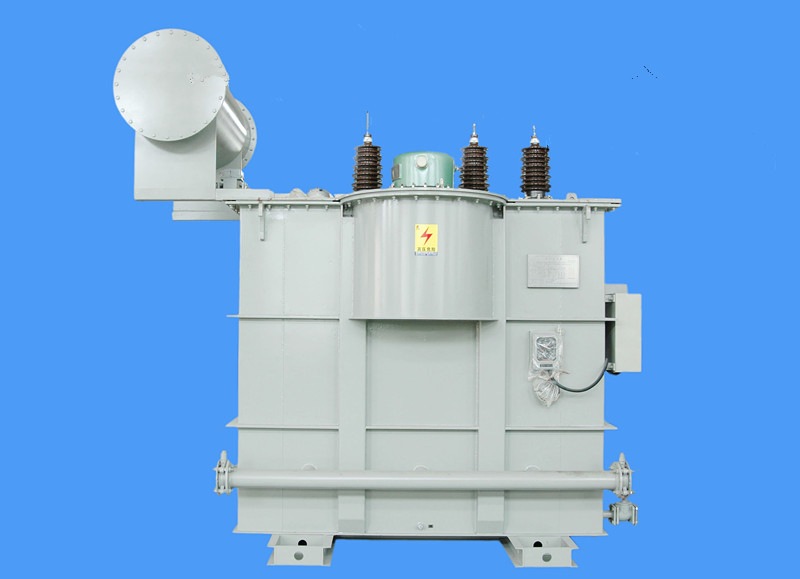

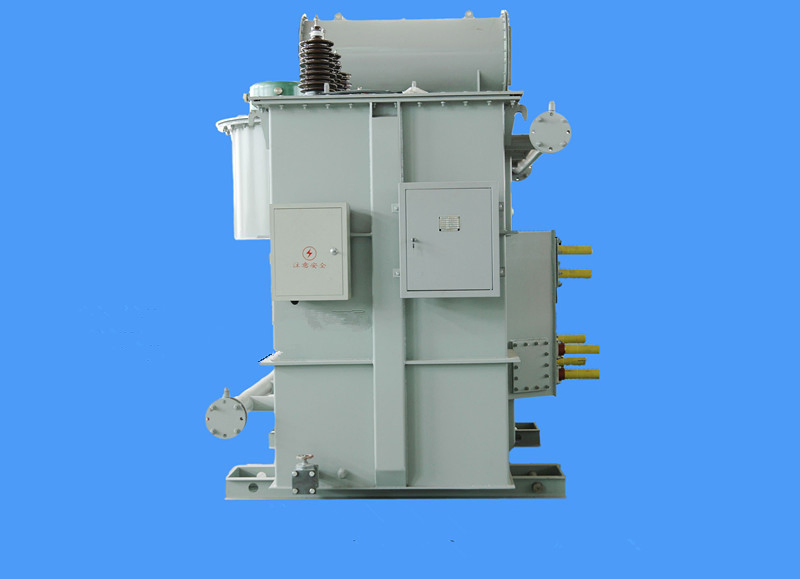

Product And Workshop Pictures:
Technical parameters of ore heat furnace transformer(the following similiar is just for reference, all these can be customized)
Ore heat furnace transformer is very extensive use of submerged arc furnace transformer, with the different requirements of smelting process, our company's products are mainly suitable for calcium carbide furnace(HC), ferroalloy(HT) and yellow phosphorus, corundum, pesticides and other various types of ore hot transformer.
RFQ
6.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Suzhou City, Jiangsu Province.
6.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
A: All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
A: T/T, L/C is very well used.
6.6.Q: What about the production?
A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
A: Yes, no problem.
6.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
1.low loss, low noise
2.prety outline and compact structure
3.operat reliability
Furnace transformer series:
Furnace transformer is the power transformer for industrial furnace smelting use, it is special transformer designed on the basis of various electric furnace's work characteristics and operation modes, which mainly including steelmaking electric arc furnace transformer, ladle refining furnace transformer, electro-slag re-melting furnace transformer and submerged arc furnace smelting transformer. Submerged arc furnace includes: Calcium carbide furnace, ferroalloy furnace, yellow phosphorus furnace, silicon manganese alloy furnace. In addition, there is also various exchange furnace transformers such power frequency furnace transformer etc.
The main features of our furnace transformers: Designed according to national industry standards and different electric furnace process, low loss, smelt of high efficiency, reliable operation and so on. Its structure: No reactor and reactor, also has large impedance and small impedance to meet the demands.
Product Description:
Model:HKSSP-20000/35
Rated Capacity:20000KVA
Primary Voltage:35KV
Cooling Way:OFWF
Phase: 3 phase
Winding Material:copper
Product And Workshop Pictures:
Technical parameters of ore heat furnace transformer(the following similiar is just for reference, all these can be customized)
Ore heat furnace transformer is very extensive use of submerged arc furnace transformer, with the different requirements of smelting process, our company's products are mainly suitable for calcium carbide furnace(HC), ferroalloy(HT) and yellow phosphorus, corundum, pesticides and other various types of ore hot transformer.
| Model NO. | Rated capacity(KVA) | Rated voltage | connection group symbol | Weight of product(kg) | Overall size(mm) L*W*H/lifting height | Track gauge | |||
| first KV | second V | body | oil | total | Across/Vertical | ||||
| HKSSP-2000/10 | 2000 | 10 | 86-71 | D/d0 | 4300 | 2300 | 8600 | 2800*1800*3300/4500 | 1070/1260 |
| HKSSP-2500/10 | 2500 | 10 | 100-84 | D/d0 | 4800 | 2600 | 9300 | 2800*1900*3400/4500 | 1070/1260 |
| HKSSP-3150/10 | 3150 | 10 | 96-76 | D/d0 | 5400 | 3200 | 10800 | 3000*2000*3400/4500 | 1505/1505 |
| HKSSP-4000/10 | 4000 | 10 | 100-78 | D/d0 | 6000 | 4500 | 13700 | 3100*2200*3600*5500 | 1505/1505 |
| HKSSP-5000/10 | 5000 | 10 | 118-94 | D/d0 | 7100 | 5000 | 15800 | 3200*2250*3650/5500 | 1505/1505 |
| HKSSP-6300/10 | 6300 | 10 | 126-100 | D/d0 | 8200 | 6300 | 18000 | 3400*2300*3750/6000 | 1505/1505 |
| HKSSP-8000/10 | 8000 | 10 | 128-112 | D/d0 | 10200 | 7700 | 21800 | 4000*2500*4200/7000 | 1505/1505 |
| HKSSP-3150/35 | 3150 | 35 | 108-84 | Y/d11 | 5800 | 4000 | 12500 | 3200*2000*3300/5500 | 1505/1505 |
| HKSSP-5000/35 | 5000 | 35 | 120-90 | Y/d11 | 7600 | 5800 | 17200 | 3200*2500*3600/6000 | 1505/1505 |
| HKSSP-6300/35 | 6300 | 35 | 126-100 | Y/d11 | 9100 | 7200 | 19800 | 3450*2400*4250/6000 | 1505/1505 |
| HKSSP-10000/35 | 10000 | 35 | 140-112 | D/d0 | 15800 | 9680 | 31800 | 4800*3000*5000/7500 | 2000/2000 |
| HKSSP-12500/35 | 12500 | 35 | 162-126 | D/d0 | 17600 | 11200 | 33800 | 5000*3100*5000/7500 | 2000/2000 |
| 13grade | |||||||||
| HKSSPZ-10000/35 | 10000 | 35 | 112-148 | Y/d11 | 16500 | 10000 | 32500 | 5000*3150*5000/7500 | 2000/2000 |
| 13 grade | |||||||||
| HKSSPZ-12500/35 | 12500 | 35 | 118-162 | Y/d11 | 17800 | 11500 | 34600 | 5250*3000*5000/8000 | 2000/2000 |
| 9 grade | |||||||||
| HKSSPZ-16500/35 | 16500 | 35 | 126-182 | Y/d11 | 21600 | 13700 | 41800 | 5500*3200*4900/8000 | 2000/2000 |
| 19 grade | |||||||||
RFQ
6.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Suzhou City, Jiangsu Province.
6.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
A: All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
A: T/T, L/C is very well used.
6.6.Q: What about the production?
A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
A: Yes, no problem.
6.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
