Bk2 Control Transformer

Product Description

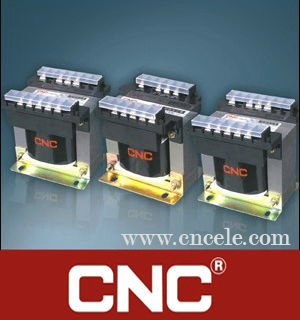

BK2 Control Transformer

Application:
BKseries machine tool control transformer which based on domestic BK series machine tool control transformer, adopt strongpoint of national and international similar products further, with advanced technology and strict design, select good junction terminal, it has several advantages such as low power consumption, reduced size, better performance and wide applicability, which is an ideal transformation power supply.
It is applicable to the AC circuit of 50-60 Hz and input voltage up to 1000V. Its used as a power supply for the machine tool control electrical appliances part lighting and indicator usually, also is used as the small power source.

Pls pay attention to that power voltage waveform is similar to sine wave.

There are following models (power rating) for your option: 50, 100, 150, 200, 250, 300, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3000, 4000, 5000VA

Code No.	Shape dimension(mm)			Install bore distance		Install bore
Code No.	B max	D max	E max	A	C	K× J
BK-50	78	70	90	56± 0.4	49± 3	5× 12
BK-100	84	83	93	65± 0.4	62± 2.5	6× 12
BK-150	102	95	113	83± 0.4	70± 2.5	6× 12
BK-200	102	105	113	83± 0.4	80± 2.5	9× 11.5
BK-250	120	115	145	100± 0.4	77± 3	9× 11.5
BK-300	120	120	145	100± 0.4	82± 3	9× 11.5
BK-400	146	130	135	110± 0.4	105± 3	9× 11.5
BK-500	146	145	160	123± 0.4	105± 3	9× 11.5
BK-700	146	155	160	123± 0.4	115± 3.5	9× 11.5
BK-1000	150	165	160	123± 0.4	125± 3.5	9× 11.5
BK-1500	171	200	190	145± 0.4	135± 3.5	9× 11.5
BK-2000	180	230	210	155± 0.4	160± 3.5	9× 11.5
