Boot DC to DC Converter 24V to 60V Step up Boost Voltage Converter 1A 1.5A 2A 4A 7A 10A Switching Power Supply
Boot dc to dc converter 12v 24v 36v to 60v step up boost voltage converter 1A 1.5A 2A 4A 7A 10A switching power supplyOverviewA DC-DC switching converter is used to locally supply any component or part of a system with the desired DC voltage and current. Depending on the application's relationsh......
Send Inquiry
Product Description
Boot dc to dc converter 12v 24v 36v to 60v step up boost voltage converter 1A 1.5A 2A 4A 7A 10A switching power supply
Overview
A DC-DC switching converter is used to locally supply any component or part of a system with the desired DC voltage and current. Depending on the application's relationship between the input and output voltage, engineers have to choose the best power topology - buck, boost, buck-boost or inverting, with or without synchronous rectification.
In a boost DC-DC converter, the output voltage is higher than the input voltage including in a floating boost topology where the output does not share the reference point with the input.
Boost DC-DC topologies are often used in battery-operated equipment to generate supply rails higher than the battery voltage. These designs require high-efficiency and ultra-low stand-by current as well as a small size to fit the requirements for portable and wearable devices for the Internet of Things (IoT).

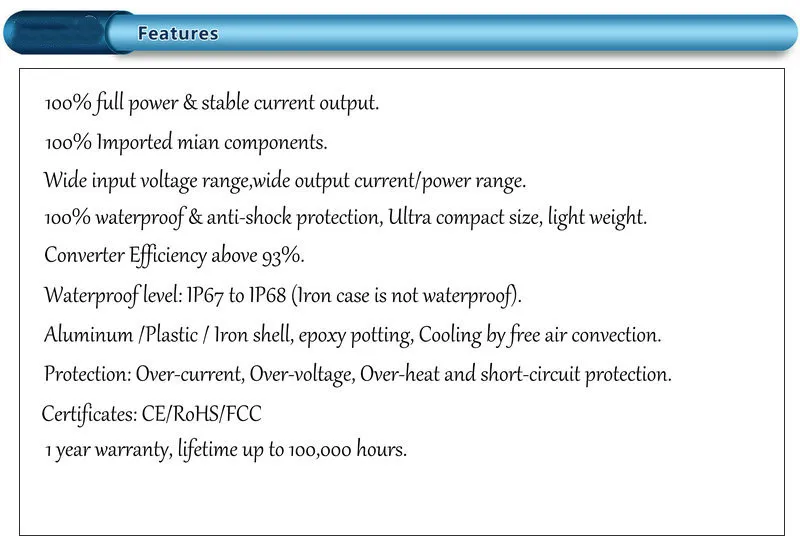

Features:
Specification
| Product Name | DC to DC Boost Converter |
| Model No. | XW-1224-60-120W/300W |
| Module Properties | Non-isolated module |
| Rectification | Synchronous rectification |
| Input Voltage | DC 12V 24V |
| Input Voltage Range | DC 10-32V |
| Output Voltage | DC 60V |
| Output Current | 3A/ 5A |
| Output Power | 180W/ 300W |
| Conversion Efficiency | >93% |
| Cable Length | 13-14cm |
| Ripple (Full load test) | 40mV |
| No-load current | 25mA |
| Working Temperature | -40~80ºC |
| Waterproof Rating | IP67 |
| Protection | Over-current protection |
| Over-voltage protection | |
| Over-heat protection | |
| Short-circuit protection | |
| Waterproof, anti-shock , anti-dust protection | |
| Application | Mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on. |
| Case Material/Packing | Aluminum 100*80*39mm, 500g, White Box |
| Warranty | 12 months |
Attention:

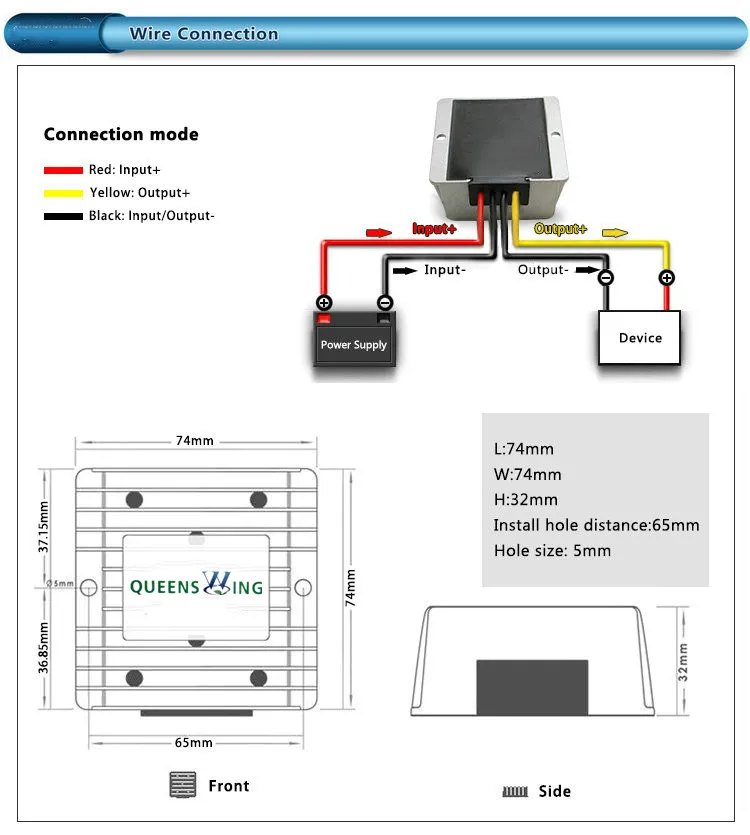

Pls install according to the the label strictly,positive pole and nagative pole can't be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

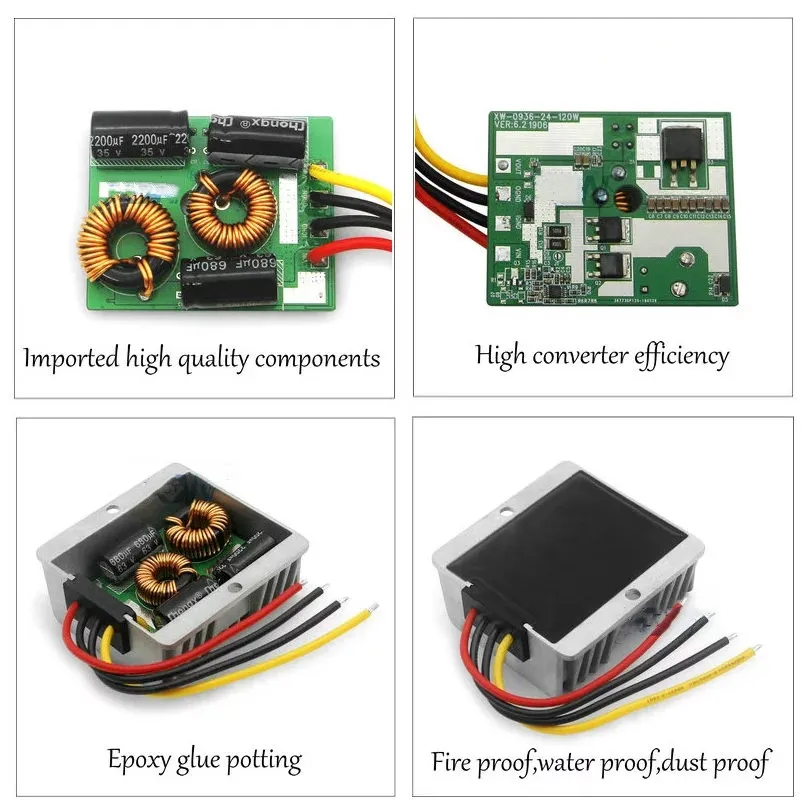

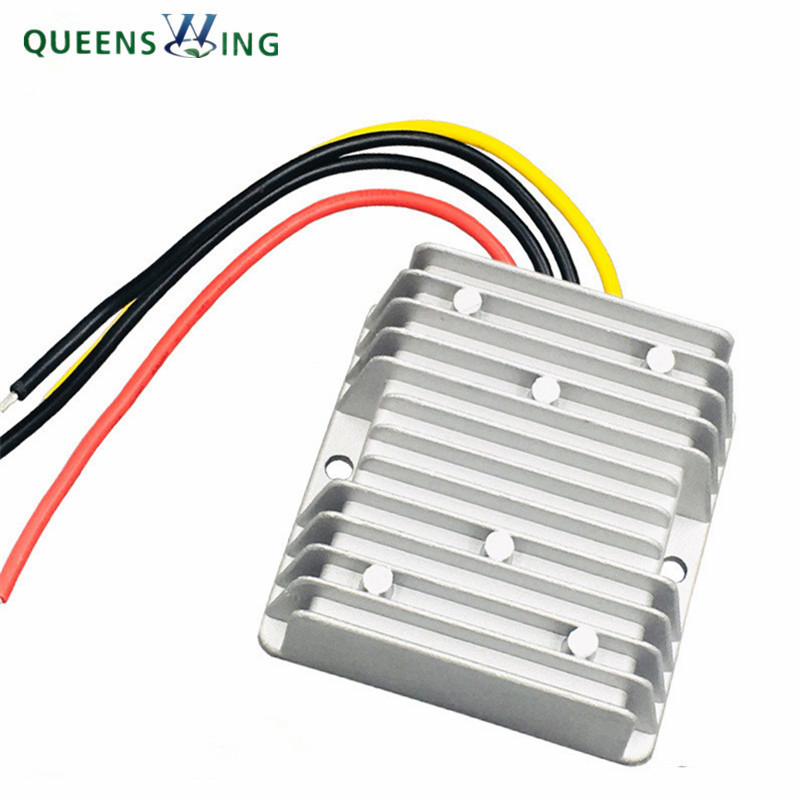

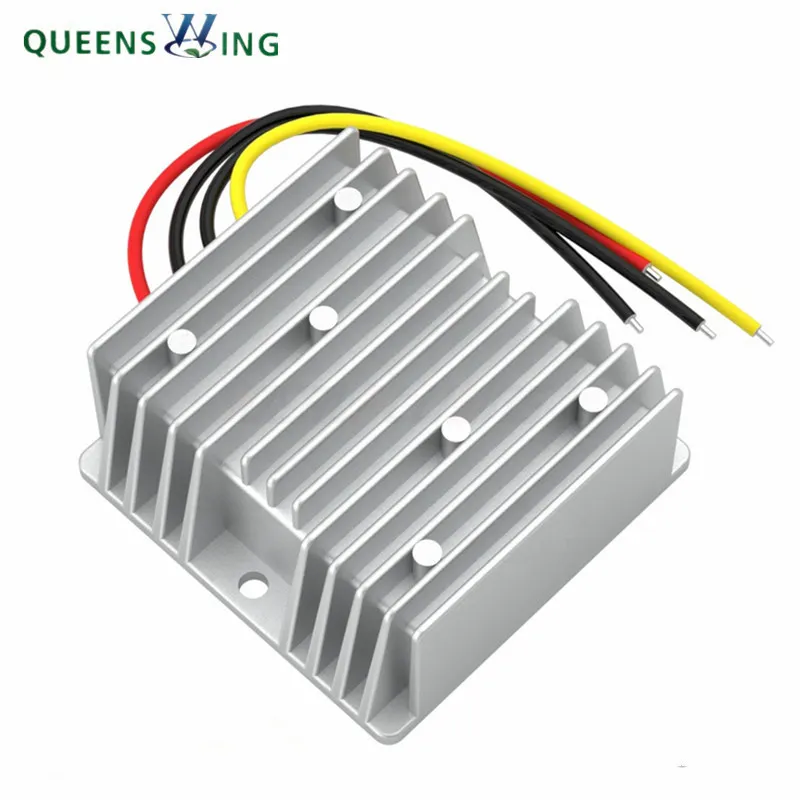

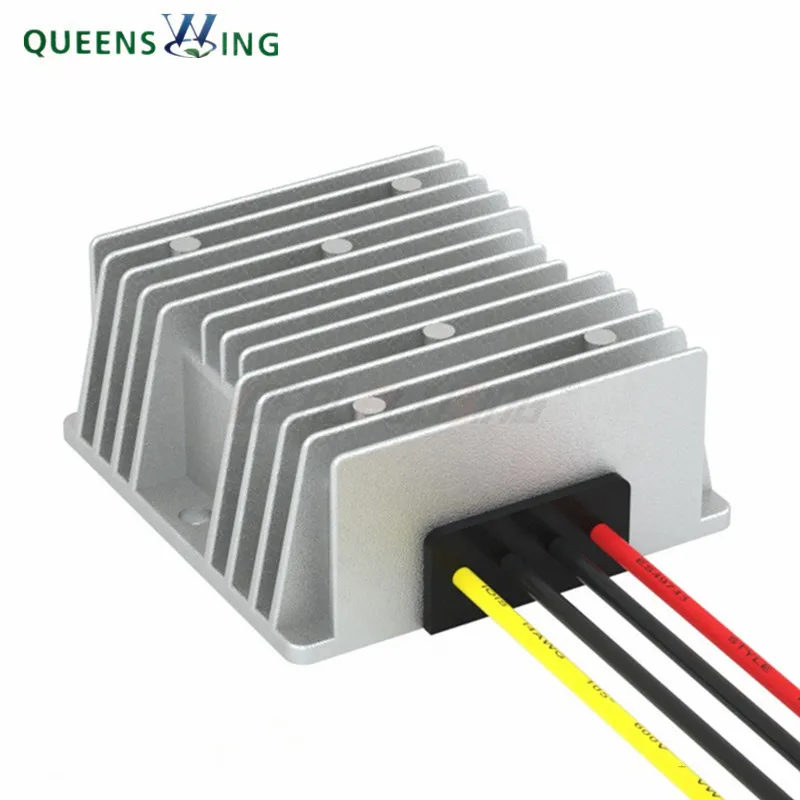

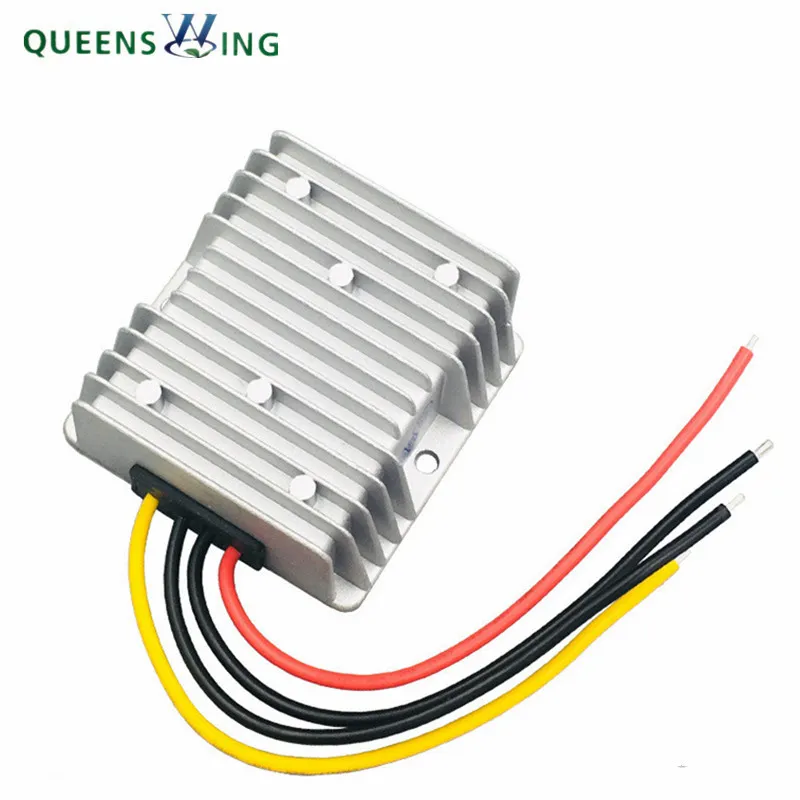

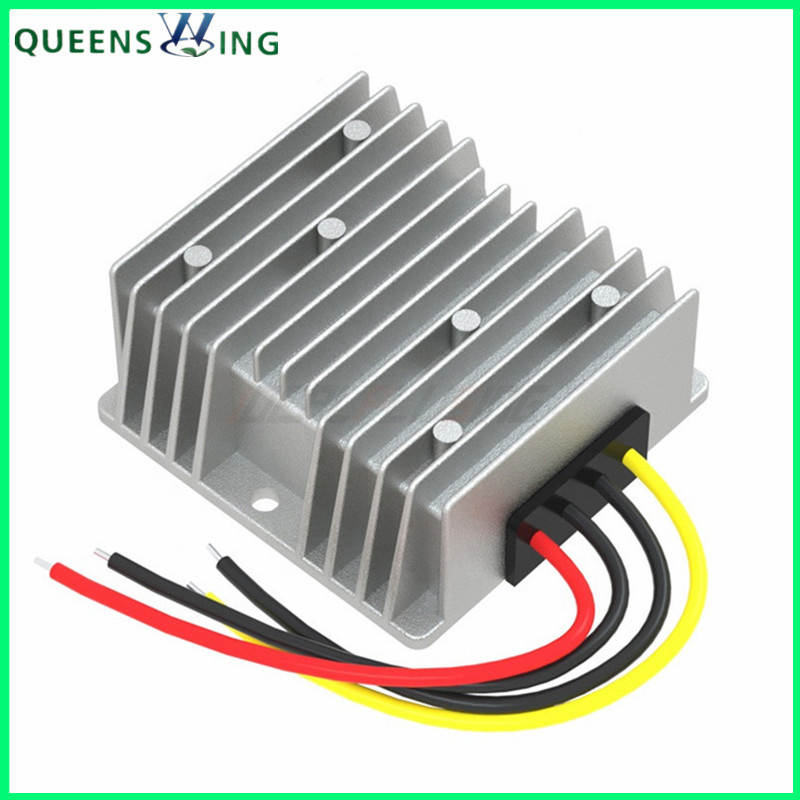

Product Pictures
| Type | Model/ Series | Voltage convert Input to output | Output Current (Be option) |
| Boost DC-DC Converter | XW-DTD5S12** | 5v to 12v | 1/2/3/5/8/10A |
| XW-DTD12S13.8** | 12v to 13.8v | 1/2/3/5/8/10/18A | |
| XW-DTD12S15** | 12v to 15v | 1/2/3/5/8/10/15A | |
| XW-DTD12S19** | 12v to 19v | 5/8/10/15/20A | |
| XW-DTD12S24** | 12v to 24v | 1/2/3/5/8/10/15/20/25/30/40A | |
| XW-DTD12S28 | 12v to 28v | 3/5/8/10/15/20/25/30/40A | |
| XW-DTD12S32/36** | 12v to 32v/36v | 1/2/3/5/6/10/12/15/20/30A | |
| XW-DTD12S48** | 12v to 48v | 1/2/3/4/5/8/10/15/20A | |
| XW-DTD24S48** | 24v to 48v | 3/5/10/20/32/42A | |
| Buck DC-DC Converter | XW-DTD1224S3.3-9** | 12v/24v to 3.3-9v | 1/2/3/5/10/15/20/30/50/60A |
| XW-DTD24S12** | 24v to 12v | 1/2/3/5/8/10/15/20/30/40/50/60/85A | |
| XW-DTD3648S5** | 36v/48v to 5v | 3/5/6/8/10/12/15/20/25A | |
| XW-DTD3648S12** | 36v/48v to 12v | 5/10/15/20/25A | |
| XW-DTD3648S24** | 36v/48v to 24v | 5/8/10/12/15/18/20A | |
| XW-DTD48S36** | 48v to 36v | 5/10A | |
| XW-DTD60S5** | 60v to 5v | 5/10/15/20A | |
| XW-DTD60S12** | 60v to 12v | 5/8/10/12/15/20A | |
| XW-DTD60S24** | 60v to 24v | 5/10/15A | |
| XW-DTD60S36** | 60v to 36v | 3/5/8/10/15A | |
| Auto Buck and Boost DC-DC Converter | XW-DTD12S12 | 12v to 12v | 1/2/3/4/6/8/10/12A |
| XW-DTD12S13.8 | 12v to 13.8v | 3/5/10A | |
| XW-DTD24S24 | 24v to 24v | 1/2/3/5/8/10A |
