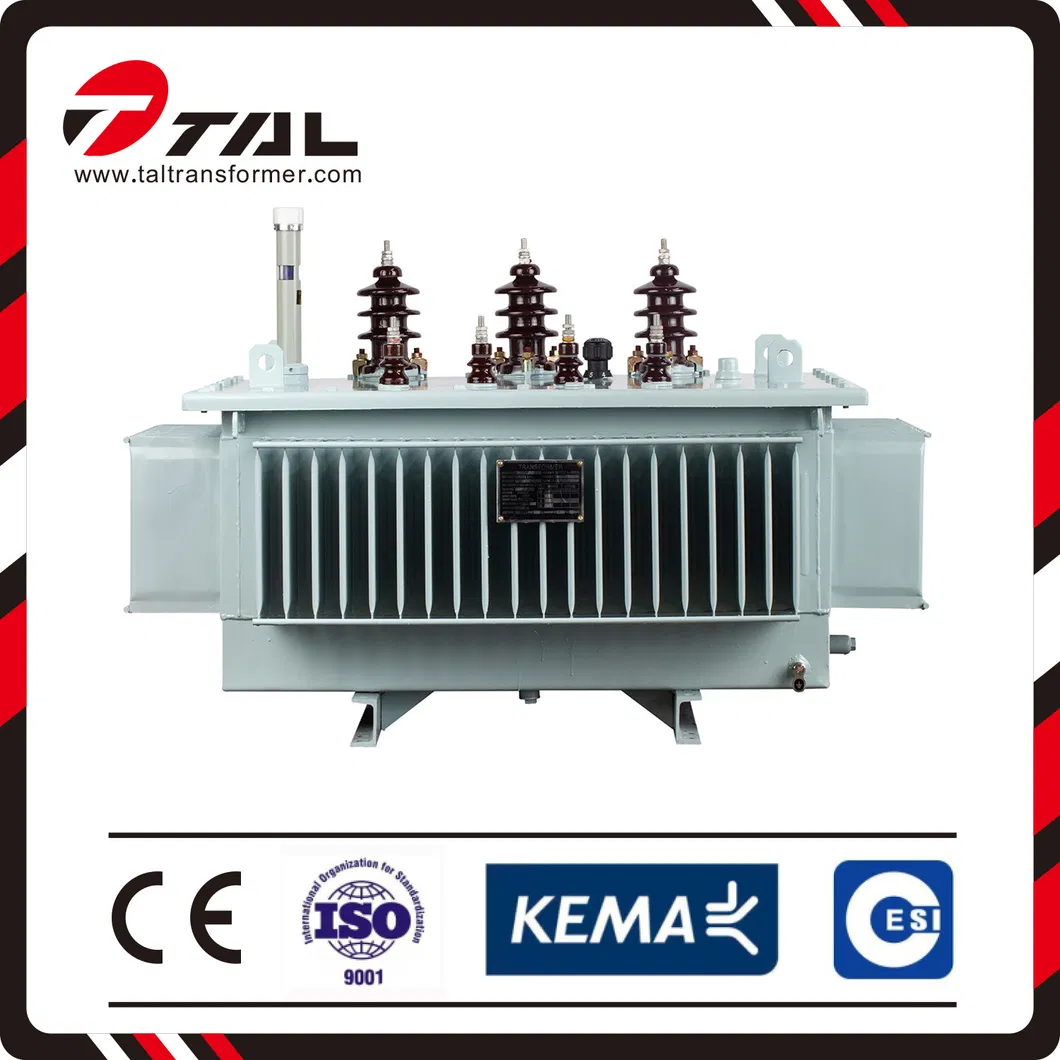

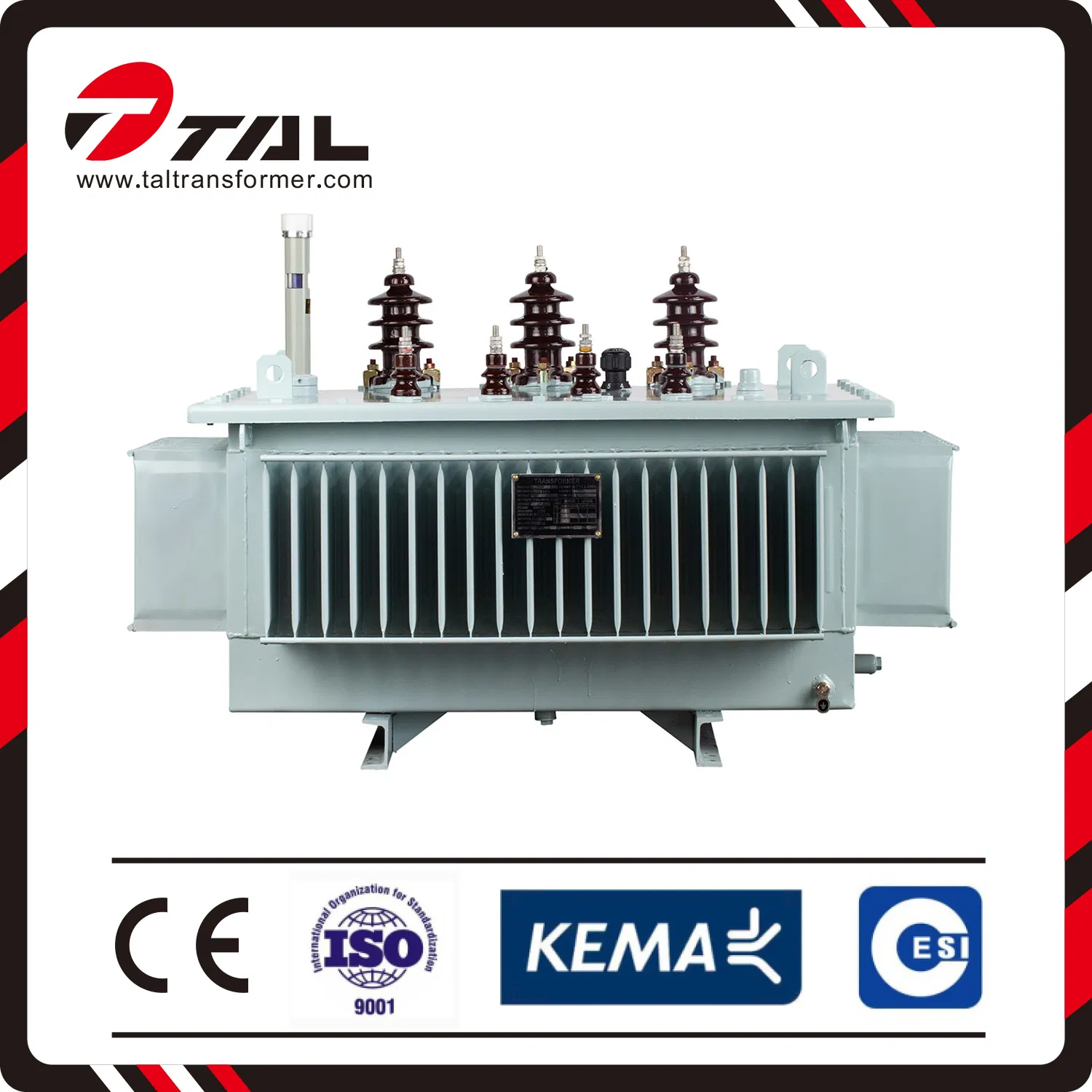

Copper Windings Oil Type Power Transformer
Amorphous alloy oil-immersed transformerProduct introduceTransformers can transform the voltage of a network into the voltage matching the system or load and fulfill power transferring and distributing. Replace the transformer with a silicon steel core. AMDT can be widely applied in outdoor power di......
Send Inquiry
Product Description

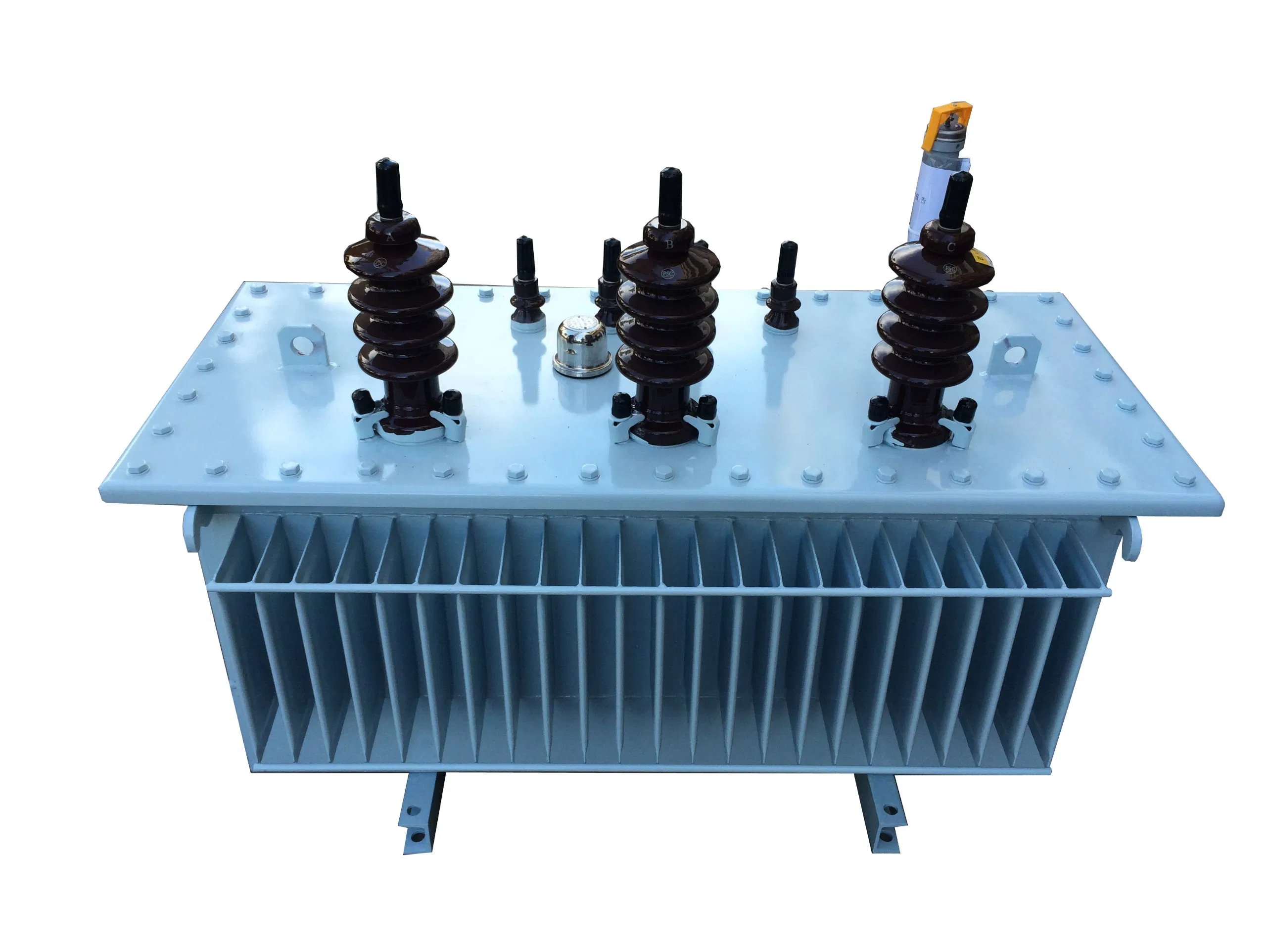

Amorphous alloy oil-immersed transformer
Product introduce
Transformers can transform the voltage of a network into the voltage matching the system or load and fulfill power transferring and distributing. Replace the transformer with a silicon steel core. AMDT can be widely applied in outdoor power distribution network systems, which is magnificently energy saving and can reduce air pollution. It is especially applicable for areas with insufficient power supply or fluctuating load and where daily maintain is hard. The hermetically sealed construction of AMDT prevents the oil and insulation material from being polluted, so the unit can serve in a humid environment. AMDT are the ideal equipment supplying power for distribution network in urban and rural areas.
Advantage of structure
The core is wound with amorphous alloy ribbons, which possesses a no-load loss 80% lower than S9 type transformer(with silicon steel core); The LV coils are wound with copper foil, which reinforces the ability to withstand short circuit for the transformer AMDT with connection Dyn11 can lighten harmonics impact on the network and improve the quality of the power supplied; The tank and cover are welded together, forming a hermetically sealed construction which lengthens the service life of AMDT and makes it repair-free; The vacuum oil filling eliminates all bubbles in the coils to ensure stable characteristics of insulation; Each transformer passes a full-wave lighting impulse test before delivery to ensure its safety operation. A peak voltage 25% higher than the value required by national standard is applied during the test.
SBH15-M Type 6~10kV
Single phase oil immersed amorphous alloy distribution transformer
The main technical parameters
| Rated capacity(KVA) | Voltage Combination and tap range | connection of transformer winding | No-load loss (W) | Load loss (W) | No-load current (%) | Short circuit impedance (%) | ||
| High voltage (KV) | High voltage tap range ( %) | Low voltage (KV) | ||||||
| 5 10 16 20 30 40 50 63 80 100 125 | 6 6.3 10 10.5 11 | ±5% ±2x2.5% | 2 x(0.22~0.24) or 0.22~0.24 | II0 II6 | 20 20 20 30 30 40 40 50 60 70 90 | 150 260 370 430 630 780 1100 1140 1400 1650 1950 | 2.4 2.2 2.0 1.8 1.6 1.4 1.2 1.0 0.9 0.8 0.7 | 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 |
Oil immersed amorphous alloy distribution transformer
The main technical parameters
| Rated capacity(KVA) | Voltage Combination and tap range | connection of transformer winding | No-load loss (W) | Load loss (W) | No-load current (%) | short circuit impedance (%) | ||
| High voltage (KV) | High voltage tap range ( %) | Low voltage (KV) | ||||||
| 30 50 63 80 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 | 6 6.3 6.6 10 10.5 11 | ±5% ±2x2.5% | 0.4 | Dyn11 Yyn0 | 33 43 50 60 75 85 100 120 140 170 200 240 320 380 450 530 630 750 900 | 630/600 910/870 1090/1040 1310/1250 1580/1500 1890/1800 2310/2200 2730/2600 3200/3050 3830/3650 4520/4300 5410/5150 6200 7500 10300 12000 14500 17400 20200 | 1.70 1.30 1.20 1.10 1.00 0.90 0.70 0.70 0.70 0.50 0.50 0.50 0.30 0.30 0.20 0.20 0.20 0.20 0.20 | 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.5 4.5 4.5 4.5 4.5 5.0 5.0 |
SBH15-M Type 20kV
Oil-immersed amorphous alloy core power transformer
The main technical parameters
| Rated capacity(KVA) | Voltage Combination and tap range | connection of transformer winding | No-load loss (W) | Load loss (W) | No-load current (%) | Short circuit impedance (%) | ||
| High voltage (KV) | High voltage tap range ( %) | Low voltage (KV) | ||||||
| 30 50 63 80 100 125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 | 24 22 20 | ±5% ±2x2.5% | 0.4 | Dyn11 Yyn0 | 40 55 65 75 90 100 120 145 165 200 240 290 370 450 530 620 750 900 1080 | 690/660 1010/960 1200/1150 1440/1370 1730/1650 2080/1890 2540/2420 3000/2860 3520/3350 4210/4010 4970/4730 5940/5660 6820 8250 11330 13200 15950 19140 22220 | 1.50 1.20 1.10 1.00 0.90 0.80 0.60 0.60 0.60 0.50 0.50 0.50 0.30 0.30 0.30 0.20 0.20 0.20 0.20 | 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 6.0 6.0 6.0 6.0 6.0 6.0 6.0 |
Company Introduction

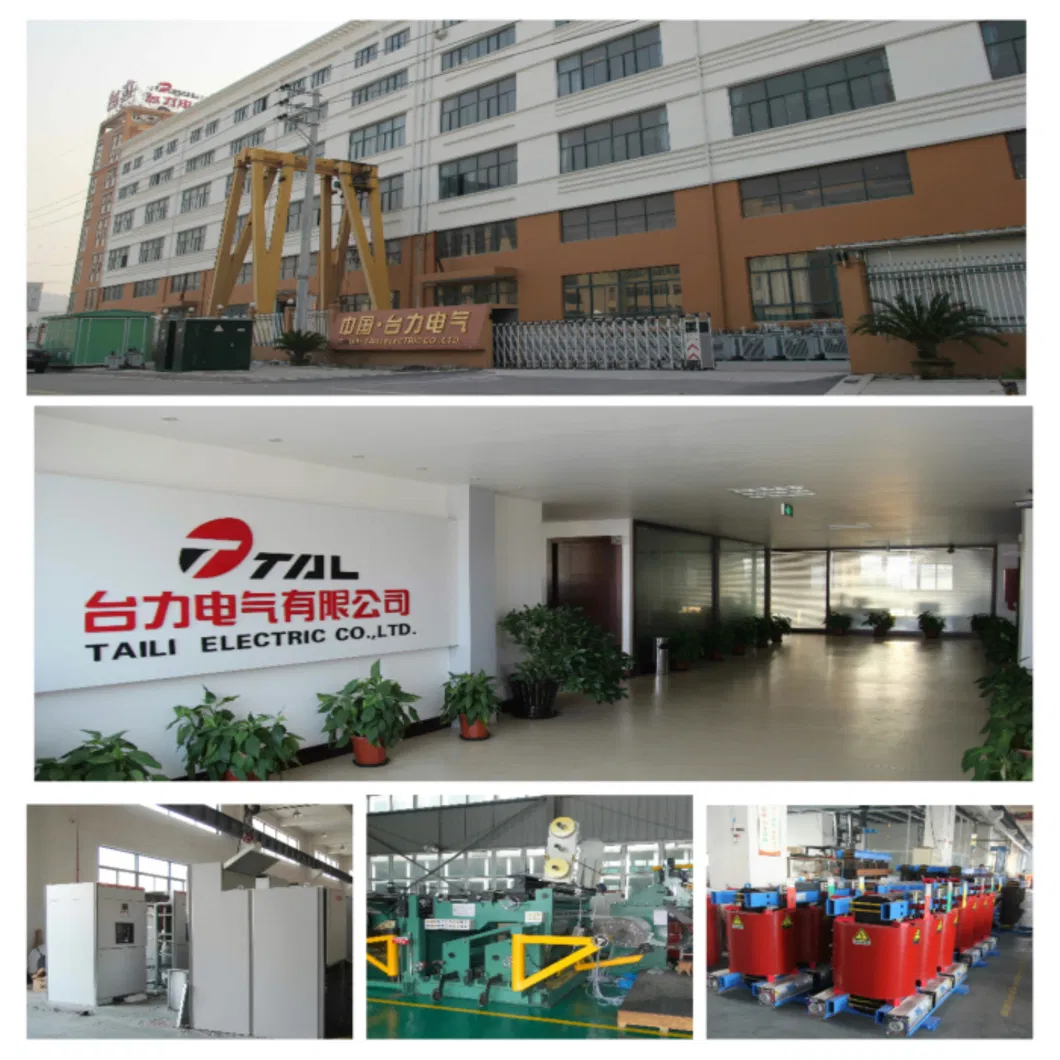

Taili Brands, founded in 1992, Headquarters is located in China Electric Capital Yueqing City, Zhejiang Province, is an non-regional large power product development, and manufacturing enterprises, a total area of 30,000 square meters, more than 500employees, including its head office in Zhejiang Taili Electric Co., Ltd, Shanghai Taili Transformer Co., Ltd. Xian Erbian Transformer Co., Ltd. Taili Electric High pressure company. Wenzhou Tali import and export Co., Ltd.

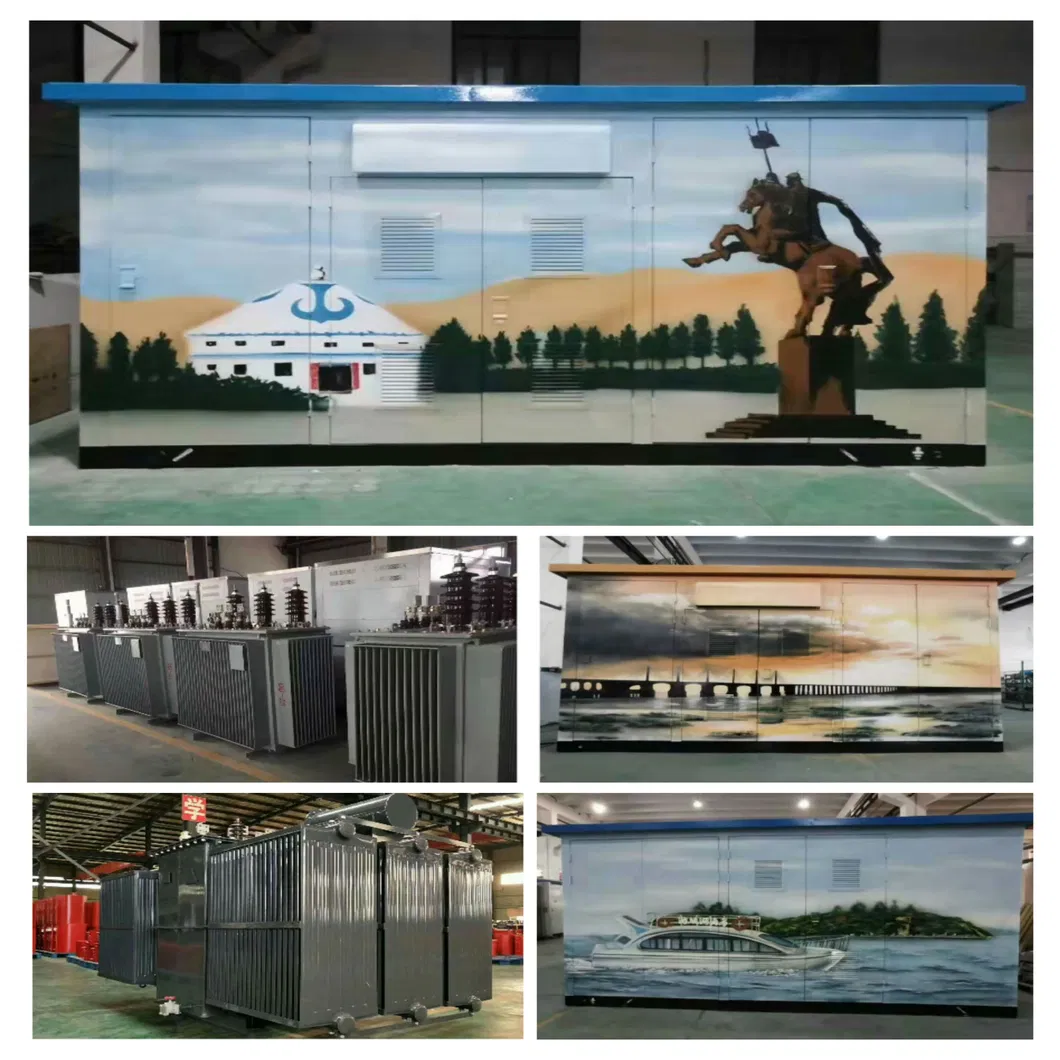

The company has advanced production line equipment and superb manufacturing technology, professional technical back-bone, professional production of 10kV, 35kV, 110kV, 220kV class oil-immersed power transformers, 10kV, 35kV insulation level of cast resin dry-type transformers, H class insulation environmentally friendly dry-type transformers, oil-immersed amorphous alloy transformer, amorphous alloy resin insulation dry-type transformers, 6kV, 10kV level mine mobile substation, mining and oil-immersed three-phase transformers, vacuum circuit breakers and other high voltage transmission and distribution electrical products. Prefabricated substations, modular substation, wind power substation, low voltage switch cabinet and power transmission and distribution equipment, products widely used in electric power, railways, mining, shipping, and other fields.
Taili force people in a "people for the support, with the benefits of technology by the tree brand development" business principles, adhere to the" quality first, customer first, to meet user demand" for the purpose, and actively explore the domestic market, sales the country and exported to many countries and regions in Southeast Asia, the Middle East, and Africa.
FAQ
Q1: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Wenzhou China
Q2: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q3: Do you have any Certificate?
A: Yes. Each of our unit has CCC, ISO9001 certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
Q4: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution. We have shipping agent can choosing the cheapest and fastest delivery. FOB, CIF, C&F or EXW are no problem for us.
Q5: What's the payment terms?
A: For small testing orders, we can accept Waster union, T/T and Credit card.
For mass orders, we accept t/t and L/C.
Q6: What about the production?
A: Produce time is 4~6weeks.
Q7: Could you offer some spare parts?
A: Yes, no problem.
Q8: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
