Product Description

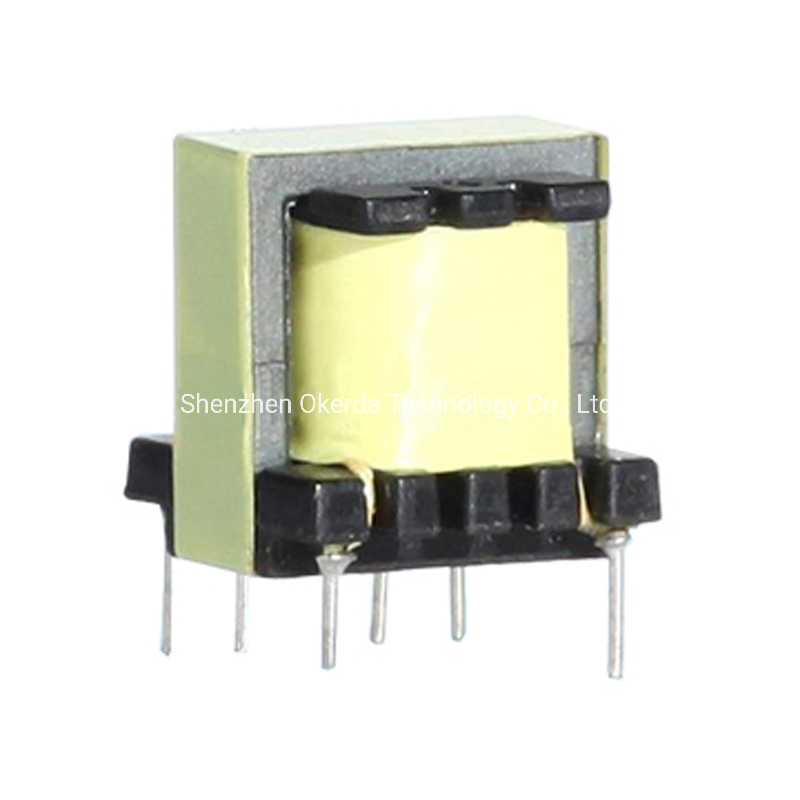

EE16 high frequency transformer for high-frequency circuit

Features:
1. High magnetic flux;
2. Low loss magnetic materials;
3. Low leakage inductance;
4. High efficiency;
5. High frequency
6. Strong anti-interference;

Applications:
1. PCB circuits;
2. Computer & TV;
3. Monitor & scanner;
4. Fax machines, PBX;
5. Welder welding machine;
6. Duplicator, mobile adapters;
7. Printer and other equipments and instruments.

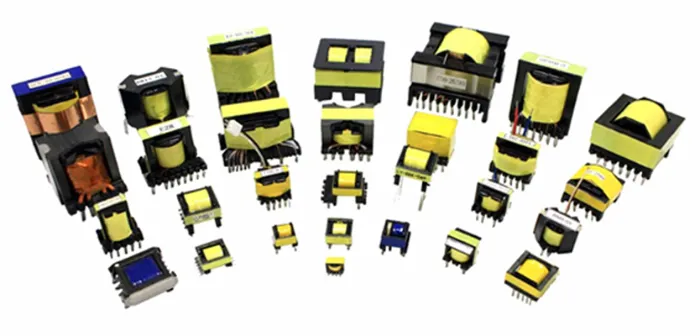

Various types of transformers available, CI, UI, EFD, EP, ER, EPC, POT, RM, EE
High Frequency transformer suitable for EL/CCFL Inverter or DC/DC converter

Customer's designs are welcome

Model Number	Specification	Needle Number Ratio	Length×Width×HEI ght
EE8.3	Vertical	2/3	8.3×5.4×5.4
EE10	Vertical	2/3	10×8×8
EE13	Vertical	2/3	13×12×12
EE13	Horizontal	2/2	13×12×12
EE16	Vertical	4/6	16×13×15
EE16	Horizontal	3/3	16×13×15
EE19	Vertical	3/4	19×16.5×16.5
EE19	Vertical	5/5	19×16.5×16.5
EE19	Horizontal	4/4	19×16.5×16.5
EE22	Vertical	5/5	22×16×19
EE25	Vertical	2/2	25.5×17×21
EE25	Horizontal	4/4	25.5×17×21
EE28	Vertical	6/6	28×22×20.5
EE 30	Horizontal	5/5	30×25×22
EE 30	Vertical	6/6	30×25×22
EE 33	Vertical	7/7	33×27×25
EC28	Vertical	6/6	28×22×20.5
EC28	Horizontal	6/6	28×22×20.5
EC42	Vertical	7/7	42×30×44
EC35	Horizontal	7/7	35×28×27
UF9.8	Horizontal	2/2	16×11×16
UF10.5	Horizontal	2/2	18.5×17×21.5
UF16	Horizontal	2/2	22×19×27
O-type	15×8.5×6	-	9×17
O-type	36×23×115	-	45×28.5×43
O-type	40×24×14.5	-	45×24×47

Any custom-design is available

Advantage:
1. 20 years experience in transformer and inductor manufacturing;
2. Scientific management system, strong technical team, and strict quality control system;
3. RoHS,CE,TUV and UL certified;
4. OEM & ODM;
5. Competitive price,in time delivery and perfect after-service online.

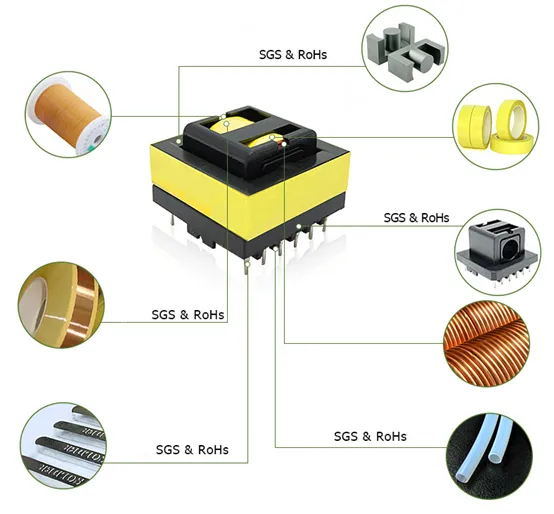

Structure Description
