Eel16 Eel19 Eel22 Eel25 Eel28 Eel30 Eel33 Power Transformer

Product Description

EEL16 EEL19 EEL22 EEL25 EEL28 EEL30 EEL33 power transformer

Features:

1) High working frequency ;
2) Plays a role in oscillating and separating;
3) Small volume, light weight and nice appearance;
4) Possessing of high permeability, high saturation flux density and low loss;
5) Specially used in switching power supply and kinds of high-frequency circuit.

Application
1) Switch power supply;
2) UPS power;
3) PC power;
4) Step down power;
5) Electronic equipment.

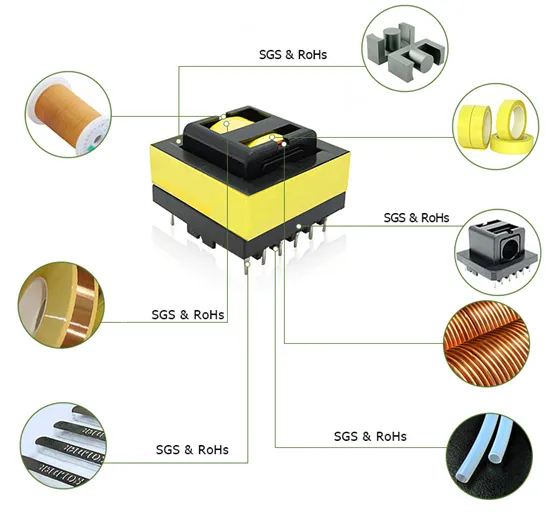

Structure Description

Related products
Eel16 Eel19 Eel22 Eel25 Eel28 Eel30 Eel33 Power Transformer

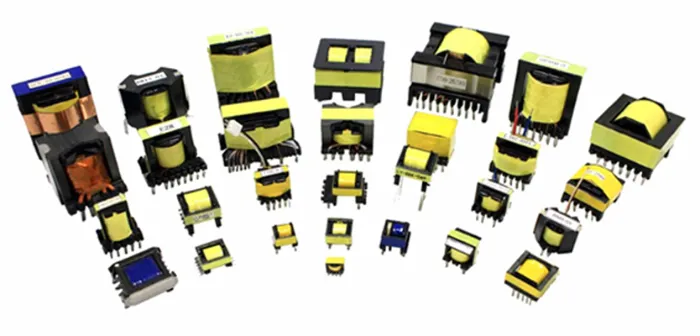

More specifications for your reference

Series	Application
EE Transformer	Applied in the switching power supply, main power transformer
	EE10, EE13, EE16, EE19, EE22, EE25, EE28, EE30, EE33, EE35, EE40, EE42, EE55, EE65
PQ Transformer	Applied in the linear filter, choke, pulse transformer, drive transformer
	PQ2016, PQ2020, PQ2610, PQ2620, PQ2625, PQ3220, PQ3225, PQ3230, PQ3535, PQ4040, PQ5050
RM Transformer	Filters, inductors and transformers for telecommunication other electronic equipment
	RM4, RM6, RM8, RM8, RM10, RM12, RM14
EI Transformer	Various kinds of transformers and chokes
	EI28, EI13, EI16, EI22, EI25, EI30, EI35, EI33, EI40
EEL Transformer	Witching power supply, charges, alarm system
	EEL13, EEL19, EEL22, EEL25
EF Transformer	Applied in the switching power supply, main power transformer
	EF16, EF12.6, EF20, EF25, EF30
EFD Transformer	Auxiliary power transformer, main power transformer, choke coils
	EFD15, EFD20, EFD25, EFD30, EFD40
UU Transformer	Varieties of switching power supply transformer, choke coils et
	UU9.8, UU10.5, UU16, UU20
EC Transformer	Applied in the linear filter, current transformer, smoothing chock coil, drive transformer
	EC28, EC35, EC39, EC40, EC42, EC49
ER Transformer	Applied in the linear filter, current transformer, smoothing chock coil, drive transformer
	ER47, ER48, ER49
