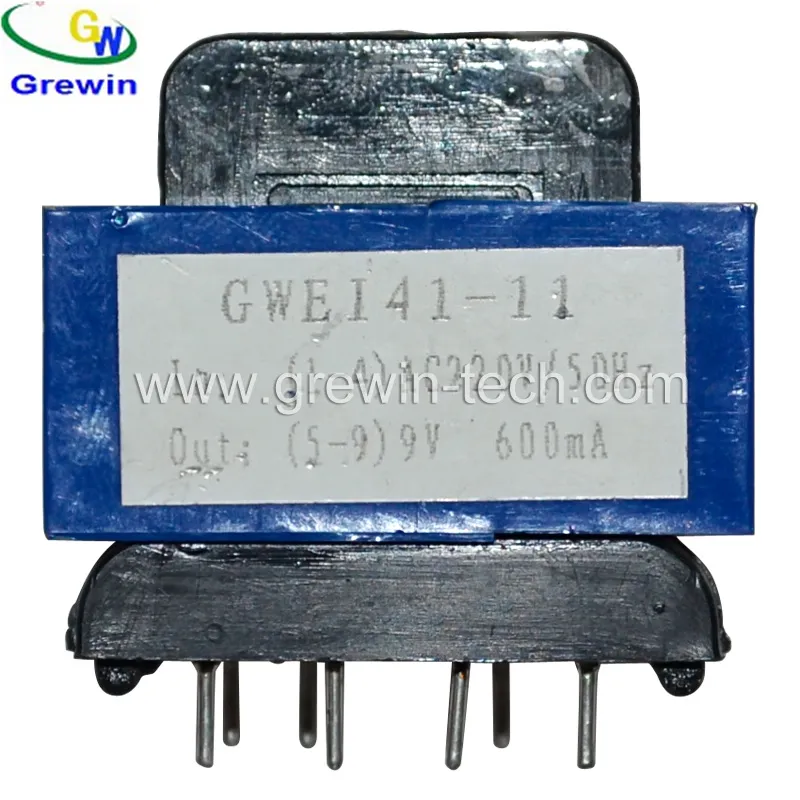

Ei41 Pin Type Low Frequency Transformer, PCB Mounting Transformer

Product Description

Name:
EI41 Pin type Low Frequency Transformer,PCB Mounting Transformer

1.Specifications

1. Easy to install.
2. Lower power consumption.
3. High accuracy of output voltage.
4. Dimension and output leads can be customized

2.Technical ParameterTable:

Brand Name:	GREWIN Transformer	Mode;	EI	Coil number:	Autotransformer
Phase:	Single	Core structure	Lamination	Coil structure:	Toroidal
Power:	0.15-1,500W		Input Voltage	AC380V-240V-230V-220V-120V-110V-100V
Application	Instruments ;Communication products		Output Voltage	AC(0--380V); DC(0--50V)
Deliver time	15 working days		Package	Customized standard cartons
ATTENTION:	YOU CAN CUSTOMIZED ALL SERIERS ACCORDING TO YOUR REQUERMENT

Model	Power	Dimension(cm)					Weight (KG)	Voltage regulation	Approval mark
Model	Power	A(cm) ±1.5	B(cm) ±2	C(cm) ±2	D(cm) ±2	E(cm) ±2	Weight (KG)	Voltage regulation	Approval mark
GWT-EI28	1.5W	43		30	38	28	0.11	35	CE,TUV,
GWT-EI35	3.0W	47		37	38	33	0.15	22	CE,TUV,
GWT-EI41	11.0W	54		43	47	35	0.32	16.5	CE,TUV,
GWT-EI48	25.0W	62		50	65	43	0.57	13.1	CE,TUV,
GWT-EI57	40.0W	73		59	65	51	0.84	11.8	CE,TUV,
GWT-EI66	80.0W	83		68	80	58	1.38	9.3	CE,TUV,
GWT-EI76	140W	64	70	76	85	68	2.25	7.6	CE,TUV,
GWT-EI86	180W	72	75	86	92	73	2.82	7.1	CE,TUV,
GWT-EI96	250W	80	81	96	90	82	3.36	6	CE,TUV,

Grewin's Iron Type Transformer/PCB EI transformers:

1.Product Feature :
1. Easy to install.
2. Lower power consumption.
3. Little temperature rising.
4. High accuracy of output voltage.
5. Diemension and output leads can be customized.
6. Dielectronic Strength is high.

2.Product Specification:
1. Models:
EI28, EI30, EI35, EI48, EI57, EI66, EI86, EI96, EI105, EI114, EI133, EI152, EI162 etc.

2. Maximum output: 1.2W, 2W, 12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 400W, 600W, 850W, 1500W, 2400W, 2700W etc.

3. Input:
100Vac, 110Vac, 115Vac, 120Vac, 220Vac, 230Vac, 240Vac etc.

4. Output:
AC(0--380V); DC(0--50V)

3.Application

1. Measuring instruments.
2. Communication prducts.
3. Medical instruments.
4. Audio & Video
5. Elevator

4.Advantage:
1.UL, CUL, CE, ISO9001:2008
2.We offer custom-made transformers, OEM and ODM are welcome
3.We deliver the quality you expect at consistently competitive prices
4.Transformer quality lifetime:10 Years.
5.Specialty Sales service:5 -10 Years
6.Transformers Test: 100% test before the shipment

About us:

1.. Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".

2.product procedure:

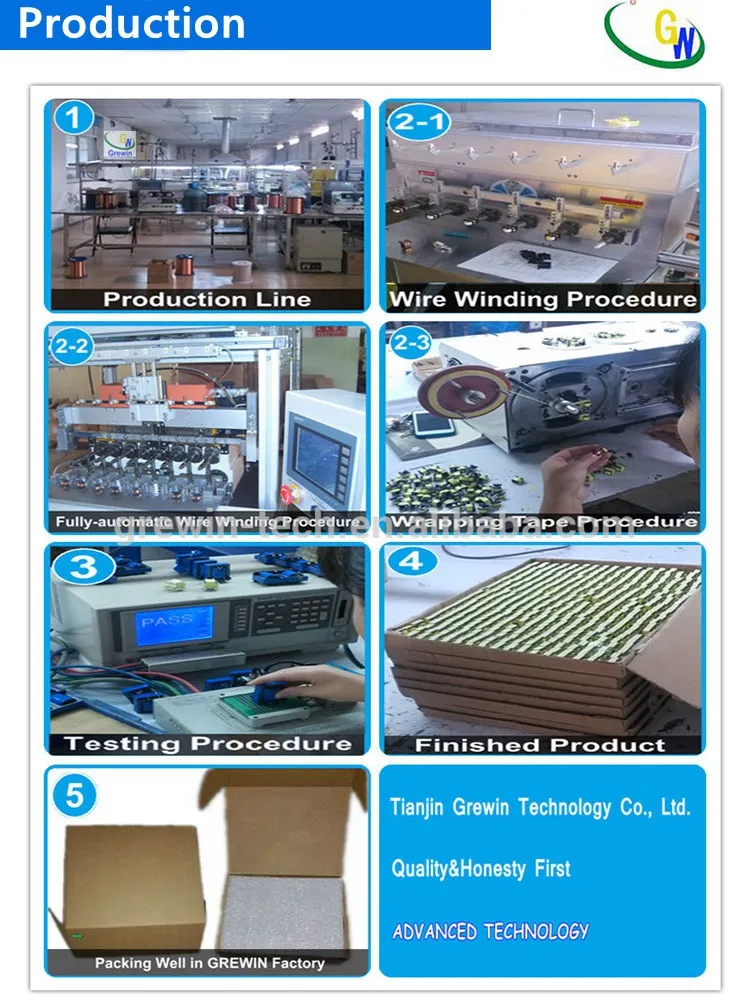

The following picture showed you about all finished transformer production line and package with export standard carton and strong pallets:
Ei41 Pin Type Low Frequency Transformer, PCB Mounting Transformer

Ei41 Pin Type Low Frequency Transformer, PCB Mounting Transformer

3.Terms of Shipment:
Within 10 working days after received related prepayment or L/C.

4.Payment terms:

(1). T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before

delivery.

(2). By irrevocable L/C at sight, to be issued immediately against confirmed order.

(3). Payment by T/T, if order amount is less than USD 20,000.

5.Flow chart of trading activities:

NO	Step	Days need
1	Request for quotation	1 day
2	Making quotations	1 day
3	Offer and counter offer	3 days
4	Sending and receiving samples	3-10 days
5	Sample confirmation	3 days
6	Placing a firm order	1 day
7	Paying and receiving the down payment	1-4 day
8	Factory production & Quality inspection	15-20 days
9	Paying and receiving the balance	4 days
10	Delivery of goods	1 days
