Product Description

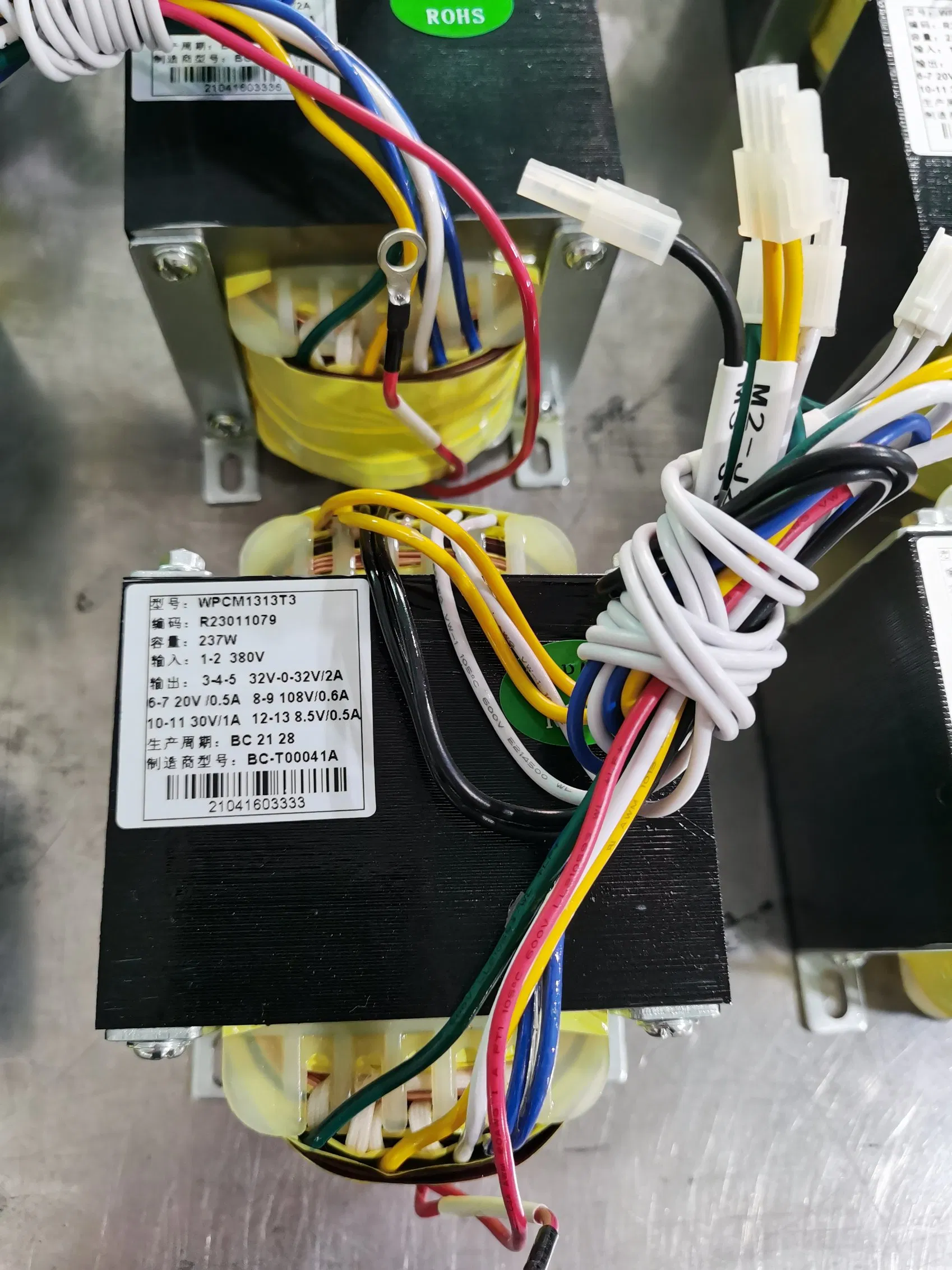

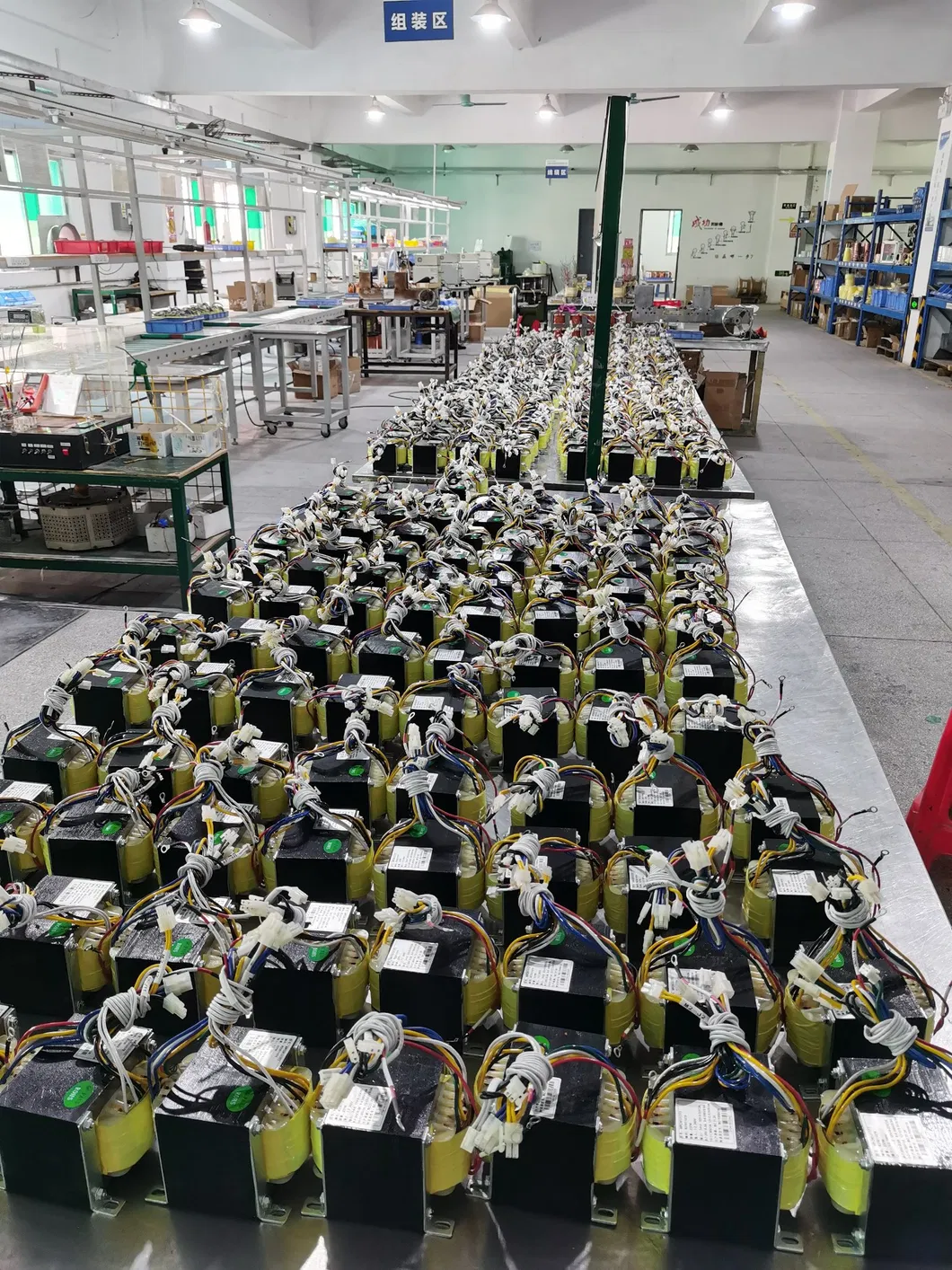

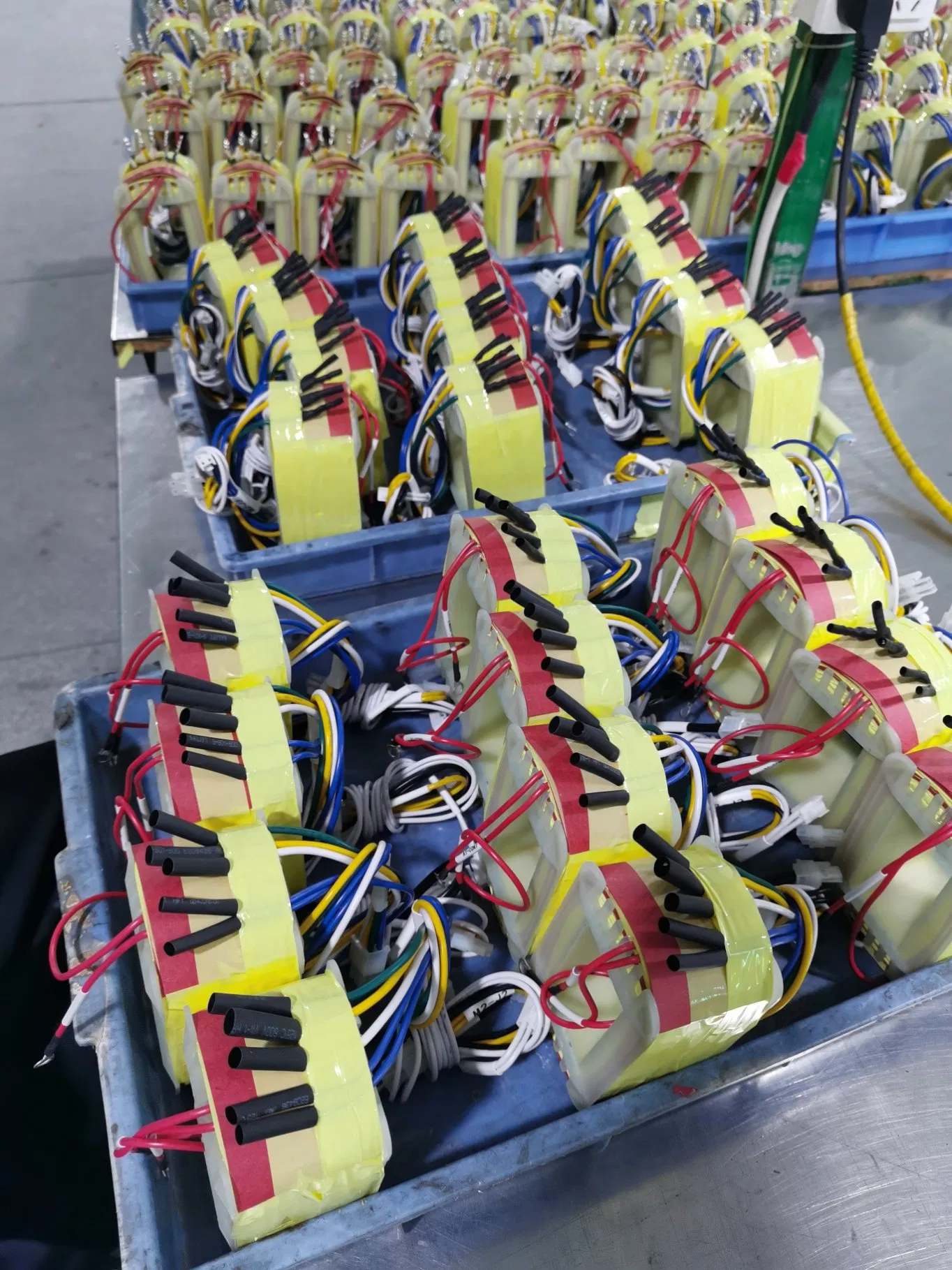

The industrial welder transformer is a buck boost transformer. When the power is connected, the low voltage and high current can be obtained. When the welding rod is in contact with the welding part, the power supply is short circuited and the arc is ignited. The heat source of the arc will fuse the gap and electrode of the workpiece in the high temperature of the arc.

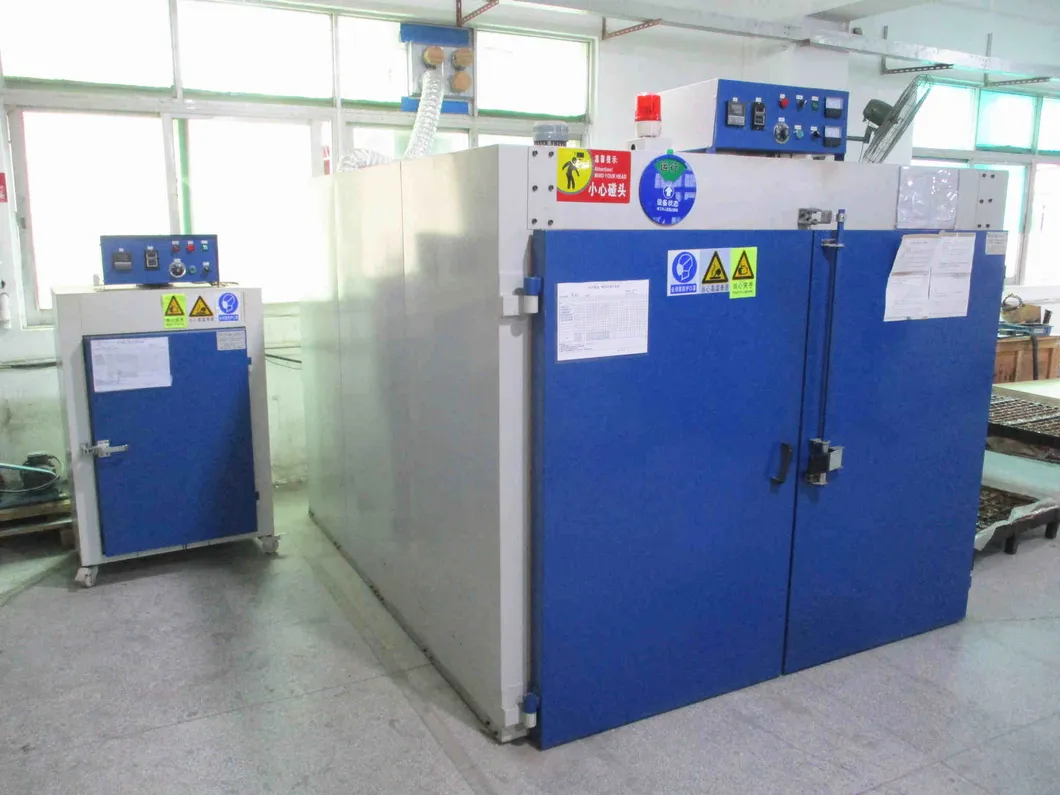

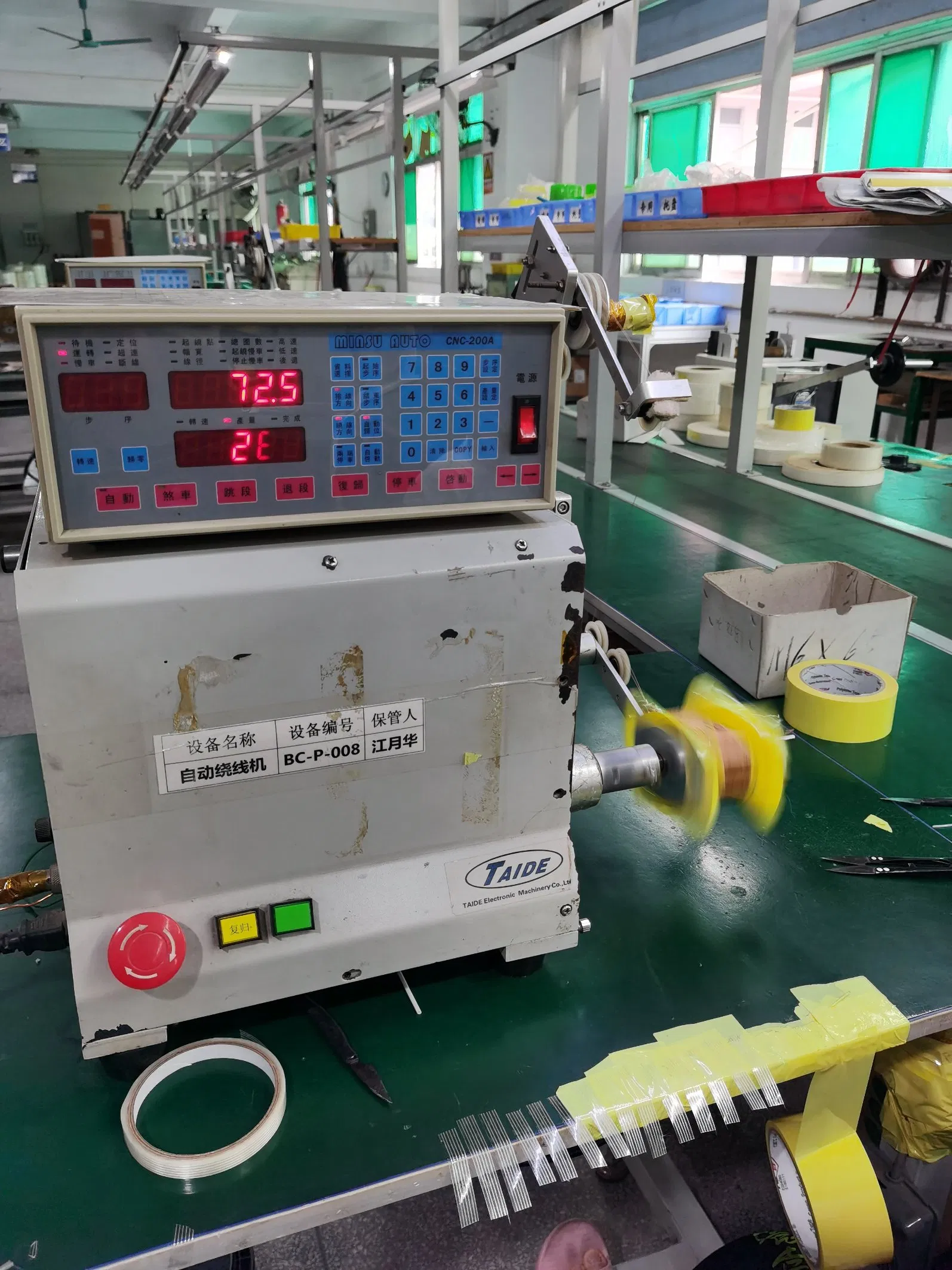

The transformer uses high quality and high conductivity materials and advanced vacuum impregnation equipment and professional production technology. The products have energy saving, low loss, low noise, impact resistance and short circuit resistance. Strong overload capacity, compact structure, small volume, reliable power supply and so on.

No.	Parameter	Measuring Terminal	Measured Value	Test Condition	Standard Test Instrument
1	Non-load output voltage	3-4-5	34V+/-5%-0-34V+/-5%	1-2 input 380Vac 50Hz	FLUKE 45
		6-7	21.4V+/-5%
		8-9	114.8V+/-5%
		10-11	32.1+/-5%
		12-13	9.0+/-5%
2	Rated load voltage	3-4-5	32V+/-5%-0-32V+/-5%	Load current 2A	FLUKE 45
		6-7	20V+/-5%	Load current 0.5A
		8-9	108V+/-5%	Load current 0.6A
		10-11	30V+/-5%	Load current 1A
		12-13	8.5V+/-5%	Load current 0.5A
2	Rated apparent power	263VA
3	No-load current	1-2	120mA Max	1-2 input 380Vac	DCM000AD
4	Insulation resistance	coil-core	>100MΩ	500VDC	MODEL3165
5	Dielectric strength	primary-secondary/core	4KV/AC	10mA 1min	CJ2671 dielectric strength tester
		secondary-core	2KV/AC
		secondary-secondary	2KV/AC
6	Temperature rise	Rated full load hottest sport temperature rise less than 85K(ambient temperature 25ºC)
7	Noise	75dB
8	Insulation grade	Class B
