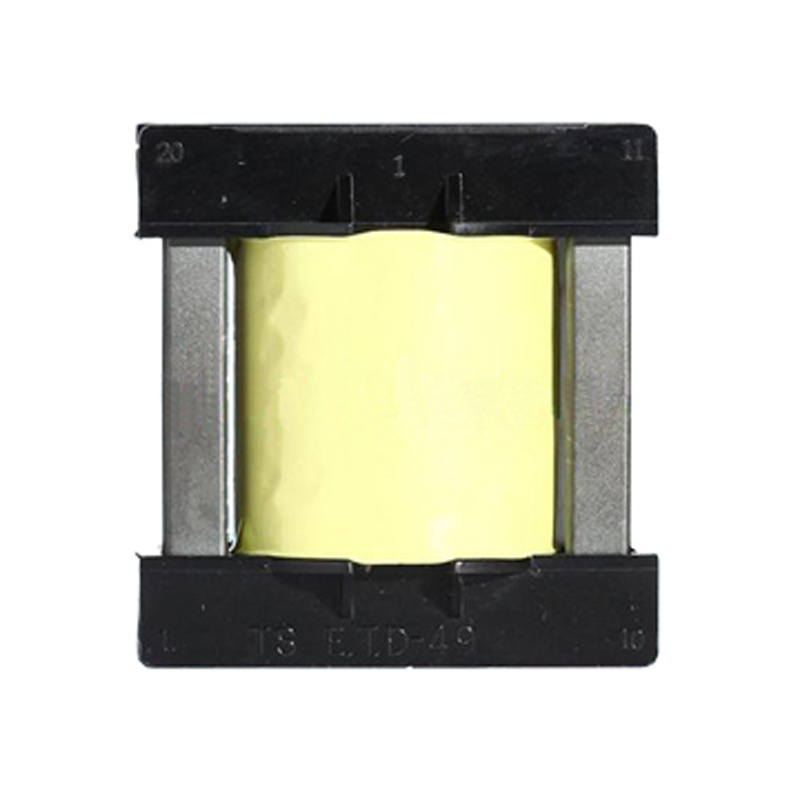

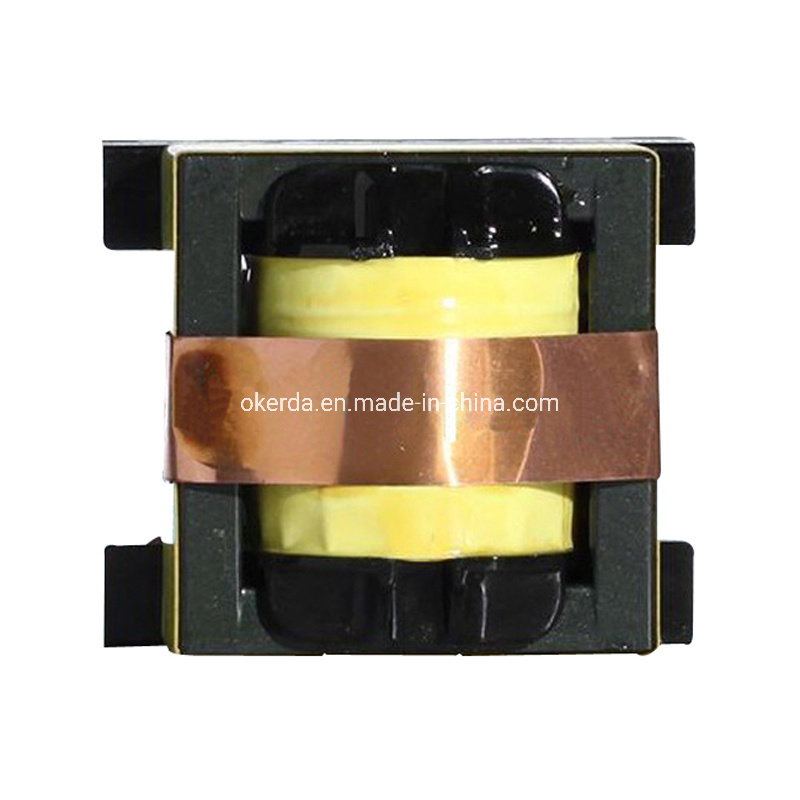

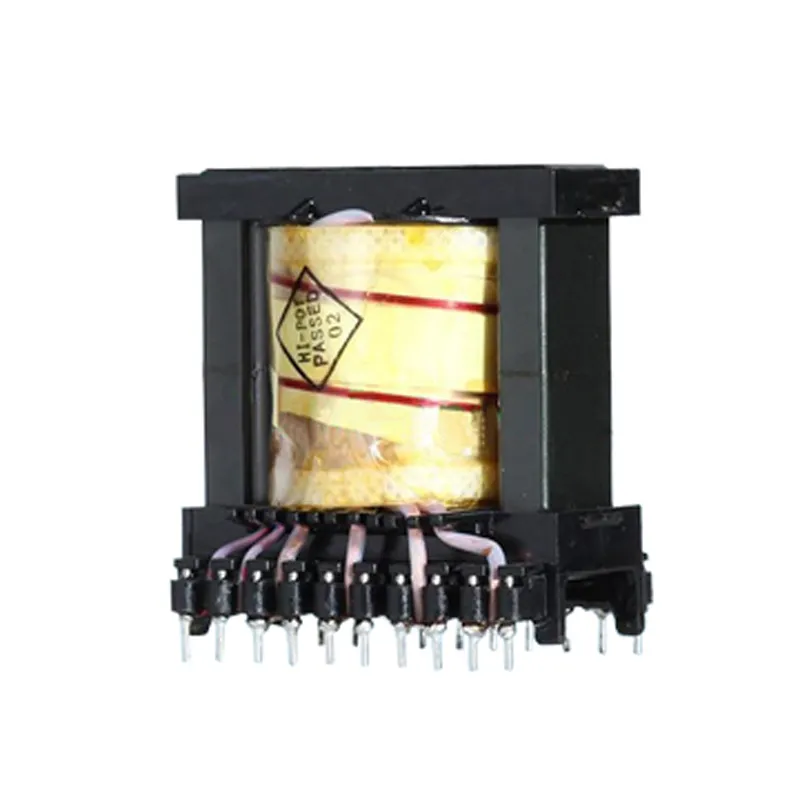

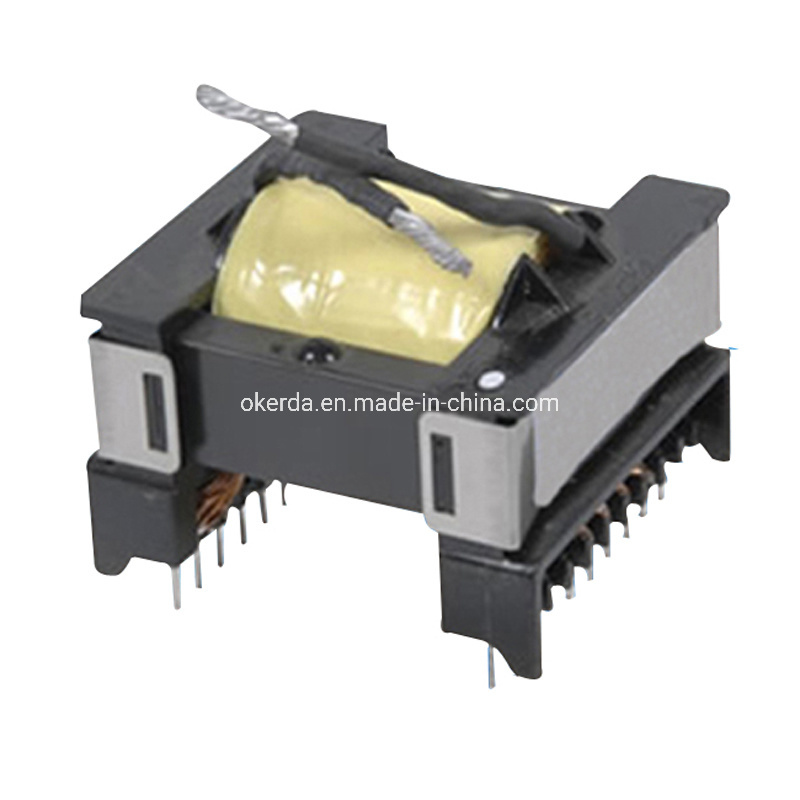

Etd Series Etd49 High Frequency Pulse Transformer for Welding Machine
ETD49 series high frequency Pulse Transformer for welding machineSpecifications:1. High efficiency of over 95% 2. High frequency range 10kHz-1MHz 3. High isolation strength 4. Lower profile and weight 5. High power density6. High-temperature resistant7. Operating temperature -40°C to +125&am......
Send Inquiry
Product Description
Specifications:
1. High efficiency of over 95%
2. High frequency range 10kHz-1MHz
3. High isolation strength
4. Lower profile and weight
5. High power density
6. High-temperature resistant
7. Operating temperature -40°C to +125°C
8. Power range 5w-50w
9. Custom designs available
Applications
1. VCRS, Copy machine, Audio equipment, Game machines.
2. TV sets, Microcomputer equipment, printers, Terminals
3. Communications control equipment
4. Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system
Features:
1. Low magnetic leakage, low loss
2. Small distributed capacity
3. Fine tuning inductance

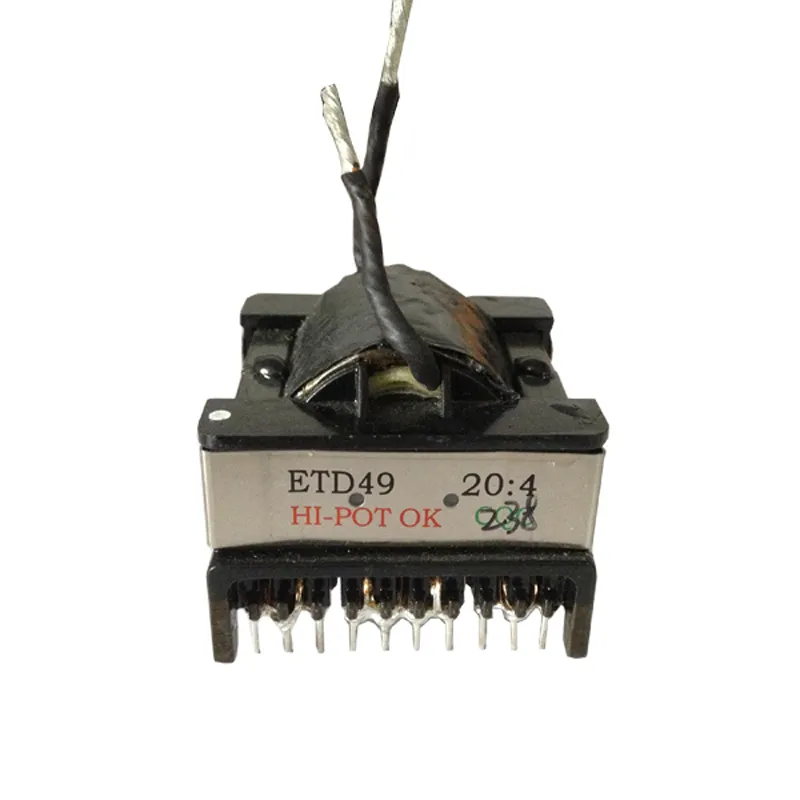

Different turn ratio is available
| ETD49 9:9 | ETD49 22:6 | ETD49 19:5 |
| ETD49 9:5 | ETD49 22:4 | ETD49 18:4 |
| ETD49 9:4 | ETD49 22:3 | ETD49 15:4 |
| ETD49 9:3 | ETD49 21:4 | ETD49 14:10 |
| ETD49 8:5 | ETD49 21:3 | ETD49 11:4 |
| ETD49 8:4 | ETD49 20:4 | ETD49 11:3 |
| ETD49 8:3 | ETD49 20:4 | ETD49 10:5 |
| ETD49 40:4 | ETD49 20:3 | ETD49 10:4 |
Our Advantages:
1. 20 years experience in transformer and inductor manufacturing;
2. Scientific management system, strong technical team, and strict quality control system;
3. RoHS,CE,TUV and UL certified;
4. OEM & ODM;
5. Competitive price,in time delivery and perfect after-service online.
