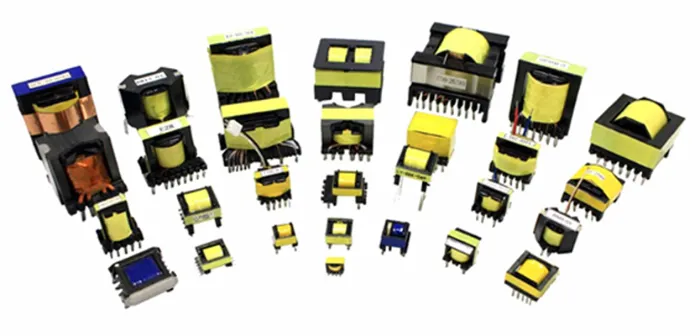

Factory Directly High Frequency Eel19 Eel22 Electronic Components Transformer for SMPS
High frequency EEL19 eel22 electronic components transformer for SMPSKey Specifications/Special Features for inverter transformer:High insulation design safelyMini size and easily built in your structureApplication: inverter transformer used to light up cold cathodes fluorescent lampNotebook LCD pan......
Send Inquiry
Product Description
High frequency EEL19 eel22 electronic components transformer for SMPS
Key Specifications/Special Features for inverter transformer:
- High insulation design safely
- Mini size and easily built in your structure
- Application: inverter transformer used to light up cold cathodes fluorescent lamp
- Notebook LCD panel(UI-8.5 - UI-12, UI-9, UI-10, and UI-12) PDA
- LCD monitor (UI-15, EFD-20, and EPC-19)
- Scanner (EE-19)
- DSC (UI-9.9)
- Specifications:
- Operation temperature range: -10 to 105 degree Celsius
- Frequency range: 35 to 105KHz
- Storage temperature range: -30 to 85 degree Celsius
- Efficiency range: 80 to 90%
SMD High Frequency Power Transformer Features:
1. Low profile.
2. Low D.C. resistance and large permissible D.C. current.
3. Little co-planarity due to special design of construction.
4. Wire burst resistant due to special construction.
5. This can be surface mount assembly and reflow soldering is also possible.
6. Available for mounting machine due to supply in a form of embossed tape carrying.
Characteristic:
1. Supply high voltage and withstand voltage;
2. Operation frequency range from 40 to 80 KHz;
3. Deliver Output Power from 1.5 to 25 watts;
4. Slim or low profile Type easily built in your design;
5. Available in through-hole and SMT recess or gull wing type;
6. Operate in Royer , direct IC drive and other topologies.
Application:
1. Multi-output DC-DC converter transformer.
2. Camcordey.
3. LCD television set.
4. Small size communicating equipment.
5. Portable telephone.
6. Personal Digital Assistants.
7. Applicable to light up cold cathodes fluorescent lamp of display.
8. DSC, PDA, Scanner, Car Navigation, Notebook PC, LCD monitor and LCD TV, etc
1. Low profile.
2. Low D.C. resistance and large permissible D.C. current.
3. Little co-planarity due to special design of construction.
4. Wire burst resistant due to special construction.
5. This can be surface mount assembly and reflow soldering is also possible.
6. Available for mounting machine due to supply in a form of embossed tape carrying.
Characteristic:
1. Supply high voltage and withstand voltage;
2. Operation frequency range from 40 to 80 KHz;
3. Deliver Output Power from 1.5 to 25 watts;
4. Slim or low profile Type easily built in your design;
5. Available in through-hole and SMT recess or gull wing type;
6. Operate in Royer , direct IC drive and other topologies.
Application:
1. Multi-output DC-DC converter transformer.
2. Camcordey.
3. LCD television set.
4. Small size communicating equipment.
5. Portable telephone.
6. Personal Digital Assistants.
7. Applicable to light up cold cathodes fluorescent lamp of display.
8. DSC, PDA, Scanner, Car Navigation, Notebook PC, LCD monitor and LCD TV, etc

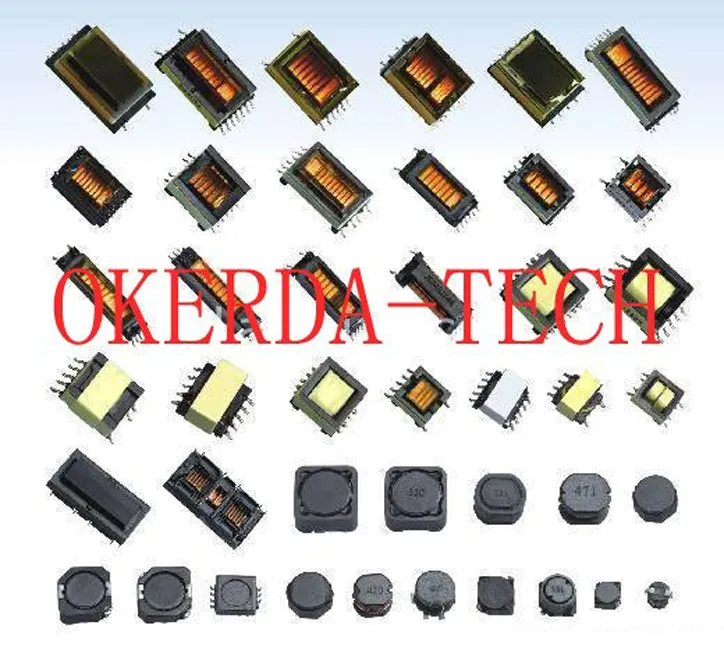

More high frequency specifications for your reference
Related products
Why choose us:| Series | Application |
| EE Transformer | Applied in the switching power supply, main power transformer |
| EE10, EE13, EE16, EE19, EE22, EE25, EE28, EE30, EE33, EE35, EE40, EE42, EE55, EE65 | |
| PQ Transformer | Applied in the linear filter, choke, pulse transformer, drive transformer |
| PQ2016, PQ2020, PQ2610, PQ2620, PQ2625, PQ3220, PQ3225, PQ3230, PQ3535, PQ4040, PQ5050 | |
| RM Transformer | Filters, inductors and transformers for telecommunication other electronic equipment |
| RM4, RM6, RM8, RM8, RM10, RM12, RM14 | |
| EI Transformer | Various kinds of transformers and chokes |
| EI28, EI13, EI16, EI22, EI25, EI30, EI35, EI33, EI40 | |
| EEL Transformer | Witching power supply, charges, alarm system |
| EEL13, EEL19, EEL22, EEL25 | |
| EF Transformer | Applied in the switching power supply, main power transformer |
| EF16, EF12.6, EF20, EF25, EF30 | |
| EFD Transformer | Auxiliary power transformer, main power transformer, choke coils |
| EFD15, EFD20, EFD25, EFD30, EFD40 | |
| UU Transformer | Varieties of switching power supply transformer, choke coils et |
| UU9.8, UU10.5, UU16, UU20 | |
| EC Transformer | Applied in the linear filter, current transformer, smoothing chock coil, drive transformer |
| EC28, EC35, EC39, EC40, EC42, EC49 | |
| ER Transformer | Applied in the linear filter, current transformer, smoothing chock coil, drive transformer |
| ER47, ER48, ER49 |
Related products
1. 20 years experience in transformer and inductor manufacturing;
2. Scientific management system, strong technical team, and strict quality control system;
3. RoHS,CE,TUV and UL certified;
4. OEM & ODM;
5. Competitive price,in time delivery and perfect after-service online.
