High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )
  • High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )
  • High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )
  • High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )
  • High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )

High Torque High Precision Planetary Gear Box(78ZDR9- 400T1 )

Helical Gear High Precision Planetary Gear Box For 1500W Servo motor Small Gearbox manufactureDetailed Photos Product DescriptionHigh precision planetary gearbox matched with serve motor, stepping motor are widely used. Lowest backlash<3"); High output torques; High efficiency(96%); Honed to......

Send Inquiry

Product Description

Helical Gear High Precision Planetary Gear Box For 1500W Servo motor Small Gearbox manufacture

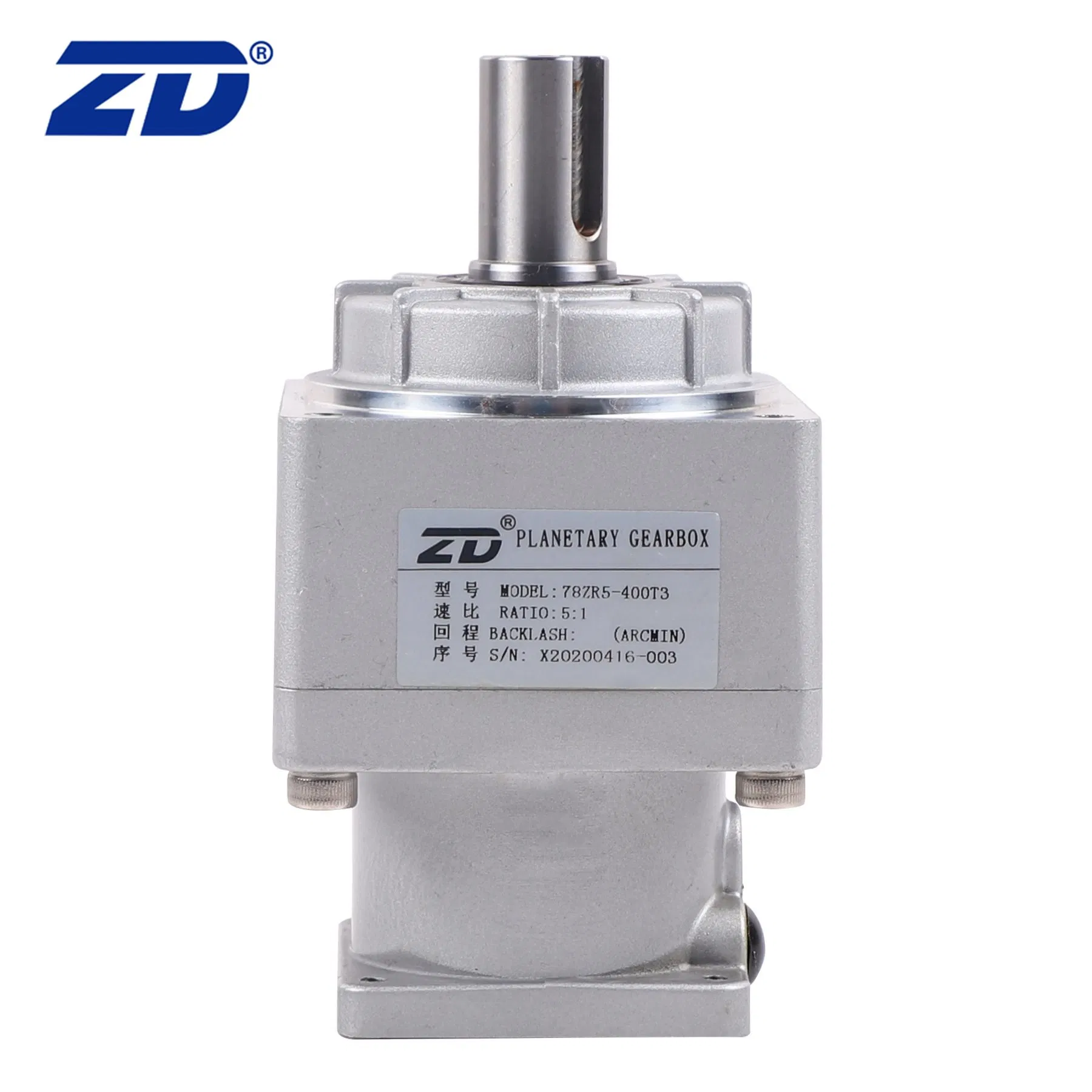

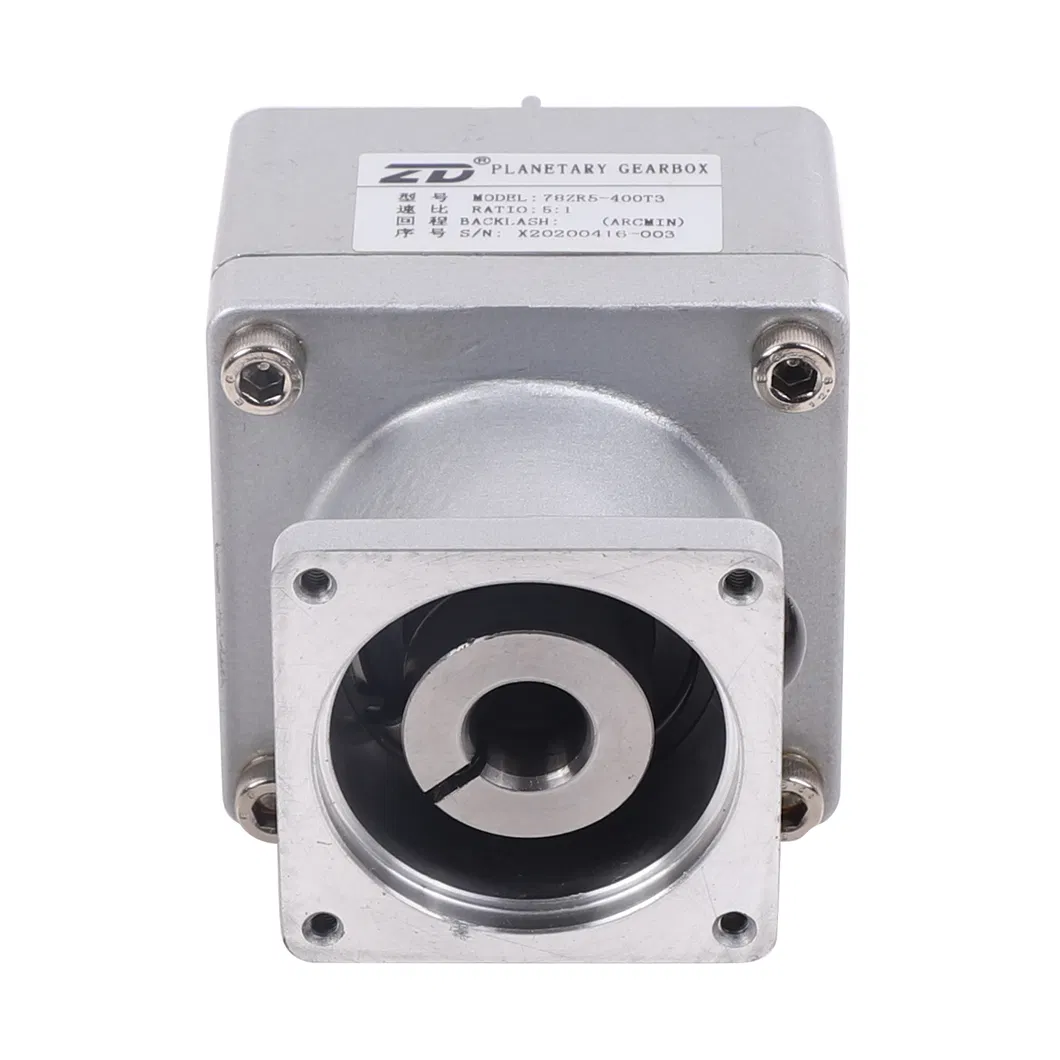

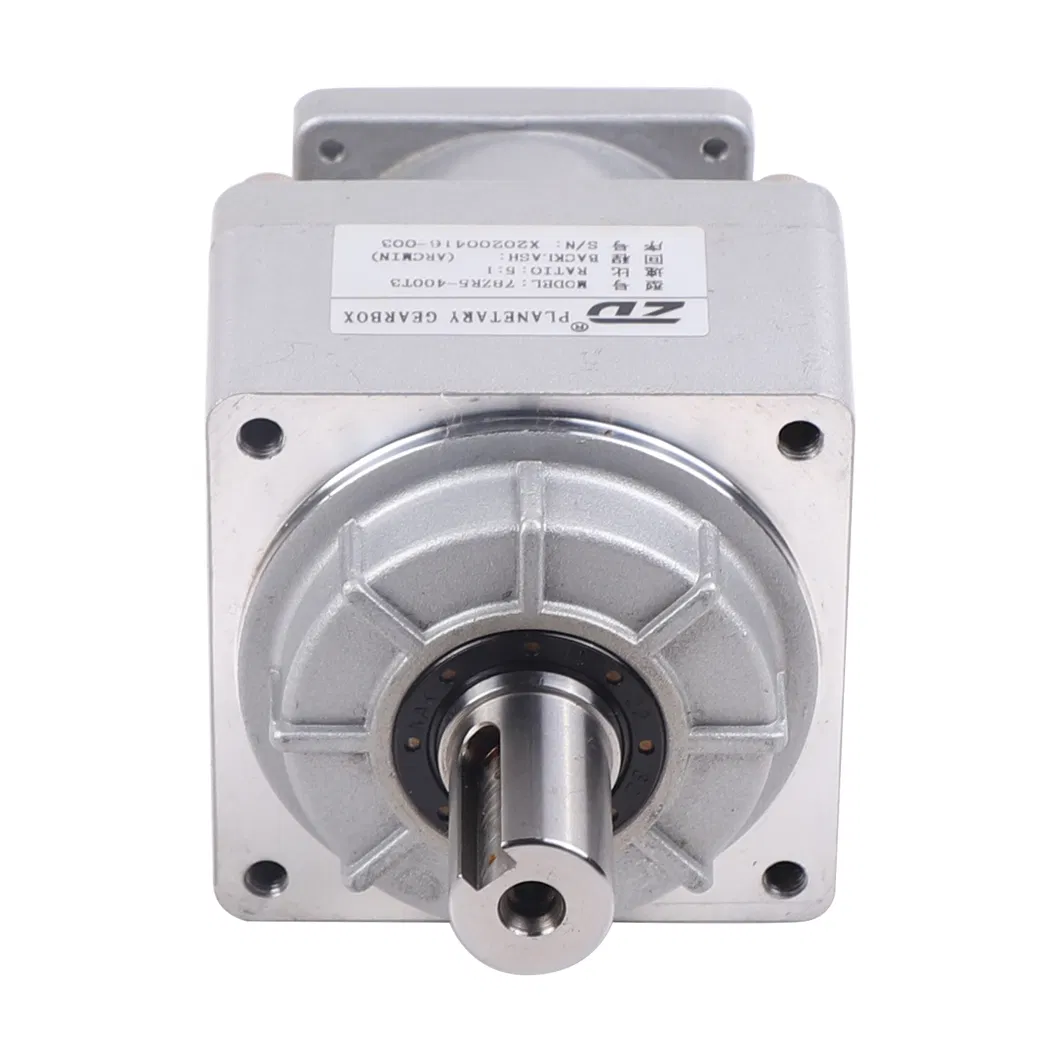

Detailed Photos



High Torque High Precision Planetary Gear Box(78ZDR9-400T1)High Torque High Precision Planetary Gear Box(78ZDR9-400T1)
Product Description

High precision planetary gearbox matched with serve motor, stepping motor are widely used. Lowest backlash<3"); High output torques; High efficiency(96%); Honed toothings; 22 ratios I=3, ...., 512; Low noise(<65dB(A)); Any mounting position; Easy motor mounting; Life time lubrication; Figure diameters 40, 60, 80, 120, 160mm. More options.


Planetary gearbox:
ZDE: Precision planetary-round flange output
ZDF: Precision planetary-square flange output
ZDWE: Precise planetary-right angle round flange output
ZDWF: Precise planetary-right angle square flange output
ZDS: Precise planetary-high rigidity, low back lash
ZDR: Helical Gear High Precision Planetary Gear Box
Product Parameters




Rated output torque

N. M

4.5-1800

Instant stop torque

N. M

Two times of rated output torque

Life

Hour

30, 000

Full load efficiency



90%, 94%, 96%

Operating temperature

° C

-25---+90

IP



IP54

Lubrication type



Lifetime lubrication

Mounting type



Any


Product type



PL40

PL60

PL80

PL120

PL1600

Torsional stiffness

N. M/arcmin

0.7

1.8

4.5

12

38

Noise

dB(A)

55

58

60

65

70

Max output speed

Min

10000

8000

6000

6000

6000

Recommend input speed

Min

4500

4000

4000

4000

3000

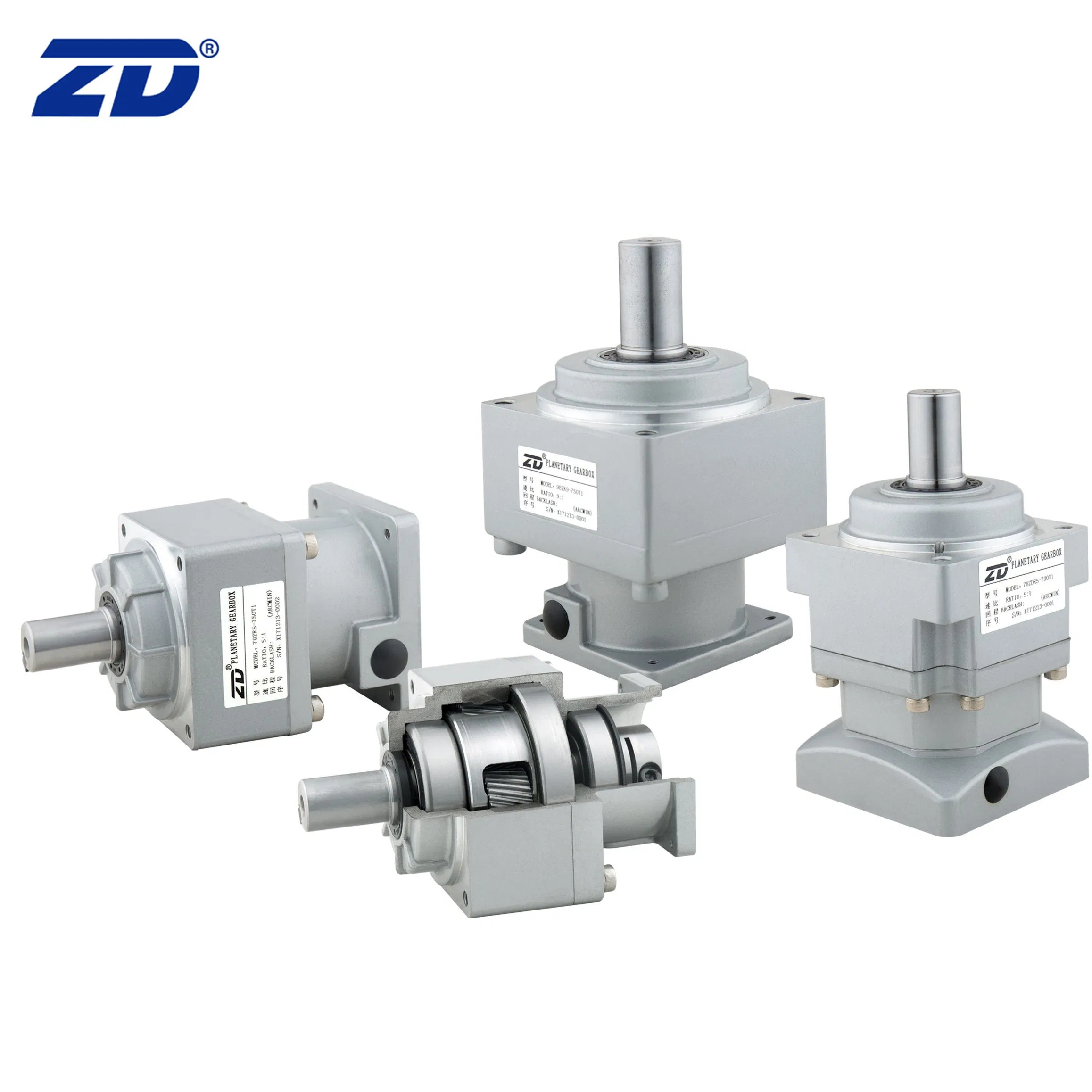

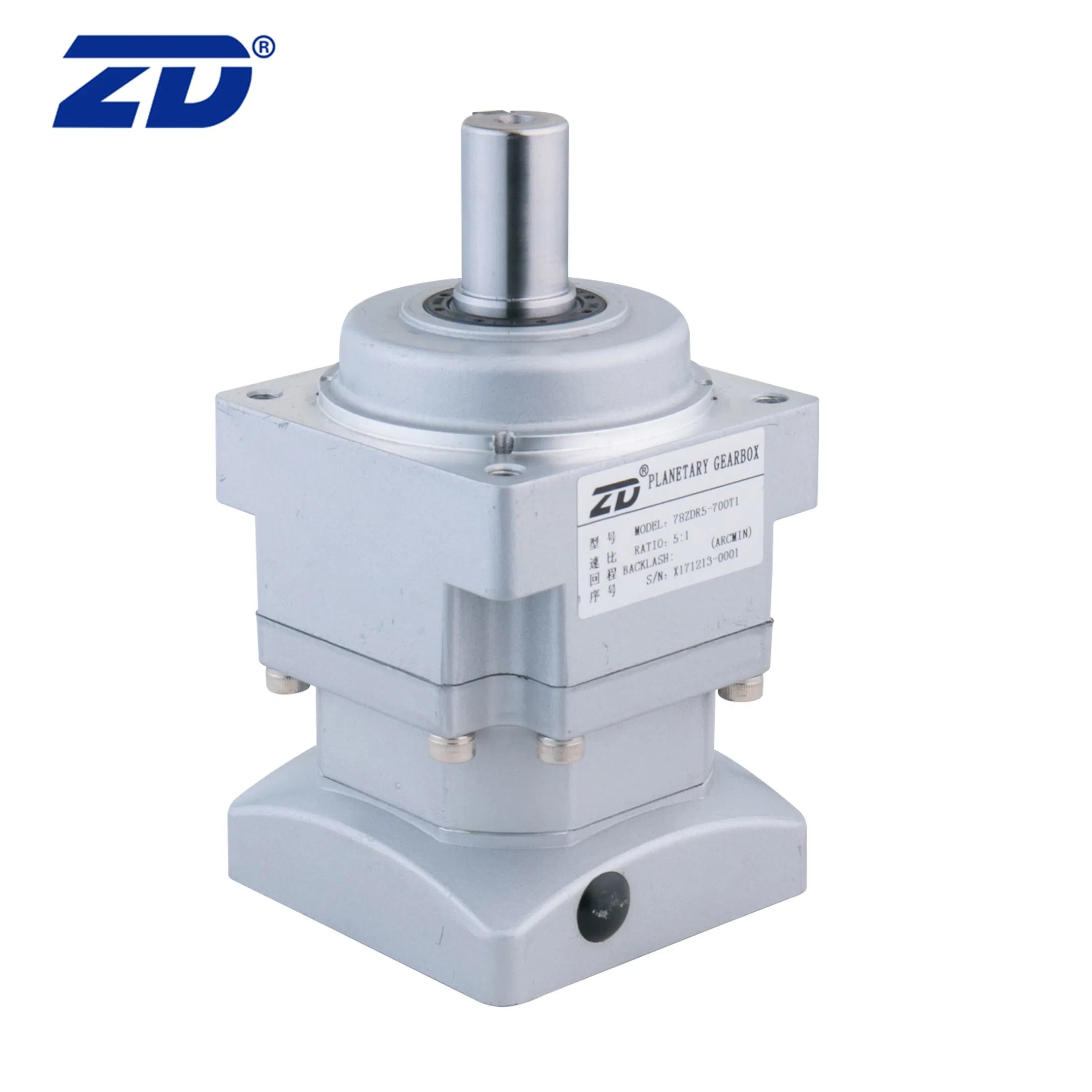

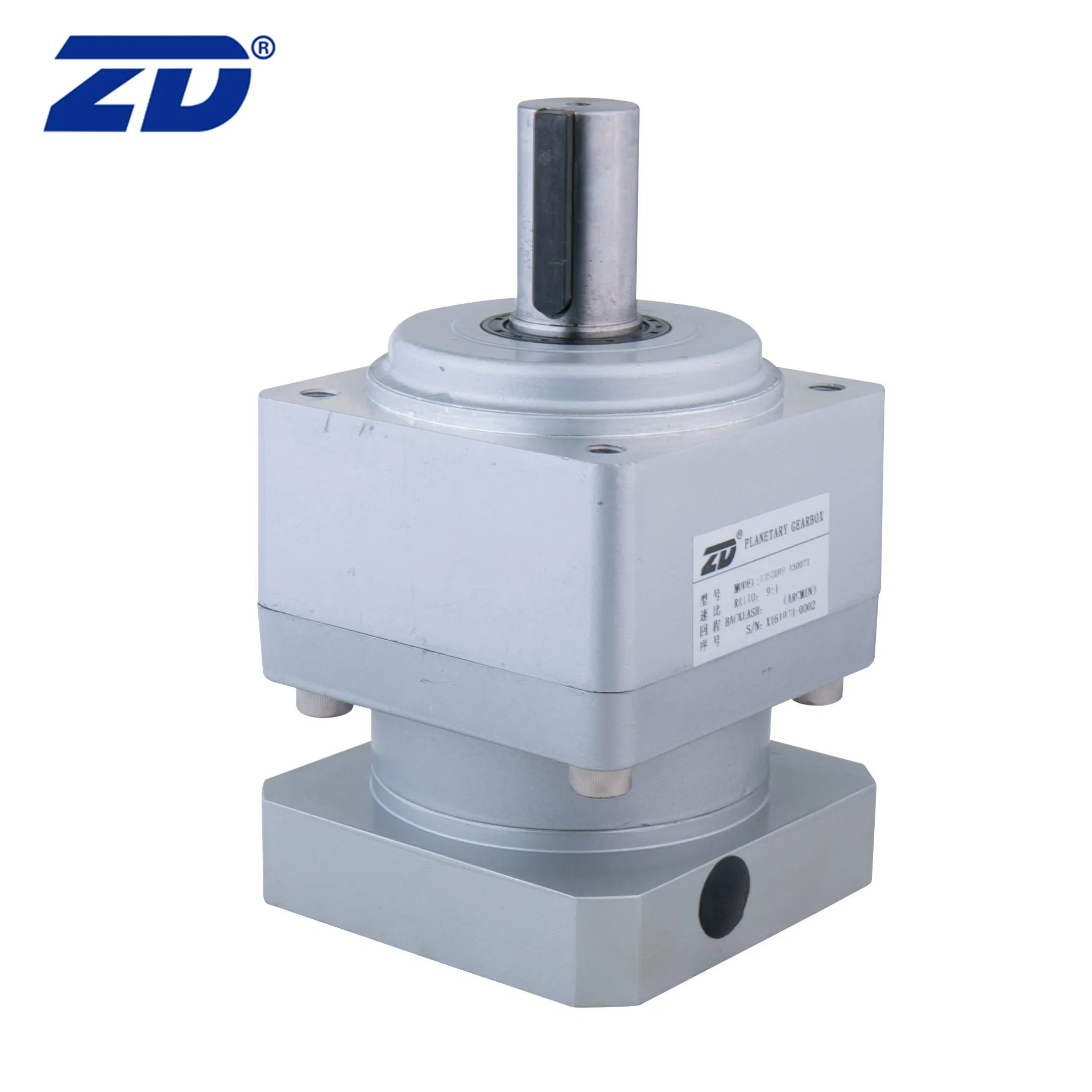

Other Related Products

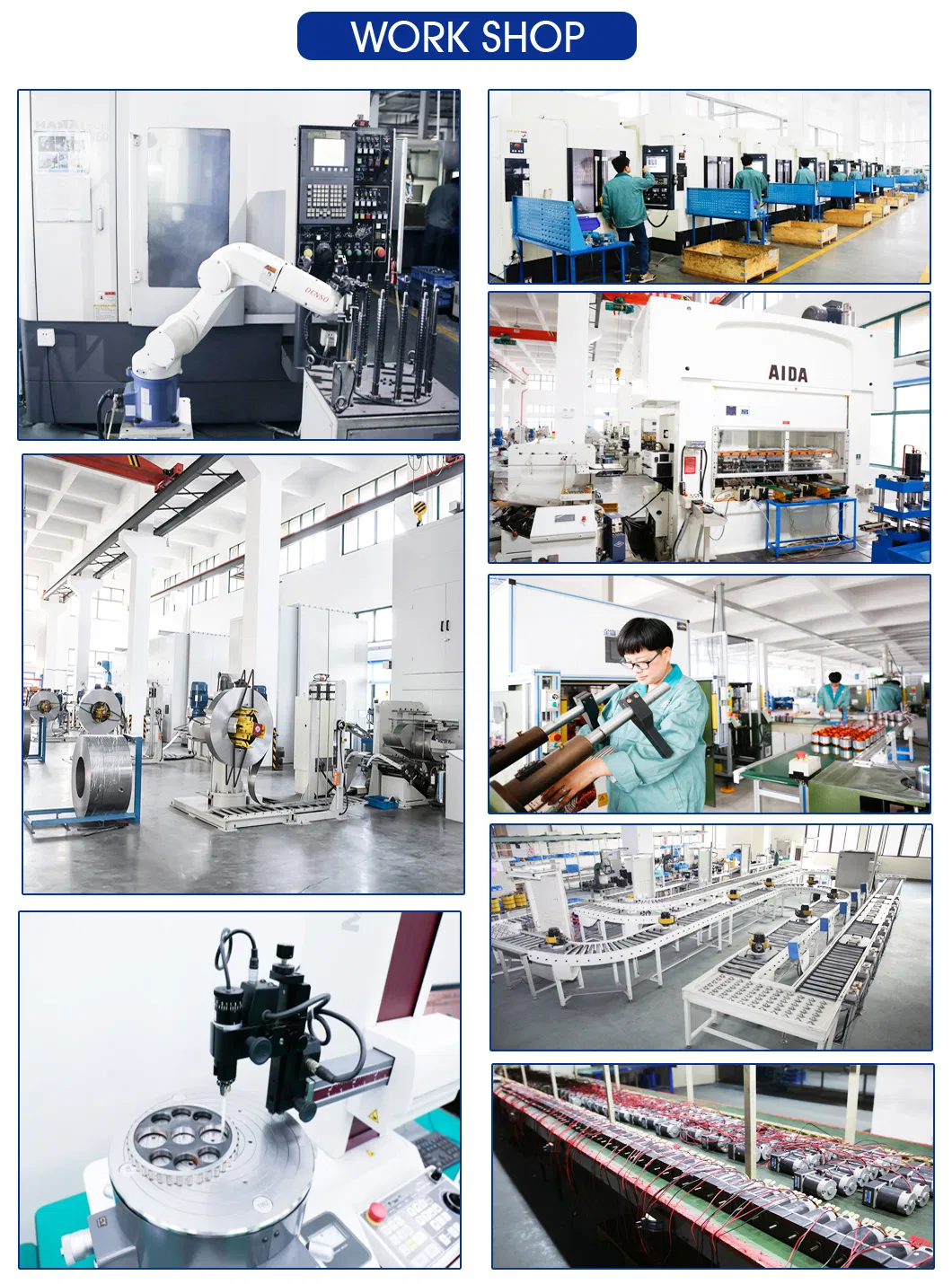

Company Profile



High Torque High Precision Planetary Gear Box(78ZDR9-400T1)
High Torque High Precision Planetary Gear Box(78ZDR9-400T1)
High Torque High Precision Planetary Gear Box(78ZDR9-400T1)
FAQ

Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.

Please contact us if you have detailed requests, thank you !
