High Voltage Output Gas Lighting Controller, Electric Spark Igniter Electronic 12VDC Manual Input 15kv Spark Output

Product Description

12VDC Universal gas burner boiler igniter, auto gas ignition unit controller black box

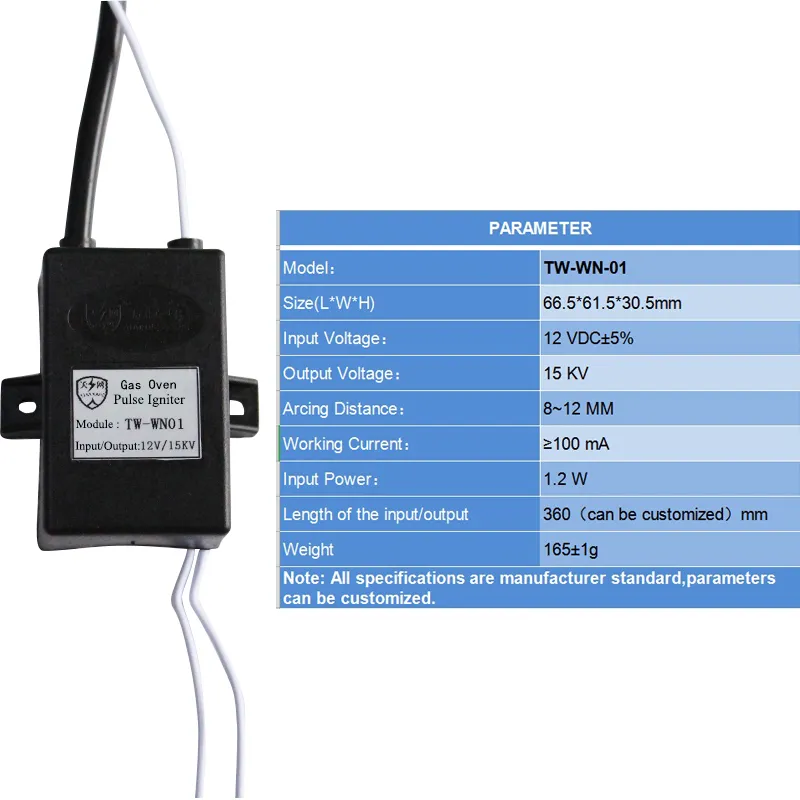

Model: TW-WN-01 electronic pulse igniter
Input voltage: 12 VDC
Working current: 100mA
Power input: 1.2W
Output voltage: 15KV
Size: 66.5*61.5*30.5mm
High Voltage Type: Pulsed DC
High voltage discharge distance: 8~12MM
Input line length:36(can be customized)cm
Weight: 165±1g
features: universal high voltage package, input without positive and negative poles.

Working mode: When the power is turned on, the electric spark is generated, and the electric power is not turned off, and the electric spark continues.
Packaging: epoxy resin vacuum packaging, moisture, shock, corrosion, temperature resistance.
Product Size:
Scope of application: Widely used in various oil and gas burners, fog machine, various wedding equipment.
This module is a high-tech inverter for scientific production, the finished module of transformer/booster

After inputting DC12V voltage at the input terminal, tens of volts DC voltage can be obtained at the output end.

Can be used as a high-pressure source in scientific experiments, electronic salutes, electronic instruments, anion generators, and scientific productions

The module is manufactured using the principle of Tesla coil and outputs high-voltage pulse current, small volume and high efficiency

The peripheral circuit is simple (only need to connect the switch, the battery can) the discharge intensity is fierce.

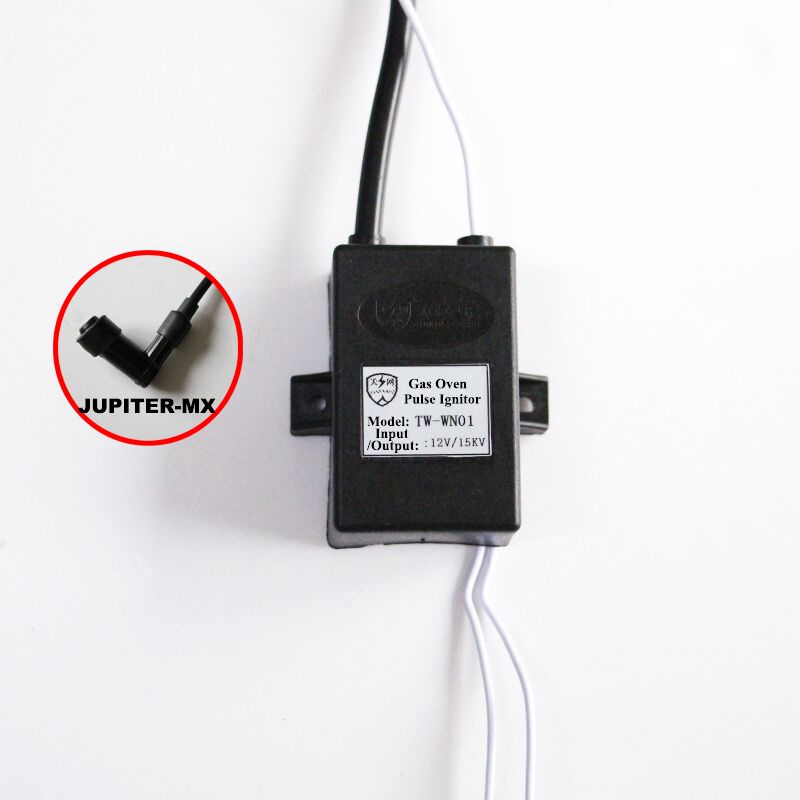

High Voltage Output Gas Lighting Controller, Electric Spark Igniter Electronic 12VDC Manual Input 15kv Spark Output

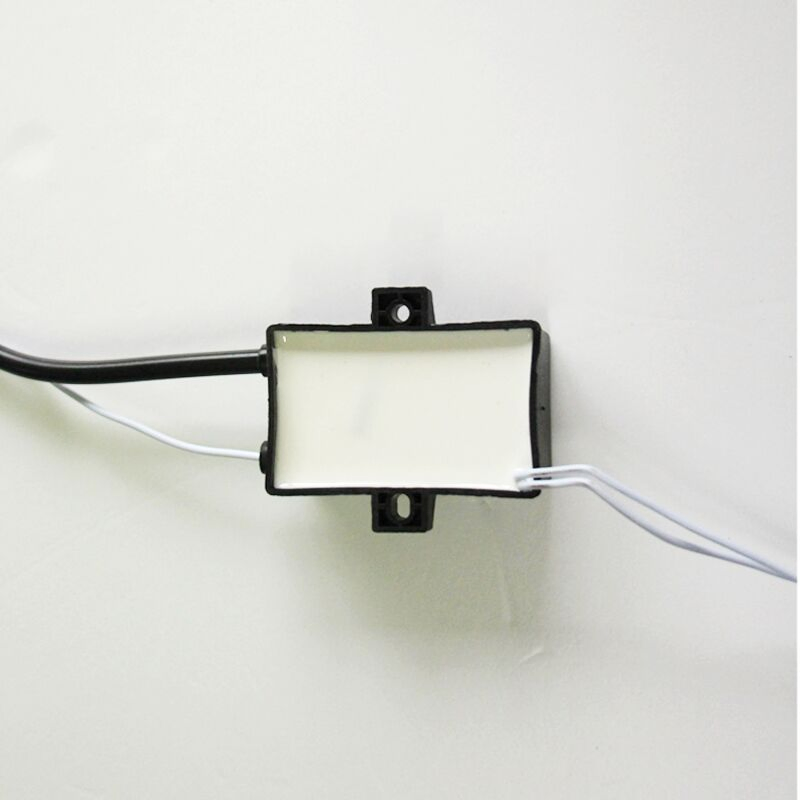

High Voltage Output Gas Lighting Controller, Electric Spark Igniter Electronic 12VDC Manual Input 15kv Spark Output

Company Information

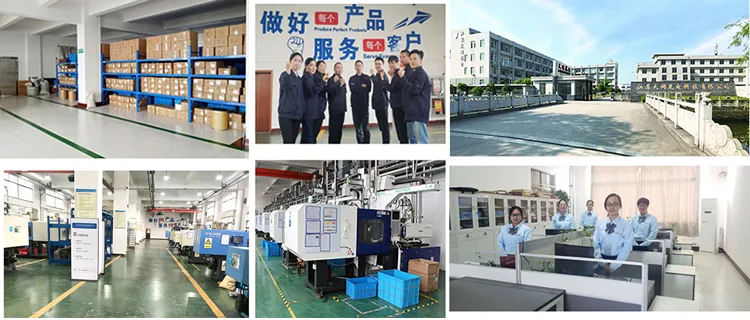

Jiangsu Tianwang Solar Technology Co., Ltd. was established in 1990. Located in NO.5, Huaxiang Road, Jingjiang City, Jiangsu province, China. The entire property covers more than 20000 square meters including 15000 square meters of production,total investment of more than fifty million yuan. mainly engaged in varity ignition coil,ignition transformer, high voltage generator and other high-voltage products' development, production and sales.Our company certifited ISO9001: 2008 quality management system. Most of the products through the lastest EU CE, CQC,RoHs certification, also get the SGS, BV, BSCI audit report, with more than 10 patents both in China and abroad.

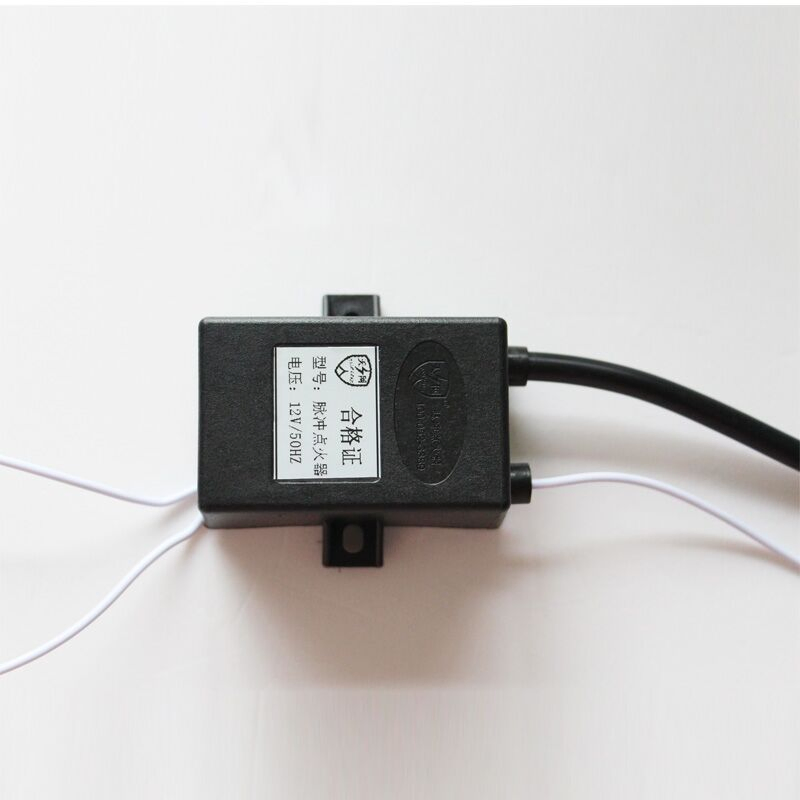

High Voltage Output Gas Lighting Controller, Electric Spark Igniter Electronic 12VDC Manual Input 15kv Spark Output

Packaging & Shipping
Generally, we pack our goods in neutral white boxes and brown cartons.
Notice:all parameters can be customized.
Delivery Detail:
ASAP after checking your payment

Our Services

1.24hours on line&Quick response
2.Short production lead time and delivery.
3.Quality inspecting
4.Design the products as your requirement.
5.Pay more attention of details and with good price.
