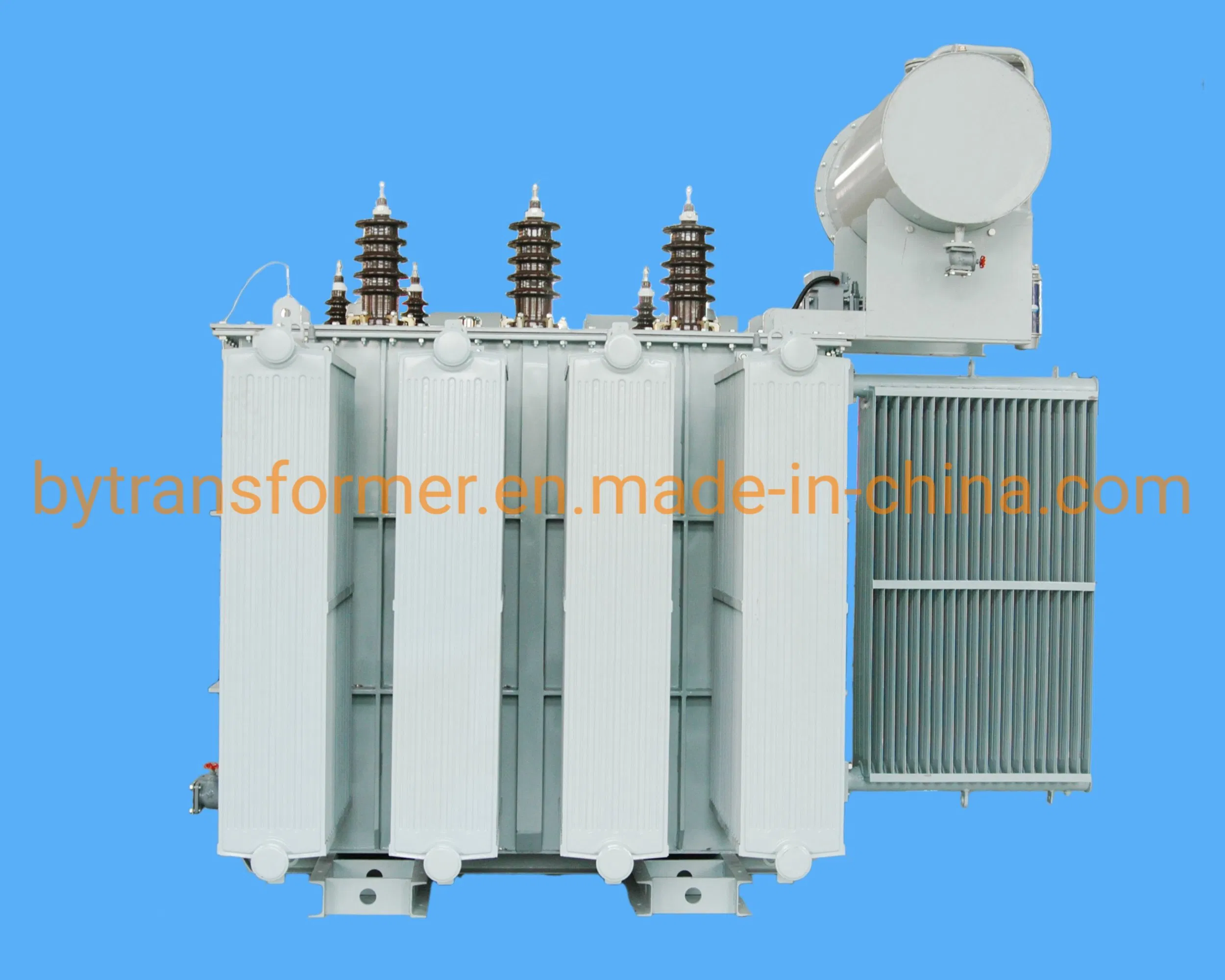

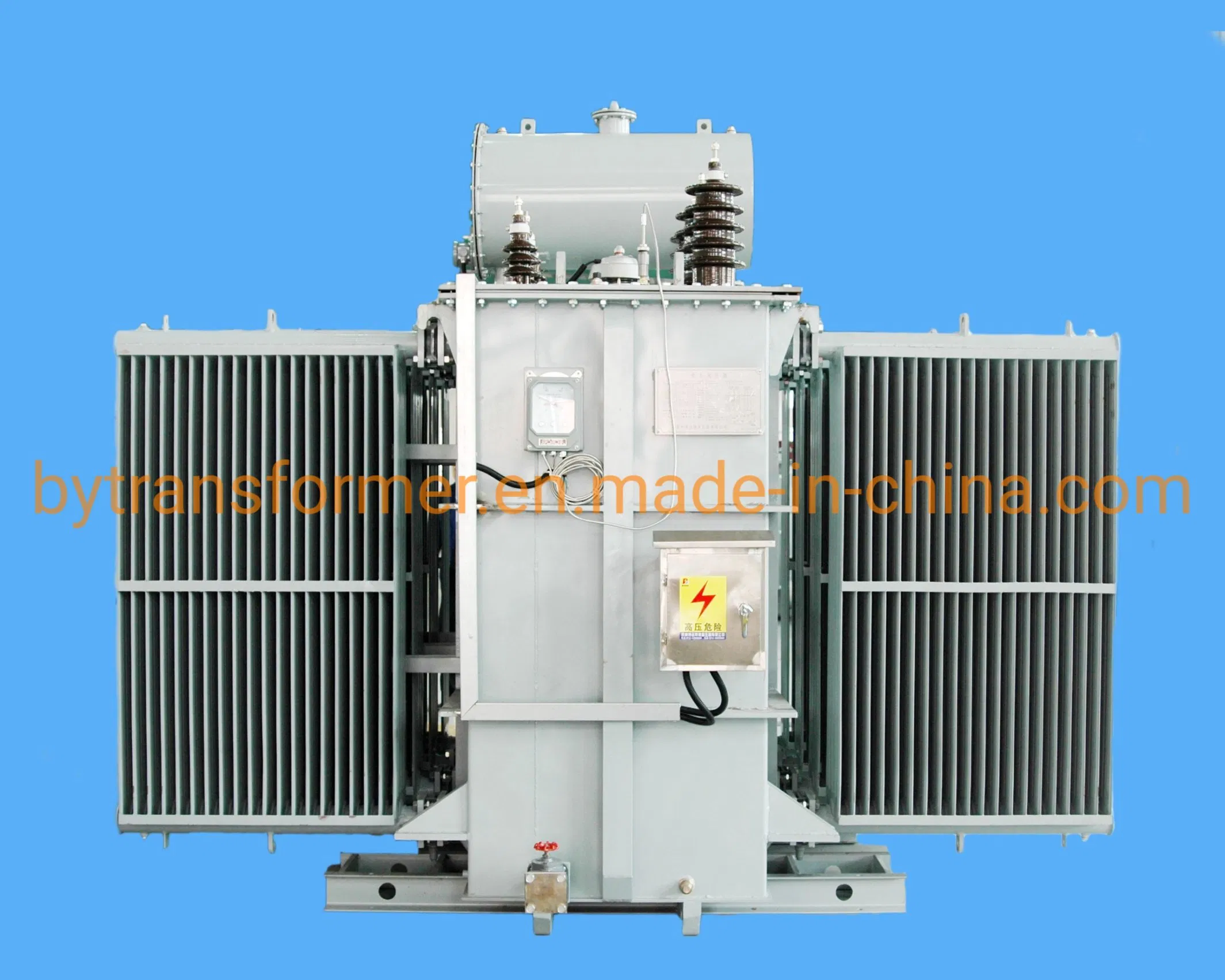

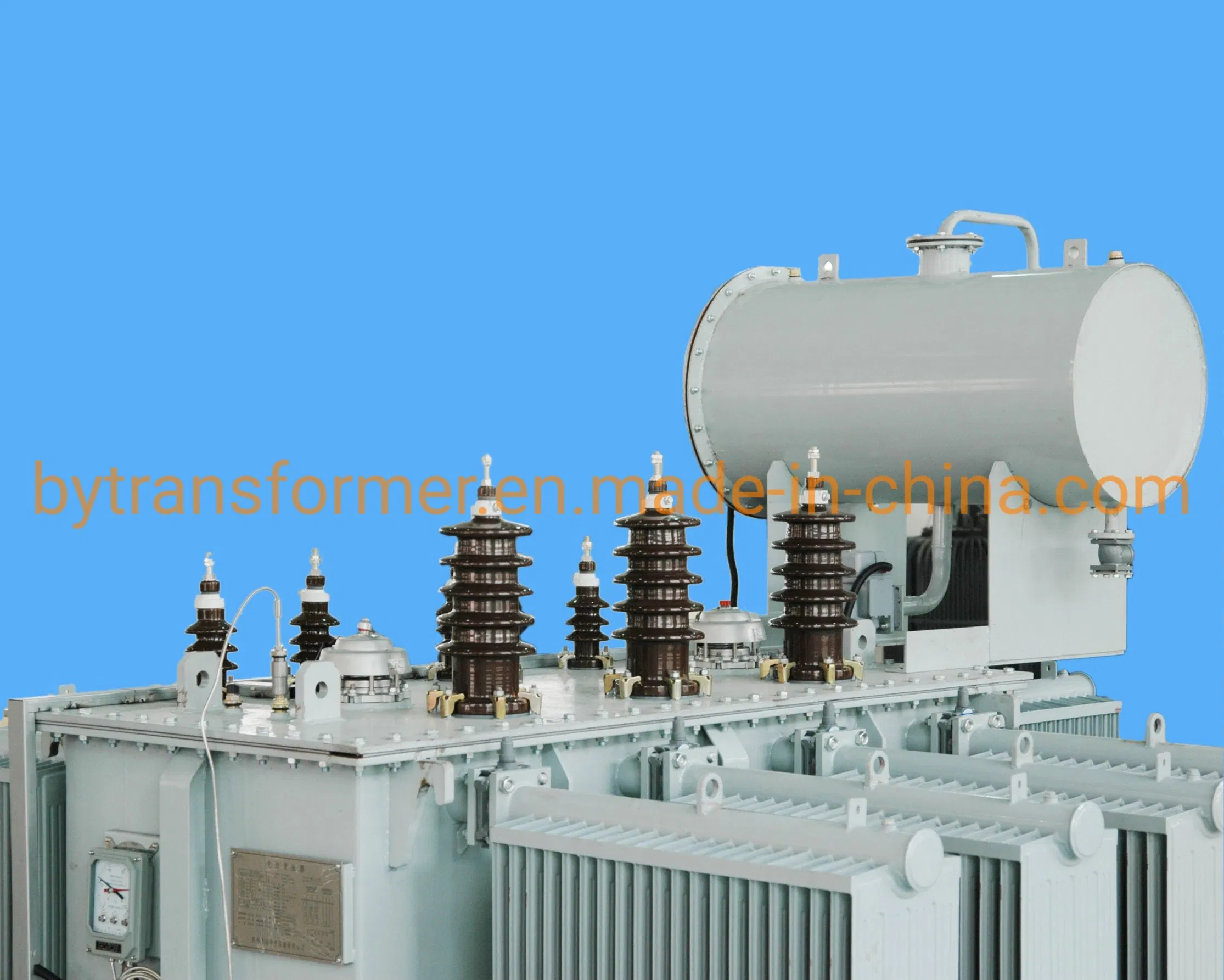

Oil-Immersed Distribution Transformer for Power Transmission ( S13 -10000/35)
The power transformer is used as a device for power transmission and voltage level conversion to supply power to lower-level electrical equipment. Its performance parameters are formulated according to national standards. The main categories are divided into non-excitation voltage regulation series,......
Send Inquiry
Product Description
The power transformer is used as a device for power transmission and voltage level conversion to supply power to lower-level electrical equipment. Its performance parameters are formulated according to national standards. The main categories are divided into non-excitation voltage regulation series, on-load voltage regulation series, and oil-immersed power transformers; mainly used in substation, industrial and mining enterprises, and power transmission and transformation systems.
Technical Parameters:
FAQ
6.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Suzhou City, Jiangsu Province.
6.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
A: All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
A: T/T, L/C is very well used.
6.6.Q: What about the production?
A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
A: Yes, no problem.
6.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
We are professional transformer manufacturer with 15 years' experience, we mainly supply power transformer for electrical power system, rectifier transformer for electrochemistry industry and furnace transformer for industrial electric furnace smelting.
We already exported our transformers to Europe, Middle East, Africa, Australia, North America and South America. We have ISO, CE, SGS certificates.

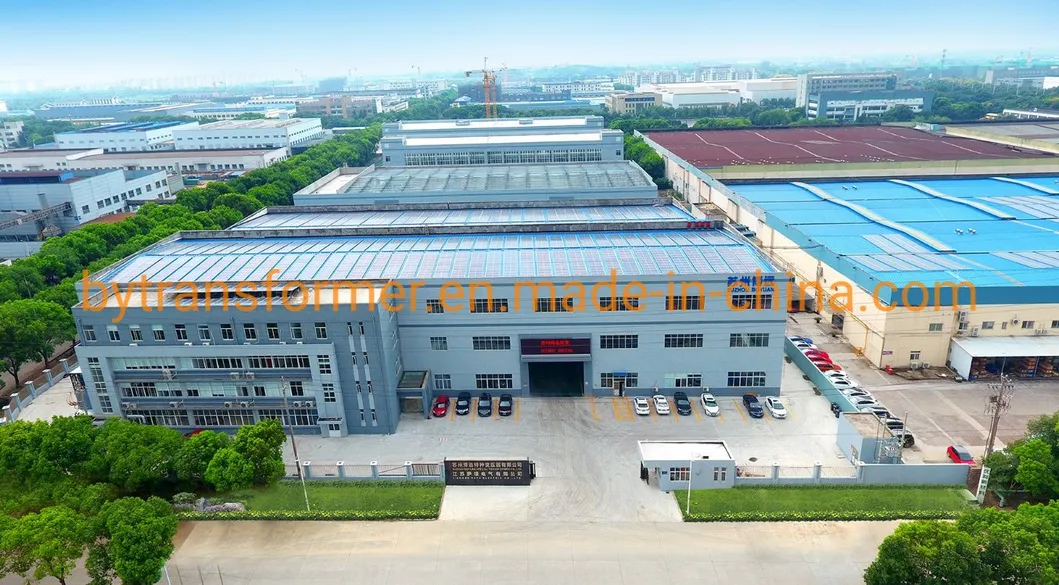

Company Panorama

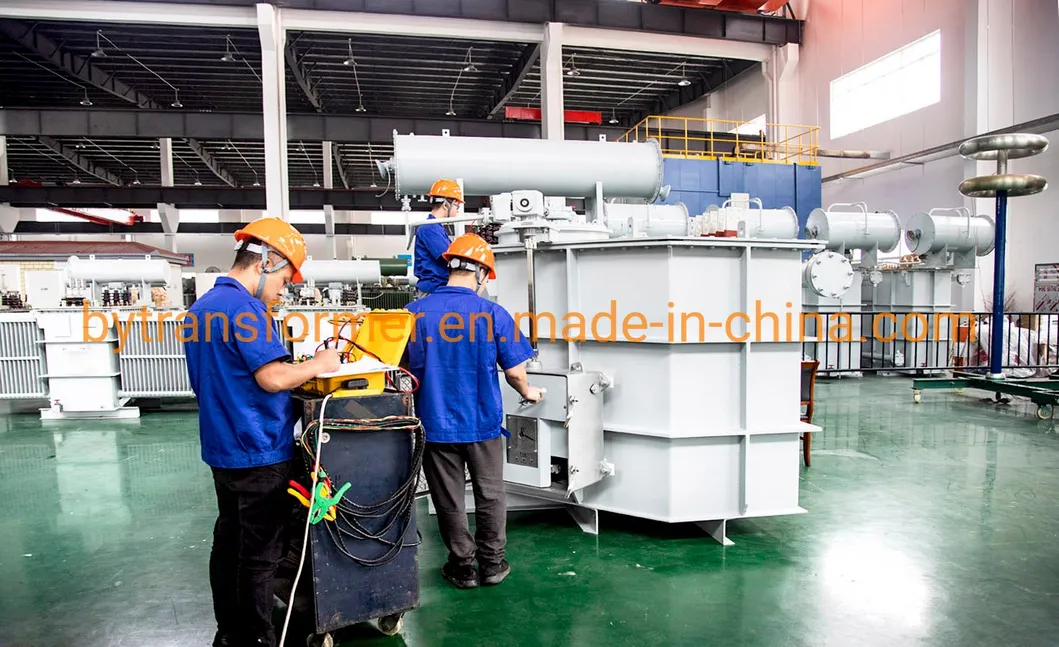

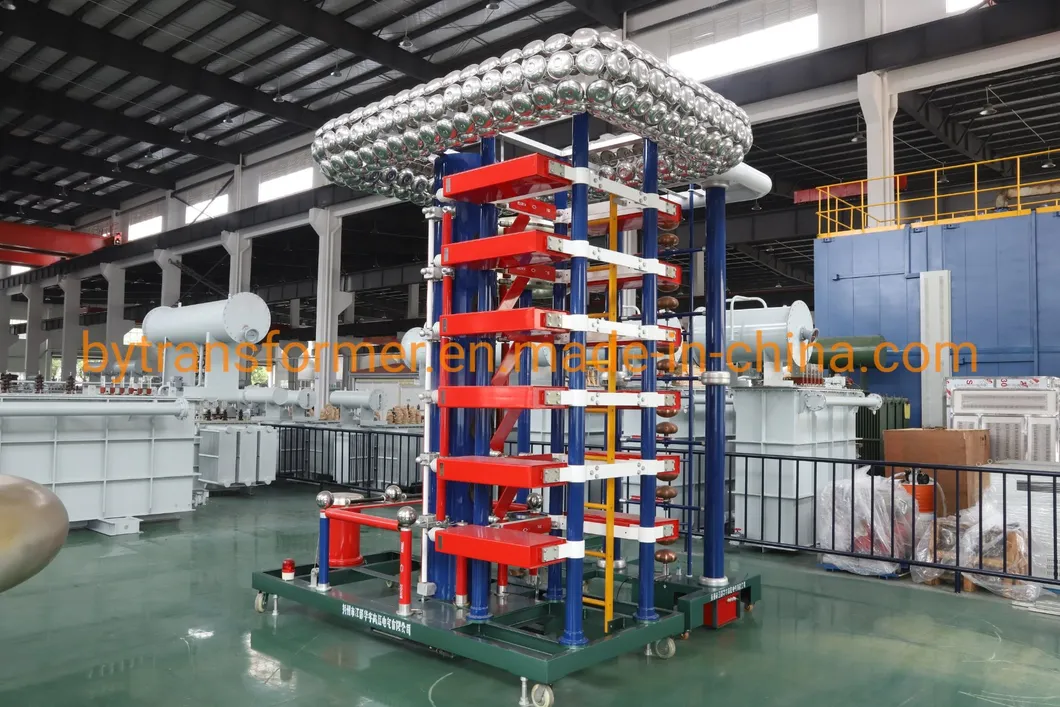

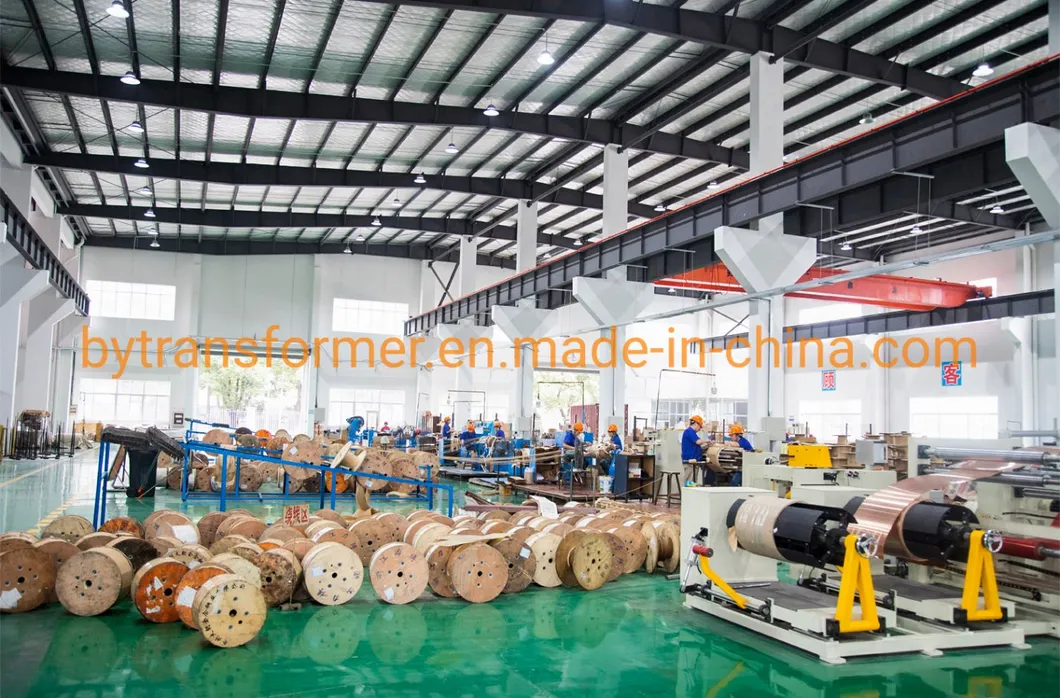

Workshop Photos
Customer Visit Photos
Technical Parameters:
| Model No. | Rated Capacity(KVA) | Voltage Combination | Connection group symbol | Loss(KW) | NO-LOAD Current (%) | Short circuit impedance(%) | Weight(KG) | Dimensions(MM)L*W*H/Lifting height | Track gauge(mm)(MM) | ||||
| HV(KV) | LV(KV) | NO-LOAD | ON-LOAD | Body | Oil | Total | |||||||
| SI3-1600/35 | 1600 | 35 ±2*2.5% or ±3*2.5% | 6.3 6.6 10 10.5 | Y,D11 Or D,Y11 | 1.85 | 16.67 | 0.8 | 6.5 | 2500 | 1380 | 5500 | 2580*1700*2530 | 820*1070 |
| S13-2000/36 | 2000 | 2.3 | 19.24 | 0.78 | 6.5 | 3130 | 1630 | 6350 | 2660*1890*2660 | 820*1070 | |||
| SI3-2500/35 | 2500 | 2.72 | 20.65 | 0.75 | 6.5 | 3800 | 1920 | 7950 | 2750*2000*2800 | 820*1070 | |||
| S13-3150/35 | 3150 | 3.35 | 25.2 | 0.75 | 7 | 4360 | 2200 | 9300 | 2880*2050*2950 | 1070*1070 | |||
| SI3-4000/35 | 4000 | 4 | 29.5 | 0.75 | 7 | 5190 | 2380 | 10900 | 3000*2260*3000 | 1070*1070 | |||
| SI3-5000/35 | 5000 | 4.8 | 32.8 | 0.7 | 7 | 6290 | 2650 | 12300 | 3120*2300*3150 | 1070*1070 | |||
| SI3-6300/35 | 6300 | 5.7 | 35.9 | 0.6 | 7.5 | 7200 | 3150 | 14200 | 3180*2330*3200 | 1070*1070 | |||
| SI3-8000/35 | 8000 | YN,D11 or D,Yn11 | 7.8 | 43.2 | 0.55 | 7.5 | 8950 | 3730 | 16900 | 3320*2850*3400 | 1505*1505 | ||
| SI3-10000/35 | 10000 | 8.65 | 48.3 | 0.55 | 7.5 | 11000 | 4120 | 20200 | 3530*2980*3450 | 1505*1505 | |||
| SI3-12500/35 | 12500 | 10.7 | 55.5 | 0.45 | 8 | 12850 | 4300 | 22500 | 3730*3060*3500 | 1505*1505 | |||
| SI3-16000/35 | 16000 | 13.2 | 67.3 | 0.45 | 8 | 16300 | 5200 | 29300 | 4000*3320*3700 | 1505*1505 | |||
| SI3-20000/35 | 20000 | 15.3 | 77.9 | 0.4 | 8 | 19500 | 6020 | 35800 | 4100*3400*3830 | 1505*1505 | |||
| SI3-25000/35 | 25000 | 17 | 94.3 | 0.36 | 8 | 21800 | 6820 | 39300 | 4250*3530*4050 | 1505*1505 | |||
| SI3-31500/35 | 31500 | 22.22 | 119.3 | 0.3 | 8 | 25350 | 9200 | 44950 | 4400*3600*4300 | 1800*1505 | |||
| SZ13-2000/35 | 2000 | 35 ±2*2.5% or ±3*2.5% | 6.6 10 10.5 | Y,D11 or DY11 | 2.88 | 20.3 | 0.8 | 6.5 | 2780 | 1650 | 6140 | 2150*1900*2300 | 820*1070 |
| SZ13-2500/35 | 2500 | 3.4 | 22 | 0.8 | 6.5 | 3570 | 1850 | 6780 | 2780*2000*2530 | 820*1070 | |||
| SZ13-3150/35 | 3150 | 4.04 | 26.8 | 0.8 | 7 | 3700 | 1910 | 7500 | 2960*2050*2940 | 1070*1070 | |||
| SZ13-4000/35 | 4000 | 4.84 | 31.2 | 0.75 | 7 | 4350 | 2170 | 8550 | 3180*2380*3100 | 1070*1070 | |||
| SZ13-5000/35 | 5000 | 5.8 | 36 | 0.72 | 7 | 5230 | 2240 | 9800 | 2980*3110*2740 | 1070*1070 | |||
| SZ13-6300/35 | 6300 | 7.04 | 38.7 | 0.68 | 7.5 | 6300 | 2700 | 11800 | 3320*3330*2950 | 1070*1070 | |||
| SZ13-8000/35 | 8000 | YN,D11 or D,YN11 | 9.85 | 45.3 | 0.6 | 7.5 | 7780 | 3130 | 14500 | 3470*3130*3230 | 1505*1505 | ||
| SZ13-10000/35 | 10000 | 11.6 | 51.5 | 0.6 | 7.5 | 9500 | 3850 | 16900 | 3350*2880*3400 | 1505*1505 | |||
| SZ13-12500/35 | 12500 | 13.7 | 59.8 | 0.56 | 8 | 10630 | 4640 | 19800 | 3680*3160*3500 | 1505*1505 | |||
| SZ13-16000/35 | 16000 | 16.5 | 74.3 | 0.54 | 8 | 13300 | 5360 | 23300 | 3800*3220*3650 | 1505*1505 | |||
| SZ11-20000/35 | 20000 | 19.5 | 87.2 | 0.54 | 8 | 17500 | 7200 | 31200 | 4000*3350*3830 | 1800*1505 | |||
| SFZ11-15000/63 | 15000 | YN,D11 | 16.2 | 77 | 0.65 | 13.5 | 14500 | 11700 | 33800 | 6000*4670*3050 | 2040*1475 | ||
FAQ
6.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Suzhou City, Jiangsu Province.
6.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
A: All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
A: T/T, L/C is very well used.
6.6.Q: What about the production?
A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
A: Yes, no problem.
6.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
We are professional transformer manufacturer with 15 years' experience, we mainly supply power transformer for electrical power system, rectifier transformer for electrochemistry industry and furnace transformer for industrial electric furnace smelting.
We already exported our transformers to Europe, Middle East, Africa, Australia, North America and South America. We have ISO, CE, SGS certificates.
Company Panorama
Workshop Photos
Customer Visit Photos
