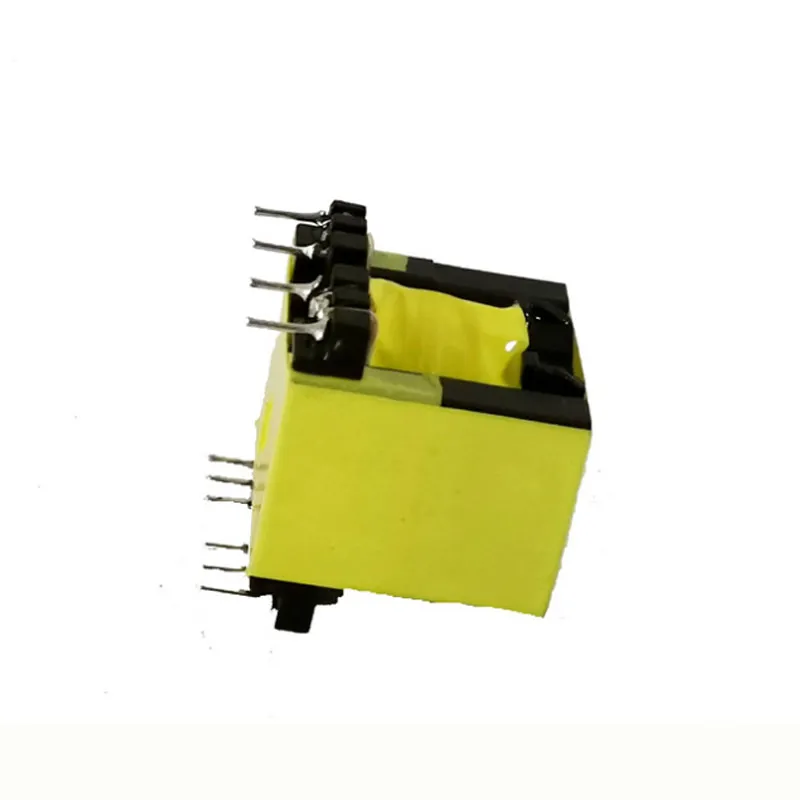

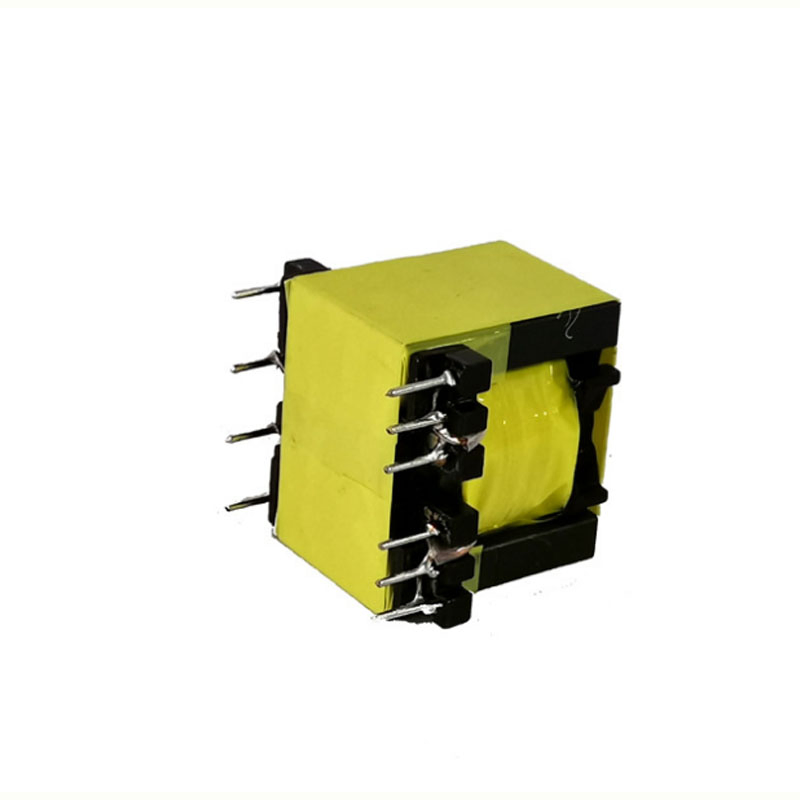

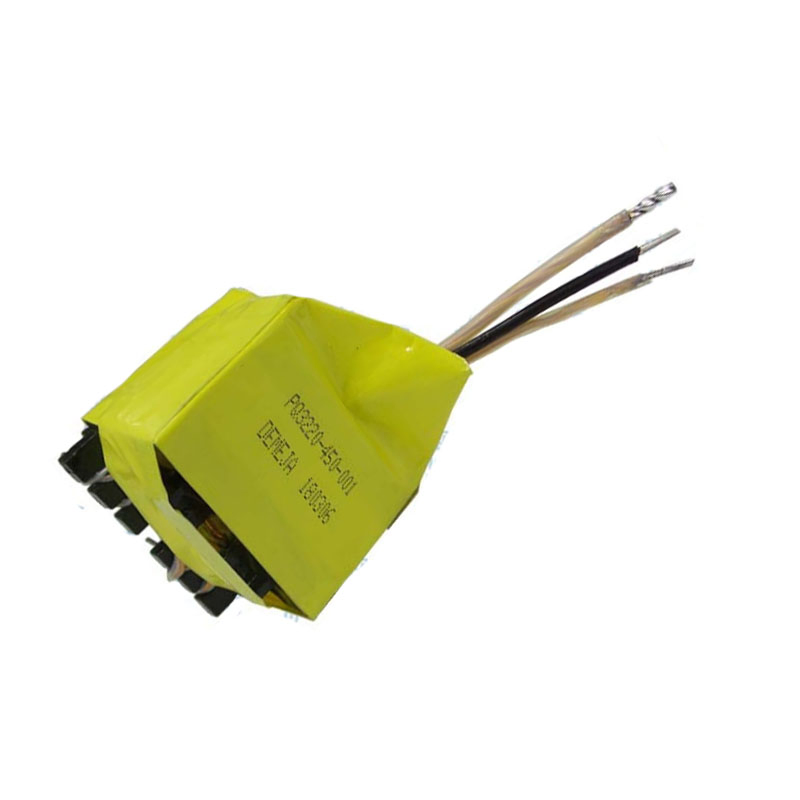

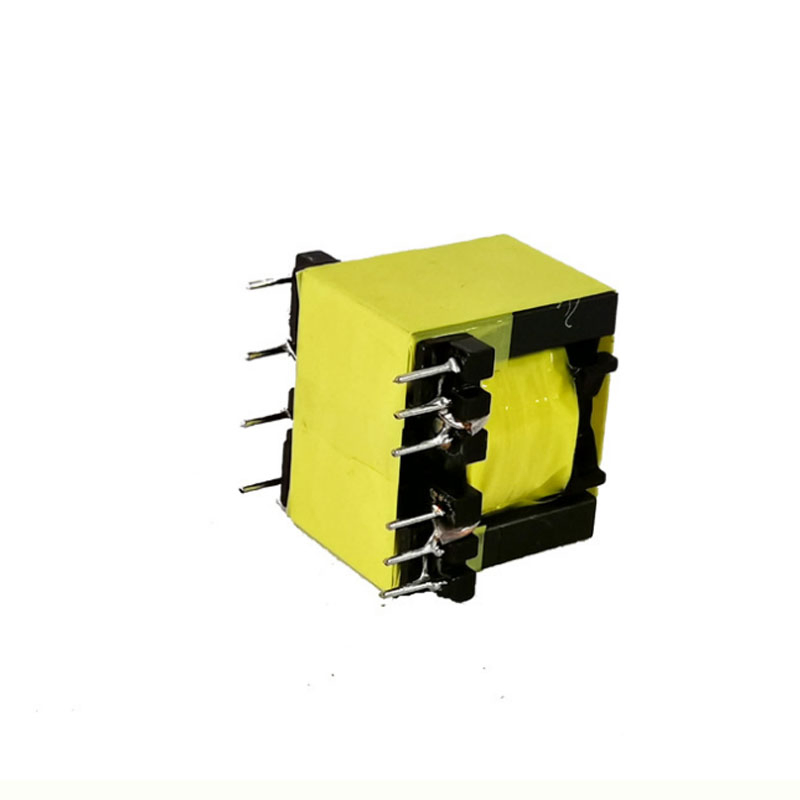

Pot Series Ferrite Core Transformer Flyback Transformer Step-Down AC 24V 220V High Frequency Transformer

Pot series ferrite core transformer flyback transformer step-down AC 24v 220v high frequency transformer

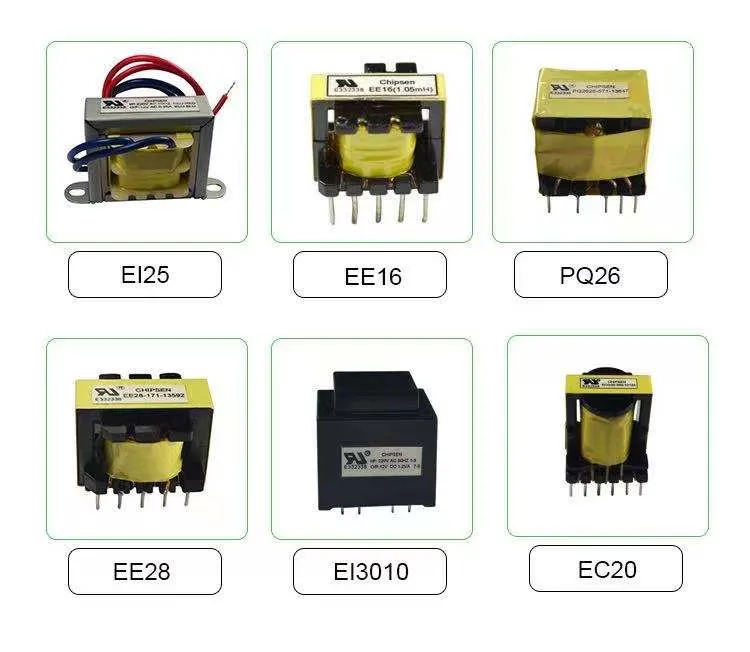

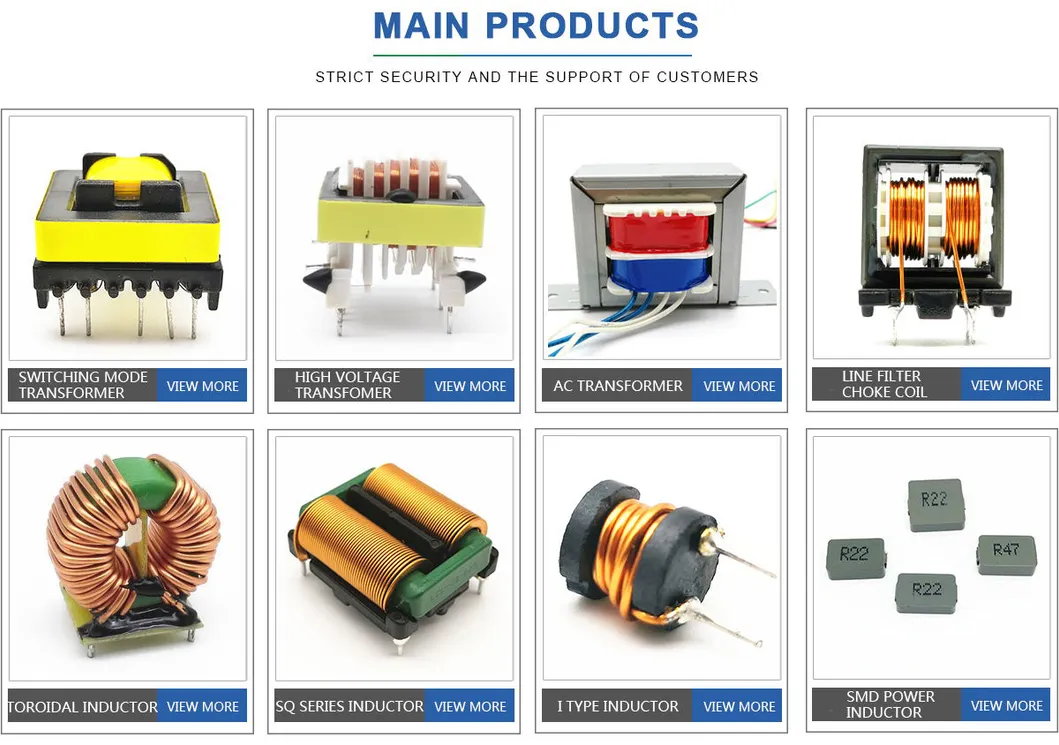

Our products


NO.	Product Name	Type	Detailed Size
1	High frequency transformers	EE	EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85
		EC/ER	ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49
		ETD	ETD29, ETD35, ETD40, ETD49
		EF	EF16, EF20, EF25
		EFD	EFD15, EFD20/21, EFD25/26, EFD30
		EDR	EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008
		EP	EP7, EP10, EP13
		EPC	EPC11.5, EPC13, EPC19, EPC25
		EQ	EQ2512, EQ2610, EQ3209, EQ4013,
		POT	POT3016, POT3930
		PQ	PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49
		RM	RM6, RM8, RM10, RM12, RM14
2	Common mode chokes(Line filters)	UU	UU9.8, UU10.5, UU16
		ET	ET20, ET24, ET28, ET35
		SQ	SQ1212, SQ1515, SQ2418
		FT	FT20-22, FT20-21, FT20-15, FT20-13, FT20-10
		Toroidal	6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 5X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core)
3	Inductors(Choke coils)	Peaking/Drum	4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20
		Toroidal	6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16
		Rod	3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30
4	SMD power inductors	Unshielded	MT, MTQ, MTF, MTG
		Shielded	MTH, MTHII, MTP, MTB, MTE, MTL, MTF
5	Low frequency transformers	EI	EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5,  EI41,EI48,  EI57, EI60, EI66, EI74,  EI76, EI86, EI96, EI105, EI114
		Toroidal	OD:40mm---130mm;ID:20mm---100mmm;H:10mm---50mm.
6	Planar transformer	EI	Ei22
7	CT	UF	UF15,Zero sequence current transformer, precision current transformer
8	Coil	T	185*60,23.8

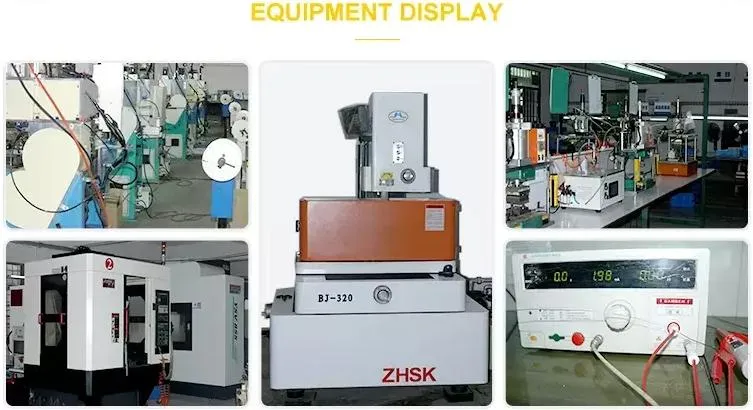

Equipment Exhibition

Kindly reminder:  This is cu
stom transformer, don't place order directly before parameter confirmatio
Kindly Reminder:


1.About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the  parameters and the amount of orders.
3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
4. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
5. We have an independent order system, with the overall tracking function from raw materials purchasing to finished goods outgoing.6. We have got ISO9001:2015 quality management system; ISO14001:2015 environment management system; health and safety management systems-Requirement, IATF16949, UL certification.
7. Independent laboratory for car magnetic. It meets all the car component test.
8. Our factory can meet various needs.

Note:


welcome to inquire, tell us the demand parameters, design drawing or material requirements, inductance coil number than leakage inductance angle, voltage withstand input and output voltage and other detailed information, we can customize according to the requirements, please contact before payment, we implement the principle of large quantity first! Please confirm before placing an order, the quantity is different and the price is different.
