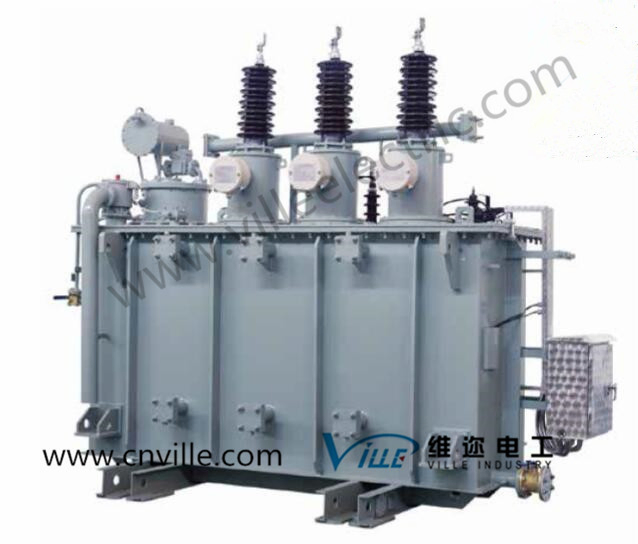

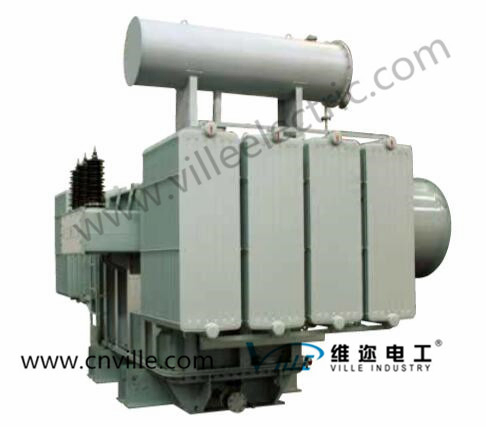

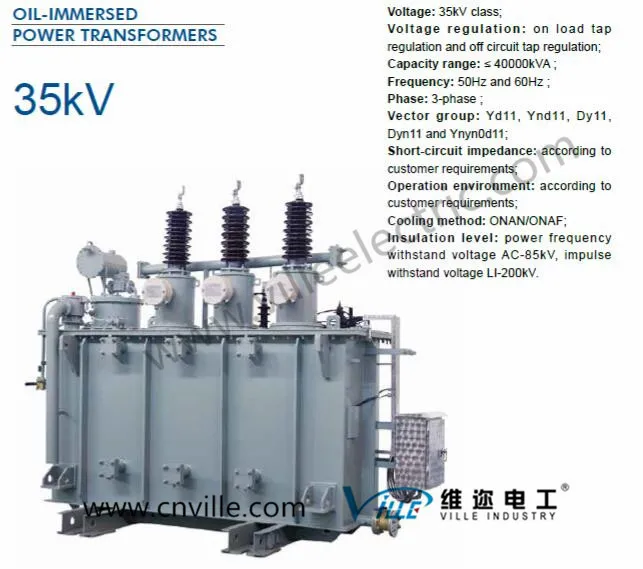

S11- 31500 /35 31.5mva S11 Series 35kv Power Transformer with on Load Tap Changer
Technial parameters:Model:S11-31500/35Rated Capacity(KVA):31500Rated Voltage HV(KV):35/38.5Rated Voltage LV(KV):3.15HV Tapping Range:±2x2.5%Vector group:YNd11No-load Losses(KW):19.95Load Losses(KW):105.6No-load Current(%):0.3Impedance Voltage(%):8Reference project:Our advantages:Quality A......
Send Inquiry
Product Description

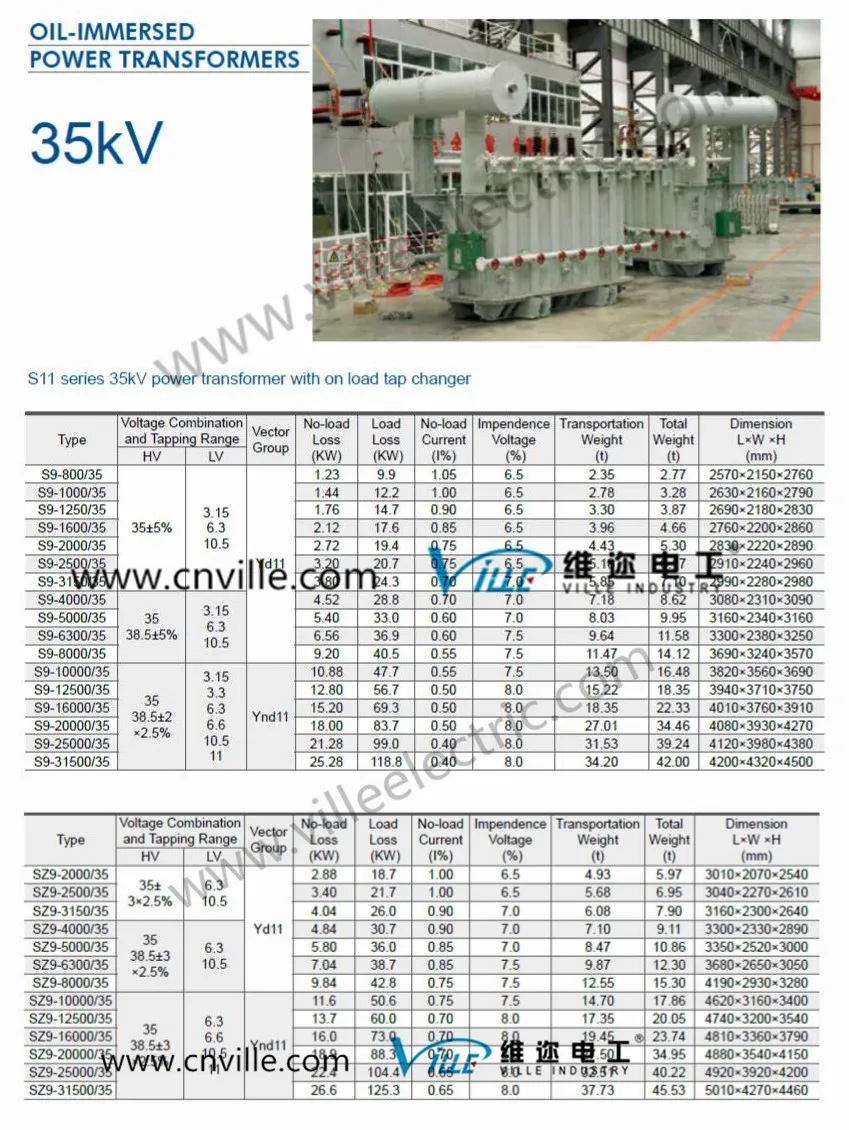

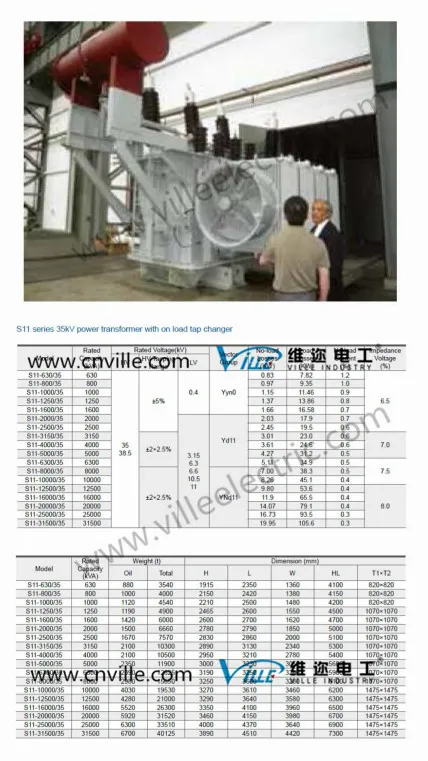

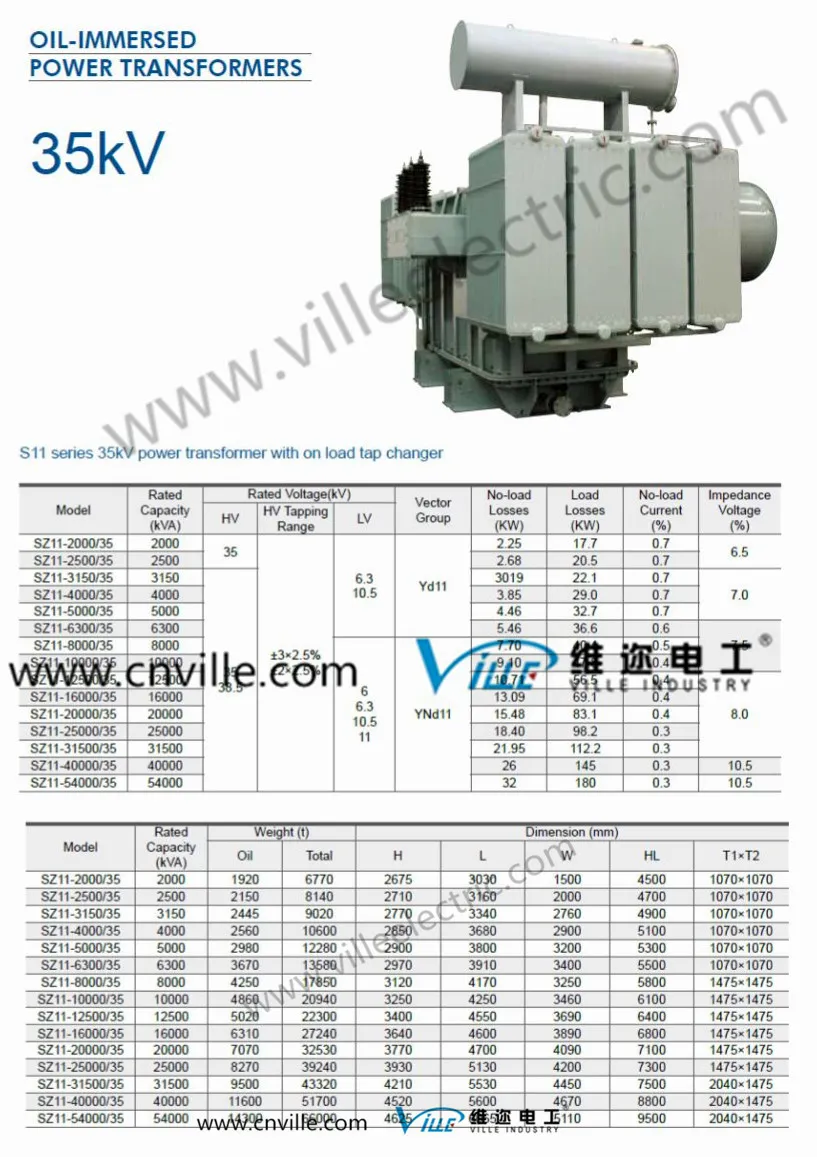

Technial parameters:
| Model: | S11-31500/35 |
| Rated Capacity(KVA): | 31500 |
| Rated Voltage HV(KV): | 35/38.5 |
| Rated Voltage LV(KV): | 3.15 |
| HV Tapping Range: | ±2x2.5% |
| Vector group: | YNd11 |
| No-load Losses(KW): | 19.95 |
| Load Losses(KW): | 105.6 |
| No-load Current(%): | 0.3 |
| Impedance Voltage(%): | 8 |

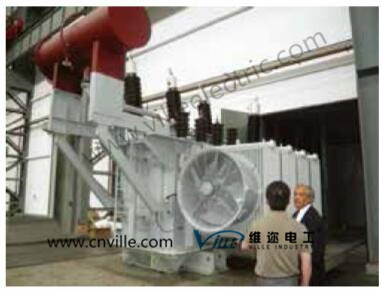

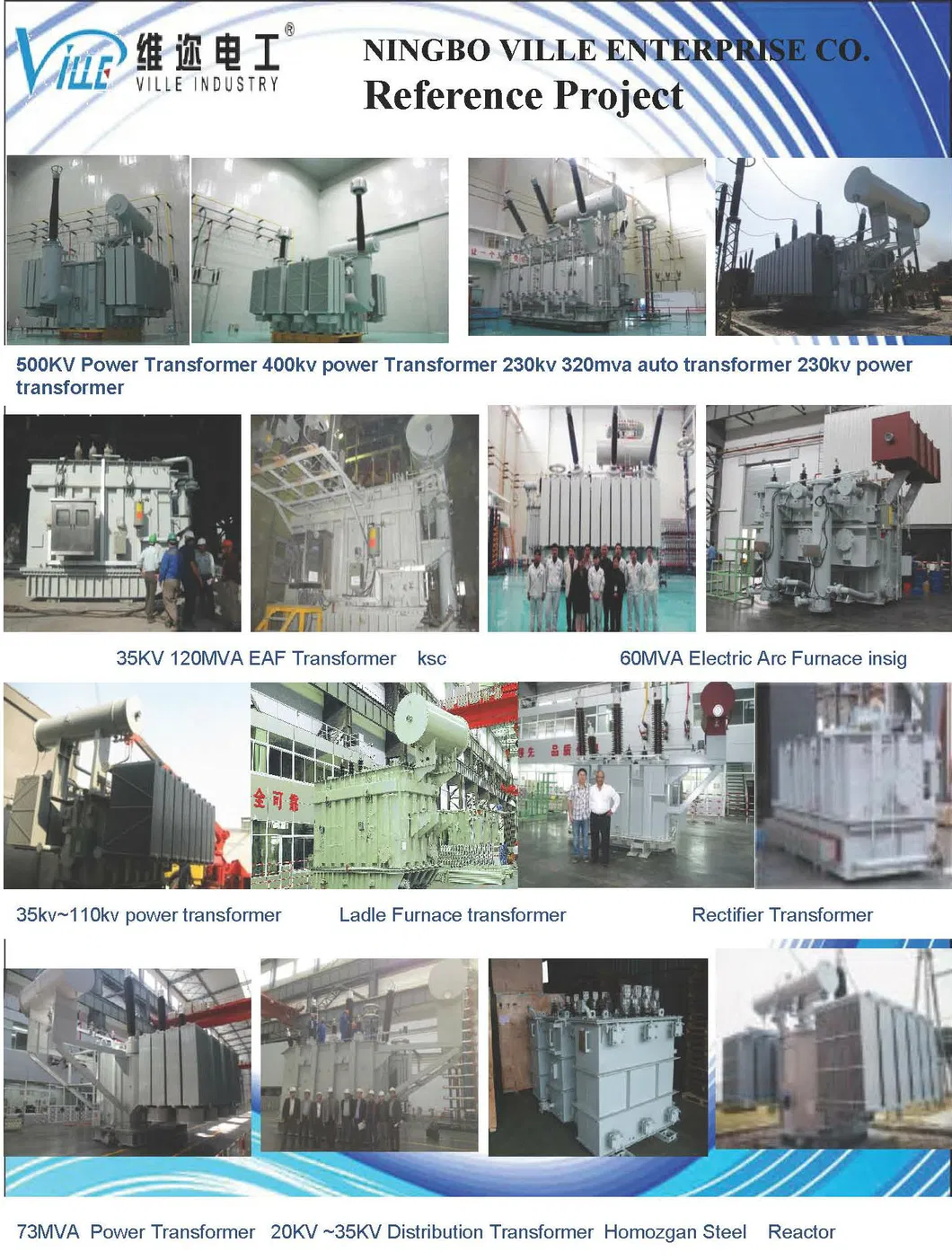

Reference project:
Our advantages:
Quality Assurance
--From the very beginning, VILLE ensures quality in every step to achieve the best quality.
Experience Sharing
--With more than 30 years' experience in power industry, VILLE brings you an optimized solution.
Global Service
--Wherever you are, VILLE global network will support and provide you with value.
Quick Response
--In response to your needs without delay, VILLE knows the value of your time.
Thanks for choosing VILLE as your reliable partner and
please trust both of us will create a brilliant future!
