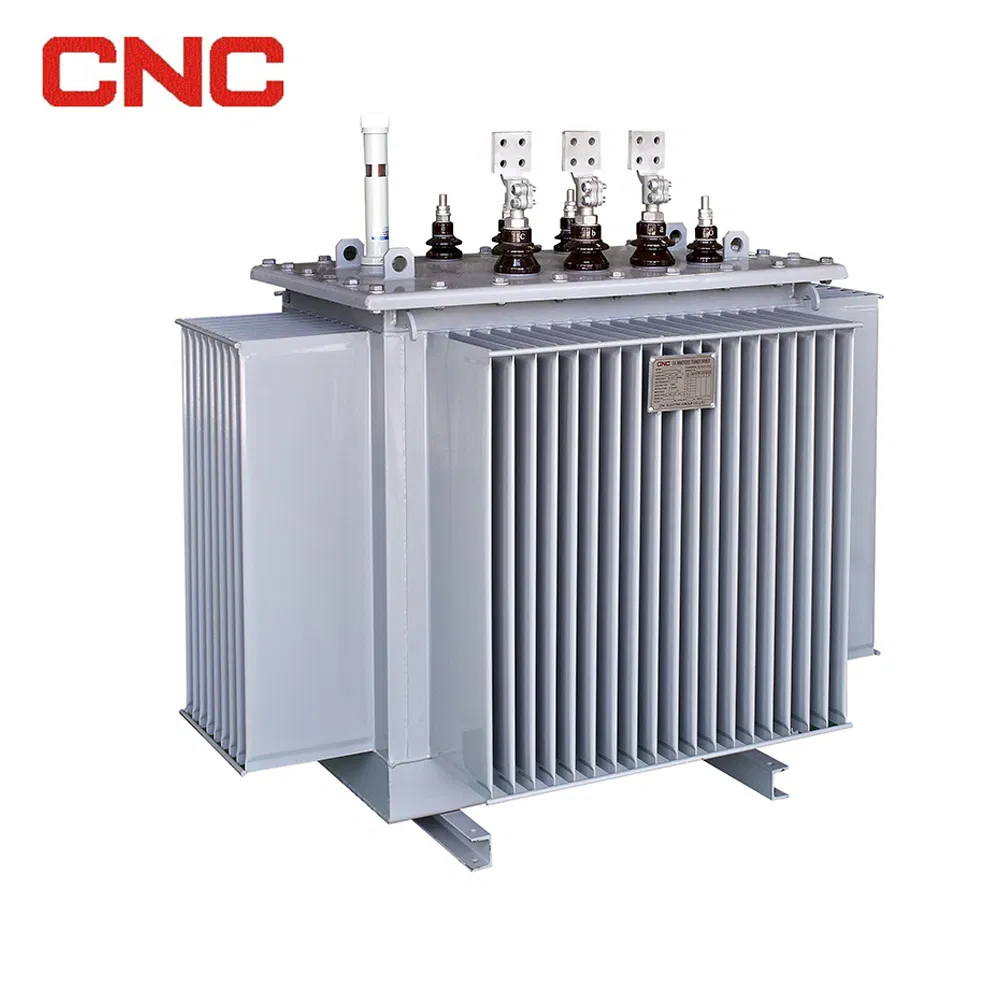

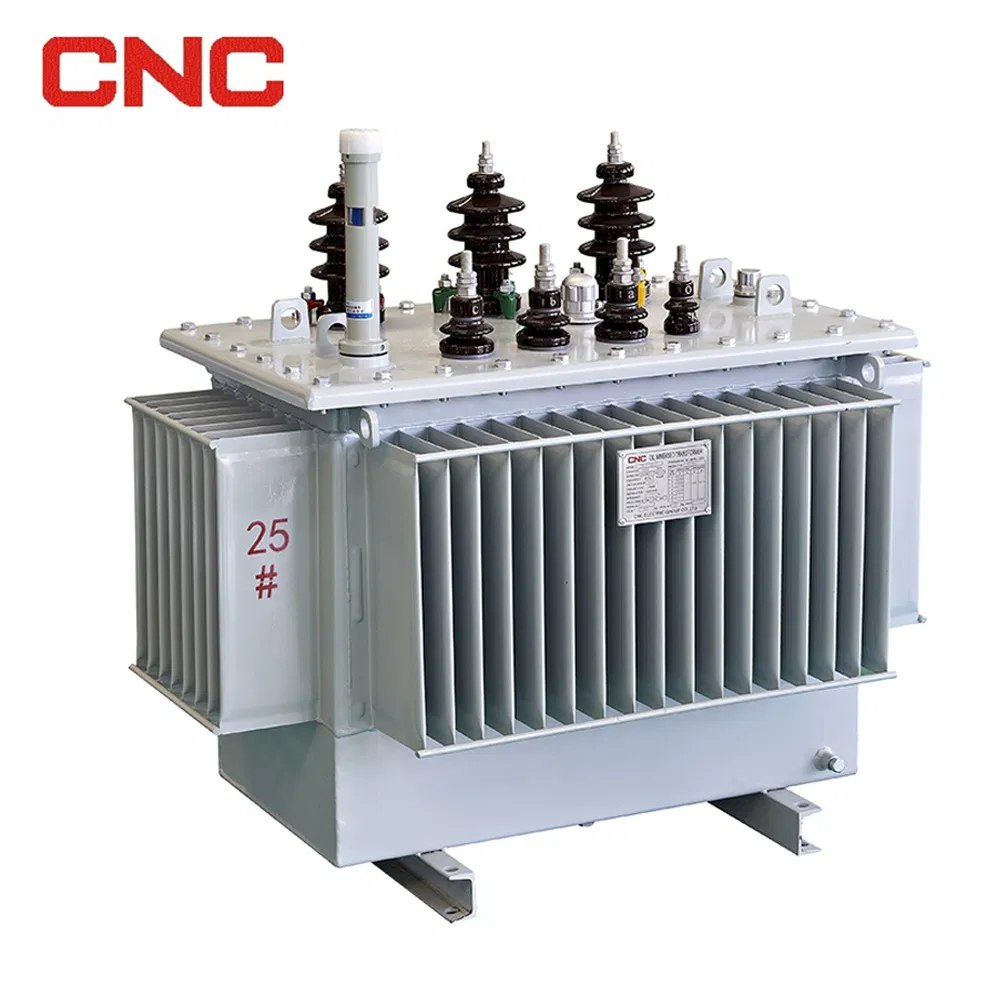

Three Two-Winding 150 kVA Control Thermostats Oil Immersed Transformer with Low Price

Product Description

Three Two-winding 150 kva Control thermostats Oil Immersed Transformer with Low Price

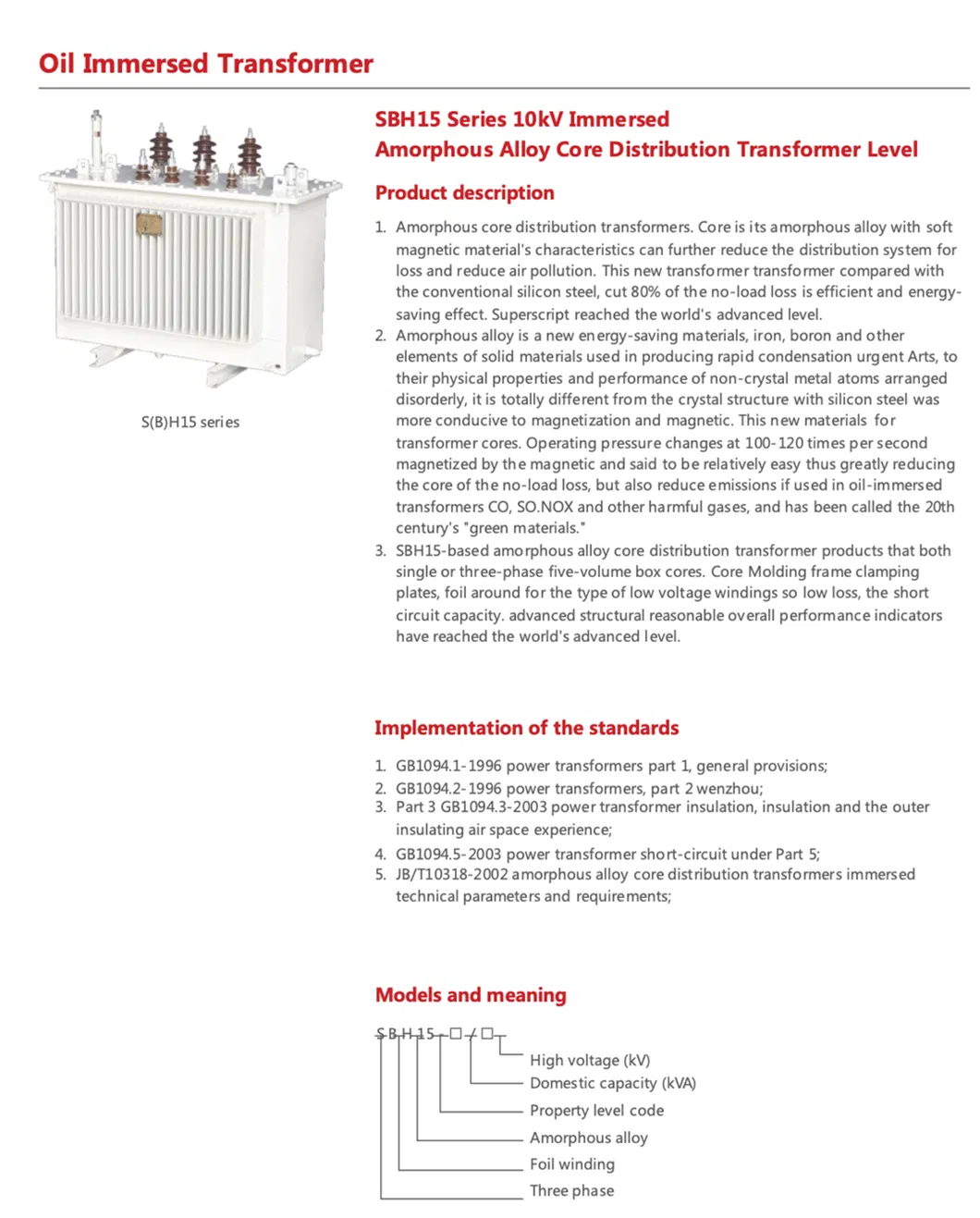

1.Amorphous core distribution transformers. Core is its amorphous alloy with soft magnetic material's characteristics can further reduce the distribution system for loss and reduce air pollution. This new transformer transformer compared with the conventional silicon steel, cut 80% of the no-load loss is efficient and energy- saving effect. Superscript reached the world's advanced level.
2.Amorphous alloy is a new energy-saving materials, iron, boron and other elements of solid materials used in producing rapid condensation urgent Arts, to their physical properties and performance of non-crystal metal atoms arranged disorderly, it is totally different from the crystal structure with silicon steel was more conducive to magnetization and magnetic. This new materials for transformer cores. Operating pressure changes at 100-120 times per second magnetized by the magnetic and said to be relatively easy thus greatly reducing the core of the no-load loss, but also reduce emissions if used in oil-immersed transformers CO, SO.NOX and other harmful gases, and has been called the 20th century's "green materials."
3.SBH15-based amorphous alloy core distribution transformer products that both single or three-phase five-volume box cores. Core Molding frame clamping plates, foil around for the type of low voltage windings so low loss, the short circuit capacity. advanced structural reasonable overall performance indicators have reached the world's advanced level.
Three Two-Winding 150 kVA Control Thermostats Oil Immersed Transformer with Low Price

Main technical parameters

Type	Rated capacity (kVA)	No-loadloss (W)	No-load current (%)	Load loss 75ºC (W)		Short circuit impedance (%)	Noise level (db)
Type	Rated capacity (kVA)	No-loadloss (W)	No-load current (%)	(Y)	(D)	Short circuit impedance (%)	Noise level (db)
S(B)H15-50/10	50	43	1.3	870	910	4	50
S(B)H15-100/10	100	75	1.0	1500	1580	4	52
S(B)H15-160/10	160	100	0.7	2200	2310	4	54
S(B)H15-200/10	200	120	0.7	2600	2730	4	56
S(B)H15-250/10	250	140	0.7	3050	3200	4	56
S(B)H15-315/10	315	170	0.5	3650	3830	4	58
S(B)H15-400/10	400	200	0.5	4300	4520	4	58
S(B)H15-500/10	500	240	0.5	5150	5410	4	60
S(B)H15-630/10	630	320	0.3	6200	6200	4.5	60
S(B)H15-800/10	800	380	0.3	7500	7500	4.5	62
S(B)H15-1000/10	1000	450	0.3	10300	10300	4.5	62
S(B)H15-1250/10	1250	530	0.3	12000	12000	4.5	65
S(B)H15-1600/10	1600	630	0.2	14500	14500	4.5	65
S(B)H15-2000/10	2000	750	0.2	17400	17400	5	65
S(B)H15-2500/10	2500	900	0.2	20200	20200	5	67

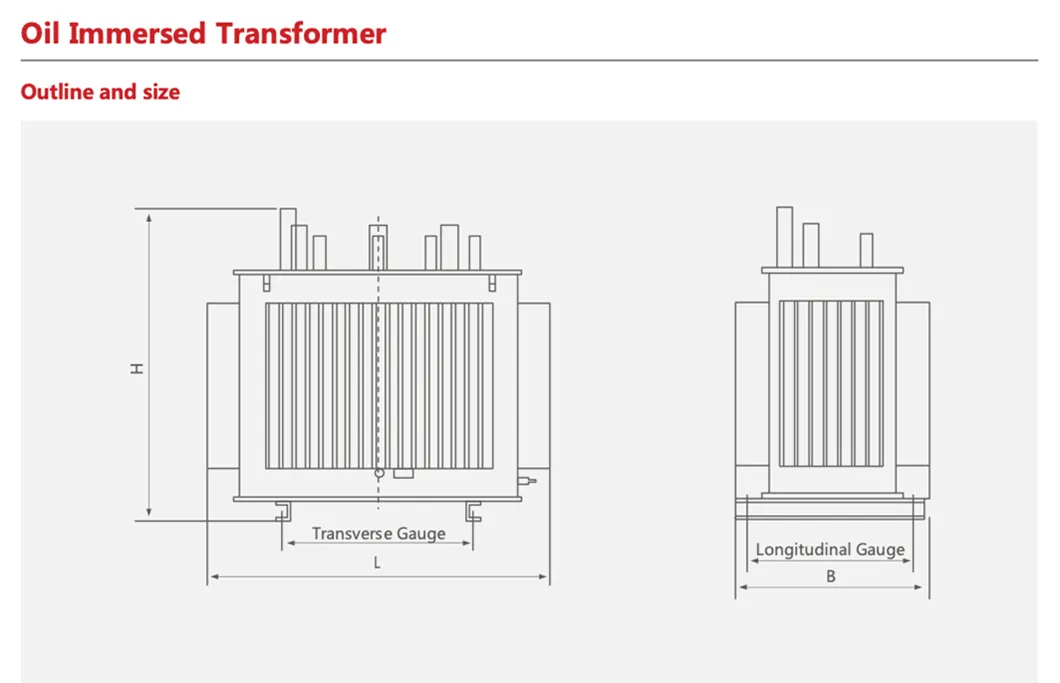

Type	Rated capacity (kVA)	The dimension (mm) L×B×H	Gauge (mm)		Oil weight (kg)	Total weight (kg)
Type	Rated capacity (kVA)	The dimension (mm) L×B×H	Transverse	Longitudinal	Oil weight (kg)	Total weight (kg)
S(B)H15-50/10	50	950×620×1040	660	580	160	680
S(B)H15-100/10	100	1060×770×1070	820	720	180	880
S(B)H15-160/10	160	1100×830×1200	820	760	200	1100
S(B)H15-200/10	200	1150×850×1250	820	760	220	1190
S(B)H15-250/10	250	1260×870×1200	820	760	250	1350
S(B)H15-315/10	315	1350×910×1250	820	840	280	1600
S(B)H15-400/10	400	1450×920×1300	820	840	330	1900
S(B)H15-500/10	500	1410×960×1260	820	840	350	2100
S(B)H15-630/10	630	1900×980×1450	1070	840	420	2460
S(B)H15-800/10	800	1980×1000×1350	1070	900	500	2900
S(B)H15-1000/10	1000	2060×1160×1310	1070	1020	550	3300
S(B)H15-1250/10	1250	2160×1190×1450	1070	1020	680	4000
S(B)H15-1600/10	1600	2250×1380×1600	1070	1220	750	4600
S(B)H15-2000/10	2000	2410×1460×1620	1070	1220	840	5300
S(B)H15-2500/10	2500	2520×1520×1680	1070	1380	950	6200
